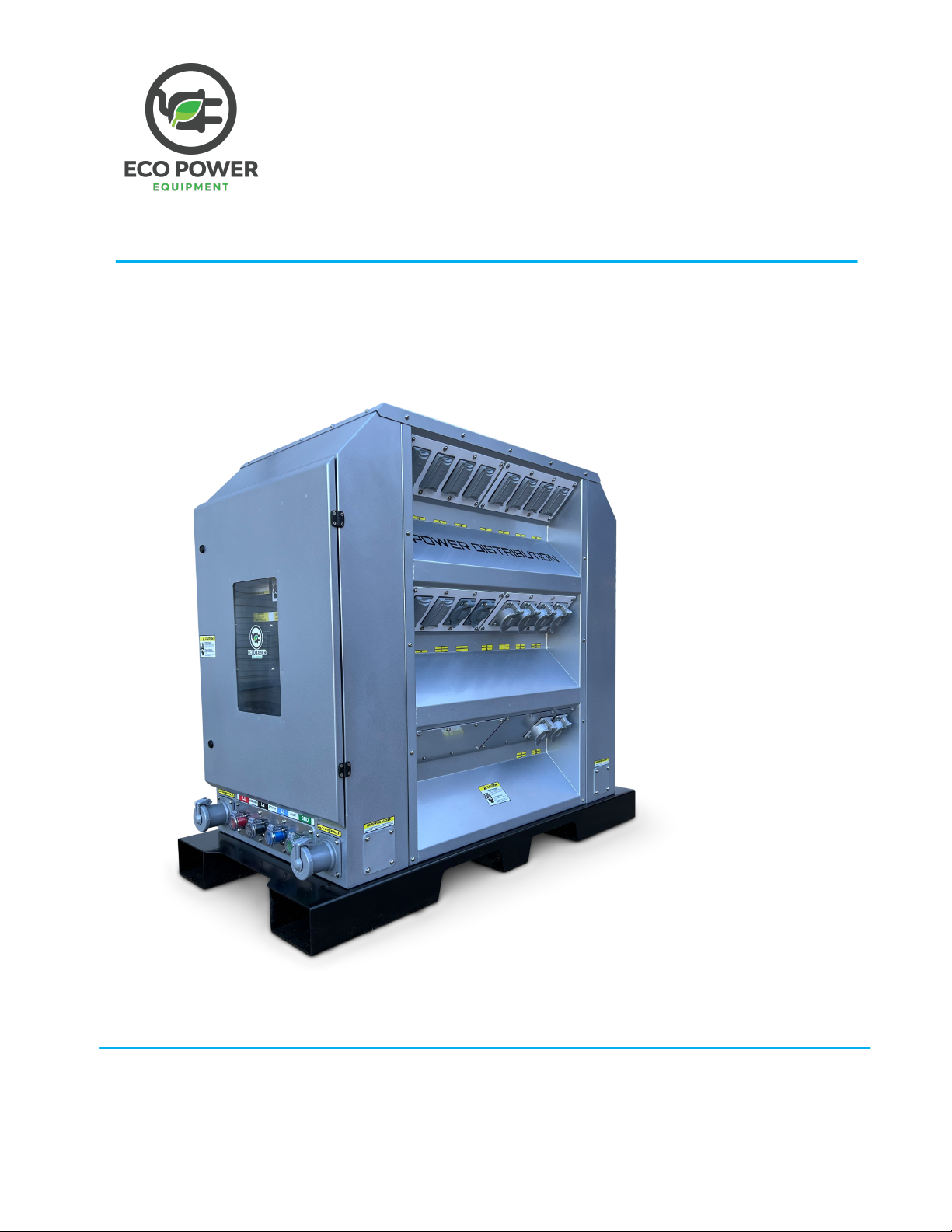

EcoPower SBP-XFMR Series Guida
Installation and User Instructions
SBP-XFMR Series
2
March 2022
Version 1.0
DISCLAIMER
Eco Power Equipment Ltd. makes no representations or warranties with respect to this manual and, to
the maximum extent permitted by law, expressly limits its liability for breach of any warranty that may be
implied to the replacement of this manual with another. Furthermore, Eco Power Equipment Ltd.
reserves the right to revise this publication at any time without incurring an obligation to notify any
person of the revision.
The information provided in this documentation contains general descriptions and/or technical
characteristics of the performance of the products contained herein. This documentation is not intended
as a substitute for and is not to be used for determining suitability or reliability of these products for
specific user applications. It is the duty of any such user or integrator to perform the appropriate and
complete risk analysis, evaluation and testing of the products with respect to the relevant specific
application or use thereof. Neither Eco Power Equipment Ltd. nor any of its affiliates or subsidiaries shall
be responsible or liable for misuse of the information that is contained herein. If you have any
suggestions for improvements or amendments or have found errors in this publication, please notify us.
All pertinent state, regional, and local safety regulations must be observed when installing and using this
product.
When devices are used for applications with technical safety requirements, the relevant instructions
must be followed.
Failure to observe this information can result in injury or equipment damage.
Copyright © 2019 by Eco Power Equipment Ltd.
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any
form or by any means, including photocopying, recording, or other electronic or mechanical methods,
without the prior written permission of the publisher. For permission requests, write to the publisher,
addressed “Attention: Permissions Coordinator,” at the address below.
Eco Power Equipment Ltd.
8, 26004 TWP 544, Sturgeon County, AB, T8T 0B6, Phone: 1-888-483-4843
3
TRADEMARKS
Eco Power Equipment Ltd. has made every effort to supply trademark information about company
names, products, and services mentioned in this manual. Trademarks shown below were derived from
various sources. All trademarks are the property of their respective owners.
General Notice: Some product names used in this manual are used for identification purposes only and
may be the trademarks of their respective companies.
Product Modifications
Year
Type
Modifications
2022
1
SBP-XFMR V1
Document Revisions
Date
Version Number
Document Changes
4
Table of Contents
1. PREFACE 7
Description of the User 7
Conventions Used in This Manual 7
Explanation of Safety Warnings 8
Retaining Instructions 8
Obtaining Documentation and Information 9
Internet 9
Ordering Documentation 9
Other languages 9
Documentation Feedback 9
Support and service 9
Description of the product 10
Intended Use and Reasonably Foreseeable Misuse 10
Setup Process 12
Connecting 14
Disconnecting 14
Replacement parts of HUBBELL®SINGLE POLE DEVICES 14
How to Use the Product 16
Safety information 16
Technical life span 20
Personal Protective Equipment 20
Inspection Tasks 21
Before use inspection tasks (never open a live panel, see above safety recommendations) 21
Quarterly Inspection tasks 21
5
1. PREFACE
1.1 Description of the User
This manual is intended to support end users of the Eco Power Equipment SBP power distribution products. Our
products are designed and intended to provide site power solutions for temporary and prime rated power on a variety of
applications including construction job site, oil, and gas job sites, pipelines, events, security, and government or military
operations.
The user will deploy and set up the SBP and should be qualified and follow all instructions contained in this operating
manual.
1.2 Conventions Used in This Manual
The following style conventions are used in this document:
Bold
Names of product elements, commands, options, programs, processes, services, and utilities Names of interface
elements (such windows, dialog boxes, buttons, fields, and menus)
Interface elements the user selects, clicks, presses, or types
Italic
Publication titles referenced in text
Emphasis (for example a new term)
Variables
Courier
System output, such as an error message or script
URLs, complete paths, filenames, prompts, and syntax
User input variables
< > Angle brackets surround user-supplied values
[ ] Square brackets surround optional items
| Vertical bar indicates alternate selections - the bar means “or”
6
1.3 Explanation of Safety Warnings
Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury
Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
Indicates information considered important, but not hazard-related.
1.4 Retaining Instructions
Read and understand this manual and its safety instructions before using this product. Failure to do so can result in
serious injury or death.
Follow all the instructions. This will avoid fire, explosions, electric shocks or other hazards that may result in damage to
property and/or severe or fatal injuries.
The product shall only be used by persons who have fully read and understand the contents of this user manual and
understand the safe operation of the machine.
Ensure that each person who uses the product has read these warnings and instructions and follows them.
Keep all safety information and instructions for future reference and pass them on to subsequent users of the product.
The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or
non-compliance with the safety instructions. In such cases, the warranty will be voided.
7
1.5 Obtaining Documentation and Information
1.5.1 Internet
The latest version of the documentation is available at the following address: http://www.ecopowerequip.com
1.5.2 Ordering Documentation
Documentation, user instructions and technical information can be ordered by calling Eco Power Equipment Ltd. at
1-888-483-4843
1.5.3 Other languages
This is the English user manual. Manuals in other languages are available upon request. Not all languages are covered.
1.5.4 Documentation Feedback
If you are reading Eco Power Equipment Ltd. product documentation on the internet, any comments can be submitted on
the support website. Comments can also be sent to support@ecopowerequip.com
We appreciate your comments.
1.5.5 Support and service
For information about special tools and materials please contact:
Eco Power Equipment
Address: #8, 26004 TWP 544, Sturgeon County, AB, T8T 0B6
Phone: 1-844-332-0924
Web: www.ecopowerequip.ca
For other questions, information, technical assistance, ordering user instructions, and service related information please
contact the manufacturer:
Eco Power Equipment Ltd.
Address: #8, 26004 TWP 544, Sturgeon County, AB, T8T 0B6
Phone: 1-888-483-4843
Web: www.ecopowerequip.com
8
2 Description of the product
2.1 Intended Use and Reasonably Foreseeable Misuse

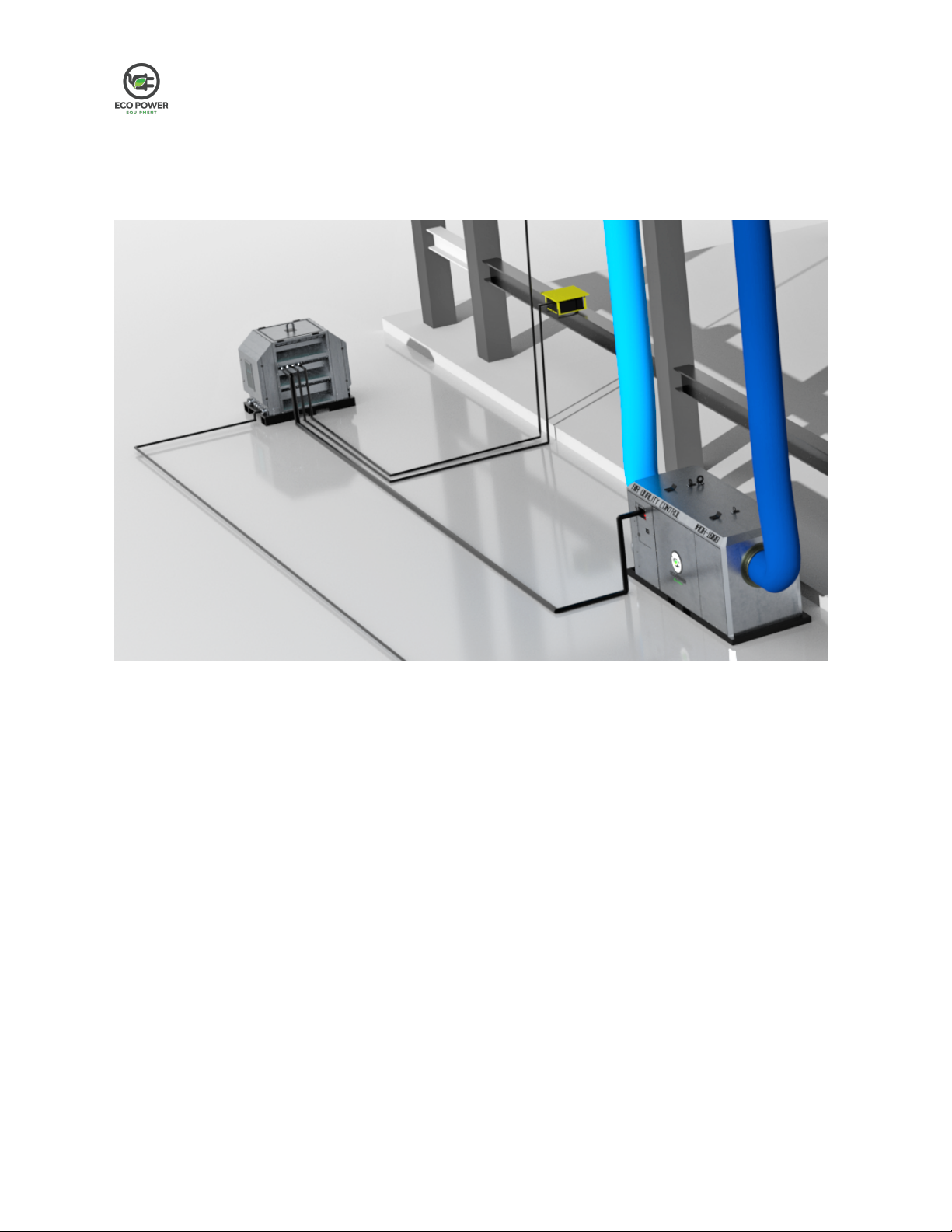

The machine is a mobile, skid-mounted transformer with ineghrated power distribution panel board and receptacle
outlets. This system is designed to support power distribution application. The Eco Power Equipment SBP unit consists of
a skid with power distribution equipment mounted within a NEMA 3R tested sheet metal enclosure.
This machine is intended for prime rated power requirements and has been designed to operate 24/7. This equipment is
also intended for the purpose of supplying electrical power to connected loads. Refer to the product rating plate for the
output voltage and frequency of the unit, and for the maximum output power limit of the panel.
This machine has been designed and built strictly for the intended use described above. Using the machine for any other
purpose could permanently damage the machine or seriously injure the operator or other persons in the area. Machine
damage caused by misuse is not covered under warranty.
The following are some examples of misuse:
Connecting a load that has voltage and frequency requirements that are incompatible with the rating
Overloading the machine with a device that draws excessive power during either continuous running or start-up
Operating the device in a manner that is inconsistent with all federal, provincial and local codes and regulations
Operating the machine outside of factory specifications
Operating the machine in a manner inconsistent with all warnings found on the machine and in the Operator’s Manual
This machine has been designed and built in accordance with the latest Canadian safety standards. It has been
engineered to eliminate hazards as far as practicable and to increase operator safety through protective guards and
labeling. However, some risks may remain even after protective measures have been taken. They are called residual risks.
On this machine, they may include exposure to:
Electric shock and arc flash
To protect yourself and others, make sure you thoroughly read and understand the safety information presented in this
manual before operating the machine
9
Follow safe Electrical Work Practices:
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
●Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E,
CSA Z462.
●This equipment must only be installed and serviced by qualified electrical personnel.
●Turn off all power supplying this equipment before working on or inside the equipment.
●Always use a properly rated voltage sensing device to confirm all power is off.
●Read and understand this entire instruction bulletin and the latest edition of the included NEMA PB 1.1
standards publication before installing, operating, or maintaining this equipment.
●Local codes vary, but are adopted and enforced to promote safe electrical installations. A permit may be needed
to do electrical work, and some codes may require an inspection of the electrical work.
●Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
10
