ecoStage LED MOVE STROBE 1000 Manuale utente
User manual
Please read the instructions carefully before use
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.
LED MOVE STROBE 1000
LED Strobe Wash Outdoor Moving Light
2
1. Dimension.................................................................................................................. 3
2. Safety Information................................................................................................... 3
3. Preparing for installation.........................................................................................5
4. Installation.................................................................................................................5
5. Connecting AC Power.............................................................................................. 6
6. Configuring the fixture............................................................................................ 7
7. Connecting to a DMX control device..................................................................... 8
8. Configuring the fixture for DMX control............................................................... 9
9. Cleaning................................................................................................................... 10
10. DMX protocols...................................................................................................... 10
11. Control menu........................................................................................................ 14
12. Specification..........................................................................................................16
STATEMENT
The product has well capability and intact packing when leave factory. All of
the user should comply with warning item and manual, any misuse cause of the
damages are not included in our guarantee, and also can not be responsible
for any malfunction & problem owing to ignore the manual.
TABLE OF CONTENTS
3

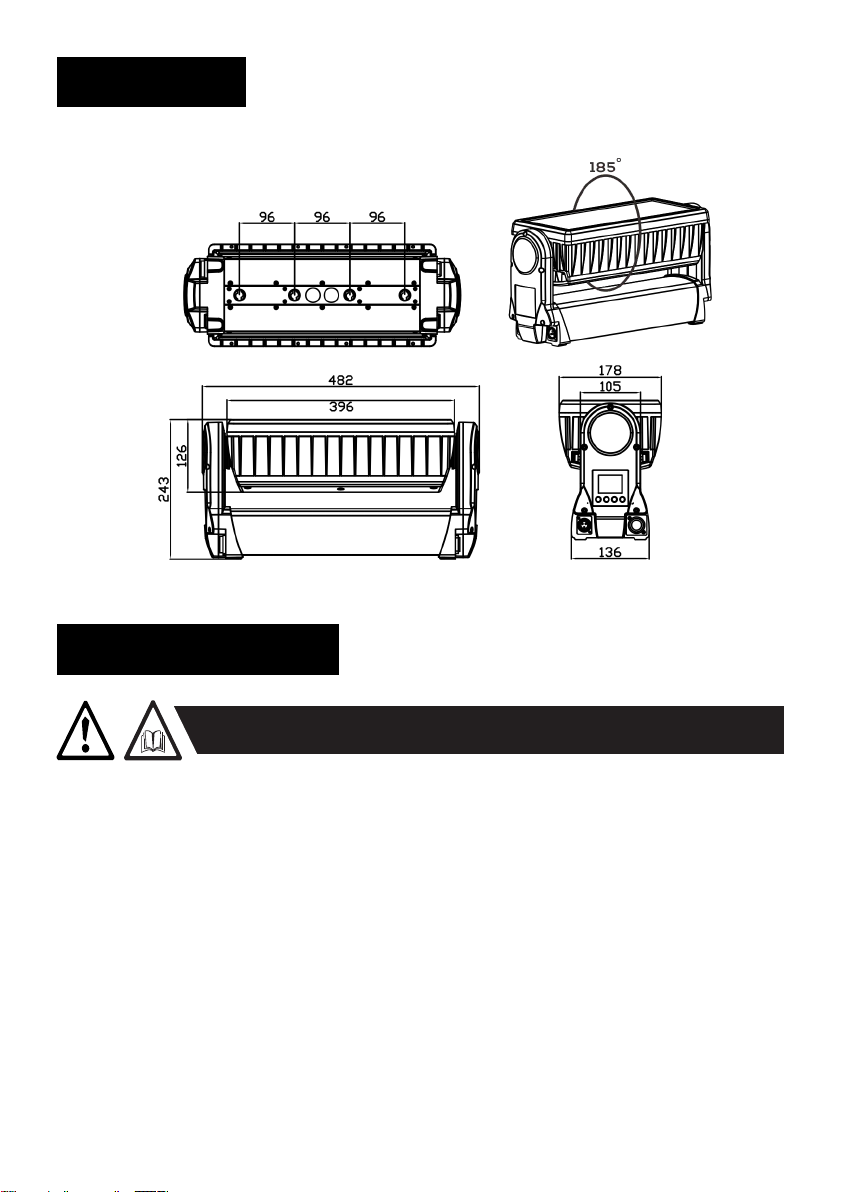

1. Dimension
2. Safety Informations
WARNING! Read the safety precautions in this section before
unpacking, installing, powering or operating this product.
This luminaries are multi-environmental fixtures with an IP-rating of 65,
intended for professional use only. They are not suitable for household use.
Review the following safety precautions carefully before installing or operating
the fixture. This fixture must be installed in accordance with the applicable
installation code by a person familiar with the construction and operation of the
fixture and the hazards involved.
Preventing electric shock
4
WARNING! Risk of electric shock.
Always power off/unplug the fixture before removing any covers.
Ensure that the power is turned off when connecting the fixture to the AC
mains supply.
Ensure that the fixture is electrically connected to earth (ground).
Do not apply power if the fixture is in any way damaged.
Do not immerse the fixture in water or liquid.
Preventing burns and fire
WARNING! Take measures to prevent burns and fire.
Install in a location that prevents accidental contact with the fixture.
Install only in a well-ventilated space.
Install at least 0.3 m (12 in.) away from objects to be illuminated.
Install only in accordance with applicable building codes.
Ensure a minimum clearance of 0.1 m (4 in.) around the cooling fans.
Do not paint, cover or modify the fixture.
Keep all flammable materials away from the fixture.
Allow the fixture to cool for 15 minutes after operation, before touching it.
CAUTION: Exterior surface temperature after 5 min. operation = 45 °C
(113 °F). Steady state = 60 °C (140 °F).
Avoid personal injury
WARNING! Take measure to prevent personal injury.
5
Do not look directly at the light source from close range.
Take precautions to prevent injury due to falls when working at height.
For permanent installation, ensure that the fixture is securely fastened to a
load-bearing surface with suitable corrosion-resistant hardware.
For temporary installation with clamps, ensure that the quarter-turn
fasteners are turned fully and secured with a suitable safety cable. The
cable must be approved for a safe working load (SWL) of 10 times the
weight of the fixture, and it must have a minimum gauge of 3 mm.
3. Preparing for installation
Unpack the fixture and inspect it to ensure that it has not been damaged during
transport.
The fixture is shipped with two quarter-turn brackets, that can be used to
mount the fixture at elevation.
The fixture is IP65-rated, and is designed for use in wet locations. This means
that it is protected from:
Dust, to the degree that dust cannot enter the fixture in sufficient
quantities as to interfere with its operation.
Lower pressure jets of water from any direction.
When selecting a location for the fixture, ensure that:
It is situated away from public thoroughfares and protected from contact
with people.
It is not immersed in water or exposed to high-pressure water jets.
It has adequate ventilation.
4. Installation
The fixture may be installed in any orientation, but if installed horizontally with
a downward beam-angle, water can potentially pool in the fan wells. Under
6
normal operation the moisture will evaporate. However, in locations with high
rainfall, you may wish to fabricate a rain shield above the fixture, or modify the
position and orientation of the fixture to minimize pooling.

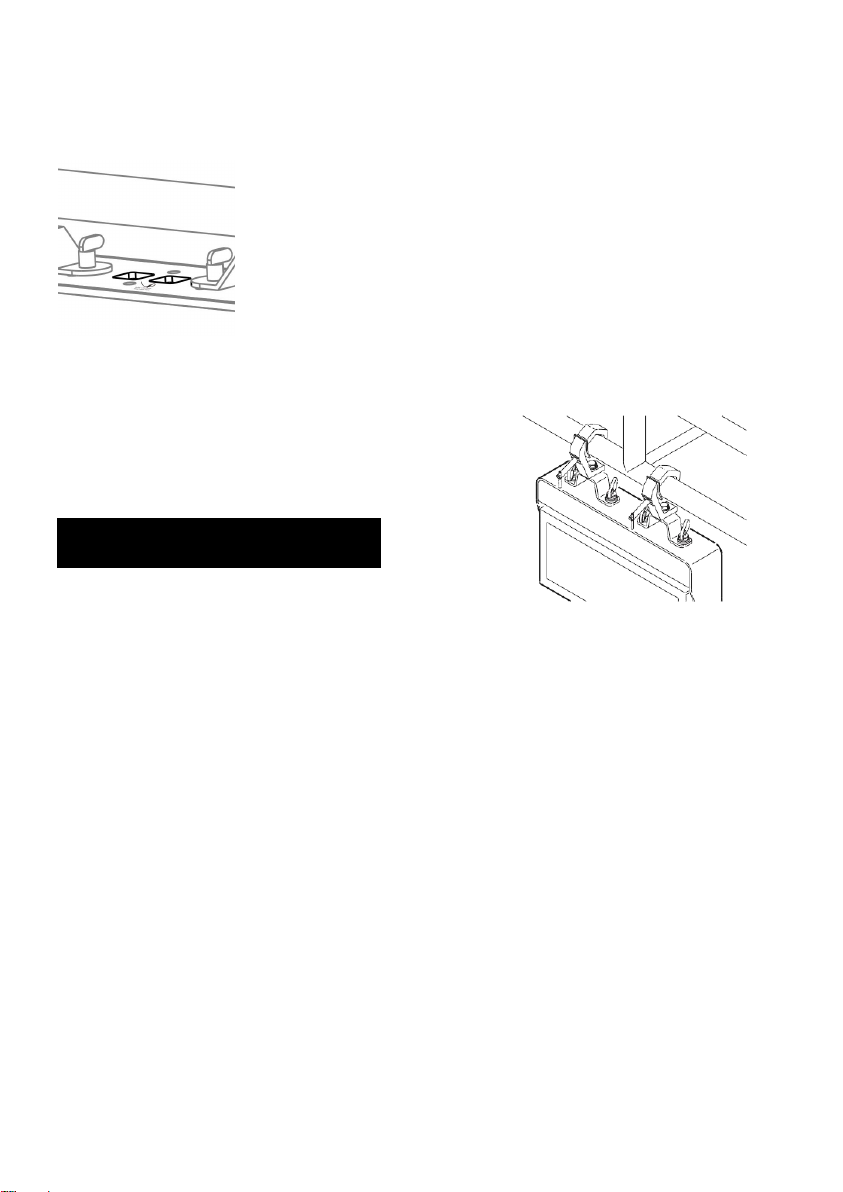

Two quarter-turn brackets are supplied with the fixture if
it is to be flown above the ground. Rig the fixture to a
support truss or structure using the supplied brackets and
suitable clamps.
Fasten a safety cable (not shown) between the support structure and the
attachment point on the fixture. The safety cable must be able to bear at least
10 times the weight of the fixture.
5. Connecting AC Power
The fixture can operate on any 100–240 V,
50/60 Hz AC mains power supply. It draws approximately 2 amps at full power.
For permanent installation, have a qualified electrician wire the mains cable
directly to a suitable branch circuit.
The junction’s ingress protection (IP) rating must be suitable for the location.
For temporary installation, the mains cable may be fitted with a grounded
connector intended for exterior use.
When installing standard type C circuit breakers there will be no limitations due
to the fixture in-rush current. Due to the nominal current of the fixture, ensure
that no more than:
4 fixtures are connected through the same type C, 10A circuit breaker.
7 fixtures are connected through the same type C, 16A circuit breaker.
The fixture must be grounded/earthed and be able to be isolated from AC
power. The AC power supply must incorporate a fuse or circuit breaker for fault
protection.
7
After connecting the fixture to power, run the on-board test, using the “Fixture
Text” menu, to ensure that the fixture and each LED are functioning correctly.
See “Control menu” on page 13.
CAUTION: Do not open the fixture to replace the supplied power cable, or
connect the fixture to an electrical dimmer system, as this can damage it.
6. Configuring the fixture
Set up the fixture using the control panel and LCD display at the arm side of the
fixture.
Navigate the menus and options using the arrow buttons and select items using
the Enter button. The options available are listed in “Control menu” on page 13.
After powering on, the display shows the currently selected operating mode
and other information.
The fixture is set by default to be controlled in DMX mode.
Master/Slave configuration
You can set a fixture to operate as master fixture to another fixture (which then
becomes a slave fixture), or an entire group of fixtures (which then becomes
slave fixtures). The assigned slave fixture(s) will mimic the settings of the
master fixture. Use the “Auto Program -> Auto Color / Auto Fade” menu to set
your fixture as master fixture, then other fixtures set to DMX mode as slave
fixture.
Setting a static color manually
The fixture can be configured to display a predefined and static color using the
“Manual Color” (see “Control menu”on page 13).
It may suit your needs when you without a DMX controller to do the color
mixing.
8
Using stand-alone operation
Stand-alone operation is where the fixture is not connected to a control device,
but is preprogrammed with 2 modes (Auto Color, Auto Fade), that play
continuously in a loop, the run speed of “Auto Color”, “Auto Fade” are
adjustable.
To define a stand-alone program, use the “Auto Program” menus (see “Control
menu” on page 13).
7. Connecting to a DMX control device
The fixture is controllable using a DMX control device and it can be connected
using a DMX cable.

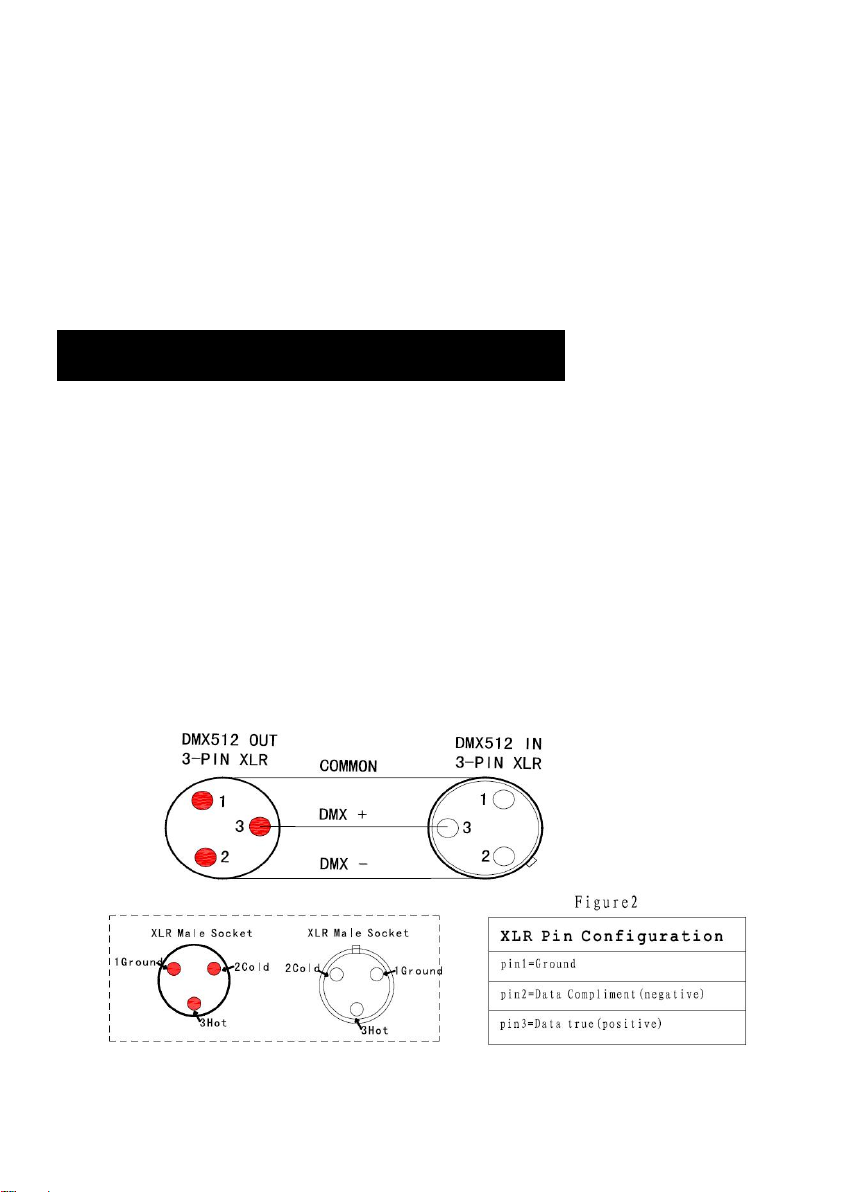

If using a cabled DMX system, connect the DMX in cable (with male 3-pin XLR
plug) and out cable (with female 3-pin XLR plug) to the DMX data link.
Terminate the DMX out cable of the last fixture in the data link. For outdoor
installations, use only IP-rated XLR connectors suitable for outdoor use.
The DMX512 is widely used in intelligent lighting control, with a DMX 512
controller. connect several lights together, DMX in and DMX out, 3 pin XLR
connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
9
8. Configuring the fixture for DMX control
About DMX
The fixture can be controlled using signals sent by a DMX controller on a
number of channels (which varies depending on the DMX mode that has been
set).
The first channel used to receive data from a DMX control device is known as
the DMX start address. Each fixture must have a DMX start address set. For
example, if a fixture has a DMX address of 10 and it is in 4-channel DMX mode,
then it uses channels 10, 11,12 and 13. The following fixture in the DMX chain
could then be set to a DMX address of 14. If two or more DMX fixtures of the
same type have the same DMX address, then they will mimic each other’s
behaviour. Incorrect settings will result in unpredictable responses to the
lighting controller.
Setting the DMX address
The DMX address can be seen on the main screen. To change the address
setting, press the up arrow to increase the address, or the down arrow to
decrease the setting. When the desired address is displayed, press Enter to
save the setting.
Note that channel spacing is determined by the DMX mode.
See the “DMX protocols” on page 11 for specific DMX control values.
Setting the DMX mode
Using the “DMX Channel Mode” menu available from the control panel, specify
the DMX mode that provides the fixture controls that you require, confirm
chosen mode by pressing ‘Enter’.
10
9. Cleaning
To maintain optimal performance, regular cleaning is essential. Cleaning
schedules will vary depending on the operating environment, and the
installation should therefore be checked at frequent intervals within the first
few weeks of operation to see whether cleaning is necessary. This procedure
will allow you to assess cleaning requirements in your par- ticular situation.
Clean the fixture using a soft cloth dampened with a solution of water and a
mild detergent. Do not use products that contain solvents, abrasives or caustic
agents for cleaning, as they can cause damage to both hardware, cables and
connectors.
10. DMX protocols
Configuring DMX is described “Setting the DMX mode” on page 10.
7 Channel mode
Channel
Name
DMX
Value
Description
1
Tilt
0-255
Tilt Movement
2
Beam Dimmer
0-255
Tube Strobe Intensity
3
Beam Mode
0-5
No Strobe
6-42
Strobe Mode 1
43-85
Strobe Mode 2
Indice
Altri manuali ecoStage Apparecchio di illuminazione
Manuali Apparecchio di illuminazione popolari di altre marche
Emos
Emos CLASSIC ZY1431T Manuale utente
Westinghouse
Westinghouse Outdoor Lighting Fixture Manuale utente
Hedler
Hedler C 12 silent Manuale utente
Blizzard Lighting
Blizzard Lighting Puck: CSI Manuale utente
Energetic Lighting
Energetic Lighting ELYSL-5004 Series Manuale utente
Lightmaxx
Lightmaxx Shaft 5R Manuale utente
Cooper Lighting
Cooper Lighting Halo L3232E Manuale utente
Stageline
Stageline ODW-2410RGBW Manuale utente
Light Sky
Light Sky Tornado Series Manuale utente
Lightolier
Lightolier Paralyte 2424 PLA2G9LS26U Manuale utente
Lightolier
Lightolier Lytespan 83ED17S Manuale utente
Lightolier
Lightolier Calculite CS8226 Manuale utente
