ECOVACS Deebot M8 Manuale utente

Instruction Manual

Mode d'emploi

Benutzerhandbuch

Manual de instrucciones

Contents

1. Important Safety Instructions......................................................................2

2. Package Contents and Technical Specifications......................................4

2.1 Package Contents....................................................................................4

2.2 Specications ...........................................................................................4

2.3 Product Diagram ......................................................................................5

3. Operating and Programming.......................................................................7

3.1 Notes Before Cleaning .............................................................................7

3.2 Quick Start................................................................................................8

3.3 Cleaning Mode Selection .......................................................................11

3.4 Programming the Robot .........................................................................13

3.5 Optional Advanced Mopping System .....................................................15

3.6 Choosing a Suction Option.....................................................................17

3.7 Alarm Indicator and Sounds ...................................................................18

4. Maintenance................................................................................................19

4.1 Dust Bin and Filters................................................................................19

4.2 Smart Clean Cloth, Smart Clean Reservoir............................................20

4.3 Main Brush, Direct Suction Option and Side Brushes............................21

4.4 Other Components.................................................................................22

5. Troubleshooting .........................................................................................23

4EN

2. Package Contents and Technical Specifications

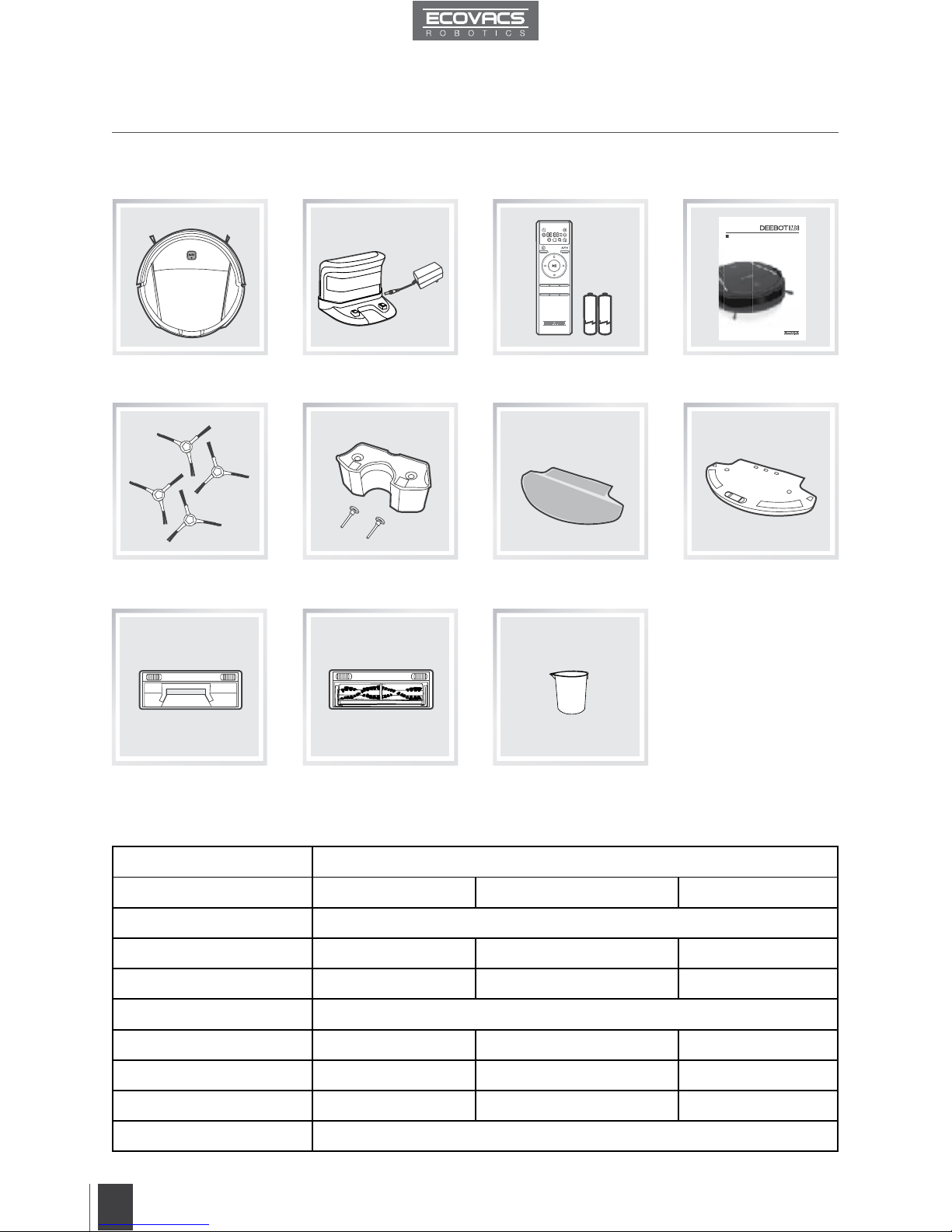

2.1 Package Contents

Robot

(4) Side Brushes

Remote Control

(with Batteries)

* Technical and design specications may be changed in the course of continuous product improvement.

Charging Dock

(with Power Adapter) Instruction Manual

2.2 Specifications

Model DM85

Working Voltage 14.8V DC Rated Power 30W

Charging Dock Model CH1465

Rated Input Voltage 20V DC Rated Output Voltage 20V DC

Rated Output Current 1A Rated Power 20W

Power Adapter OH-1024E2001000U

Rated Input Voltage 100-240V AC Rated Output Voltage 20V DC

Rated Output Current 1A Rated Power 20W

Remote Control Model RC1360C Input Voltage 3V DC

Battery Batterie lithium 2550mAh

Instruction Manual

Battery Pack

(with 2 screws) Smart Clean Cloth Smart Clean Reservoir

Main Brush Option

(pre-installed) Measuring CupDirect Suction Option

2. Package Contents and Technical Specifications

2.3 Product Diagram

Robot

Charging Dock

1. Infrared Signal Generator

2. Charging Dock Pins

3. Power Adapter with Plug

1. Top Cover

2. Control Panel

3. Anti-Collision Sensors

4. Anti-Drop Sensors

5. Charging Contacts

6. Side Brushes

7. Main Brush Option

8. Driving Wheels

9. Universal Wheel

10. Battery Pack with Screws

11. Smart Clean Reservoir Slots

12. Infrared Receiver for Remote Control

13. Dust Sensors

14. Upgrade Port (Contact Customer Service

before trying to upgrade the robot)

15. Dust Bin

1. Spot Cleaning Mode Button

2. Edge Cleaning Mode Button

3. AUTO Mode Button

4. Intensive Cleaning Mode Button

5. Return to Charger Mode Button

Control Panel

13 1415

1 3 5

2 4

6EN

2. Package Contents and Technical Specifications

Dust Bin

Smart Clean Reservoir

1. Dust Bin Handle

2. Dust Bin Lock

3. Dust Bin Cover

4. Multi-Function Cleaning Tool

5. Filter Net and High Efciency Filter

1. Smart Clean Cloth

2. Water Reservoir

3. Water Inlet

Remote Control

1. LED Screen

2. Return to Charger Mode Button

3. AUTO Mode Button

4. Direction Control Buttons

5. START/PAUSE Button

6. Spot Cleaning Mode Button

7. Edge Cleaning Mode Button

8. Intensive Cleaning Mode Button

9. Set Current Time Button

10. Time Scheduling Button

11. Second Time Scheduling Button

12. Infrared Emitter

3. Operating and Programming

3.1 Notes before Cleaning

Before operating DEEBOT, take a few moments to survey the area to be cleaned

and remove any obstacles.

Remove power cords and small objects from

the oor that could entangle the product.

Please be aware that the robot needs at

least a 10 cm (4”) clearance to clean under

furniture without complications.

The product is not suitable for use on long-pile

carpet. Before using the product near an area

rug or on a short-pile area rug with tasseled

edges, please fold area rug edges under

themselves.

If there is a step or stairs in the cleaning area,

please operate DM85 to ensure its Anti-Drop

Sensors can detect the drop off. It may be

necessary to place a physical barrier at the

edge of the drop off to keep the unit from falling

over the edge.

8EN

3. Operating and Programming

3.2 Quick Start

Charging Dock Placement

Connect the Power Adapter to the Charging Dock.

Place the Charging Dock on a level oor surface

against the wall with the base perpendicular to

the ground. Keep the immediate area 1.5m (5’) in

front of the charger and 0.5m (1.6’) on both sides

of the charger clear of objects and reective

surfaces.

Plug the Charging Dock in.

Install Side Brushes

Attach Side Brushes to the bottom of DM85 by

pressing a brush into each slot with the matching

color until it clicks.

Install Battery

Insert the Battery Pack into the battery slot

on the bottom of DM85. Insert and tighten the

screws with a coin to secure the Battery Pack.

3. Operating and Programming

Power ON

Press and hold the button on the robot for

3 seconds. DM85 is powered ON when the

button illuminates.

Attach a Cleaning Cloth

To use DM85’s Optional Advanced Mopping System, attach a selected Cleaning Cloth before use.

When using the mopping feature, fold area rug edges under themselves so DM85 avoids the rug.

Please see section 3.5 Optional Advanced Mopping System for complete instructions.

Ő3Ƞ

button blinks when DM85 is charging and stays on when DM85 is fully charged.

Remove the Smart Clean Reservoir before charging DM85.

Remove DM85’s battery if the robot will not be used for a long time. In case of battery leakage,

please remove the battery and wipe the battery slot clean while wearing protective gloves.

If DM85’s battery is fully discharged or not used for a long time, its capacity may decrease and

need to be reactivated.

To reactivate the battery: Place the robot on the Charging Dock by hand, remove after charging

for 3 minutes; repeat 3 times, then charge normally for 3-5 hours.

DM85 uses a long life battery and does not require frequent replacement. To replace the battery,

contact Customer Service or follow the below instructions:

a. Unscrew the Battery Pack Screws, then remove the Battery Pack.

b. Insert new Battery Pack, re-insert and tighten the screws.

Remove the Smart Clean Reservoir before

charging DM85.

Place DM85 on the Charging Dock making

sure the Charging Contacts on DM85 and the

Charging Dock Pins make a connection.

Charge DM85 for at least 12 hours before the

rst use.

5Charge DM85

10 EN

3. Operating and Programming

7Start

Press the AUTO Mode Button on DM85’s Control Panel or the AUTO Mode Button on the Remote

Control twice. DM85 starts to work immediately in AUTO Cleaning Mode.

Pause DM85 by pressing the AUTO Mode Button

on the robot’s Control Panel or the START/PAUSE

Button on the Remote Control twice.

Press and hold the button on DM85 for 3

seconds. DM85 is powered OFF when the

button stops glowing.

* To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details.

* When DM85 is not working, it is suggested to

keep it powered ON and charging.

* DM85 can be directed to move forward, backward,

left and right using the Direction Control

Buttons on the Remote Control when it is

Paused. DM85 does not clean when Paused.

Pause

Power OFF

Ő3Ƞ

OFF

3. Operating and Programming

3.3 Cleaning Mode Selection

*To switch Cleaning Modes using the robot’s Control Panel Buttons, Pause DM85 rst, and then

press the desired Cleaning Mode Button on the Control Panel.

* To switch Cleaning Modes using the Remote Control, press the desired Cleaning Mode Button twice.

DM85 has several Cleaning Modes for you to choose from to effectively clean different floors.

Cleaning Modes are selected using the robot’s Control Panel Buttons or using the Remote Control.

This is the most commonly used mode. In

AUTO Cleaning Mode, DM85 cleans in a

straight line and changes direction when it

meets an obstacle.

Intensive Cleaning Mode

This mode is good for aggressive cleaning

or for extremely dirty or dusty oors. In this

mode, DM85 follows the same cleaning

pattern as Automatic Cleaning Mode, but is

more sensitive to dirt and dust and performs

a more thorough cleaning.

AUTO Cleaning Mode (120 Minutes)
