ECOWITT WN67 Manuale utente

5 IN 1 PROFESSIONAL

WEATHER STATION

(NO SOLAR POWERED

AND NO UV SENSOR)

Model: WN67

＊Please scan the QR code to read

English manual and keep it for

future reference

＊Bitte scannen Sie den QR-Code

zudeutsche Anleitung lesen und

aufbewahren füZukunftsbezug

＊Si prega di scansionare il codice

QR perleggi il manuale italiano e

conservalo perReferenza futura

Instruction manuals

https://s.ecowitt.com/46Y36A

Help

Our product is continuously changing and improving, particularly online

services and associated applications. To download the latest manual and

additional help, please contact our technical support team:

support@ecowitt.com

support.eu@ecowitt.net (EU/UK)

Table of Contents

1 Introduction..................................................................................................3

2 Warnings and Cautions ................................................................................ 3

3 Pre-Installation Checkout and Site Survey .................................................. 3

3.1 Pre-Installation Checkout ..................................................................... 3

3.2 Site Survey ............................................................................................3

4 Getting Started ............................................................................................. 4

4.1 Contents ................................................................................................ 4

4.2 Sensor Array Set Up ............................................................................. 5

4.2.1 Install U-bolts and mounting pole......................................................5

4.2.2 Install wind vane..............................................................................7

4.2.3 Install wind speed .......................................................................... 7

4.2.4 Install Rain Gauge ......................................................................... 8

4.2.5 Install Batteries.............................................................................. 8

4.2.6 Mount assembled outdoor sensor package .................................... 9

4.2.7 Reset Button and Transmitter LED ..............................................11

5 Specification .............................................................................................. 11

6 Maintenance...............................................................................................11

7 Troubleshooting Guide .............................................................................. 12

8 Warranty Information................................................................................ 14

1 Introduction

Thank you for your purchase of this Weather Station. The following user

guide provides step-by-step instructions for installation, operation, and

troubleshooting.

2 Warnings and Cautions

Warning: Any metal object may attract a lightning strike, including your

weather station mounting pole. Never install the weather station in a storm.

Warning: Installing your weather station in a high location may result in

injury or death. Perform as much of the initial check and operation on the

ground and inside a building or home. Only install the weather station on a

clear, dry day.

3 Pre-Installation Checkout and Site Survey

3.1 Pre-Installation Checkout

Before installing your weather station in the permanent location, we

recommend operating the weather station for one week in a temporary

location with easy access. This will allow you to check out all of the

functions, ensure proper operation, and familiarize yourself with the weather

station and calibration procedures. This will also allow you to test the

wireless range of the weather station.

3.2 Site Survey

Perform a site survey before installing the weather station. Consider the

following:

1. You must clean the rain gauge every few months and change the

batteries every 1 year. Provide easy access to the weather station.

2. Avoid radiant heat transfer from buildings and structures. In general,

install the sensor array at least 5’ from any building, structure, ground,

or rooftop.

3. Avoid wind and rain obstructions. The rule of thumb is to install the

sensor array at least four times the distance of the height of the tallest

obstruction. For example, if the building is 20’ tall, and the mounting

pole is 6’ tall, install 4 x (20 – 6)’ = 56’ away.

4. Wireless Range. The radio communication between receiver and

transmitter in an open field can reach a distance of up to 100 meters,

providing there are no interfering obstacles such as buildings, trees,

vehicles, or high voltage lines. Wireless signals will not penetrate metal

buildings. Under most conditions, the maximum wireless range is 100

meters.

5. Radio interference such as PCs, radios or TV sets can, in the worst case,

entirely cut off radio communication. Please take this into consideration

when choosing console or mounting locations. Make sure your display

console is at least five feet away from any electronic device to avoid

interference.

4 Getting Started

4.1 Contents

If components are missing from the package, or broken, or any problem

during the operation, please contact customer service to resolve the issue.

Item Description

Outdoor Sensor with built-in: Thermo-hygrometer / Rain Gauge

/ Wind Speed Sensor/ Wind Direction Sensor.

Wind speed cup (to be attached to outdoor sensor body).

Wind vane (to be attached to outdoor sensor body).

U-Bolts for mounting on a pole.

Threaded nuts for U-Bolts (M6 size).

Metal mounting plate to be used with U-Bolts.

Wrench for M6 bolts.

User manual (this manual).

Table 1: Package content

4.2 Sensor Array Set Up

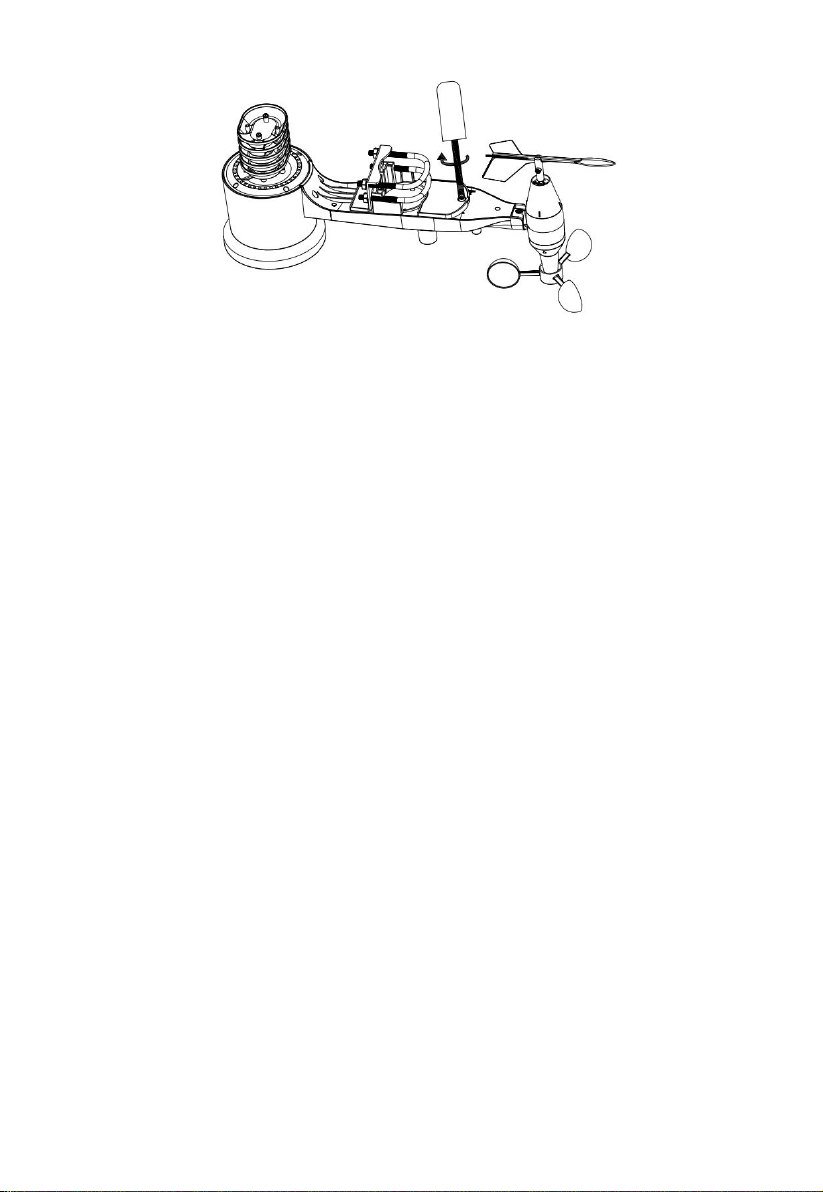

Figure 1: Sensor assembly components

Wind speed cups

Antenna

Wind vane

U-Bolts

Thermo- and hygro-meter

sensors

Battery compartment door

Rain collector

Reset button

Bubble level

LED (red) to indicate data

transmission

Table 2: Sensor assembly detailed items

4.2.1 Install U-bolts and mounting pole

Installation of the U-bolts, which are in turn used to mount the sensor

package on a pole, requires installation of an included metal plate to receive

the U-bolt ends. The metal plate, visible in Figure 2, has four holes through

which the ends of the two U-Bolts will fit. The plate itself is inserted in a

groove on the bottom of the unit. Note that one side of the plate has a

straight edge (which goes into the groove), the other side is bent at a

90-degree angle and has a curved profile (which will end up “hugging” the

mounting pole). Once the metal plate is inserted, remove nuts from the

U-Bolts and insert both U-bolts through the respective holes of the metal

plate as shown in Figure 2.

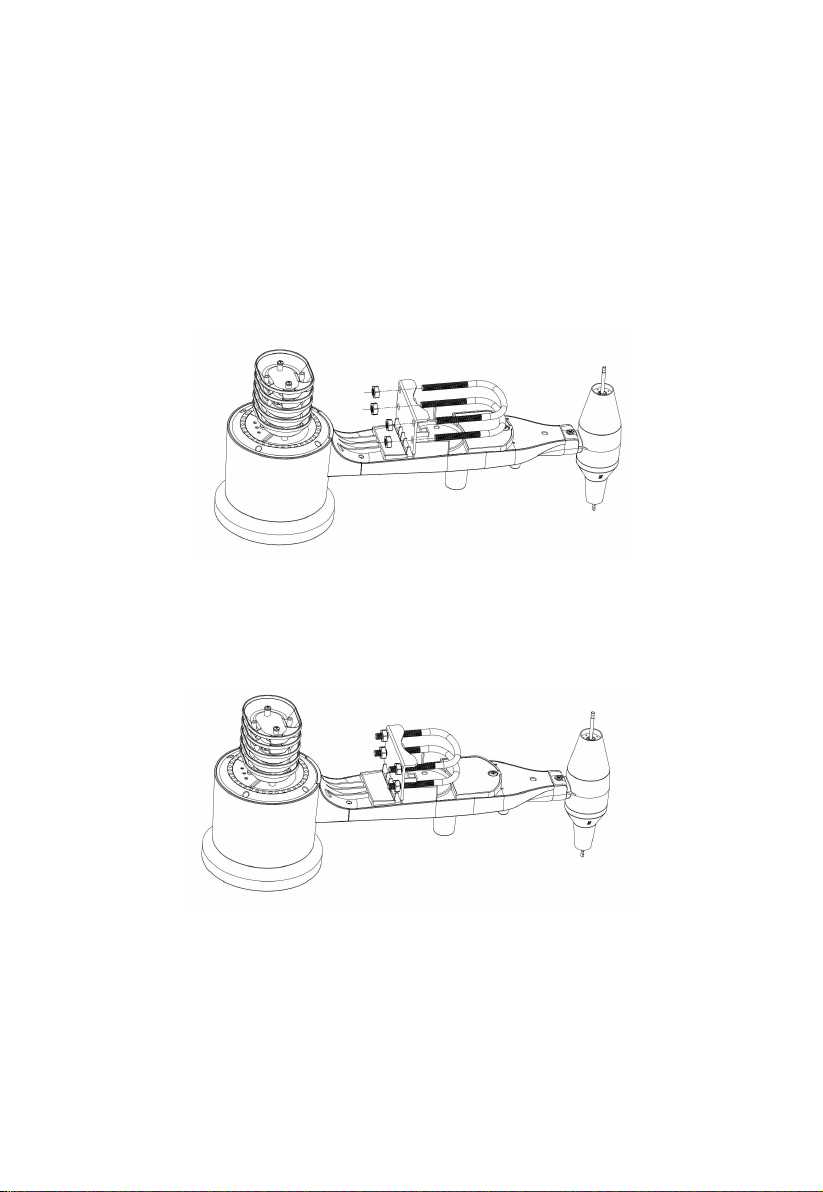

Figure 2: U-Bolt installation

Loosely screw on the nuts on the ends of the U-bolts. You will tighten these

later during the final mounting. The final assembly is shown in Figure 3.

Figure 3: U-Bolts and nuts installed

The plate and U-Bolts are not yet needed at this stage but doing this now

may help avoid damaging wind vane and wind speed cups later on.

4.2.2 Install wind vane

Push the wind vane onto the shaft on the bottom of the sensor, until it stops

moving further, as shown in figure 4.

Tighten the set screw, with a Philips screwdriver (size PH0), until the wind

van cannot be removed from the axle, as shown in figure 4. Make sure the

wind vane spins freely. The wind vane’s movement has a small amount of

friction, which is helpful in providing steady wind direction measurements.

Figure 4: Wind vane installation diagram

4.2.3 Install wind speed

Push the wind speed into the shaft as shown in figure 5.

Tighten the set screw with a screwdriver. Make sure the wind speed can spin

freely.

Figure 5: Wind speed cup installation diagram

4.2.4 Install Rain Gauge

Install the rain gauge funnel. Rotate clockwise to attach the funnel to the

outdoor sensor.

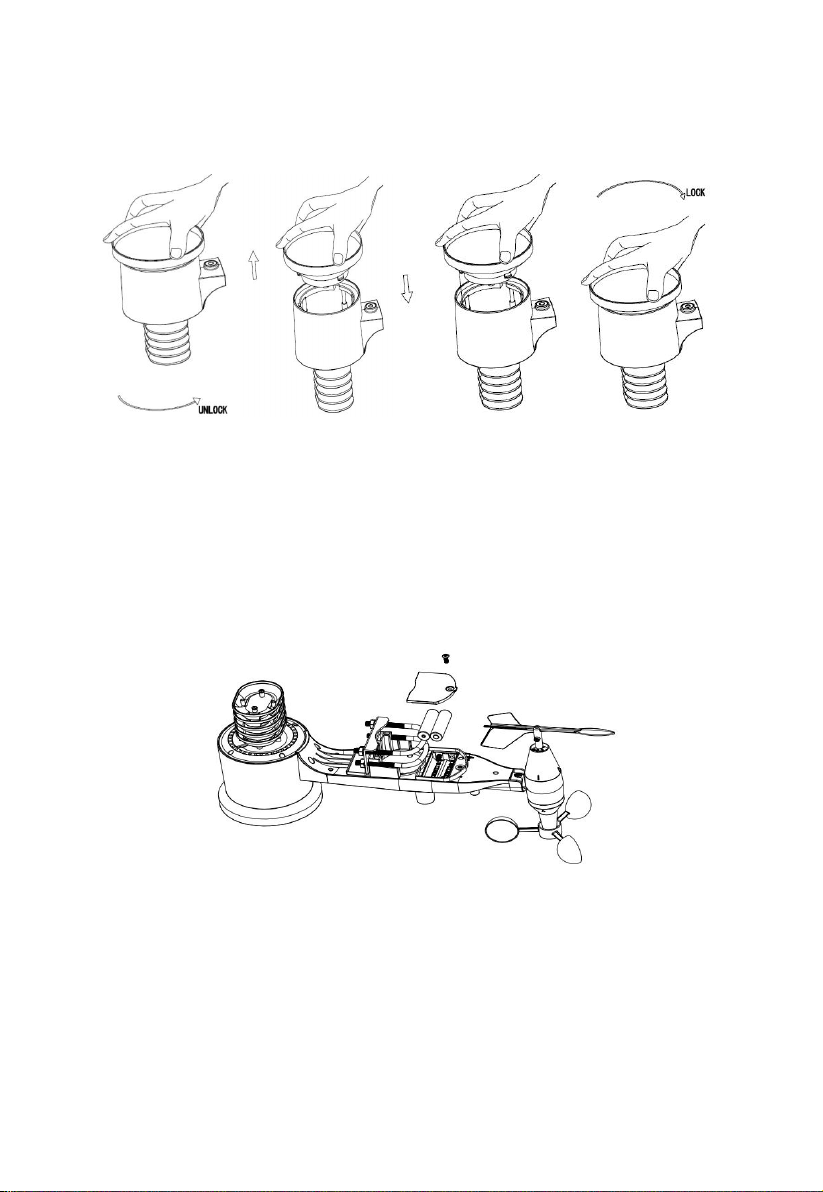

Figure 6: Rain gauge installation and maintenance

4.2.5 Install Batteries

Insert 2 AA batteries in the battery compartment. The LED indicator on the

back of the transmitter will turn on for four seconds and normally flash once

every 16 seconds (the sensor transmission update period).

Figure 7: Battery installation diagram

Note: If no LED light up or is permanently on, make sure the batteries are

inserted the correct way or a proper reset has happened. Do not install the

batteries backward. You can permanently damage the outdoor sensor

Note: We recommend 1.5V lithium batteries for cold weather climates, but

alkaline batteries are enough for most climates. We do not recommend

rechargeable batteries. They have lower voltages, they do not operate well at

wide temperature range, and do not last as long, resulting in poorer

reception.

4.2.6 Mount assembled outdoor sensor package

4.2.6.1 Before you mount

Before proceeding with the outdoor mounting detailed in this section, you

may want to skip to setup instructions in section and onwards first, while

you keep the assembled outdoor sensor package nearby (although preferably

not closer than 5 ft. from the console). This will make any troubleshooting

and adjustments easier and avoids any instance or interference related issues

from the setup.

After setup is complete and everything is working, return here for outdoor

mounting. If issues show up after outdoor mounting they are almost

certainly related to distance, obstacles etc.
