Edge-Core ECS4620-28F Manuale utente
– 1 –
Quick Start Guide
28/52-Port L3 Stackable Gigabit Ethernet Switch
ECS4620-28T / ECS4620-28P / ECS4620-28F
ECS4620-52T / ECS4620-52P
The ECS4620-28T, ECS4620-28P, ECS4620-52T, and ECS4620-52P are stackable
Layer 3 switches that provide 24/48 10/100/1000BASE-T RJ-45 ports, and two 10
Gigabit (10G) Small Form Factor Pluggable Plus (SFP+) slots that support 1G and
10G transceivers. The ECS4620-28F is a Layer 3 switch that provides 22 SFP 1G
transceiver slots, two combination Gigabit RJ-45/SFP ports, and two 10G SFP+ slots.
The ECS4620-28P and ECS4620-52P also provide Power-over-Ethernet Plus (PoE+)
capability on the RJ-45 ports.
All switches also provide one rear-panel slot for a dual-port 10G hot-swappable
expansion module.
Note:
For detailed switch installation information, refer to the Installation Guide,
which is on the Documentation CD included with the switch.
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the switch.
ECS4620-28P
ECS4620-28F
ECS4620-52T
ECS4620-52P
ECS4620-28T
E072014-CS-R03
150200000789A
www.edge-core.com
Quick Start Guide
– 2 –
1. Unpack the Switch Unpack the switch and check the package contents.
◆L3 Stackable Gigabit Ethernet Switch
ECS4620-28T, ECS4620-28P, ECS4620-28F, ECS4620-52T, or ECS4620-52P
◆Rack Mounting Kit — includes two brackets and eight screws
◆Four adhesive foot pads
◆Power cord — either US, Continental Europe or UK
◆Console cable (RJ-45 to DB-9)
◆Documentation — Quick Start Guide and Regulatory and Safety Information
◆Documentation CD—includes Installation Guide, Web Management Guide, and
CLI Reference Guide
2. Install the Switch The switch can be mounted in a standard 19-inch rack or on a desktop or shelf.
Following your rack plan, mark the holes in the rack where the switch will be
installed. Lift the switch into the rack and hold it in a position aligned with the
marked holes. Secure the switch in the rack, using four rack-mounting screws (not
provided).
3. Ground the Switch Before powering on the switch, ground the switch to earth.
Ensure the rack on which the switch is to be mounted is properly grounded and in
compliance with ETSI ETS 300 253. Verify that there is a good electrical connection
to the grounding point on the rack (no paint or isolating surface treatment.).
Caution:
The earth connection must not be removed unless all supply
connections have been disconnected
Attach the brackets to the switch.
Use the screws supplied with the rack to secure the switch in the rack.
2
1
1
2
Quick Start Guide
– 3 –
4. Connect Power Connect the switch to an AC power source that can provide the following:
◆ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A
◆ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A
◆ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A
◆ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A
◆ECS4620-52P: 50-60 Hz; 100-127 VAC, 12 A; 200-240 VAC, 6 A
Caution:
Before connecting the switch to AC power, the grounding terminal
screw, on the switch rear panel, must be permanently connected to earth.
If you have purchased an optional Redundant Power Supply for use with the
ECS4620-52P, connect it to the switch and to an AC power source now, following
the instructions included with the package.
Note:
The ECS4620-52P maximum power consumption is reduced to 780 W when
the device is powered from a connected RPS.

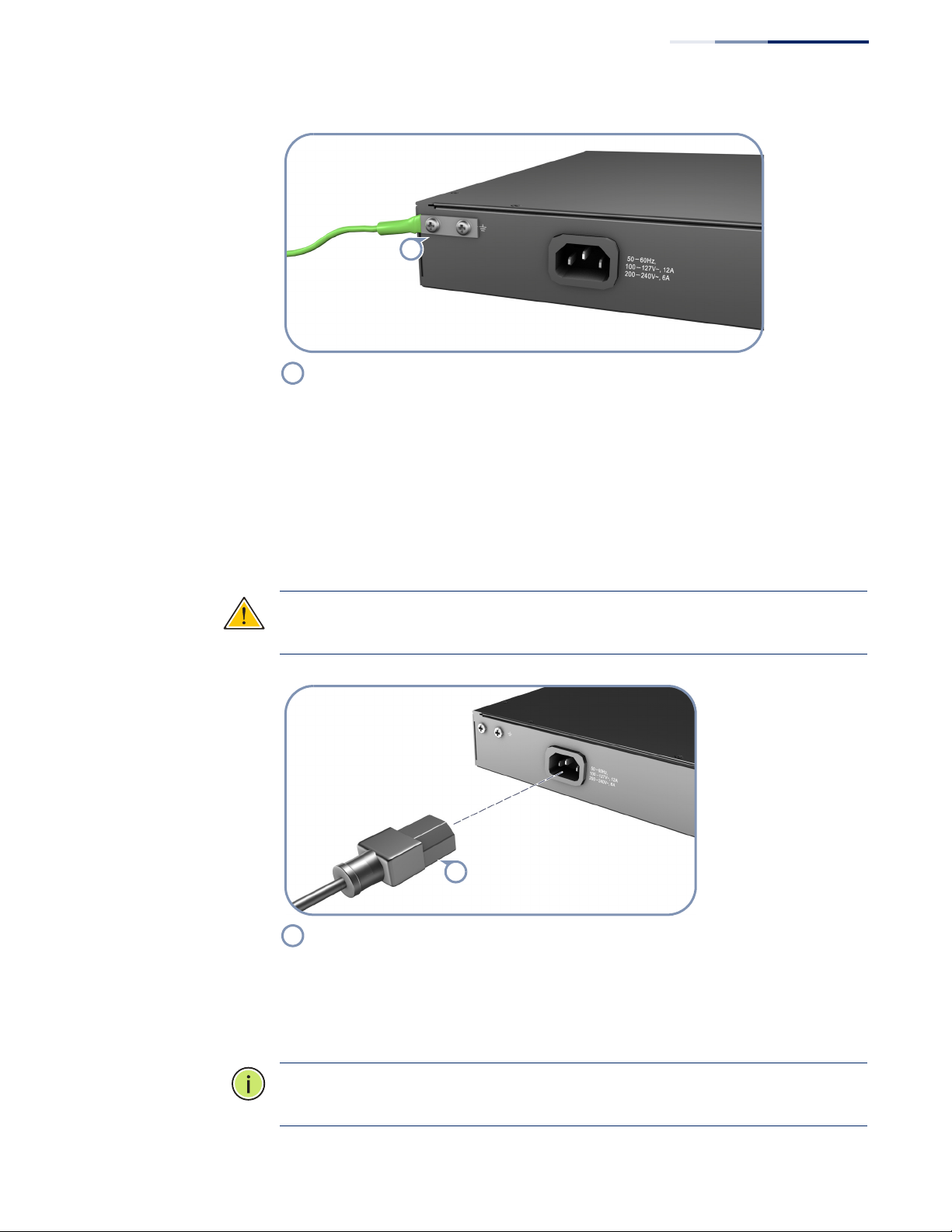

Connect a grounding wire and lug to the dual-hole grounding point on the
switch rear panel, then to rack ground.
1
1
Plug the AC power cord into the socket on the rear of the switch.
1
1
Quick Start Guide
– 4 –
5. Verify Switch
Operation
Verify basic switch operation by checking the system LEDs.
When operating normally, the Diag and Power LEDs should both be on green.
6. Make Initial
Configuration
Changes
At this point you may need to make a few basic switch configuration changes
before connecting to the network. It is suggested to connect to the switch console
port to perform this task.
The serial port’s configuration requirements are as follows: 115200 bps, 8
characters, no parity, one stop bit, 8 data bits, and no flow control.
You can log in to the command-line interface (CLI) using default settings: User
“admin” with password “admin”.
For information on initial switch configuration, refer to the CLI Reference Guide.
System Status LEDs.
1
1
Console Port.
Console Cable.
1
2
1
2
Quick Start Guide
– 5 –
7. Connect Network
Cables
Install SFP/SFP+ transceivers and connect network cables to port interfaces:
◆For RJ-45 ports, use 100-ohm Category 5, 5e or better twisted-pair cable for
1000BASE-T connections, Category 5 or better for 100BASE-TX connections,
and Category 3 or better for 10BASE-T connections.
◆First install SFP/SFP+ transceivers and then connect fiber optic cabling to the
transceiver ports. The following transceivers are supported:
■1000BASE-SX (ET4201-SX)
■1000BASE-LX (ET4201-LX)
■1000BASE-ZX (ET4201-ZX)
■10GBASE-SR (ET5402-SR)
■10GBASE-LR (ET5402-LR)
■10GBASE-ER (ET5402-ER)
As connections are made, check the port status LEDs to be sure the links are valid.
10/100/1000BASE-T RJ-45 Port.
Twisted-pair Cable with RJ-45 Plug.
1
2
1
2
Quick Start Guide
– 6 –
Hardware Specifications
Item Specification
Chassis Specifications
SIze (W x D x H) ECS4620-28T/P/F: 44.0 x 31.5 x 4.4 cm (17.3 x 12.4 x 1.7 in.)
ECS4620-52T/P: 44.0 x 39.1 x 4.4 cm (17.3 x 15.4 x 1.7 in.)
Weight ECS4620-28T: 3.7 kg (8.16 lb)
ECS4620-28P: 4.5 kg (9.92 lb)
ECS4620-28F: 3.8 kg (8.38 lb)
ECS4620-52T: 4.8 kg (10.58 lb)
ECS4620-52P: 6.58 kg (14.51 lb)
Temperature Operating: 0° C to 45° C (32° F to 113° F)
Storage: -40° C to 70° C (-40° F to 158° F)
Humidity Operating: 10% to 90% (non-condensing)
Power Specifications*
* Maximum power consumption values are measured under a 100 percent loading test and
should be used as estimates for planning purposes.
AC Input Power ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A
ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A
ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A
ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A
ECS4620-52P: 50-60 Hz
100 to 127 VAC, 12 A
200 to 240 VAC, 6 A
Power Consumption ECS4620-28T: 40 W max. (with one expansion module)
ECS4620-28P: 501 W max. (with one expansion module)
ECS4620-28F: 50 W max. (with one expansion module)
ECS4620-52T: 70 W (with one expansion module)
ECS4620-52P: 960 W (with one expansion module and PoE enabled)
ECS4620-52P maximum power consumption is reduced to 780 W when
the device is powered from a connected RPS.
Redundant Power Supply (This accessory and specifications only apply to the ECS4620-52P.)
Input Power 100-240 VAC, 50-60 Hz, 12 A
Output Power 12 VDC, 10 A
-54.5 VDC, 14.3 A
Regulatory Compliances
Emissions CE Mark
◆EN 55022, Class A
FCC Class A
EN 61000-3-2/3
VCCI Class A
Immunity EN 61000-4-2/3/4/5/6/8/11
Safety UL 60950-1 & CSA 60950-1
IEC 60950-1 & EN 60950-1
ECS4620-28F:
UL/CUL (CSA 22.2 NO 60950-1 & UL 60950-1)
CB (IEC/EN60950-1)
