Edge Lighting Cody 12" Manuale utente
ARM
1.5MM ALLEN
WRENCH
M3 SET SCREW
SWIVEL
CONNECTOR
2

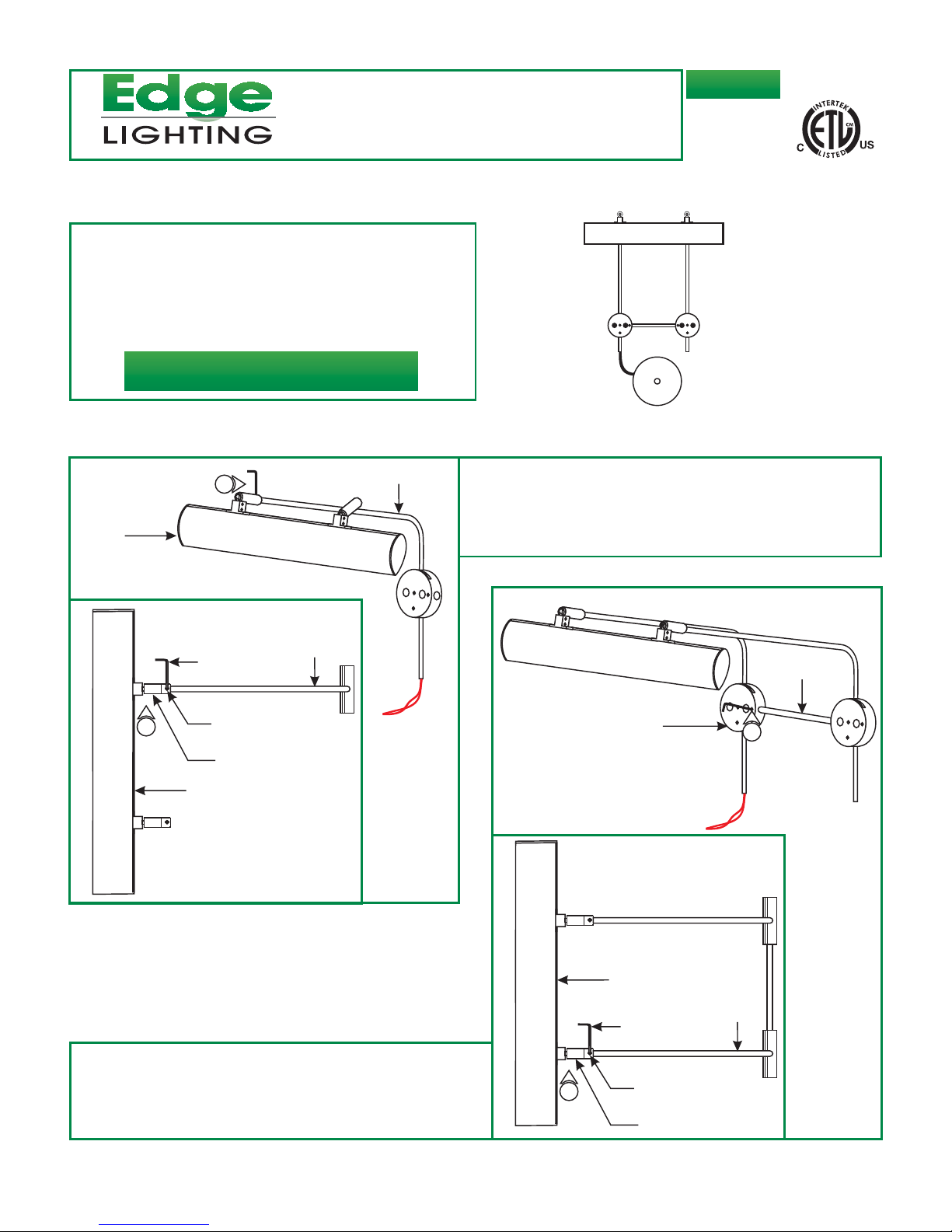

Installation Instructions for Cody 12" Canopy Mount Picture Light
904-CPL-12-01
Install the Fixture
1
CPL-12-_
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2009 Edge Lighting. All Rights Reserved.
1: Rotate the Cody's head perpendicular to the arm making
sure the arm is completely inserted into the head swivel
connector. Tighten the M3 set screw on the swivel connector
with the provided 1.5mm Allen wrench to secure the head in
place.
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor location.
- This product is wall mounted only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This instruction shows a typical installation.
IMPORTANT INFORMATION
A1
HEAD
ARM
1.5MM ALLEN
WRENCH
M3 SET SCREW
SWIVEL
CONNECTOR
1
B
HEAD
2: Insert the loose arm assembly (provided in the box) into the
other swivel connector, insert the joining arm into the
mounting bracket of the first arm. Tighten the M3 set screw
on the swivel connector with the
1.5mm Allen wrench.
and mounting bracket
HEAD
ARM
JOINING ARM
MOUNTING BRACKET 2
2
MOUNTING BRACKET
C
4
5
ANCHOR
WALL
ELECTRICAL
BOX

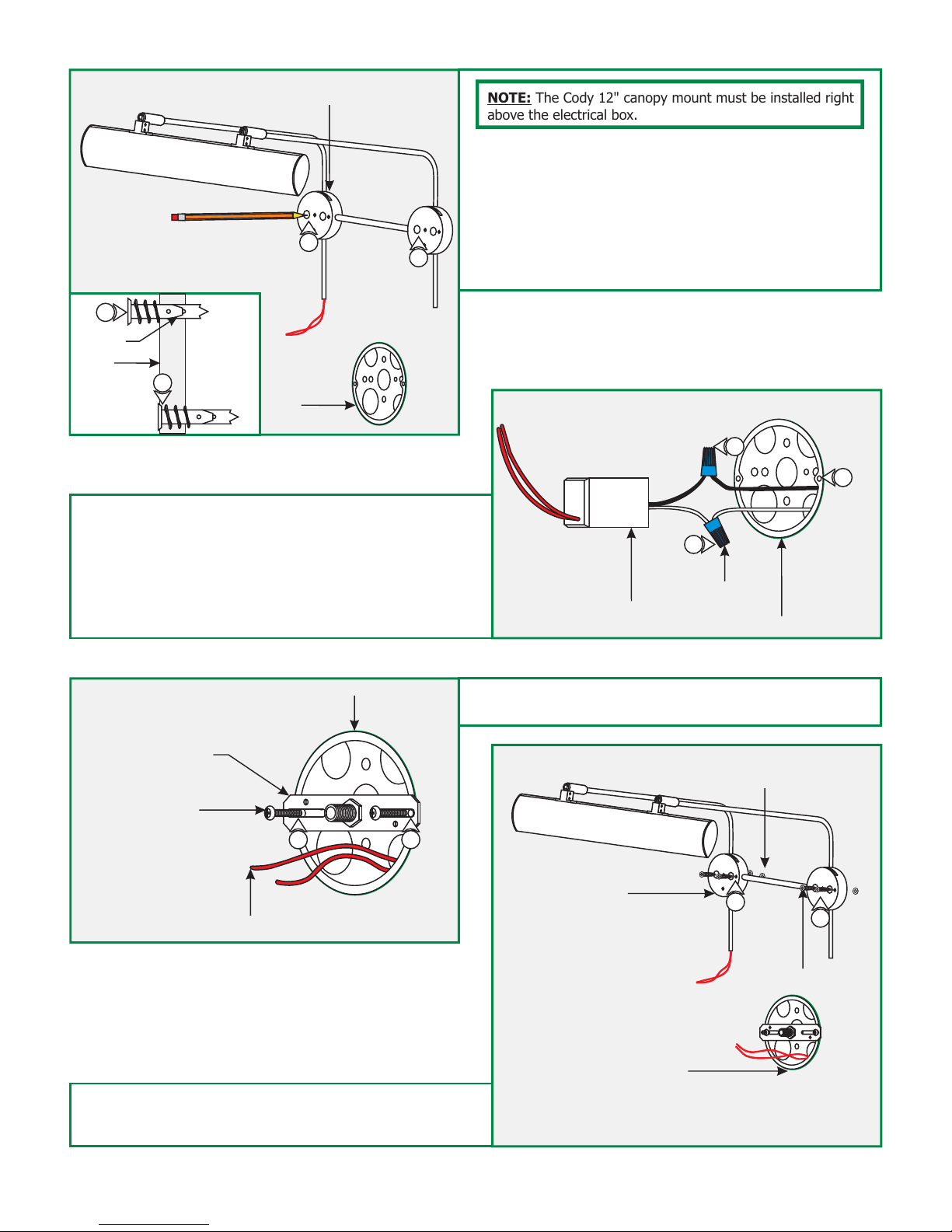

3: Hold the two mounting brackets against the wall above the
electrical box. Using a level, align the mounting brackets
and mark the four bracket holes on the wall.
4: Tap the anchors onto the marked points into the wall up to
the threaded portion with a hammer.
5: Screw the threaded portion of the anchors in with the a
Phillips screwdriver.
NOTE: The Cody 12" canopy mount must be installed right
above the electrical box.
D
LED POWER SUPPLY
WIRE NUT
6
7
ELECTRICAL BOX
8
6: Connect the white LED power supply wire to the neutral
power wire with a wire nut.
7: Connect the black LED power supply wire to the hot power
wire with a wire nut.
8: Place the LED power supply and all wire connections inside
the electrical box.
E
CROSSBAR
ASSEMBLY
#8-32 SCREW
ELECTRICAL BOX
POWER WIRE
9
9
9: Mount the crossbar assembly to the electrical box holes with
the provided #8-32 screws.
F
#8 SCREW
MOUNTING BRACKET
ELECTRICAL BOX
10: Line up the mounting bracket holes with the anchors and
secure the fixture to the anchors with the four #8 screws
provided.
ANCHOR
3
3
10
10
ARM
2MM ALLEN WRENCH
M4 SET SCREW 11

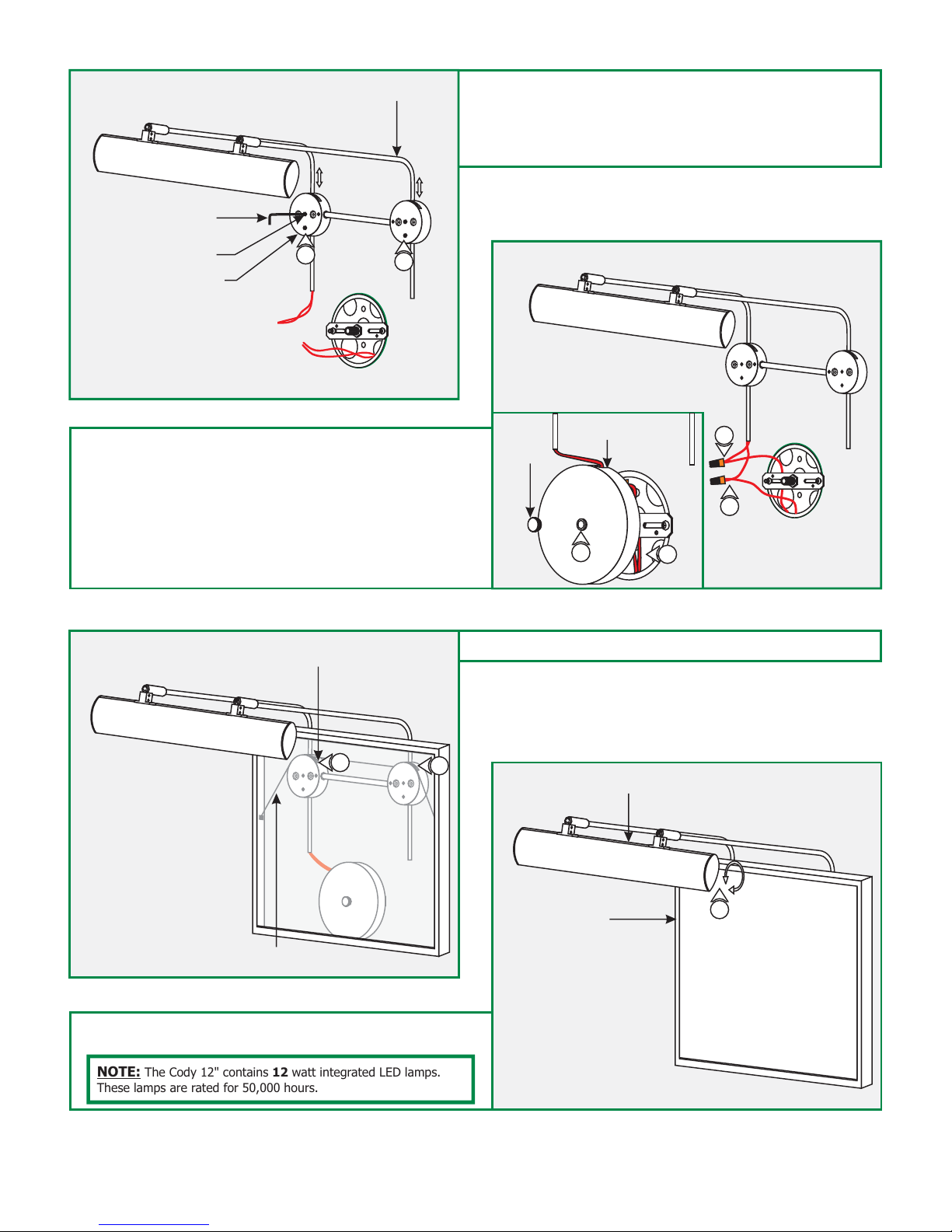

11: To adjust the height, loosen the four M4 set screw on
the mounting brackets with the provided 2mm Allen
wrench. Adjust the Cody to the desired height by sliding it
up or down. Tighten the four M4 set screws with the 2mm
Allen wrench.
MOUNTING BRACKET
G
11 H
12
THUMB
NUT
CUTOUT
14 13
12: Connect each low voltage LED power supply wire (red
wire) to one fixture wire with a wire nut.
13: Place the excess wires and wire nuts inside the electrical
box.
14: Line up the canopy cut out edge with the fixture wires.
Place the canopy onto the electrical box and tighten the
thumb nut to the crossbar assembly nipple.
15: Hang the frame cable into the two mounting bracket slots.
12
IMOUNTING BRACKET SLOT
FRAME CABLE
J
NOTE: The Cody 12" contains 12 watt integrated LED lamps.
These lamps are rated for 50,000 hours.
16: Rotate the fixture head to properly wash the picture with
light.
FIXTURE HEAD
PICTURE 16
3
15 15
