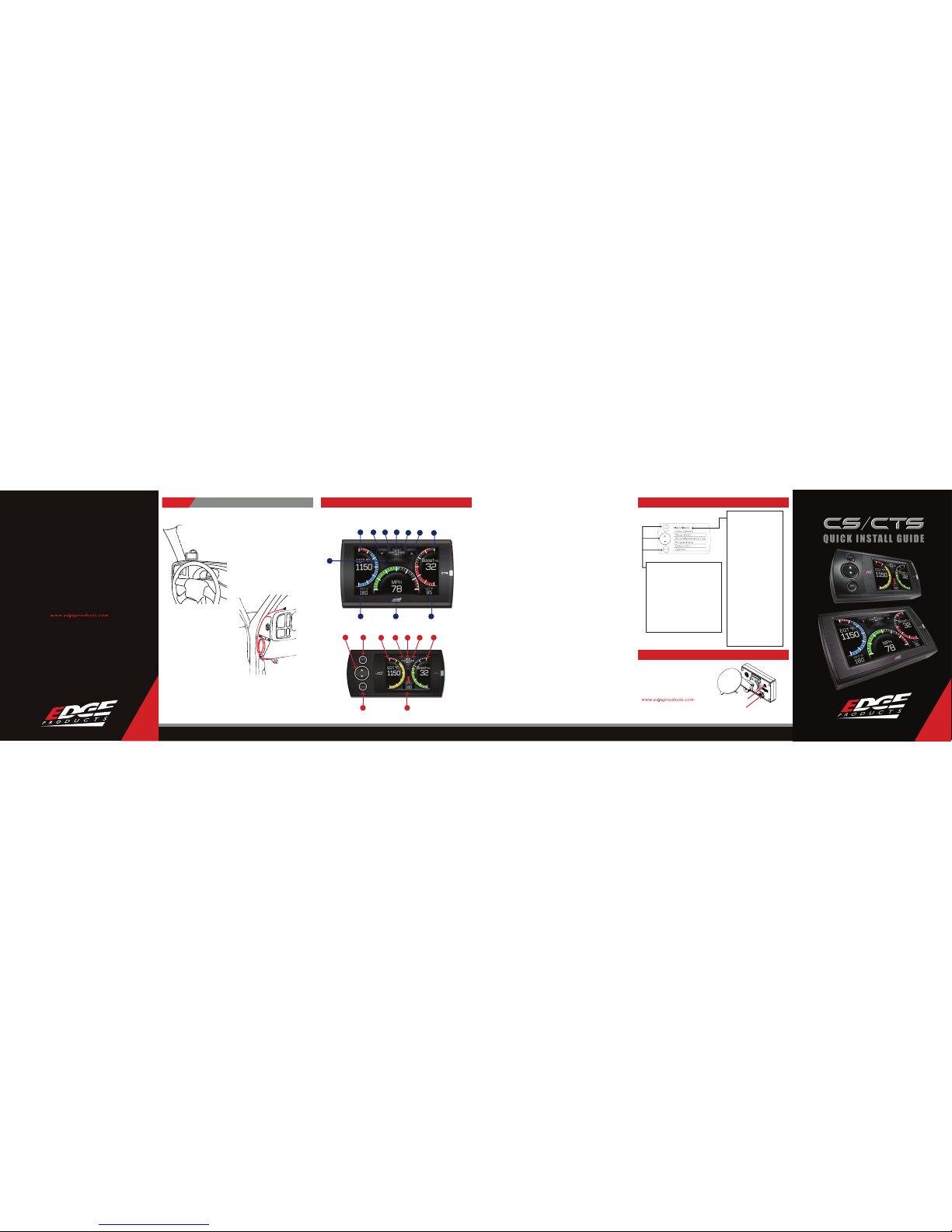

After you’ve locked the mount and the CS/CTS device is
in place on your windshield, sit back in your drivers seat
and make sure the viewing angle is as desired. Check
to make sure the device doesn’t create a blind spot that
may impair your view of the road/trac/pedestri-
ans from the drivers seat.
After positioning the device
and the mount, remove any
slack in the OBDII cable and
coil it behind the side panel
you removed earlier. Use the
supplied zip ties to secure the
coiled cable from moving or
falling down under the dash, or
interfering with pedal operation.
Replace all panels removed during
installation
For Operating Instructions and trouble shooting please refer to the User Guide found
in the folder packet that came with your CS or CTS package. For additional questions
not found in the User Guide you can call:
Edge Products Technical Support
Hours Mon-Friday
8:00 a.m. - 5:00 p.m. Mountain Standard Time
1-888-360-EDGE (3343)
Multiple accessories are available for the
CS/CTS device. Accessories include EGT
sensors, back-up camera, and vehicle-
specic custom mounting solutions.
For more information and pricing
please visit
VIDEO IN PORT (CTS ONLY)
CS/CTS DEVICE DESCRIPTIONS
Step 6:Verify Position and Viewing Placement
ACCESSORIES PORT
*Note: Some states prohibit mounting devices
that may obstruct your view. Please check local
and state laws to ensure compliance.
For alternate mounting options visit
www.edgeproducts.com or www.arkon.com
Copyright © 2010 REV 01
1. Main Menu button - The main menu button gives you access to the main menu.
2. Left Gauge - The left analog gauge. The displayed parameter for all gauges can be changed by simply
touching the gauge and choosing a dierent parameter from the list. Usethis menu to choose a new PID,
change alert settings, and choose a new gauge color.
3. Up/Down Arrow Buttons - On the ATTITUDE gauge screen these buttons are used to toggle the power
level up/down. The EVOLUTIONgauge screen may use these buttons in future feature enhancements. The
INSIGHT uses these to adjust power levels when using EFILIVE™. In the menus these buttonsare used to select
the menu items and increase or decrease values.
4. Alert Indicator - The alert indicator light will illuminate (red) when an alert limit is exceeded. When this
light contains an “R,”it indicates that your Diesel Particulate Filter (DPF) equipped vehicle is performing a
regeneration cycle. If the light is blue and contains an “M”, your Maintenance Manager is letting you know a
maintenance item is ready to be serviced.
5. Power Level Indicator - The power level indicator represents the current power level. For example, “0”
represents stock. An “I” stands for Insight which produces no additional horsepower.
6. Back-down Indicator - (ATTITUDE with JUICE) The back-down indicator light will illuminate (yellow)
when the Juice module is decreasing power added by the device, and when approaching or exceedingthe
back-down set point limit.
7. Right Gauge - The right analog gauge.
8. Lower Left Gauge - The lower left digital gauge.
9. Center Gauge - The Center analog gauge.
10. Lower Right Gauge - The lower right digital gauge.
CTS LAYOUT
CS LAYOUT
654
9
2
8
1
53
10
32
8
1
9
7
6
4
7
3
THE MAIN MENU CONTAINS
THE FOLLOWING:
• View Camera - Thisgives you ac-
cess to the camera if installed on your
vehicle. (CTS only)
• Show alerts - This itemshows the
alert grid screen. *NOTE:This menu
only appears when there is an alert
active.
• Show Maintenance Due - This
allows you to quickly view which
maintenance items are ready to be
serviced. (Availableon cer tain models)
• Programming - This allows you to
program the vehicle to one of the pre-
tuned levels. (Evolution only)
• Juice Control - This gives you
access to the power and drive train
performance options through the
(Attitude only.)
• Diagnostics - This gives you the
ability to retrieve and clear trouble
codes, as well as other diagnostic
functions depending on vehicle.
• Options - This gives you access
to multiple device settings (i.e.
alert settings, sound duration,
backlight-autodim etc).
• Help - This is used to display product
information, vehicle information,
technical support tools, and contact
information.
• Hot Unlocker - This allows you to
add a HOT power level.(Attitude only)
MENU NAVIGATION BUTTONS
Both the CS and CTS devices provide you with the
following three buttons for navigating the menu
system:
Menu: The Menu button allows you to enter the main menu
(CS only). Once you are in the menu system you’lluse the Menu
button to return to the previous screen.
UP/Down Arrow: The Up/Down Arrow buttons will allow
you to toggle up or down through the menu options. Each
option will be highlighted as you toggle.
Enter: Pressing the Enter button will select the currently
highlighted option.
*Note: With the CTS device you can simply touch the option
you’dlike to select on the menu screen. As a touch screen
device it will automatically select the option you’ve touched
and advance you to the selected option screen.
CS/CTS MAIN MENU
CS/CTS ACCESSORIES
1. Up/Down Arrow Button - On the ATTITUDE gauge screen these buttons are used to toggle the power
level up/down. The EVOLUTIONgauge screen may use these buttons in future feature enhancements. The
INSIGHT uses these to adjust power levels when using EFILIVE™. In the menus these buttonsare used to select
the menu items and increase or decrease values.
2. Menu Button - The menu button gives you access to the main menu or can be used to exit out of a menu
screen.
3. Left Gauge - The left analog gauge. The displayed parameter for all gauges can be changed by pressing
the enter button, choosing the desired gauge, and selecting a dierent parameter from the list.
4. Alert Indicator - The alert indicator light will illuminate (red) when an alert limit is exceeded. When this
light contains an “R,”it indicates that your Diesel Particulate Filter (DPF) equipped vehicle is performing a
regeneration cycle. If the light is blue and contains an “M”, your Maintenance Manager is letting you know a
maintenance item is ready to be serviced.
5. Power Level Indicator - The power level indicatorrepresents the current power level. For example, “0”
represents stock. An “I” stands for Insight which produces no additional horsepower.
6. Back-down Indicator - (ATTITUDE with JUICE) The back-down indicator light will illuminate (yellow)
when the Juice module is decreasing power added by the device, and when approaching or exceedingthe
back-down set point limit.
7. Right Gauge - The right analog gauge.
8. Enter Button - The enter button when pressed from the main screen will allow you to change the gauge
parameters (PID, Alert Settings, and Gauge Color). In the menus it allowsyou to select the highlighted option.
9. Center Gauge - The center gauge.
