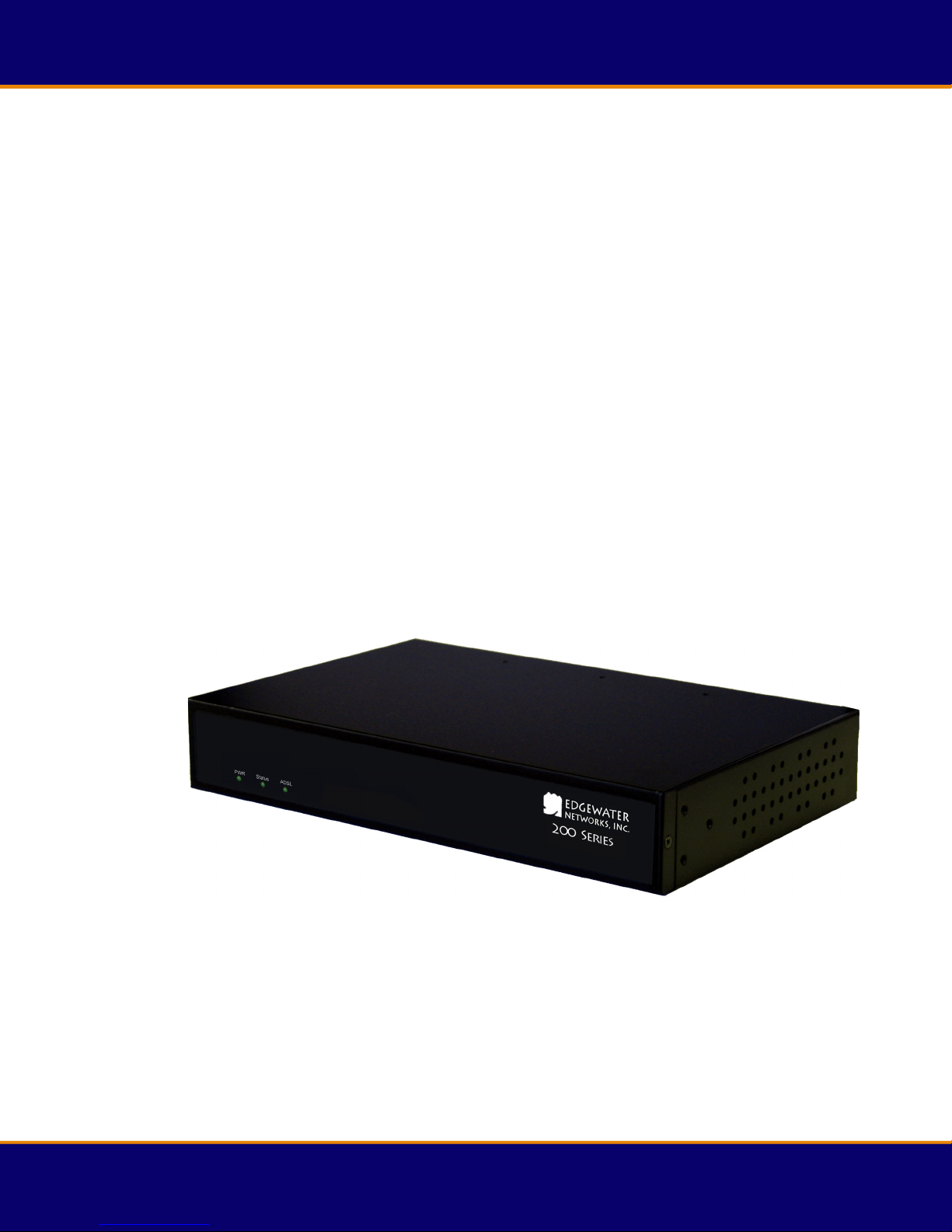

Edgewater Networks 200AE1 Manuale utente

200AE1

Network Services

Gateway

Quick Start Guide

Version 1.0

Page 1 of 6

Before You Start

Please read this guide thoroughly as it describes the basic installation of

the device. Refer to online help for assistance when deploying and

configuring the device in a specific environment.

This guide also provides an example of a typical 200AE1 deployment that

can be used as a guideline for your installation.

Requirements for Installation

•A computer with a web browser such as Microsoft Internet Explorer or

Netscape Navigator or any other browser of your choice

•At least one Ethernet cable

•One phone cable to connect the ADSL WAN port to the PSTN

network supporting ADSL/ADSL 2/2+ standard.

Page 2 of 6

Instructions

Step 1 −Connecting the Cables

1. Connect one end of an Ethernet cable to local LAN port 4 of the 200AE1 denoted by “E”

in the below diagram. Connect the other end of the cable to your computer’s Ethernet

port.

Make sure that the LED in the top right corner is solid green. This LED indicates that the

link is up.

2. If you are using an ADSL connection, connect one end of the phone cable to the ADSL

port (denoted by “B” in the below diagram) and the other end of the cable to the phone

jack on the wall.

3. If you are using an Ethernet connection, connect one end of the Ethernet cable to the

Ethernet WAN port (denoted by “F” in the below diagram) and the other end of the

Ethernet cable to an Ethernet port on a router or a modem.

4. Plug one end of the power adapter into an AC outlet and the other end into the power

receptacle on 200AE1, denoted by “A” in the below diagram.

Make sure that the power and status LEDs denoted by “A” and “B” in the diagram below

are solid green after a short while.

Page 3 of 6

Step 2 −Configuring the EdgeMarc

1. The EdgeMarc device is preconfigured with a LAN address of 192.168.1.1 and a subnet

mask of 255.255.255.0

Configure your computer Ethernet adapter’s IP address to any address other than

192.168.1.1 in the same subnet mask, for example, 192.168.1.2

Note: If you’re using a LAN switch, it must support 100Mbps full duplex.

2. Launch a web browser on the PC and enter the following URL: http://192.168.1.1 and

press Enter

3. The following login window should appear:

4. Enter “root” in the User name field and “default” in the Password field.

5. The System page should appear next. If you should see the "message of the day"

instead, just click on the System link under “Configuration Menu” to get to the System

page.

6. From the Configuration Menu on the left configure the following:

•Network – To configure WAN and LAN ports

•DHCP Server (optional) – Configure according to your specific needs.

Page 4 of 6

Step 3 −Plan Your Configuration

The EdgeMarc 200AE1 can be deployed as a gateway router in a network. It can also be

deployed in a network behind an existing firewall. Based on your deployment criteria, consult

the following documents for further configuration:

•EdgeMarc 200AE1 Network Service Gateway Hardware Installation Guide

•VoIP Operating System (VOS) for EdgeMarc User Manual

Helpful Hints

Although not recommended, the 200AE1 and IP phones can be installed behind an existing

enterprise firewall. In this instance, the firewall will have to be configured to allow access to and

from the 200AE1’s public IP address for the following ports:

Port Type

Firewall Ports to Open

UDP

161 (SNMP) and 162 (SNMPTRAP)

RTP

1056 to 1255

TCP

SSH TCP 22 for remote management & TCP 80 for WAN

configuration-downloads

Telnet

FTP

TCP 21 for stateful TCP-session control from the 200AE1 to

Edgewater FTP server

MGCP

2427, 2429, 2432, and 2727

NTP

123

SIP

5060 and 5075

IP phones normally point to a local NTP server for their time reference. The NTP port 123

needs to be opened if your network does not have an NTP server.

Note: Traffic shaping for this configuration is only available if the enterprise data

devices are also installed behind the 200AE1.

Page 5 of 6

The web page configurations for the various 200AE1 deployments are shown below. The two darker-

shaded rows indicate the minimum configuration required for each deployment.

200AE1 GUI

Configuration

Page

200AE1 as

Gateway

Router

200AE1 within existing

infrastructure

200AE1 behind an

existing firewall

Network

Yes

VoIP/ALG

Yes

NAT

Yes

Optional

Yes

Firewall

Yes

Optional, but

recommended

Optional, but

recommended

DHCP

Yes

Yes (but should be

disabled if DHCP server

already exists)

Yes (but should be

disabled if DHCP server

already exists)

Traffic Shaper

Yes

Optional (depends on

network topology)

Traffic Simulator

Only for

testing

Only for testing

System

As needed
