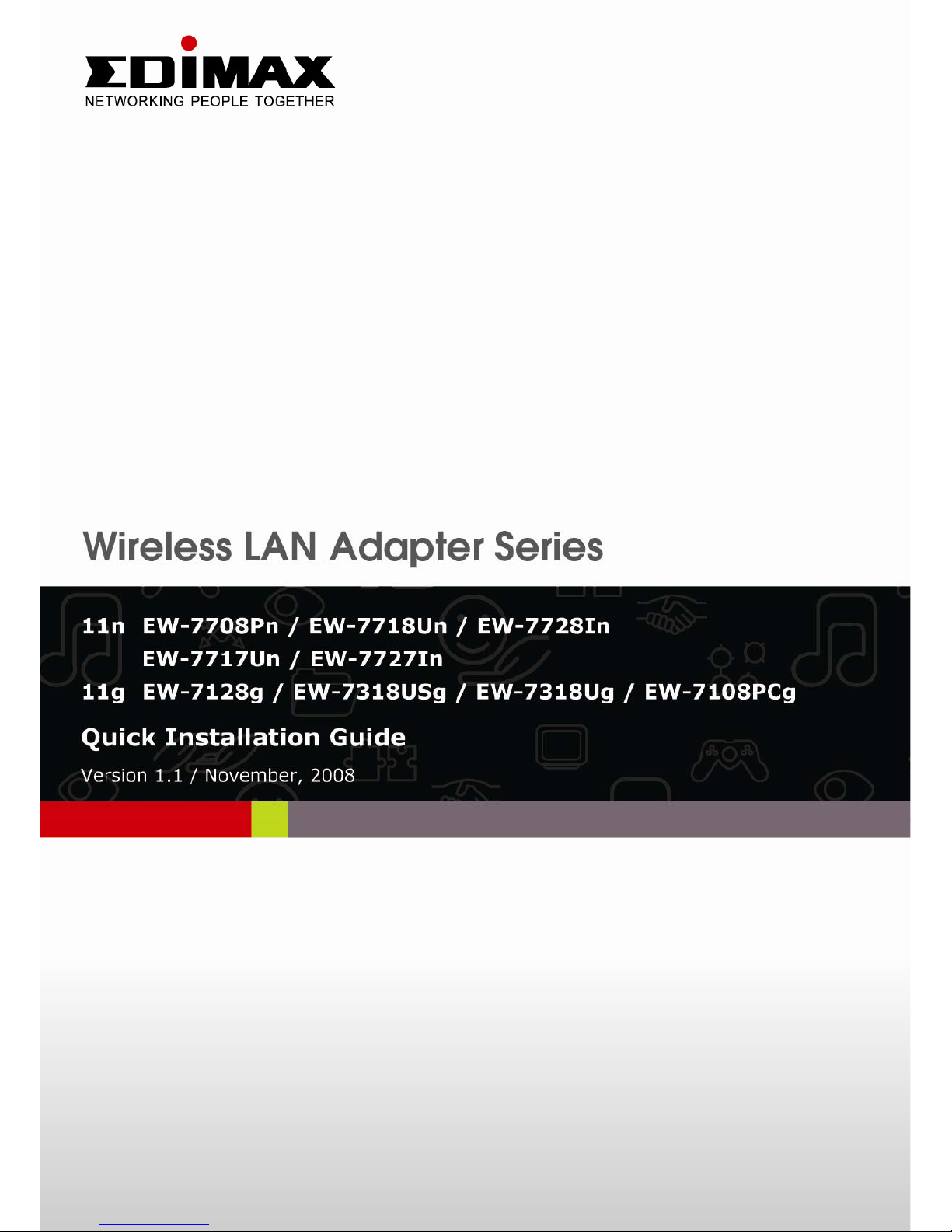

Edimax EW-7708Pn Manuale utente
1
Multi-Language QIG in Driver CD
================================================
Český: Českého průvodce rychlou instalací naleznete na
přiloženém CD s ovladači
D
De
eu
ut
ts
sc
ch
h:
: Auf der beiliegend Treiber CD finden Sie deutsche
Anleitung zur Schnellinstallation.
Español: Incluido en el CD el QIG en Español
Français: Veuillez trouver l’français QIG ci-joint dans le CD
Italiano: Incluso nel CD il QIG in Italiano
Magyar: A magyar telepítési útmutató megtalálható a mellékelt
CD-n
Nederlands: De nederlandse QIG treft u aan op de bijgesloten
CD
Polski: Skrócona instrukcja instalacji w języku polskim znajduje
sięna załączonej płycie CD
Português: Incluído no CD o QIG em Portugues
Русский: Найдите QIG на pусскoмязыке на приложеном CD
Romana: Cd-ul cuprinde Ghid de instalare rapida in limba
romana
Slovensky: Anglického sprievodcu rýchlou inštaláciou nájdete
na priloženom CD s ovládačmi.
Türkçe: Ürün ile beraber gelen CD içinde Türkçe HızlıKurulum
Kılavuzu'nu bulabilirsiniz
简体中文: 产品包装 CD 光盘中含有简体中文版快速安装手冊
繁體中文: 產品包裝隨附 CD 中含有繁體中文版之快速安裝指南
2
Copyright©by Edimax Technology Co, LTD. all rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of this
company.
This company makes no representations or warranties, either expressed
or implied, with respect to the contents hereof and specifically disclaims
any warranties, merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, this company reserves
the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such
revision or changes.
The product you have purchased and the setup screen may appear
slightly different from those shown in this QIG. For more detailed
information about this product, please refer to the User's Manual on the
CD-ROM. The software and specifications are subject to change without
notice. Please visit our web site www.edimax.com for the update. All right
reserved including all brand and product names mentioned in this manual
are trademarks and/or registered trademarks of their respective holders.
3
Contents
1. Product Information............................................................5
2. Package Contents ...............................................................6
3. Network Card Installation...................................................8
3.1 Hardware Installation..................................................8
3.2 Software Installation .................................................11
4. Connect to Wireless Access Point ................................. 14
4
Copyright©by Edimax Technology Co, LTD. all rights reserved. No part
of this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic,optical,
chemical, manual or otherwise, without the prior written permission of this
company.
This company makes no representations or warranties, either expressed
or implied, with respect to the contents hereof and specifically disclaims
any warranties, merchantability or fitness for any particular purpose.
Any software described in this manual is sold or licensed "as is". Should
the programs prove defective following their purchase, the buyer (and not
this company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, this company reserves
the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such
revision or changes.
The product you have purchased and the setup screen may appear
slightly different from those shown in this QIG. For more detailed
information about this product, please refer to the User's Manual on the
CD-ROM. The software and specifications are subject to change without
notice. Please visit our web site www.edimax.com for the update. All right
reserved including all brand and product names mentioned in this manual
are trademarks and/or registered trademarks of their respective holders.
5
1. Product Information
Main Features
zComplies with 802.11n, 802.11g and 802.11b standards.
zProvides further coverage, less dead spot and high throughput (11n
Adapter Up to 300Mbps with MIMO technology).
zSupports WMM, WMM-PS (IEEE 802.11e QoS standard).
zSupports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES
with IEEE 802.1x) for high security level.
zSupports operating system: Windows OS 2000/XP/Vista, MAC OS
10.4.x /10.5.x and Linux
zSupports WPS configuration button. (EW-7717Un, EW-7727In only)
zSupports USB 2.0/1.1 interface. (EW-7717Un, EW-7718Un,
EW-7318Ug, EW-7318USg, only)
6
2. Package Contents
Before you starting to use this wireless network card, please check if
there's anything missing in the package, and contact your dealer of
purchase to claim for missing items:
EW-7717Un / EW-7718Un
□Wireless USB Adapter x1
□USB Cable with Stand x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7318Ug
□Wireless USB Adapter x1
□USB Cable x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7318USg
□Wireless USB Adapter x1
□USB Cable x1
□4dBi Antenna x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7108PCg / EW-7708Pn
□Wireless Cardbus Adapter x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
7
EW-7128g
□Wireless PCI Adapter x1
□Antenna with cable x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7727In
□Wireless PCI Adapter x1
□3dBi Antenna x2
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7728In
□Wireless PCI Adapter x1
□3dBi Antennas x3
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7738Pn
□Wireless ExpressCard x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7748In
□Wireless PCI Express Adapter x1
□3dBi Antenna x3
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
8
3. Network Card Installation
Please follow the following instructions to install your new USB wireless
network card:
3.1 Hardware Installation
EW-7318Ug / EW-7318USg / EW-7717Un / EW-7718Un
1. Fasten the antennas to the antenna connectors on the network card by
clockwise direction. (EW-7318USg only)
2. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on.
Never use force to insert the card, if you feel it’s stuck, flip the
card over and try again.
3. The following message will appear on your computer, click ‘Cancel’.
9
EW-7128g / EW-7727In / EW-7728In / EW-7748In
1. SWITCH THE COMPUTER OFF, remove the cover and insert the
wireless network card into an empty PCI slot (EW-7128g/EW-7728In/
EW-7727In) or PCI Express slot (EW-7748In) of your computer.
2. Fasten the antennas to the antenna connectors on the network card by
clockwise direction.
3. You can bend the antenna to fit actual needs.
4. Switch the computer on, the following message will appear on your
computer, please click ‘cancel’.
