EN-9260TX-E

User Manual

09-2012 / v2.0

publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or

by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission from Edimax Technology Co.,

Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties, either

expressed or implied, with respect to the contents hereof and specifically

disclaims any warranties, merchantability, or fitness for any particular purpose.

Any software described in this manual is sold or licensed as is. Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary

servicing, repair, and any incidental or consequential damages resulting from

any defect in the software. Edimax Technology Co., Ltd. reserves the right to

revise this publication and to make changes from time to time in the contents

hereof without the obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly

different from those shown in this QIG. For more information about this

product, please refer to the user manual on the CD-ROM. The software and

specifications are subject to change without notice. Please visit our website

www.edimax.com for updates. All brand and product names mentioned in this

manual are trademarks and/or registered trademarks of their respective

holders.

Edimax Technology Co., Ltd.

Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan

Tel: +886-2-77396888

Email: [email protected]

Contents

Chapter 1: Introduction .....................................................................................................4

1.1 Model no..........................................................................................................................4

1.2 Package Contents.............................................................................................................4

1.4 Product Features..............................................................................................................5

1.5 System Requirements ......................................................................................................5

Chapter 2: Installation .......................................................................................................6

2.1 Hardware Installation.......................................................................................................6

2.2 Driver Installation .....................................................................................................7

2.2.1 Windows: Setup Wizard ...........................................................................................7

2.2.2 Windows : CD Drivers ...............................................................................................9

2.2.3 Novell and Linux: CD Drivers...................................................................................13

Chapter 3: Troubleshooting .............................................................................................14

Chapter 1: Introduction

1.1 Model no.

EN-9260TX-E: Gigabit Ethernet PCI Express Adapter

1.2 Package Contents

Before you start using this product, please check if there is anything missing in

the package, and contact your dealer to claim the missing item(s):

Gigabit Ethernet PCI Express Adapter x 1

Low-profile bracket x 1

Quick installation guide x 1

CD containing setup wizard, user manual & multi-language QIG x 1

1.3 LED Status:

There are two LED indicators on the adapter:

• LINK /ACT Indicator

This indicator lights green when the Gigabit Adapter is connected to a

Gigabit Ethernet Network device, and blinks green when transmitting or

receiving data on the network.

• 1000M

This indicator lights green when the Gigabit Adapter is connected at

1000Mpbs.

1.4 Product Features

Complies with PCI Express 1.1 –x1 PCI Express standard

IEEE 802.3, 802.3u, 802.3ab and 802.3x standards

Supports 10/100/1000Mbps Auto Negotiation and Jumbo Frame

Supports IEEE802.3x full-duplex Flow Control

Supports IEEE802.1Q VLAN Tagging and IEEE802.1P Layer2 Priority

Encoding

Supports Wake on LAN and ACPI power management

Supports IEEE802.3az energy efficient Ethernet function

Includes a low-profile bracket

Plug-and-Play

Supports drivers for Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/

Vista/7, Linux 2.4.x

1.5 System Requirements

PCI Express 1.1 Slot

CD-ROM Drive

CPU: Pentium III 1G above or similar

Memory size: 256MB RAM or above

Hard Disk: Min. of 100MB disk space

OS: Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/Vista/7, Linux 2.4.x

RJ-45 Ethernet cable

Chapter 2: Installation

2.1 Hardware Installation

To install the adapter, please follow the steps listed below:

A. Turn off your computer and unplug/disconnect all cables, including the

power supply.

B. Remove your computer’s case cover.

C. Locate an available PCI Express slot.

D. Remove the screw that secures the back plate (the small piece of metal that

covers the opening for a PCI Express card on the back panel of your

computer), then remove the back plate.

E. Carefully insert the adapter into the PCI Express slot. Do not touch the metal

connector on the adapter.

F. Secure the adapter to the case using the screw you removed from the back

plate.

G. Reattach your computer’s case cover.

H. Reconnect the power cord and all other cables to your computer, and then

turn on your computer.

When the hardware has been successfully installed in your computer, you will

be prompted on-screen to follow the “Found New Hardware Wizard”; please

click “Cancel”and follow 2.2 Driver Installation to install the driver for your

adapter.

2.2 Driver Installation

The included CD contains a setup wizard which will guide Windows users

through the installation process, as explained in the next section. You can also

install the drivers manually. Please follow the instructions appropriate for your

operating system.

2.2.1 Windows: Setup Wizard

A. Please insert the Driver CD-ROM into your computer’s CD-ROM drive.

B. Find the product model “EN-9260TX-E”.

For Windows XP

Windows 7/Vista/98SE/ME/2000/XP

C.Click “Setup Driver”.

D. The wizard will help you install the driver for Windows 7/Vista/98SE/ME

/2000/XP.

E. Restart Windows to complete the installation.

2.2.2 Windows : CD Drivers

Windows 7/Vista/98SE/ME/2000/XP users can alternatively install the drivers

manually. The following instructions will guide you through the CD Drivers

installation procedure.

A. Insert the Edimax Resource CD into the CD-ROM drive.

B. Right-click the icon “My Computer”on the desktop, and then click

“Manage”.

Windows 7/Vista/98SE/ME/2000/XP

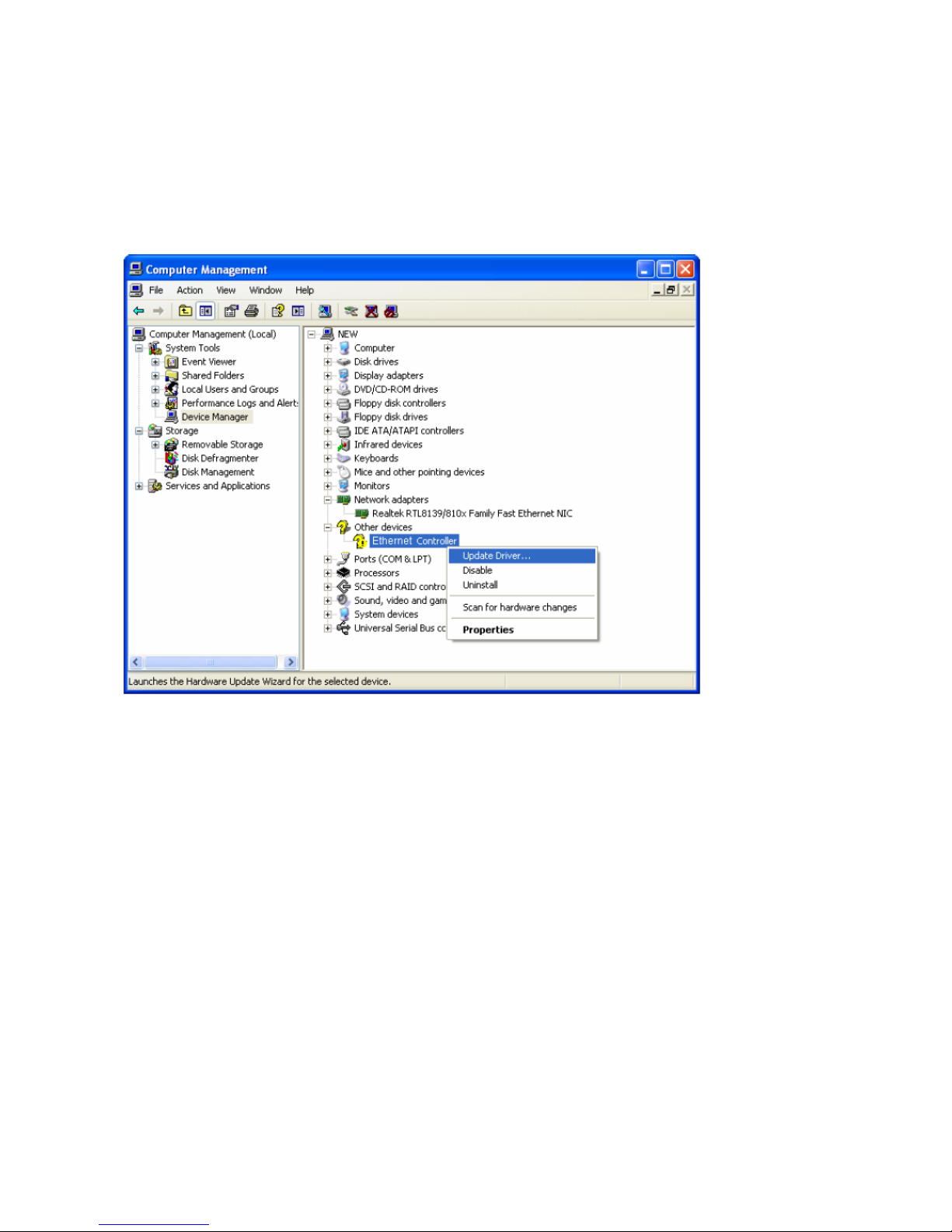

C. The “Computer Management”screen will appear as shown. Click “Device

Manager”, and you will see various options on the right. Click “Other

devices”, and then from the drop-down list please find “Ethernet

Controller”you have installed. Right-click it, and then select “Update

Driver”.

D. The “Hardware Update Wizard”window will show up. Select “Install from a

list or specific location [Advanced]”, and then click “Next”.
