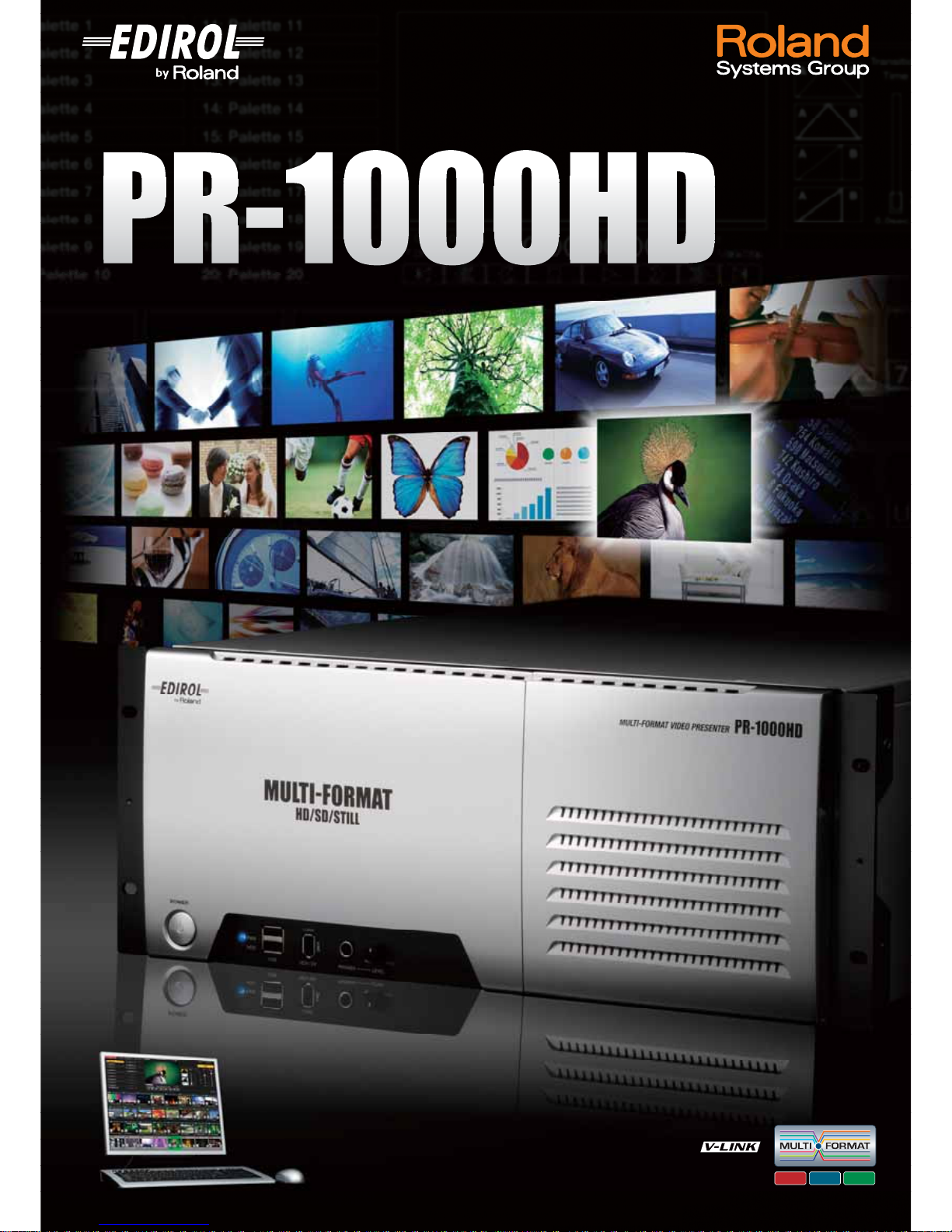

HD SD STILL

Multi-Format Video Presenter

Multi-Format, Realtime Video Playback

The next generation HD version of the popular

EDIROL PR Video Presenter Series.

Projector

Display monitor

HDTV

PA system

Playback control

functions are integrated

in PLAY MODE.

OUTPUTINPUT

DVD Multi Drive

HDV/DV

Removable

Hard Disk Drive

Removable HDD Bay x 2

LAN

USB

Flexible and Stable Playback.

Instantly playback 640 clips (32 clips x 20 palettes).

Internal processing with intra-frame MPEG-2 ensures precise frame accurate playback with in/out points.

Enhances your visual presentation with playback speed and color control.

Clips of Multiple video formats can be directly captured and played seamlessly.

Large-capacity HDDs and Reliable system.

Built-in Scheduler and support for external controls.

Palettes switch

Supports multiple video formats.

Palette

Transport control

and Progress bar Transition

Color/Audio control Playback

speed

HDV/DV LAN

USBDVD/CD-R

DVI-I Output

Analog/Digital

RGB

The PR-1000HD supports HD (1080i/720p), SD and Still Image (JPEG/BMP) formats

- truly a multi-format video player.

*SD and uncompressed AVI's are saved as intra-frame MPEG-2 format.

*When "Convert to intra frame compression MPEG-2" is set and HD materials are captured, the amount of storage space required

is equivalent to three times the requirement for HDV/DV material.

*The PR-1000HD can handle only 1080i, 720p and SD video. These formats can be converted to the selected format.

A built-in software scheduler allows content to be played by specific time, date, day of the week and month.

Playback, Power OFF and other parameters can be remotely controlled from external devices using RS-232C or MIDI.

A maximum of 20 hours of video material can be

captured to one HDD. Two HDD slots on the PR-1000HD

enables data management features, copy and backup.

*Minimum one HDD is required.

Materials can be imported from disc media (CD/DVD),

USB Storage or over the network. The system files

are installed in Solid-State memory making playback

and operation stable and reliable.

(HDV)

(DV)

1080i

720p

AVI

JPEG/BMP

Multi-Format video player with 1080p output quality.

The EDIROL PR series user interface is intuitive and

easy to use.

Uncompressed

The PR-1000HD is the next generation HD video presenter in the popular EDIROL PR series.

Supports Multi-Format media consisting of HD, SD and/or Stills.

Smooth and high quality playback for any applications where visuals are used.

EDIT MODE enables organization and

content management of clips.

In EDIT MODE, you can capture and upload new materials to the PR-1000HD,

change clip sequences names and assign the materials to the palette as clips.

Simply drag and drop the materials to an assigned location within a palette.

USB Mouse and Keyboard are standard

requirements for the PR-1000HD.

Multi-Format Video Presenter

VC series expands Multi-Format output options.

GEN LOCK

(Signal outputs from all output interfaces)

(Up to ver.1.02)

Output setting: Digital RGB

Output setting: Analog RGB

*A DVI adapter is necessary to

connect RGB or HDMI.

*HDCP is not supported.

HD / SD-SDI

HD / SD COMPONENT

DVI-I (PC-RGB / HDMI )

HDV / DV

HD / SD-SDI

HD / SD COMPONENT

DVI-I/DVI-D

DVI-I VGA

HDV/DV

Palettes list Clips list Parameter area Material list

Projector

HDTV

SD Camera HD Camera Computer

Flexible and intuitive video presentation system.

OUTPUT

(Analog RGB) OUTPUT

Selectable output

aspect ratio.

Combine the PR-1000HD with

the EDIROL VC-300HD/

VC-200HD Multi-Format

Video Converter to expand

input/output formats to HD/

SD-SDI, RGB formats, etc.

Touch panel display provides

a more intuitive operation.

TheEDIROLV-440HD

Multi-FormatVideoMixer

acceptstheHD signal from

theDVI-D/RGB port on

the PR-1000HD.

The V-440HD also accepts

HD cameras and computer

formats.

Built-in scaler allows output in

multiple resolutions.

You can select output formats

that match your output device

such as a data projector or

HDTV.

V-440HD

■ Specifications

■ Front View

■ Rear View

■ Dimension Chart (mm)

M4 max 9mm

482

430

465

177

101.6

495

43.5

30.5

479

USB

DVD Multi Drive

Removable HDD* Bay

i.Link (IEEE1394)

Phone Output and Level

Video: HDV, MPEG (HDV, DV, AVI), STILL (JPEG, BMP)

16bit 48kHz (Stereo)

HDV: 1080i, 720p

DV: NTSC or PAL

*Supported frame rates differ according to regional specifications.

HDV: MPEG-1 Layer2 16bit 48kHz 384kbps (Stereo)

DV: Liner PCM 16bit/48kHz (Stereo)

Digital (RGB): 1080i/p, 720p, 1920 x 1200, 1280 x 1024,

1280 x 960, 1024 x 768, 640 x 480

Analog (RGB):1080i, 720p, 1920 x 1200, 1280 x 1024,

1280 x 960, 1024 x 768, 640 x 480

*Supported frame rates differ according to regional specifications.

Balanced

Unbalanced

Digital (RGB): 1024 x 768/60Hz (Fixed)

Analog (RGB):1024 x 768/60Hz (Fixed)

*For HDD-250

System Program: Solid-State Drive

Project Data: Slot x 2 for Removable HDD

DVD Multi-Drive: Still/Video data

LAN: 10/100/1000 Base-T x 1

RS-232C x 1

MIDI In/Out

USB x 4 (for Card Reader, Mouse, Keyboard,

Storage, Optional Touch Panel Display)

AC 117V, AC230V, AV240V (50/60Hz)

482 (W) x 500 (D) x 177 (H) mm

*EIA-4U Rack Mount Size

15.2 kg

Power Cord,

Owner's Manual

Hard Disk Drive: HDD-250

Video Input

(Front/Rear)

Audio Input

(Front/Rear)

Video Output

• USB Mouse and keyboard are not bundled with the PR-1000HD. • Minimum one HDD is required. (HDD-250) • For the touch panel display, please use an IntelliTouch compatible display made by ELO Touch Systems. (http://elotouch.com/) ?i.Link is a trademark of Sony Corporation.

*An external HDD connected via USB is for transfer and backup only. It cannot be used to directly playback video. *The IEEE1394 port on the PR-1000HD is for connecting to video compatible devices and will not recognize external HDDs.

<Notes> When capturing video, capture several seconds before and after the desired portion of the clip and then set the appropriate start and end points in the EDIT mode. You cannot capture from a tape recorded in multiple formats. ?Captured video should be more than 1 second
