Edirol R09 Istruzioni operative

Generated by Clearspace on 2009-10-29Z 1

How to use the Edirol R09 MP3/WAVE audio

recorder

•Before you begin on page 1

•Switching on on page 2

•Recording on page 4

•Playback on page 7

•Transferring on page 9

•Video version on page 13

Before you begin

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 2

Make sure you have the following:

1. Edirol R09 MP3/WAVE Recorder

2. Power cable and power adapter

3. SD memory card (this should be inserted at bottom of record under panel)

4. 2 x AA batteries (if not using mains power)

5. USB cable

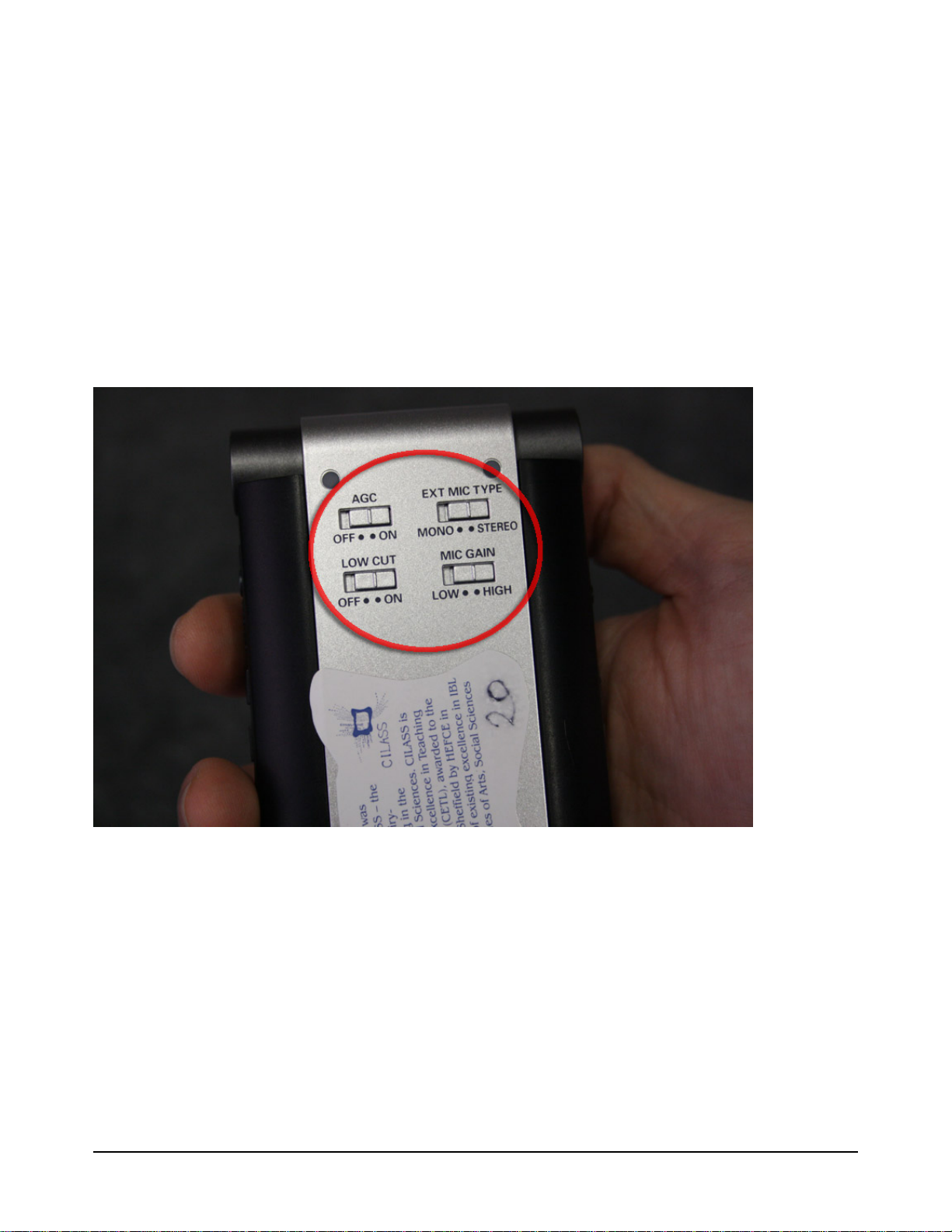

Check the settings on the back look like this:

Switching on

Recommend: Using mains power at all times where possible to prevent recording to fail due

to battery power loss

If using mains power:

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 3

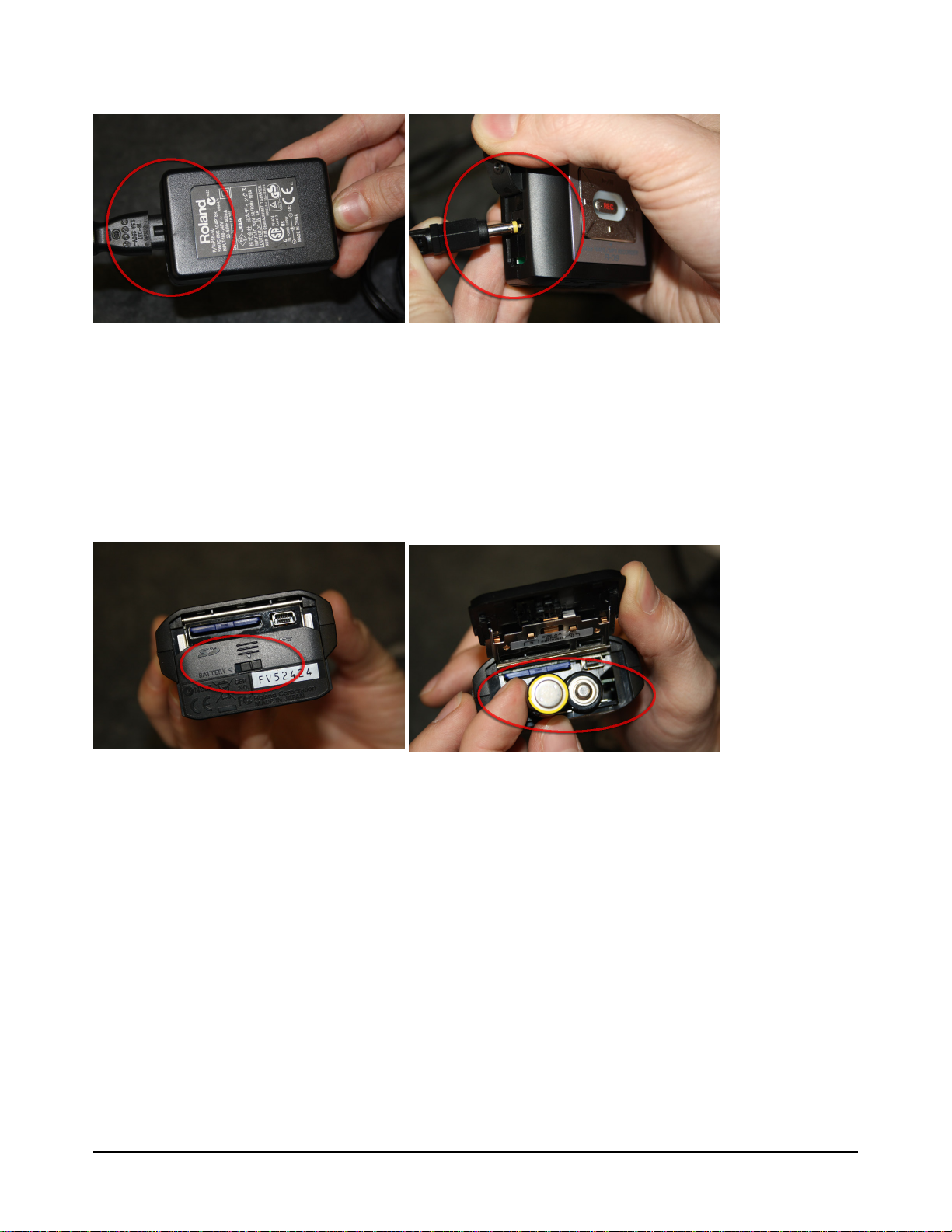

A. Connect power cable to power adapter

B. Connect plug to power source

C. Connect power to side of recorder

If using batteries:

A. Open bottom panel by sliding it away from recorder until it stops. Press, hold and slide battery release

button to left and then slide bottom panel away from recorder again

B. Insert batteries

C. Close bottom panel

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 4

1. Press and hold power button at side of recorder for more than 2 seconds

Recording

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 5

1. Set record mode by pressing and holding down 'Finder/Menu' button for more than 2 seconds

2. Press 'Rec/Enter' button

3. Change sample rate and record mode using the navigation/ control buttons and 'Rec/Enter' button

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 6

Recommend sample rate; 48KHZ and record mode; MP3-128KHZ (for mp3 recordings) or

WAV-16bit (for wave recordings)

4. Press 'Finder/Menu' button repeatedly until back at main screen

5. Press 'Rec'

Note: This is not recording but in 'Standby mode'. In this mode you can check your levels

before recording

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 7

6. Press 'Rec' again

To stop recording press 'Stop' using control/ navigation buttons

Playback

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 8

Note: This recorder does not have speakers. To listen back you will need to plug in

headphones at the side of the recorder. Use the Volume buttons to adjust volume

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 9

Use the control/ navigation buttons to play, pause and stop playback.

•Press the scan buttons to switch between tracks

•Press and hold the scan buttons to fast-forward/ rewind

Transferring

How to use the Edirol R09 MP3/WAVE audio recorder

Generated by Clearspace on 2009-10-29Z 10

1. Turn on recorder (see 'Switching on')

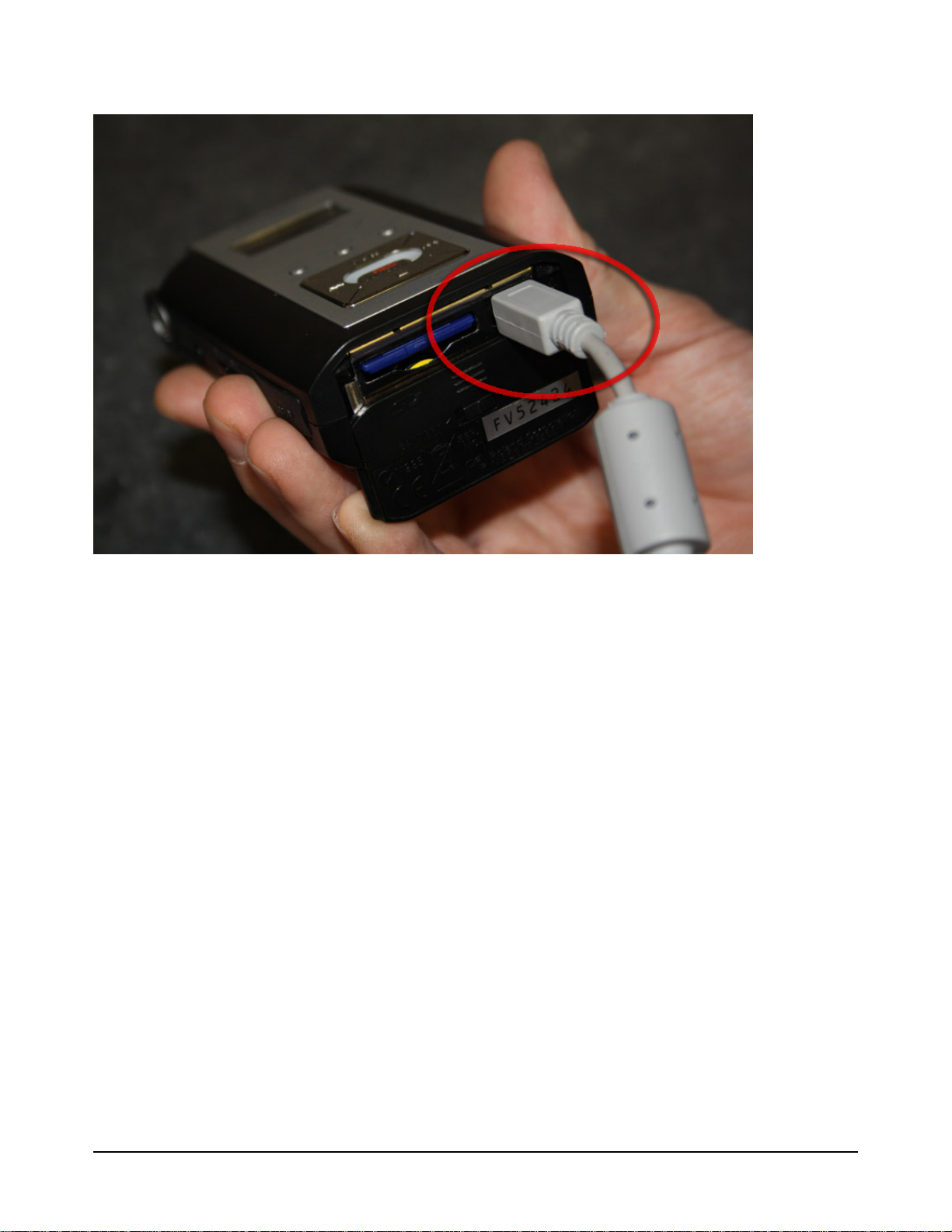

2. Connect USB cable at bottom of recorder (under panel)

3. Connect USB cable to computer
