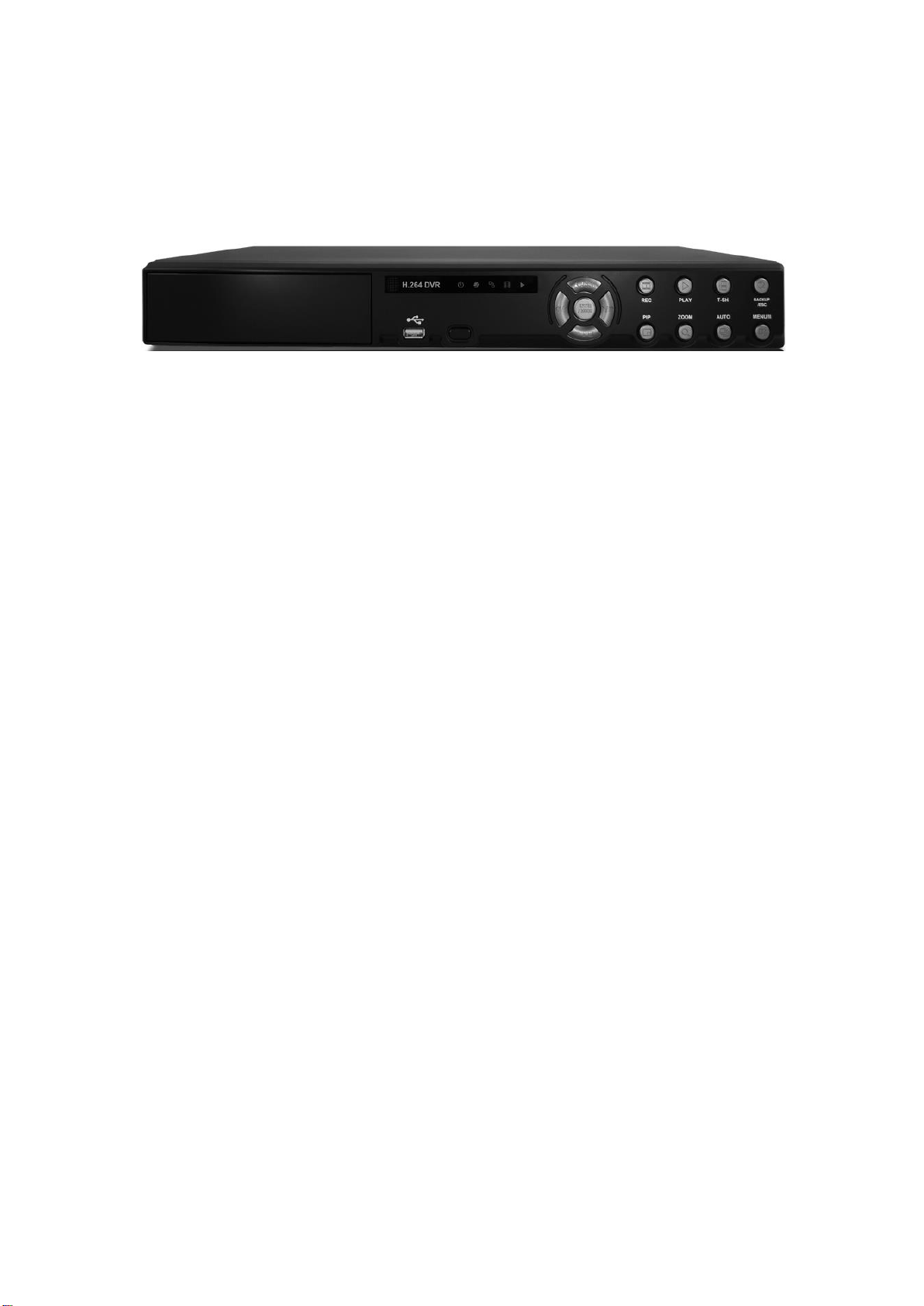

16CH DVR Quick Start Guide V1.5 P.5
①②③④⑤⑥⑦
⑧⑨⑩⑪ ⑫ ⑬ ○
14
Optional DVD-RW backup device.
HDD: Hard disk is in use.
LAN: Connected to the internet (in red): Remote user logged in.
REC: Recording.
PLAY: Playing back.
In SETUP mode, press to move cursor down. In PLAYBACK mode, press
to stop playing back.
In SETUP mode, press to move cursor up. In PLAYBACK mode, press to
slow down.
In SETUP mode, press to increase value. In PLAYBACK mode press to
play forwards.
In SETUP mode, press to reduce value. In PLAYBACK mode, press to
play rewind.
Play back in normal speed.
In LIVE mode, press to display the BACKUP menu. In SETUP mode,
press to return to previous page.
Port for USB external devices (USB flash drive devices use, the mouse
behind the back of the USB ports installed)..
Input sensor for the remote control.
