Edishine HOWL07F Manuale utente

Please pay attention to the warning signs

Read the instructions with caution before operating

and keep it properly

SKU: HOWL07F

V30815

[Instruction Manual]

Outdoor Wall Light

Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to

ensure correct installation.Before installation, please turn off the main power

of the circuit breaker to prevent possible electric shock.

NOTE: PLEASE INSTALL THIS WALL LANTERN 1.2 METERS 3.94

FEET ABOVE THE GROUND

WARNING:

Packing List

Installation Instructions

Part Description

Wall light

Quantity

1pc

3pc

2pc

1pc

17.83"x6.3"x7.6"

Wire connectors P3

Mounting screw M4*25mm

Instruction manual A5 PAPER

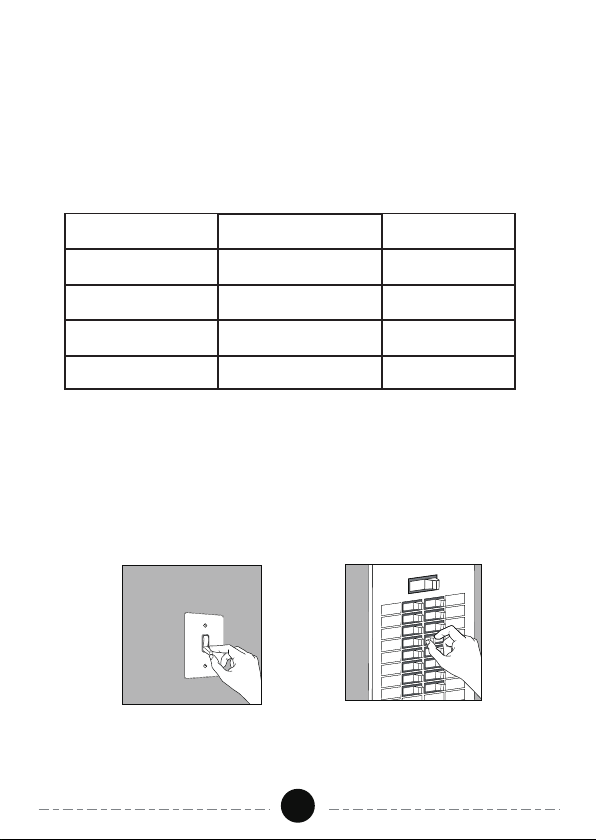

FIG.1 WALL SWITCH FIG.2 BREAKER PANEL

FIG.1. Turn the wall switch to the “OFF” position.

Depending on which type of fuse box in your home:

FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off

the power supply of the entire home, or turn off the individual switch that

supplies power to the fixture installation location.

FIG.3. Either turn the main (Master) switch to the "OFF" position to cut off

the power supply of the entire home, or unscrew the fuse that supplies

or turn off the individual switch that supplies power to the fixture installation

location.

Cleaning: Cleaning the glass and sensor surface of the wall light

with a soft and damp cloth.Dust will affect the sensitivity of sensor and

brightness of the light.

STEP 01: POWER OFF

STEP 02: CLEAN THE LIGHT

Connect black live wire, white neutral wire and ground wire with wire

connectors,be sure that the wires are connected sturdily.

STEP 03: CONNECT THE WIRE

Fix the lamp on the wall with mounting screws,unload the light body by

taking off two screws,install A19 bulb(E26 base) in the wall light.

(Not included)

STEP 04: FIX THE LIGHT

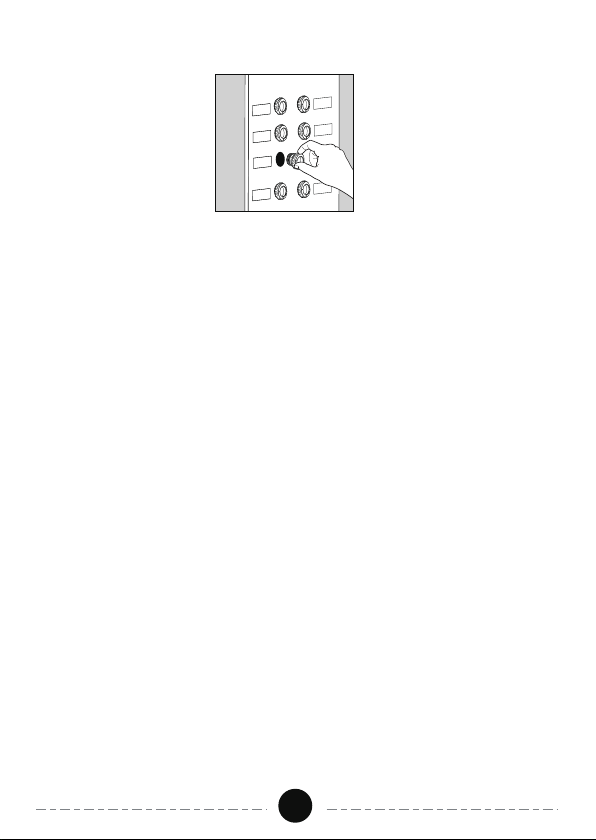

FIG.3 FUSE BOX

Turn on the main (Master) switch to get the power back, the light will turn

on automatically.

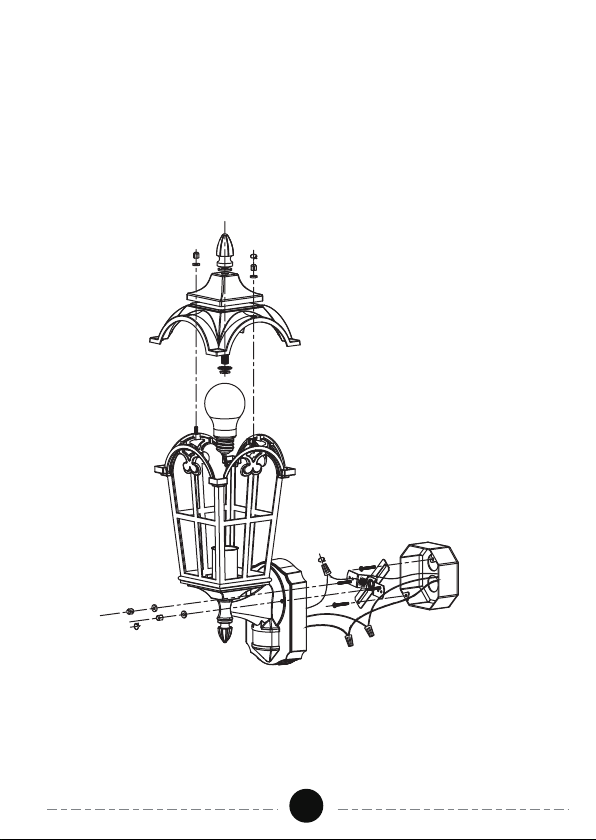

The lamp structure is described as following picture:

STEP 05: POWER ON

bulb not included

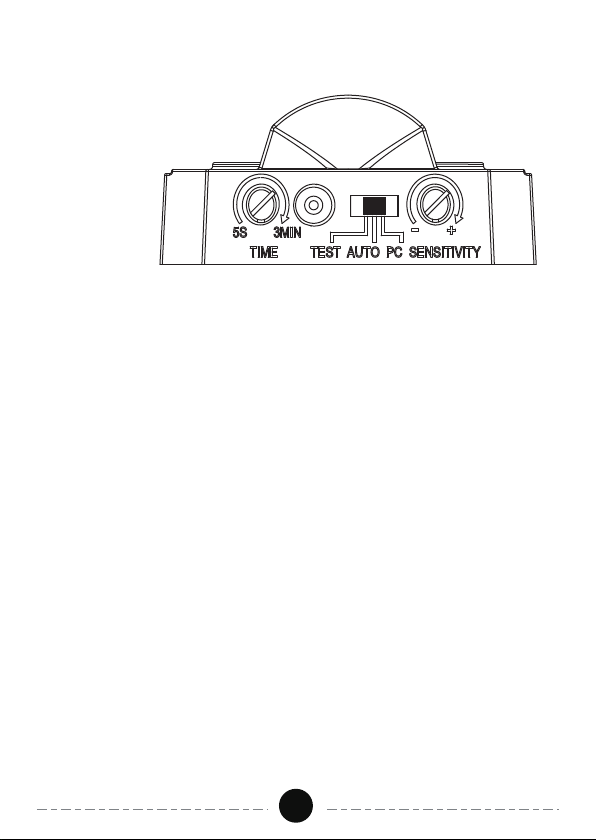

1.TEST mode

Allows you to adjust the sensitivity of motion detector to a desired level at day

or night. When motion stops,This light automatically turns off after approximately

5 seconds.

2.AUTO mode

Motion detector turns your light on automatically after sensing moving heat

sources in its coverage area at dusk, and stays on as long as motion is

detected .When motion stops, light will. Remain on for the predetermined time

you set (5sec. to 3 min.), and then turn off automatically.

3.PC mode

Light turn on at dusk and off at dawn automatically, regardless the presence

of motion.In this mode, time and inductive distance adjustments are not

available.

Remark:

A.(TIME):Rotate clockwise to increase, whereas counterclockwise rotation

decreases. Minimum time of 5 seconds. The maximum time period was 3 min.

B.(SENSITIVITY):Rotate clockwise to increase, whereas counterclockwise

rotation decreases. the preset maximum induction distance is 9 meters.

C.Factory default setting: TEST mode, minimum time (5 seconds), maximum

distance (9 meters).

Operation description

PARAMETER DESCRIPTIONS

- Input Voltage: 120VAC 60HZ

- Max load Power for Bulb : Incandescent Bulb 60W

- Socket Type: Standard medium E26 ( bulb not included)

- Material: Die-casting Aluminum and Glass

- Function : Motion sensor

- Dimensions: 17.83’’(H) x 6.3”(W) x 7.6”(D)

- Comply with: ETL

One Year Limited Warranty

Supported by our professional R&D team and QC team, we provide One

Year Warranty for materials and workmanship from the purchase date.

Please note that the warranty does not cover damage caused by personal

misuse or improper installation.

Please attach your Order ID and Name so that our dedicated customer

service team can help you better.
