Eduard WEEKEND Spitfire Mk.XVI Bubbletop Manuale utente

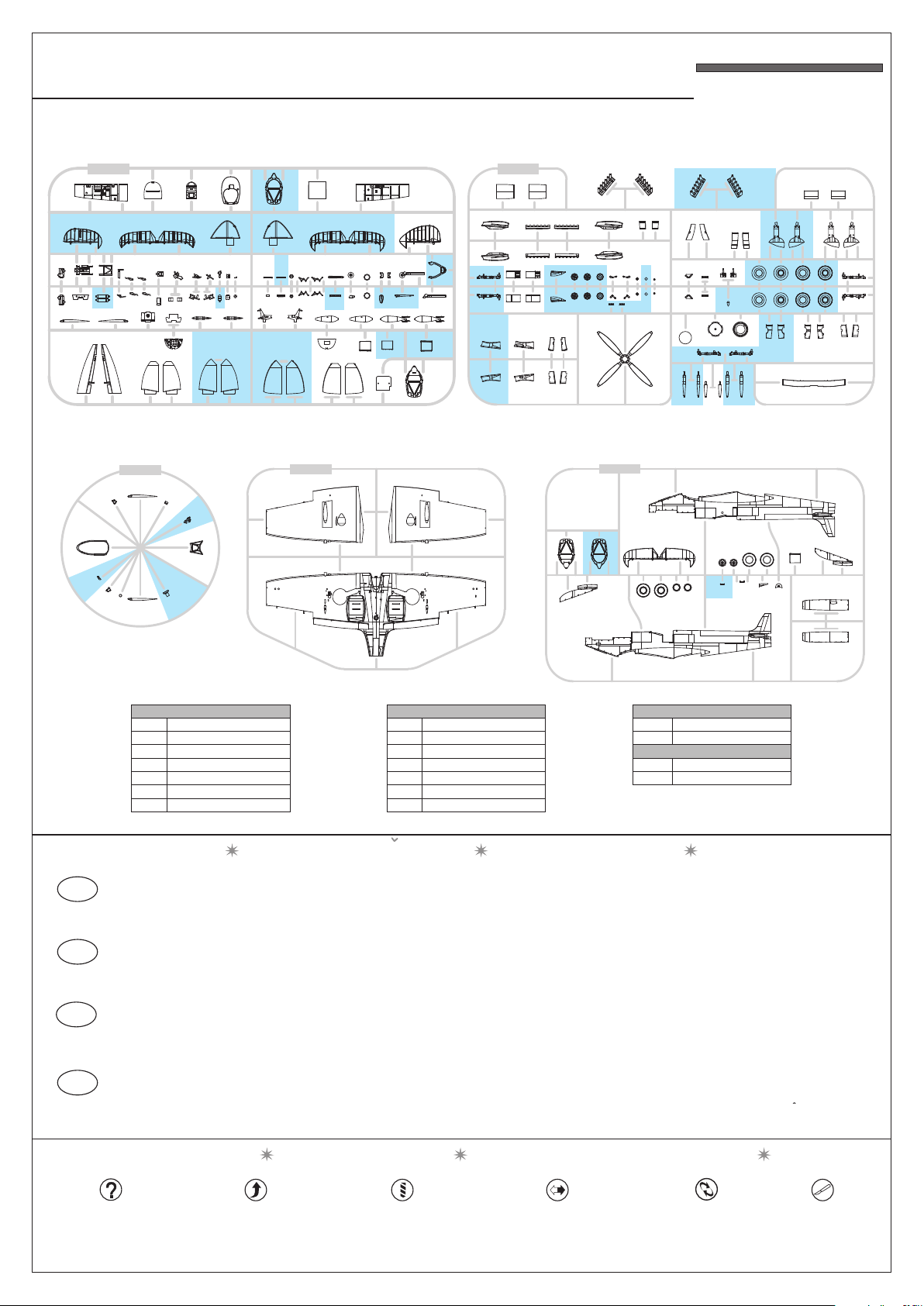

UPOZORNENÍ ACHTUNG ATTENTIONATTENTION
INSTRUKTION SINNBILDEN
INSTR. SYMBOLY SYMBOLES
INSTRUCTION SIGNS
PLASTIC PARTS
OPTIONAL
FACULTATIF
NACH BELIEBEN
VOLBA
BEND
PLIER SIL VOUS PLAIT
BITTE BIEGEN
OHNOUT
OPEN HOLE
FAIRE UN TROU
OFFNEN
VYVRTAT OTVOR
SYMETRICAL ASSEMBLY
MONTAGE SYMÉTRIQUE
SYMMETRISCHE AUFBAU
SYMETRICKÁ MONTÁŽ
REMOVE
RETIRER
ENTFERNEN
ODØÍZNOUT
REVERSE SIDE
OTOÈIT
G>
F>
Spitfire Mk.XVI Bubbletop
1:48
84141
WEEKEND
eduard
EDITION
84 141 - NAV1 1
Pøed zapoèetím stavby si peèlivì prostudujte stavební návod. Pøi používání barev a lepidel pracujte v dobøe
vìtrané místnosti. Lepidla ani barvy nepoužívejte v blízkosti otevøeného ohnì. Model není urèen malým dìtem,
mohlo by dojít k požití drobných dílù.
Carefully read instruction sheet before assembling. When you use glue or paint, do not use near open flame
and use in well ventilated room. Keep out of reach of small children. Children must not be allowed to suck any
part, or pull vinyl bag over the head.
Lire soigneusement la fiche d´instructions avant d´assembler. Ne pas utiliser de colle ou de peinture a
proximité d´une flamme nue, et aérer la piece de temps en temps. Garder hors de portée des enfants en bas
âge. Ne pas laisser les enfants mettre en bouche ou sucer les pie` ces, ou passer un sachet vinyl sur la tete.
`
GB
CZ
D
F
Vor dem Zusammenbau die Bauanleitung gut durchlesen. Kleber und Farben nicht in der Nähe von offenem
Feuer verwenden und für eine ausreichende Belüftung sorgen. Den Bausatz von kleinen Kindern fernhalten.
Vermeiden Sie, dass Kinder Bauteile in den Mund nehmen oder sich Plastiktüten über den Kopf ziehen.
J>K >L>
8280 J 8280 K 8280 L
8280 F 8280 G
DARK IRON
Mr.METAL COLOR
MC214
ALUMINIUM
MC218
SUPER FINE SILVER
Mr. METALLICCOLOR SUPER
SM01
CHROME SILVER
SM06
C81 RUSSET
C364
AIRCRAFT GRAY-GREEN
C138 CLEAR GREEN
C362 OCEAN GRAY
C363 MEDIUM SEA GRAY
Mr.COLOR
C137 TIRE BLACK
C361 MEDIUM SEA GRAY
Mr.COLOR
C4 YELLOW
C34 SKY BLUE
C12 OLIVE DRAB
C47 CLEAR RED
C3 RED
C62 FLAT WHITE
C33 FLAT BLACK
F65
F3
F64
F64
F31
C81
C364
F64
F65

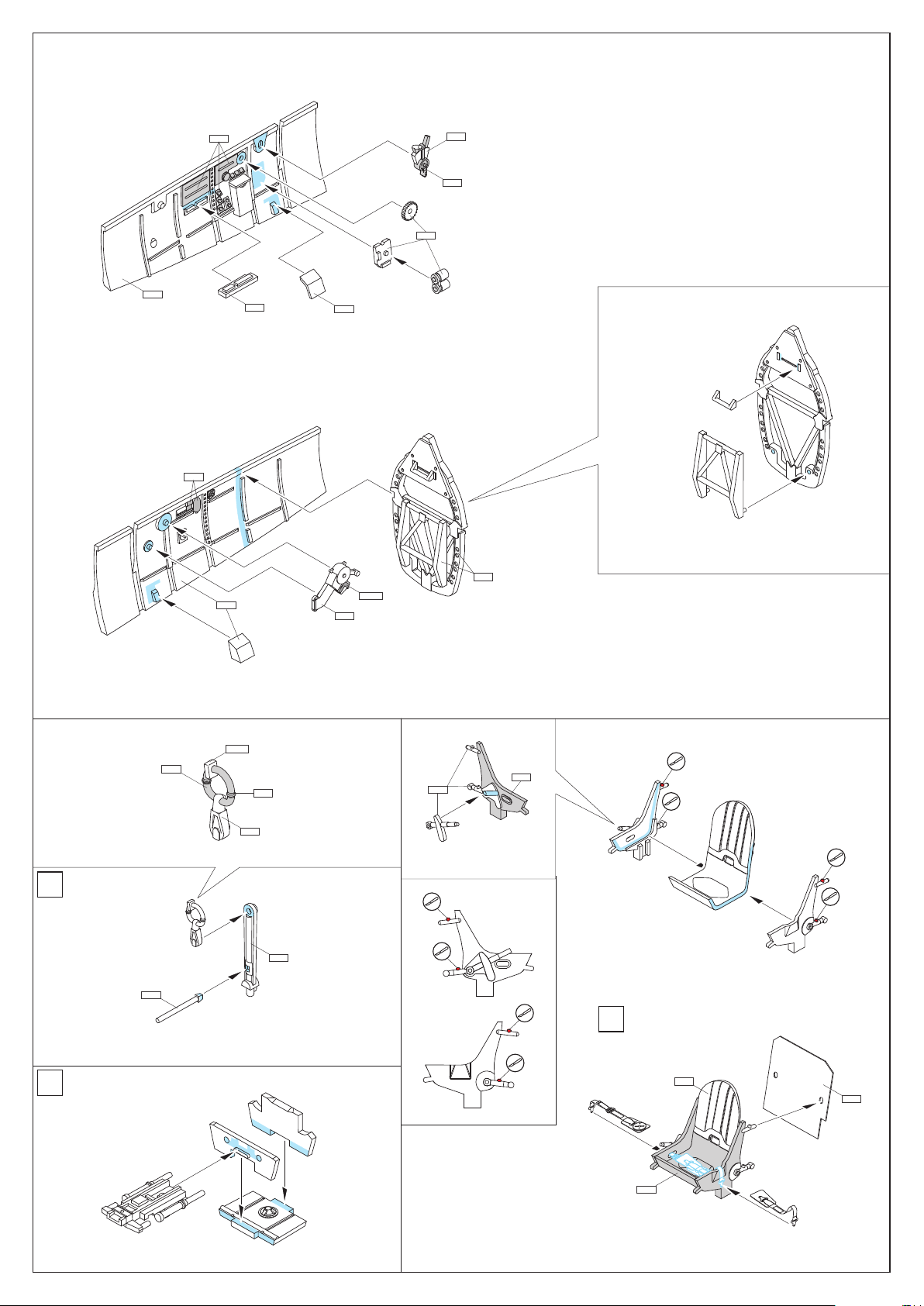

2
A
B
F61
F16
F60
F17
C
F32
MC218
C33
C33
C364
F7
F25
F27
MC218
C364
C33
C364
C33
F46
F32
F38
C364
C364
C81
decal 13
decal 14
F81
C33
C364
L2
F18
L13
F1
F28
F42
F26
F41 F35
F34
C364
C33
C33 C364
C33
C33
C364
D
F1

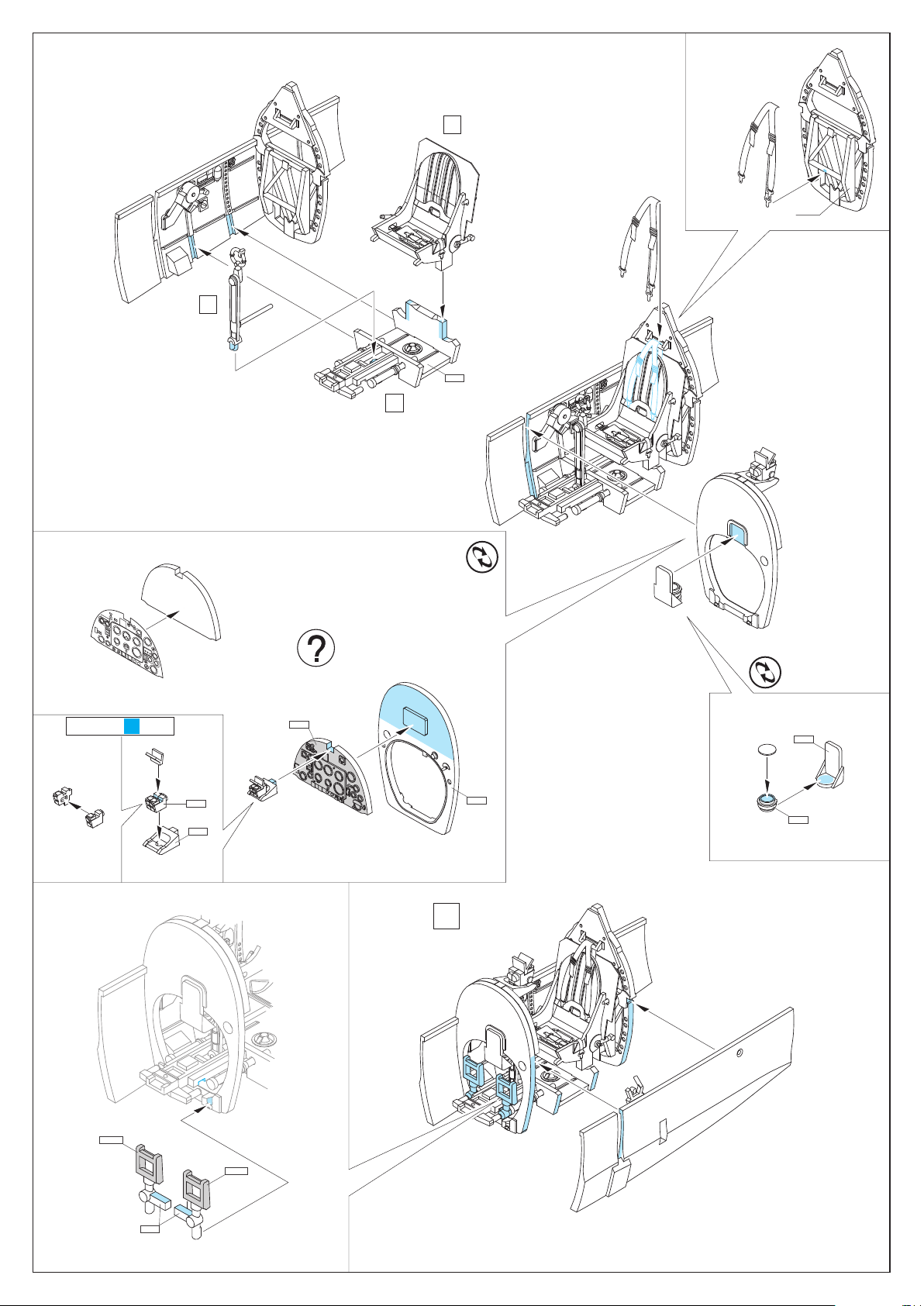

3
F66
decal 16
F23
F43
decal 18 C364
C33
F30
F29 MC218
MC218
C364
J8
J11
A
MARKING ONLY
A
C
B
C364
F18
decal 12
decal 12
F4
F62
C364
C33
J2
F24
C364
C33

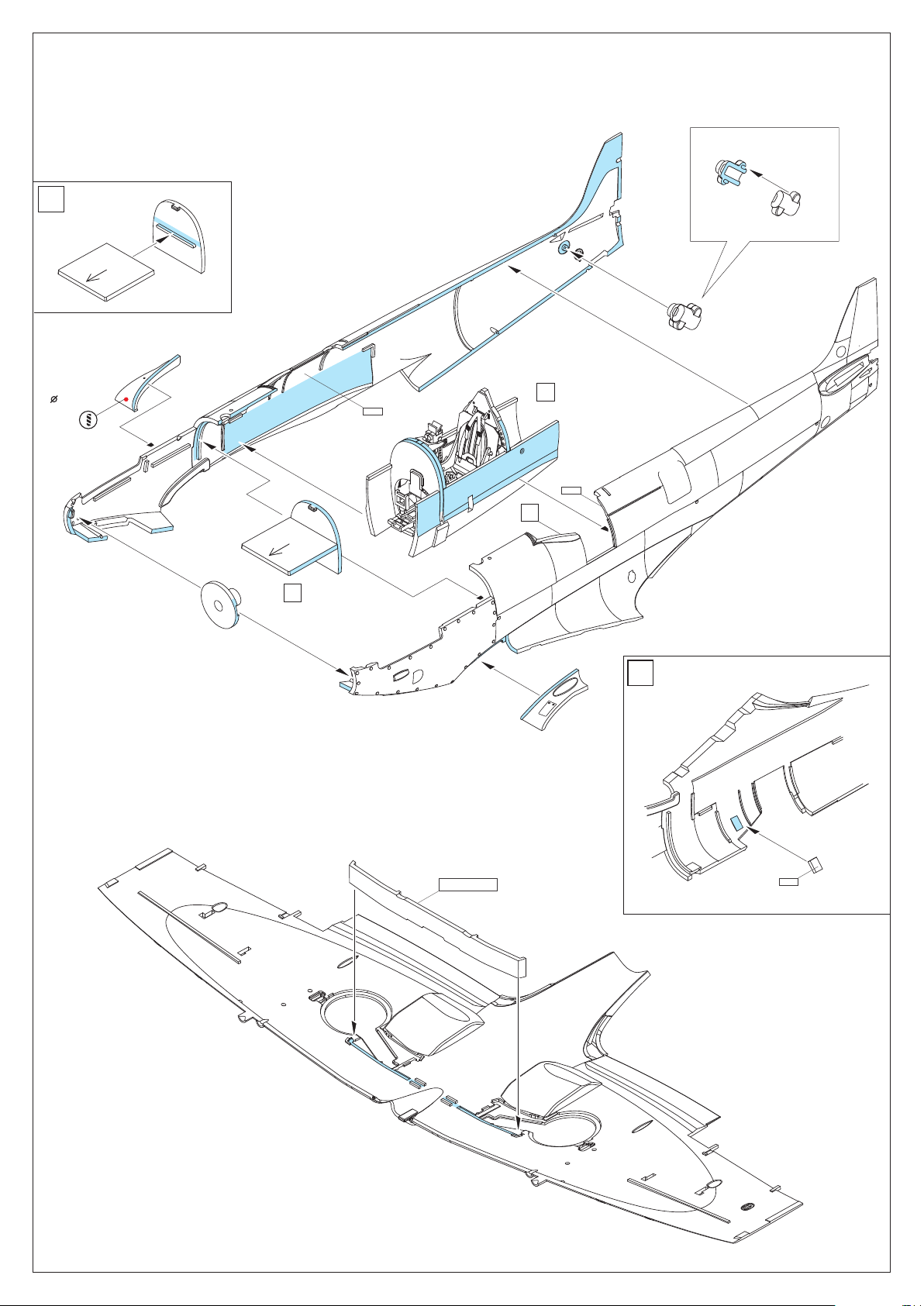

4
F
F2
F6
E
C33
L16
F39
K3
G76
UNDERSURFACE
COLOR
F14
F15
G58
- 1 mm
L1
L16
G64
F
E
D
G57
C364
C364

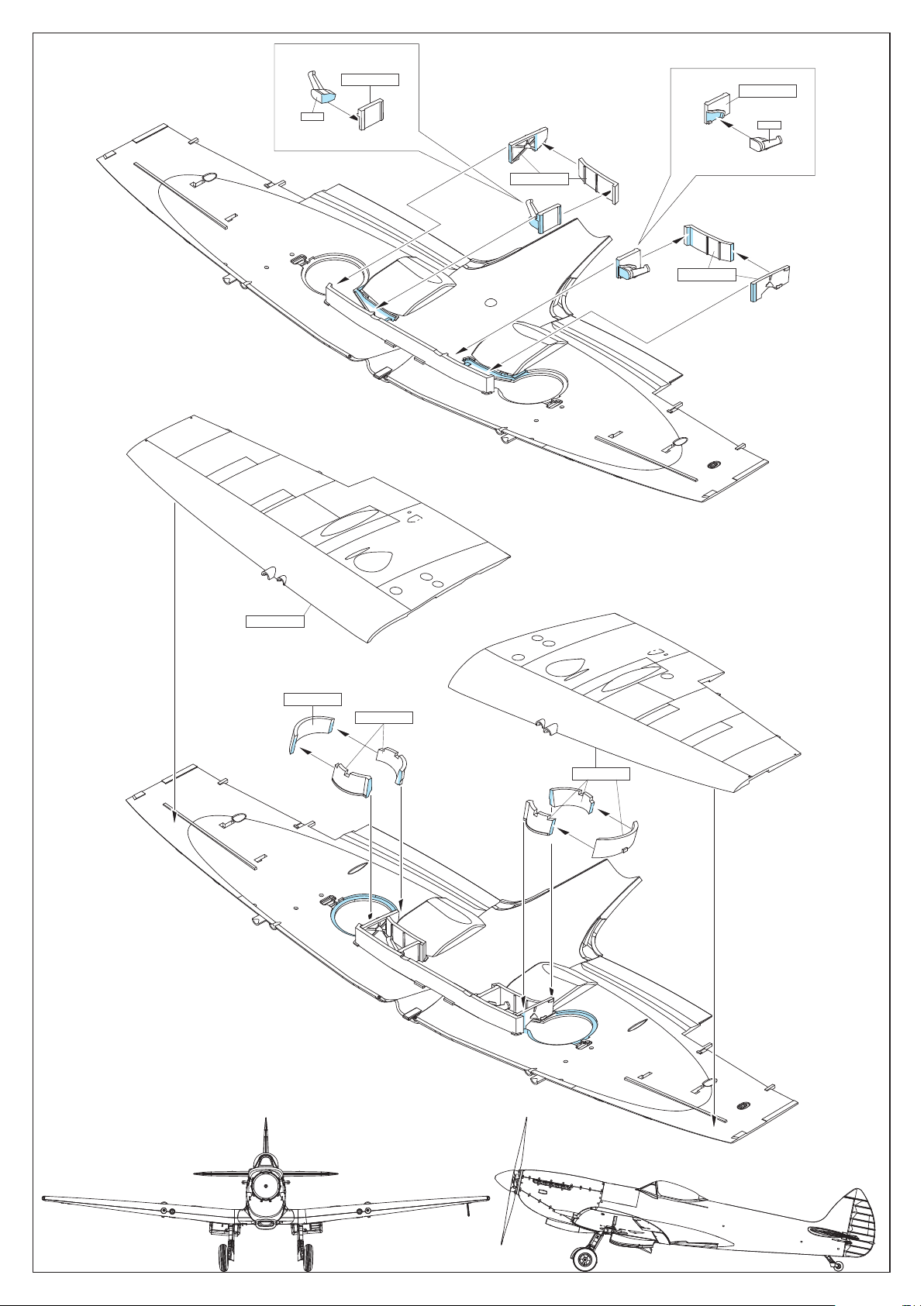

5
G47
G15
UNDERSURFACE
COLOR
MC218
G46
G16
UNDERSURFACE
COLOR
MC218
UNDERSURFACE
COLOR
G69
G20
G19
G70
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
G17
G72
G61
G59
G71
G18
K2
K1
G
H
MC214

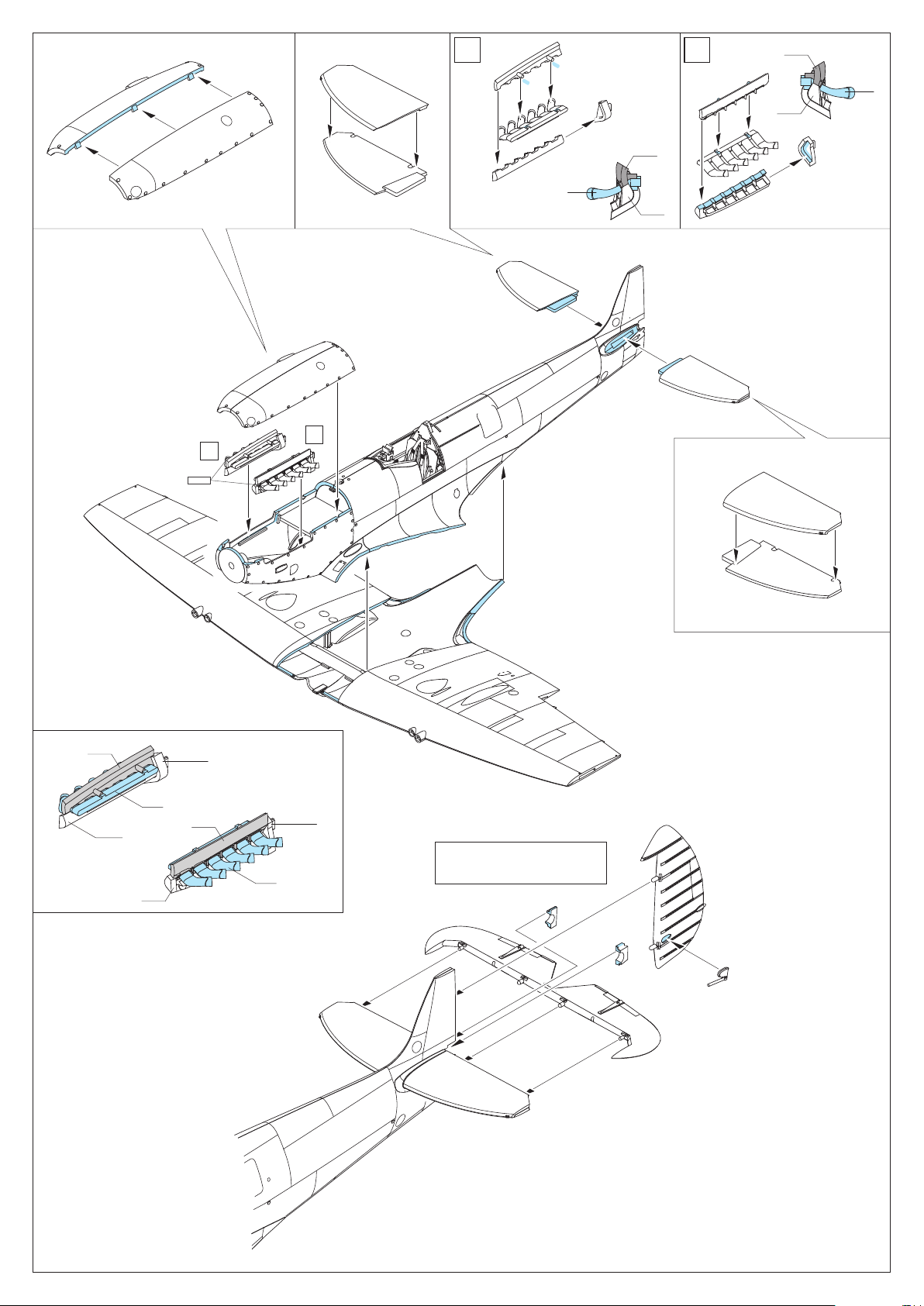

6
F80
F73
G H
F79
F74
L17
L18
GLUE PARTS F52 & F53
ONE BY ONE
F53
F52
L4
F13
F21
G12
G2
G44
G11
G12
G11
G2
G10
G3 G43
G9
G10
G9
G3
G10
G9 G3
G43
G12 G44
G2
G11

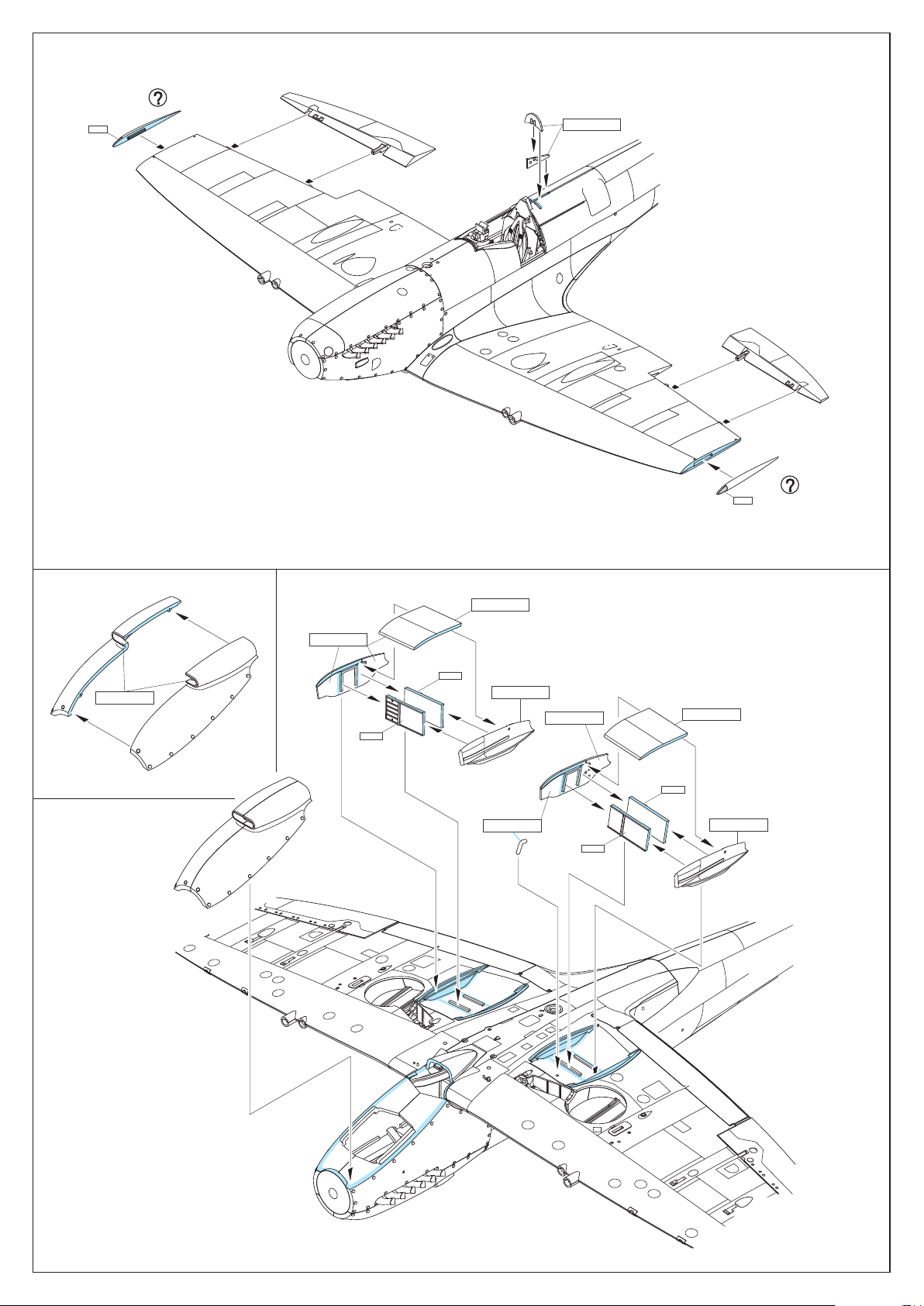

7
L8
L9
UNDERSURFACE
COLOR
F72
F71
J1 F58
L14
L15
J6 F59
C47
C138
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
MC218
MC218
MC218
MC218
G27
G29
G1
G1
G8
G13
G28
G30
F36 G14
G7
C137
REMOVE FOR
UNDERCARRIAGE
LOWERED
G54
G23
MC218
G45
UNDERSURFACE
COLOR
SM06
REMOVE FOR
UNDERCARRIAGE
LOWERED
8
G6
G37 G39
G6
G38 G36
G6
G37
G39
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
G6
G38
G36
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
LRL11
L5
L6
L10
L10
L6
L11
L5
L
R
J7
G45 G53
G24
MC218
C137
SM06
MC218
UNDERSURFACE
COLOR
MC218
F48 F49
F57
C137
UNDERSURFACE
COLOR
UNDERSURFACE
COLOR
F55
F14, F15
C137
MC218
UNDERSURFACE
COLOR
9
J4
F37
G74
G74
G40
G40
F70
L7
J10
G42
G42
C364
C364
F70 - open canopy & open door
L7 - open canopy & closed door
G66
G63
G65 L7 - closed canopy
& closed door
J4
J10
L7
C364
F22
F22
F69
F67
2 pcs.
F50
F20
UNDERSURFACE
COLOR
F45
F44
F63
C12
UNDERSURFACE
COLOR
F44
F63
F45
C12
UNDERSURFACE
COLOR
10
eduard
RW393, No. 601 Squadron RAuxAF, 1949

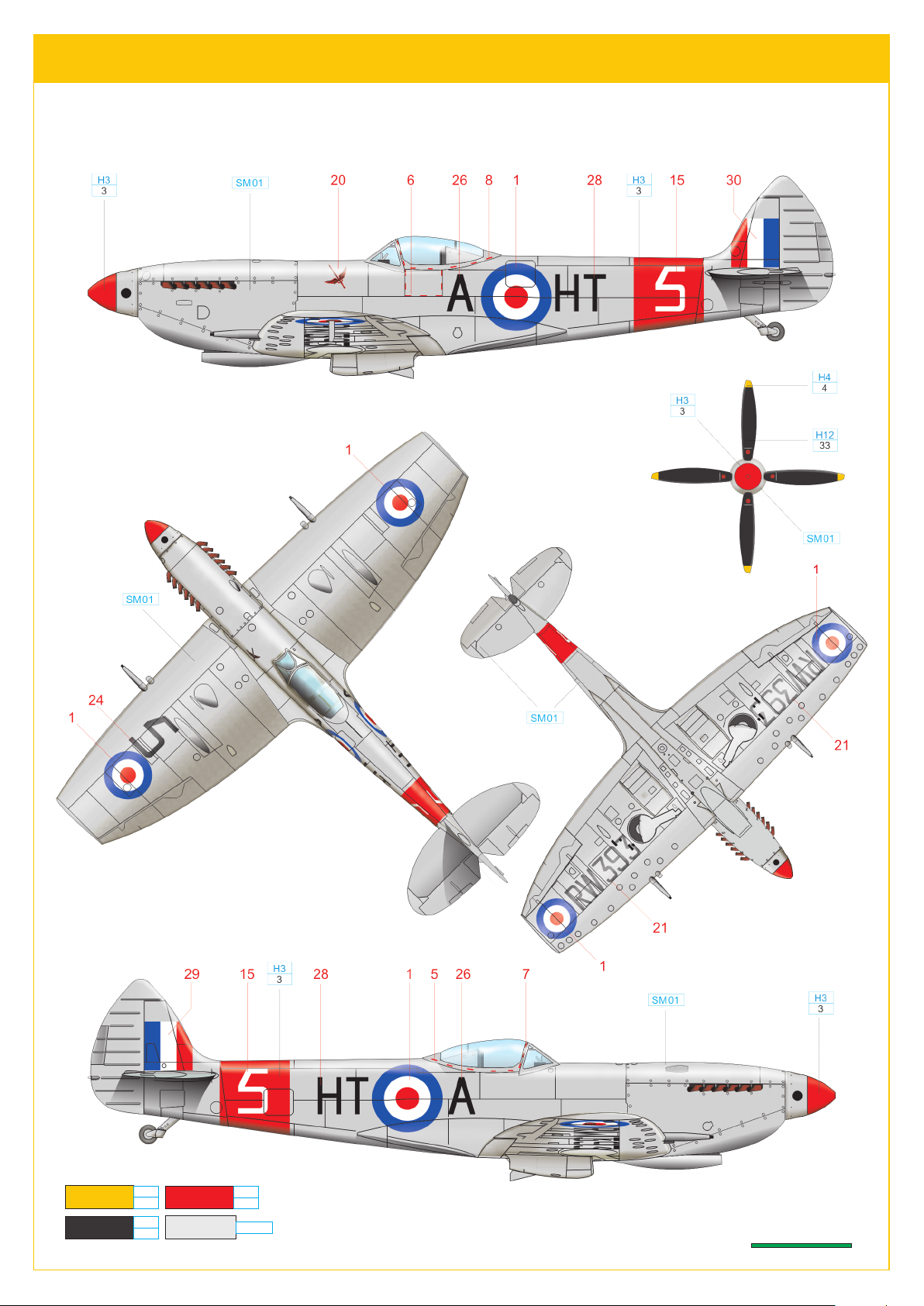

A
V této podobì se letoun zúèastnil Cooper Air Race v roce 1949. Závod, jehož se úèastnily squadrony RAuxAF, dostal jméno podle poslance britského
parlamentu W/C Geoffrey Coopera. Okøídlený meè na trupu pøed kabinou je znakem jednotky.
1
3
H3
RED
4
H4
YELLOW
BLACK
H12
33 SILVER SM01
