Section 1 - Product Overview

• eHome EH100 Wireless G Broadband Router

• Power Adapter

• Ethernet Cable

• Manual and Warranty on CD

System Requirements

• Ethernet-based Cable or DSL Modem

• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet

adapter

• Internet Explorer Version 6.0 or Netscape Navigator Version 6.0 and Above (for conﬁguration)

Product Overview

Package Contents

Note: Using a power supply with a different voltage rating than the one included

with the EH100 will cause damage and void the warranty for this product.

5eHome EH100 User Manual

Section 1 - Product Overview

Introduction

The eHome Wireless G EH100 Router is capable of transferring data with a maximum wireless signal rate of up to

54Mbps* in the 2.4GHz frequency — the same wireless frequency as 802.11b. The eHome EH100 Wireless Router

also offers four Ethernet ports to support multiple computers.

The advanced wireless technology built into the EH100 Wireless Router offers data transfer speeds with a maximum

wireless signal rate of up to 54Mbps* through its wireless channels allowing streaming videos and other high bandwidth

applications, such as online gaming events, to operate without the hassle of Ethernet cables. The ability to use high

bandwidth applications also makes streaming real-time programs more enjoyable and more efﬁcient.

With the EH100 Wireless Router’s built-in advanced ﬁrewall, threats of hackers penetrating your network are minimized.

Some ﬁrewall features include functions that allow or disallow certain ports to be open for certain applications. Time

scheduling can be established as a ﬁrewall rule so that speciﬁc ports will be open at certain times and be closed at

other times. Features like MAC ﬁltering, URL blocking, and domain blocking are useful tools to prevent other unwanted

intruders from connecting to your network or browsing restricted sites.

The easy-to-use conﬁguration wizard takes only minutes to setup and guides users step-by-step through conﬁguring

the EH100. With all the versatile features and an user-friendly utility, the EH100 Wireless Router provides an enhanced

networking experience.

* Maximum wireless signal rate derived from IEEE Standard 802.11g speciﬁcations. Actual data throughput will vary. Network conditions and

environmental factors, including volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput

rate. Environmental conditions will adversely affect wireless signal range.

6eHome EH100 User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The EH100 provides up to 54Mbps* wireless connection with other

802.11g wireless clients. This capability allows users to participate in real-time activities online, such as

video streaming, online gaming, and real-time audio. The performance of this 802.11g wireless router

gives you the freedom of wireless networking at speeds 5x faster than 802.11b.

• Compatible with 802.11b and 802.11g Devices - The EH100 is still fully compatible with the IEEE

802.11b standard, so it can connect with existing 802.11b PCI, USB and Cardbus adapters.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network

management features including:

• Content Filtering - Easily applied content ﬁltering based on MAC Address, IP Address, URL,

and/or Domain Name.

• Filter Scheduling - These ﬁlters can be scheduled to be active on certain days or for a

duration of hours or minutes.

• Secure Multiple/Concurrent Sessions - The EH100 can pass through VPN sessions. It

supports multiple and concurrent IPSec and PPTP sessions, so users behind the EH100 can

securely access corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the EH100 lets you

control what information is accessible to those on the wireless network, whether from the Internet or from

your company’s server. Conﬁgure your router to your speciﬁc settings within minutes.

* Maximum wireless signal rate derived from IEEE Standard 802.11g speciﬁcations. Actual data throughput will vary. Network conditions and

environmental factors, including volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput

rate. Environmental conditions will adversely affect wireless signal range.

Features

7eHome EH100 User Manual

Section 1 - Product Overview

Hardware Overview

Connections

Pressing the Reset Button restores

the router to its original factory

default settings.

Receptor for the Power Adapter.

The Auto MDI/MDIX WAN

port is the connection for

the Ethernet cable to the

Cable or DSL modem.

LAN Ports

Connect Ethernet devices such as

computers, switches, and hubs.

8eHome EH100 User Manual

Section 1 - Product Overview

Hardware Overview

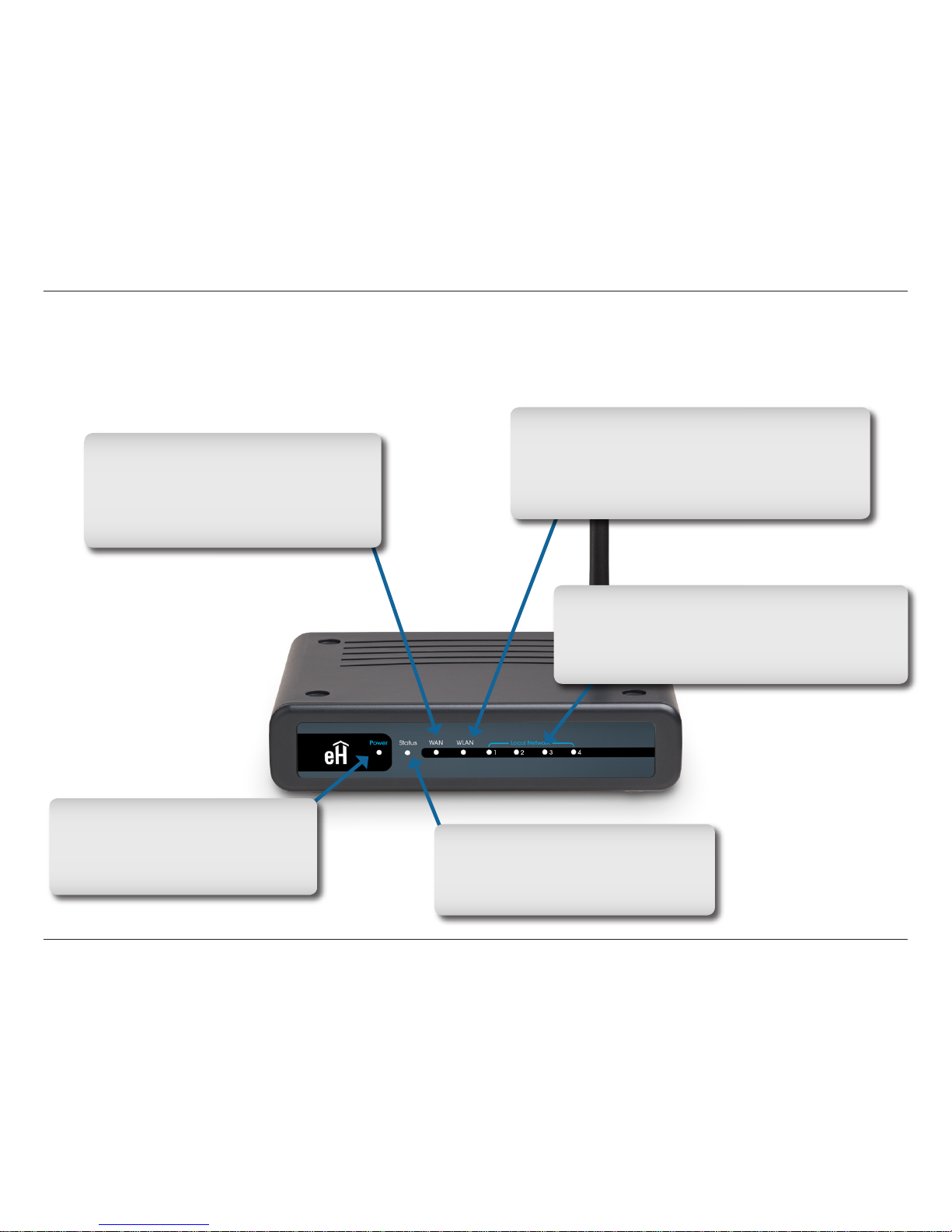

LEDs

WAN LED

A solid light indicates connection

on the WAN port. This LED blinks

during data transmission.

WLAN LED

A solid light indicates that the wireless

segment is ready. This LED blinks during

wireless data transmission.

Local Network LEDs

A solid light indicates a connection to an

Ethernet-enabled computer on ports 1-4.

This LED blinks during data transmission.

Status LED

A blinking light indicates that the

EH100 is ready.

Power LED

A solid light indicates a proper

connection to the power supply.

9eHome EH100 User Manual

Section 2 - Installation

Before you Begin

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the

router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Please conﬁgure the router with the computer that was last connected directly to your modem. Also, you can only use

the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off

your modem, disconnect the USB cable and connect an Ethernet cable to the WAN port on the router, and then turn

the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).

If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as

WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.

10eHome EH100 User Manual

Section 2 - Installation

Wireless Installation Considerations

The eHome wireless router lets you access your network using a wireless connection from virtually anywhere within

the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,

ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges vary depending

on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing

wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the eHome router and other network devices to a

minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position

your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a

45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet

(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead

of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on

range. Try to position access points, wireless routers, and computers so that the signal passes through

drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water

(ﬁsh tanks), mirrors, ﬁle cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that

generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and

home security systems), your wireless connection may degrade dramatically or drop completely. Make

sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits

a signal even if the phone in not in use.

Altri manuali per EH100

Indice

Altri manuali eHome Router wireless

eHome

eHome EH100 Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
