Ei Electronics Ei144 Heat Manuale utente

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei144 DataSht RevA

Model Ei144 Heat

Easi-Fit base

9V Alkaline Battery back up

Fixed temperature fast response thermistor type

sensor, range 54°C to 62°C

Test/Hush button

Advanced suppression and calibration technology

Interconnectable to other Ei mains powered alarms

Low power cell warning

Kitemarked to BS5446-2:2003

5 year guarantee

Product Description

The Ei144 is a Heat Alarm that runs on 230V AC mains

power, and has a 9V alkaline battery back up in the

event of mains failure. The 9V battery will last for up to 4

years in standby mode, and capable of powering the

heat detector for up to 2 years in the event of mains

failure.

The Ei144 is supplied with the Easi-Fit base that allows

very quick and simple installation of the heat alarm. The

Easi-Fit base automatically connects both mains power

and battery as the detector head slides on to the Easi-Fit

base.

The Ei144 has the ability to interconnect up to twelve

alarms to allow all alarms to sound if just one of the

interconnected alarms should be triggered.

The Ei144 has built in circuitry to aid suppression of

voltage transients and RF interference to further reduce

the chances of false alarms under such conditions.

The Ei144 heat alarm gives a fire warning when the

temperature at the unit reaches 580C. Heat alarms are

ideal for use in kitchens and garages, where the use of

optical or ionisation alarms would lead to unwanted

nuisance alarms.

On escape routes this alarm must be interconnected

with smoke alarms.

Operation

The green indicator will illuminate to show mains

power is present

The red indicator will flash every 40 seconds to

show that the detector has performed an automatic

self test

The red indicator will flash rapidly to show an alarm

condition for the heat detector

The “Test/Hush” button will either silence false

alarms or perform a unit self test

In “Test” mode the alarm will perform a self test and

sound the horn

In “Hush” mode the alarm enters a ten minute period

of reduced sensitivity to overcome false alarm

conditions, and will then automatically reset itself

When interconnected to other Ei mains powered

alarms, an alarm on one detector will trigger all other

interconnected alarms within one second (only the

triggered alarm will flash a red indicator)

The heat detector will emit a beep every 40 seconds

to indicate that the battery back up is depleted and

needs replacing

MAINS POWERED 230V~

9V Alkaline Battery Back-Up

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei144 DataSht RevA

Model Ei144 Heat

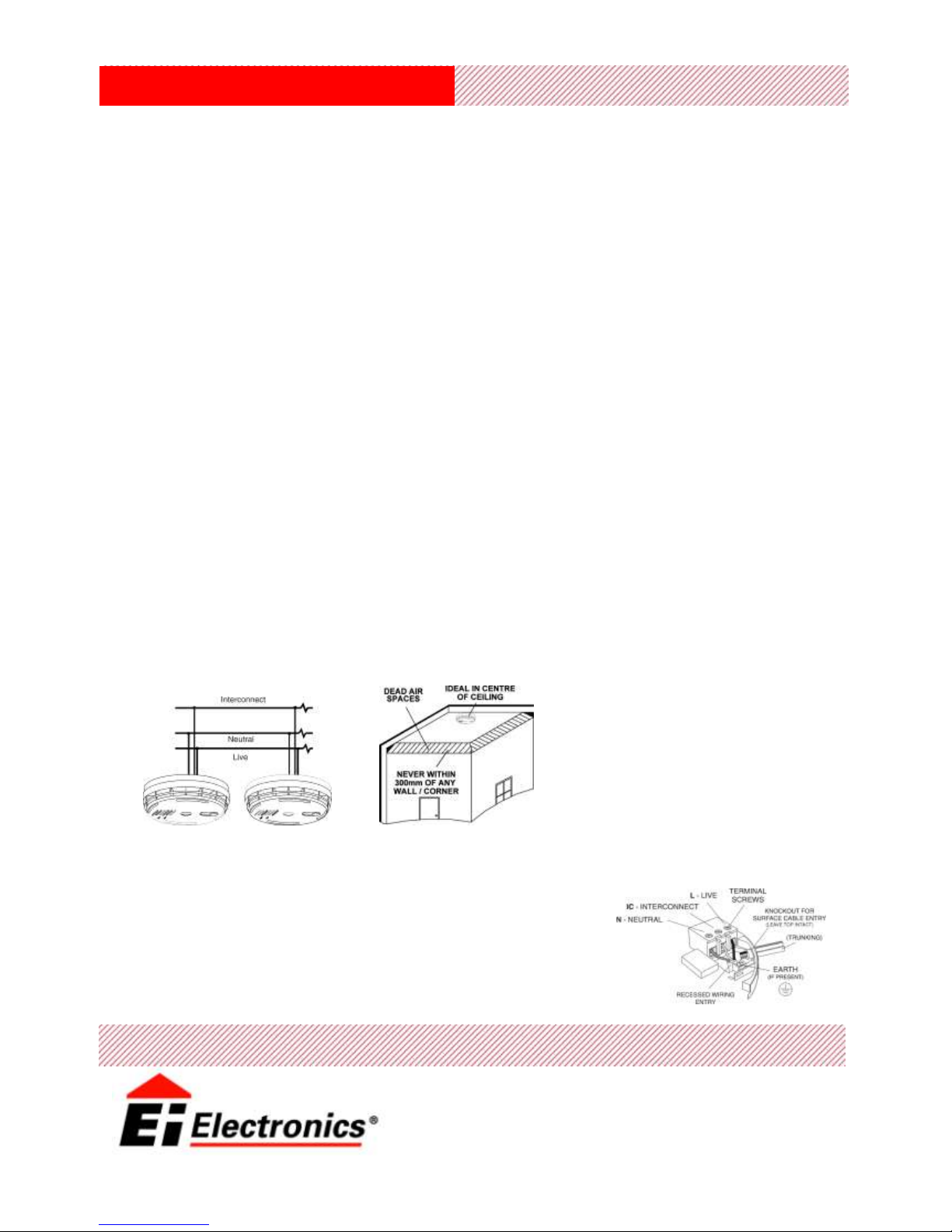

Installation & Placement

Wiring for Interconnected Alarms

Be very careful about correctly wiring the alarms as mixing Live and Neutral

will blow/damage interconnected alarms.

Locate heat alarms in rooms adjoining or on escape routes –kitchens,

garages, boiler houses etc. where smoke alarms are unsuitable. Install within

5.3m of potential sources of fire.

Please consult instruction booklet for specific installation details

Important Precaution:

Do not install the actual smoke/heat

alarm itself in new or renovated

buildings until all work is completed

(including floor coverings) and the

building has been fully cleaned.

The wiring can be installed when

appropriate. (Excessive dust and

debris from building work can

contaminate the smoke chamber

and cause problems, and it will also

invalidate the guarantee). If it must

be installed, cover it completely,

particularly around the edges, with

a dust cover (eg. a plastic bag),

until all cleaning is finished..

Connect wires to the unit as in

wiring diagram. All wiring must

comply with local codes.

Technical Specification

Sensor Thermistor

Sensitivity: Complies with BS 5446 Part 2:

2003

Source: Contains no radioactive material

Airspeed: Essentially immune to the effect

of airspeed.

Button Test: Simulates the effect of heat and

checks electronics and horn.

Supply Voltage: 230V AC

Battery back up: 9V Alkaline Battery

Power-On Indicator: Continuous green LED

Alarm: Electronic Piezoelectric horn

in unit

Alarm Sound Output: 85dB (minimum) at 3m

Alarm Status: Red LED flashes every second on

unit sensing heat

Temperature Range: 0° to 40°C

Humidity Range: 15% to 95% Relative Humidity

Interconnect: Up to 12 interconnected mains

powered easi-fit smoke or heat

alarms, along with an EI128 relay

base

Fixing: Easi-Fit mounting base

Plastic material: UL94VO flame retardant

Dimensions: 145mm diameter x 52mm depth

Weight: 281g

Warranty: 5 year (limited) warranty

Approvals: Kitemarked to BS5446-2:2003, CE

Approved

Specifications are subject to change
