Installation Manual

Introduction

This Installation Manual explains the procedure to install a PC compatible with PCSK-03R.

Compatible PCs

HP t520 Thin Client page 4

HP t310 Zero Client page 5

HP Z2 Mini G3 Workstation / G4 Workstation page 6

HP EliteDesk800 G3 DM page 7

HP Elite Slice page 8

HP t310 G2 Zero Client page 9

HP t530 Thin Client page 10

Dell Wyse 3010TC / T10 / 5030PCoIP / P25 page 12

Dell Wyse 5010TC / D10D / D10DP page 13

GIGABYTE GB-BKi7HT2-7500 / GB-BKi7HT-7500 page 14

Lenovo ThinkStation P320 Tiny page 15

FUJITSU FUTRO S740 page 16

EIZO DuraVision DX0211-IP page 18

HP is a registered trademark of HP Hewlett Packard Group LLC.

EliteDesk and Elite Slice are a registered trademark of Hewlett-Packard Development Company, L.P.

Dell is a registered trademark of Dell Inc.

Wyse is a trademark or a registered trademark of Dell Inc.

GIGABYTE is a registered trademark of GIGA-BYTE Technology Co., Ltd.

Lenovo,ThinkCentre and ThinkStation are registered trademarks of Lenovo Corporation.

TORX is a registered trademark of Acument Intellectual Properties, LLC.

FUTRO is a registered trademark of Fujitsu Client Computing Limited.

EIZO, the EIZO Logo and DuraVision are registered trademarks of EIZO Corporation in Japan and other

countries.

All other company names, product names, and logos are trademarks or registered trademarks of their

respective companies.

2Introduction

How to Install a PC on a Monitor

Thumb screw : M4x8

(included with PCSK-03R; 1 pcs.)

Screw: M4x80

(included with PCSK-03R; 1 pcs.)

Compact PC

Cable holder

Attention

• Attaching PCSK-03R will reduce the monitor’s tilt range.

Without PCSK-03R: -5° to 35°

With PCSK-03R: -5° to 17°

How to Install a PC on a Monitor

4HP t520 Thin Client

HP t520 Thin Client

Parts required

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

• TORX driver (T10)

Position of a screw hole (four positions)

Before installing A, remove the four TORX

screws attached to the PC.

HP t520 Thin Client

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

HP t310 Zero Client

Parts required

• F7X24AA (Optional mounting bracket for HP)

• Screws (included with F7X24AA; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

HP t310 Zero Client

F7X24AA

(Optional mounting bracket for HP)

Screws

(included with F7X24AA; 4 pcs.)

Position of a screw hole (four positions)

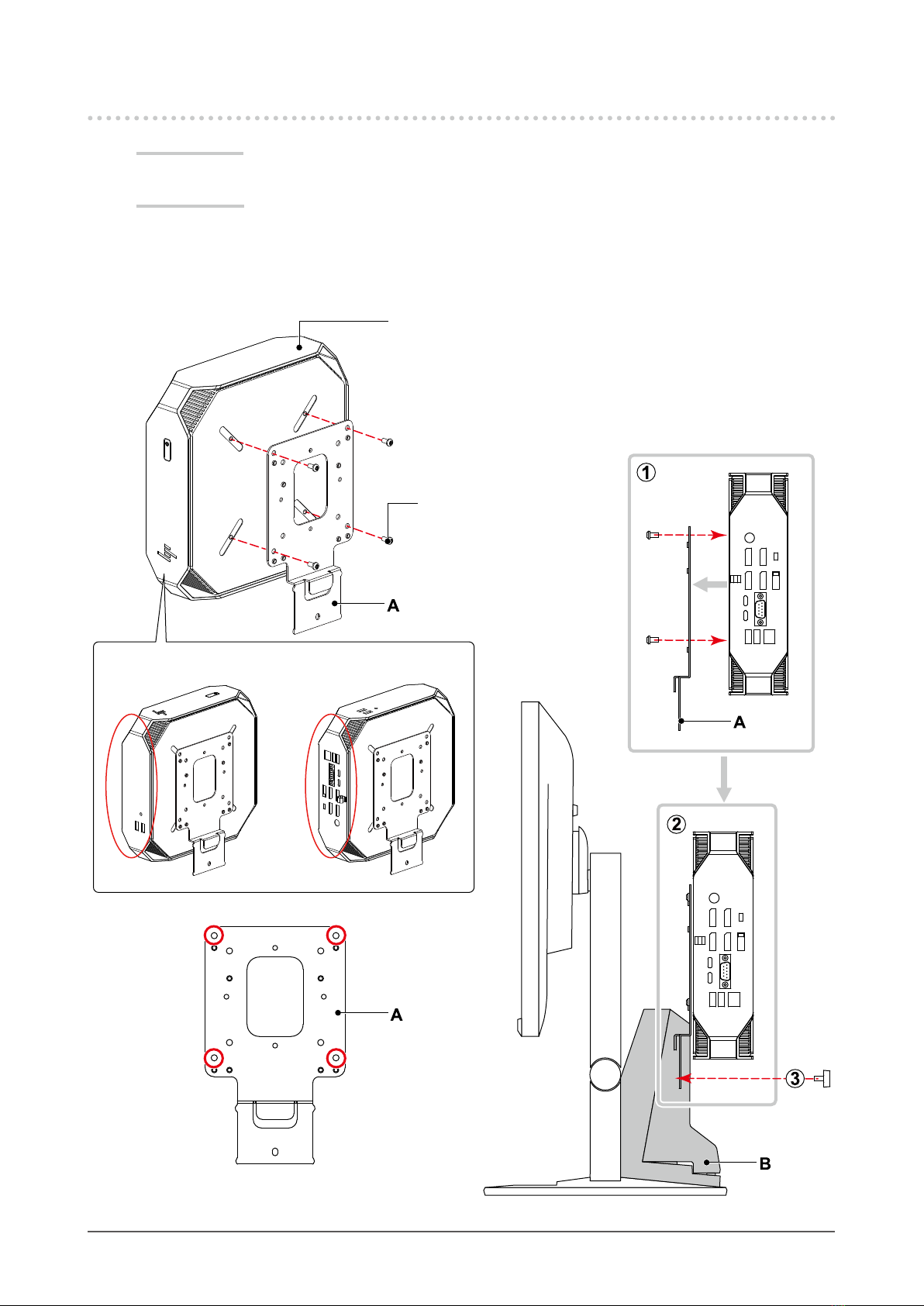

6HP Z2 Mini G3 Workstation / G4 Workstation

HP Z2 Mini G3 Workstation / G4 Workstation

Parts required

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

Before installing A, remove four rubber feet attached to the PC.

HP Z2 Mini G3 Workstation / G4 Workstation

You can also install the PC in the orientations shown below.

Position of a screw hole (four positions)

HP EliteDesk800 G3 DM

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

HP EliteDesk 800 G3 DM

You can also install the PC in the orientations shown below.

Position of a screw hole (four positions)

HP EliteDesk800 G3 DM

Parts required

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

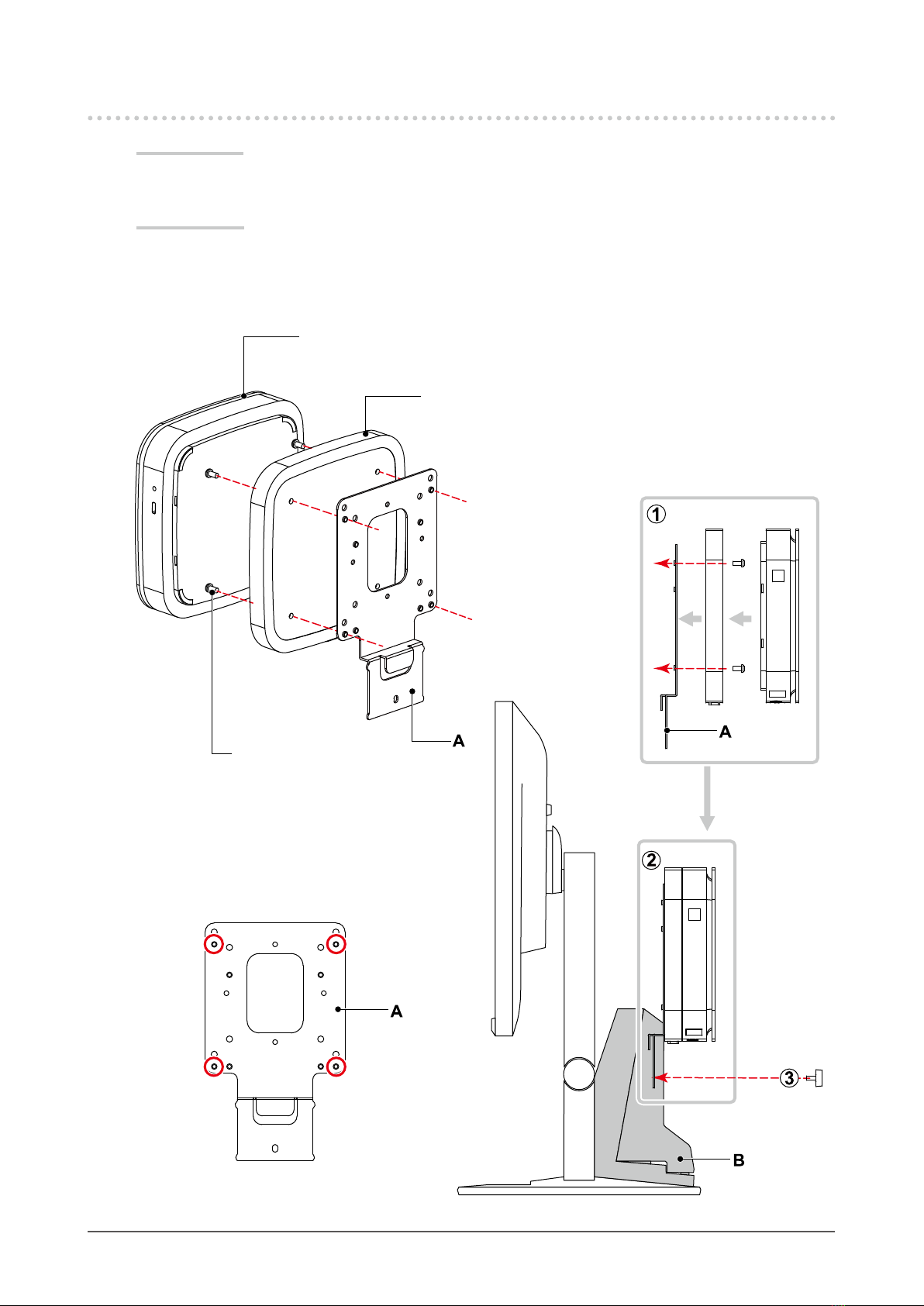

8HP Elite Slice

HP Elite Slice

X8U74A A

(Optional mounting bracket for HP)

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

Position of a screw hole (four positions)

HP Elite Slice

Parts required

• X8U74AA (Optional mounting bracket for HP)

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

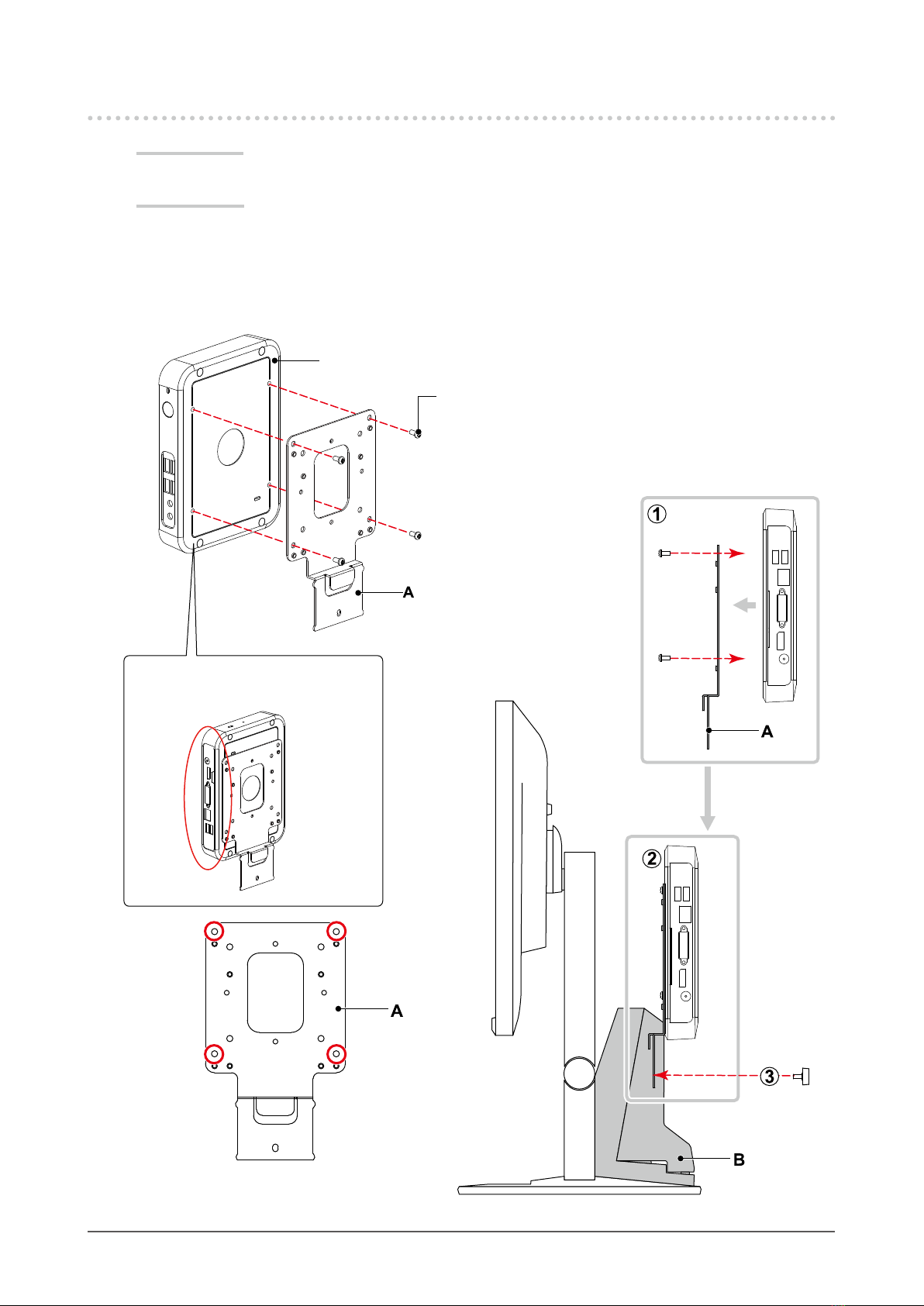

HP t310 G2 Zero Client

Parts required

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

HP t310 G2 Zero Client

You can also install the PC in the

orientations shown below.

Position of a screw hole (four positions)

10 HP t530 Thin Client

HP t530 Thin Client

Parts required

• EM870AA (Optional HP Quick Release Attachment)

- Quick Release Attachment (2 types)

- Screws : M4x12 (4 pcs.)

- Spacer with a thickness of 2 mm

• Screws: M4x8 (included with PCSK-03R; 4 pcs.)

Tools required

• Phillips screwdriver (#2)

Screws: M4x8

(included with PCSK-03R; 4 pcs.)

HP t530 Thin Client

Remove the cover.

You can also install the PC in the

orientations shown below.

Attachment supplied

with the EM870AA

Position of a screw hole (four positions)

Spacer supplied with the EM870AA

Screws supplied with

the EM870AA

Attachment supplied with

the EM870AA
