EK-Quantum Reflection2 PC-O11D XL D5 PWM D-RGB Manuale utente

USER GUIDE

DISTRIBUTION PLATE

EKQuantum

Reﬂection2ROG Hyperion D5 PWM D-RGB

The installation of the product is intended to be undertaken by

an adequately trained and experienced person. You are installing

the product at your own risk. If you are not sufficiently trained

or experienced or feel unsure about the installation procedure,

please refrain from installing the product yourself and contact

our tech support for assistance. We disclaim our liability for any

damages to the product and incidental, consequential, or indirect

damages incurred due to improper or inappropriate installation.

Before you start using this product please follow these basic guidelines:

Read this manual carefully before beginning the installation

process.

The EK-ﬁttings require only a tiny amount of force to screw

them ﬁrmly in place since the rubber O-ring gaskets ensure the

liquid seal.

Corrosion-inhibiting purpose-made coolants are always

recommended for any liquid cooling system. EK recommends

EK-CryoFuel coolants for worry-free usage.

- 3 -

TABLE OF CONTENT

BOX CONTENTS 4

DISTRIBUTION PLATE DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6

PREPARING THE CHASSIS 7

INSTALLING THE DISTRIBUTION PLATE 8

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 9

FLOW DIAGRAM 11

CONNECTING THE D-RGB LED STRIP 12

CONNECTING THE PUMP 12

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

BOX CONTENTS

EK-Quantum Reﬂection2ROG Hyperion D5 PWM D-RGB

Screw M4 x 5 DIN7984 (7 pcs)

Allen Key 2.5 mm (1 pc)

EK-Loop Multi Allen Key (1 pc)

Mounting mechanism - Hyperion D5

PWM D-RGB ; EAN: 106748

- 5 -

DISTRIBUTION PLATE DIMENSIONS

130 mm

398 mm

28.5 mm

103 mm

56.5 mm

19.5 mm

47.5 mm

131.5 mm

152 mm

172 mm

201.5 mm

222 mm

242 mm

271 mm

298 mm

374 mm

28 mm

74 mm

35 mm

368 mm

- 6 -

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS

Technical Speciﬁcation:

Dimensions with the attached pump (W x D x H): 130 x 28 x 398 mm

- Reservoir volume: ~283 ml

- D-RGB LED count: 23

- D-RGB cable length: 500mm

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1106667 Bottom plate (Plexi) 1

2106668 Top plate (Plexi) 1

3106671 Led cover (Black e.) 1

4104599 Mylar sticker 1

55154 OR 52 x 3 mm 1

63831109837597 EK-D5 PWM (12V SATA) Pump 1

7105913 Pump holder 1

8100663 EK - Badge 1

98311 Screw M4 x 20 DIN7984 4

10 8251 Screw M4 x 22 DIN7991 5

11 8312 Screw M4 x 16 DIN7991 43

12 106672 OR Set 1

13 102639 EK PLUG G1/4 12

14 100815 LED D-RGB strip 500/400 mm 1

15 3831109834282 Plug cover 12

- 7 -

PREPARING THE CHASSIS

Before installing the distribution plate, carefully read the

PC case manual.

STEP 1

First, remove the PC case’s back, top, and side panels.

STEP 2

After removing the panels, the inner radiator mounting bracket

cover also needs to be detached.

STEP 1

- 8 -

STEP 2

Secure the distribution plate from the backside with six (6) M4 x 5

DIN7984 Screws and Allen Key 2.5 mm.

STEP 2

INSTALLING THE DISTRIBUTION PLATE

STEP 1

Before installing the distribution plate into the PC Chassis,

it is recommended to install the side radiator with fans.

Otherwise, placing the distribution plate into the ﬁnal

position is harder.

Carefully insert the distribution plate into the PC Chassis. The bottom

shield can also be removed before placing the distribution plate.

STEP 1

DISTRIBUTION

PL ATE

BOTTOM SHIELD

SIDE RADIATOR

WITH FANS

For this step you will need:

Allen Key 2.5 mm (1 pc)

M4x5 DIN7984 Screw (6 pcs)

M4 x 5 DIN7984

SCREW

- 9 -

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS

GPU OUTLET

SIDE RADIATOR OUTLET

SI DE R AD IATO R

INLET

To complete your loop, all ports must be used as marked in the

image.

All remaining unused ports must be closed with supplied plugs,

using the EK-Loop Multi Allen Key.

If one of the prescribed components will not be installed

(ie. side radiator or GPU block) then one INLET and one

OUTLET port must still be joined together in order for

this distribution plate to function!

Only one INLET and one OUTLET port for the GPU

connection can be used, while all other INLET and

OUTLET GPU ports must be closed with G1/4 plugs.

TOP RADIATOR

OUTLET

CPU OUTLET

CPU INLET

TOP RADIATOR

INLET

DRAIN

GPU INLET

- 10 -

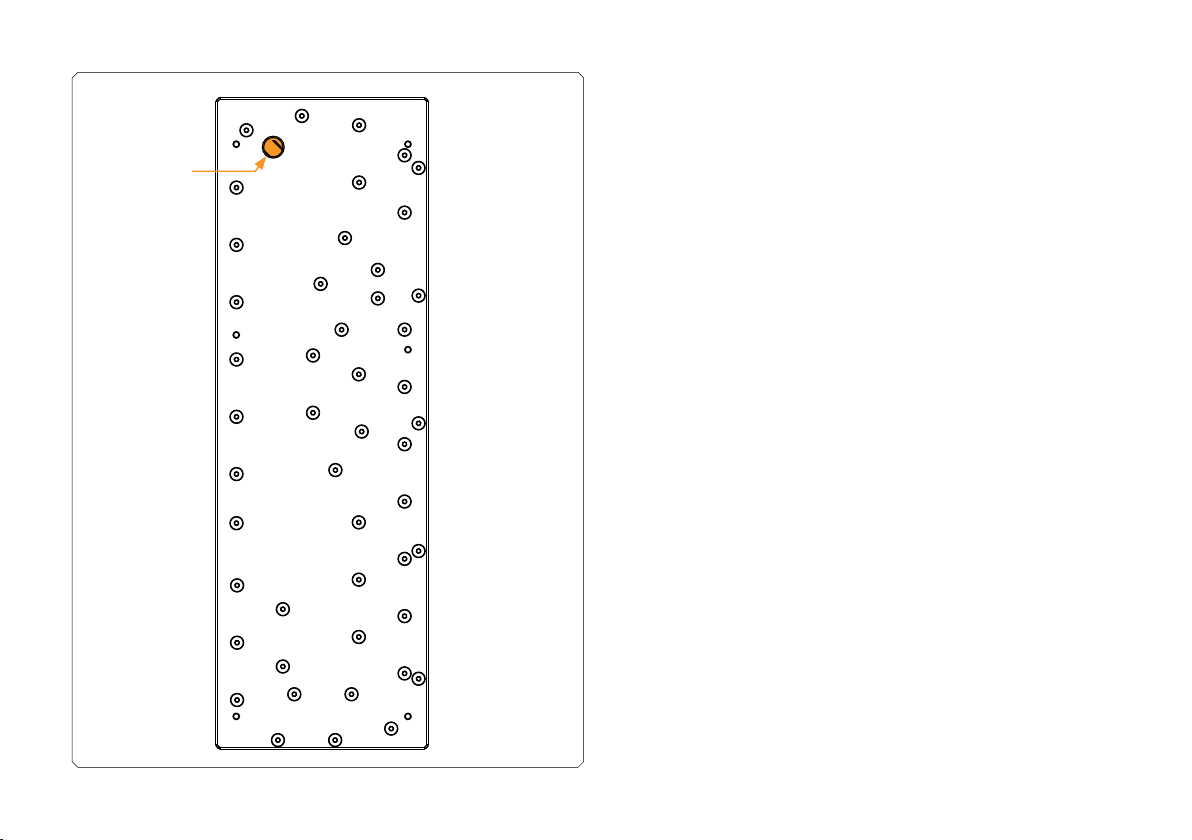

FILL
