EKey Fingerscan Access Control System Manuale utente

General

OPERATING INSTRUCTIONS

ekey

home

Fingerscan Access Control System

ID16/3 :

Version

dated

27.1.2012

General

ENGLISH

ENGLISH ........................................................................................................................................................................... 2

FOREWORD .............................................................................................................................................................. 4

MANUFACTURER´S WARRANTY .................................................................................................................................. 4

CONTACT.................................................................................................................................................................. 4

NOTE ON THE OPERATING INSTRUCTIONS ................................................................................................................... 5

4.1

ARNING SIGNS AND SYMBOLS

.................................................................................................................................................................... 5

4.2

EPICTION CONVENTIONS

............................................................................................................................................................................ 5

4.3

ALIDITY

.................................................................................................................................................................................................... 5

PRODUCT OVERVIEW - THE EKEY HOME SYSTEM .......................................................................................................... 6

GENERAL SAFETY INFORMATION ................................................................................................................................

6.1

NTENDED USE

............................................................................................................................................................................................ 7

6.2

ECURITY AGAINST MANIPULATION

............................................................................................................................................................... 8

6.3

RISKS ASSOCIATED WITH INTENDED USE

..........................................................................................................................................................

6.4

REQUIREMENTS

FOR

THE

USER ............................................................................................................................................................

6.5

OTE ON

RODUCT LIABILITY

.......................................................................................................................................................................

EKEY HOME FINGER SCANNERS.................................................................................................................................. 10

7.1

ODELS AND VERSIONS

............................................................................................................................................................................. 10

7.2

OPERATING THE FINGER SCANNERS

.............................................................................................................................................................. 10

7.2.1

FUNCTION OF THE FINGER SCANNER ......................................................................................................................................... 10

7.2.2

OPERATING CORRECTLY THE FINGER SCANNER ........................................................................................................................ 11

7.2.3

WHAT YOU SHOULD NOT DO ...................................................................................................................................................... 12

7.3

PTI

CAL

SIGNALS ON THE EKEY HOME

INGER SCANNER

................................................................................................................................ 13

7.4

CTRIC

CONNECTION ....................................................................................................................................................................... 14

7.5

UNTING........................................................................................................................................................................................... 14

EKEY HOME CONTROL PANELS ................................................................................................................................... 14

8.1

ODELS

ND VERSIONS

............................................................................................................................................................................ 14

8.2

OPERATION

.............................................................................................................................................................................................. 15

8.2.1

ekey ho e CP IN and ekey ho e CP WM ............................................................................................................................ 15

8.2.1.1

Operating the buttons ................................................................................................................................................................ 15

8.2.1.2

Main enu .................................................................................................................................................................................. 15

8.2.1.3

Optical Signals ............................................................................................................................................................................. 15

8.2.1.4

INITIALIZING THE DEVICES.......................................................................................................................................................... 16

8.2.1.5

Overview of the progra ing enu of the control panel ...................................................................................................... 17

8.2.1.6

Entering the security code .......................................................................................................................................................... 18

8.2.1.7

Enrolling a fingerprint in the syste ......................................................................................................................................... 18

8.2.1.8

Deleting a user ............................................................................................................................................................................ 20

8.2.1.9

Setting a new security code........................................................................................................................................................ 20

8.2.1.10

Accessing serial nu ber and version nu ber......................................................................................................................... 21

8.2.1.11

Changing the relay switching ti es......................................................................................................................................... 22

8.2.1.12

Resetting to factory settings .................................................................................................................................................... 23

8.2.2

ekey ho e CP DRM 1 (2) ............................................................................................................................................................. 24

8.2.2.1

CONTROLS ................................................................................................................................................................................... 24

8.2.2.2

Main enu .................................................................................................................................................................................. 25

8.2.2.3

initial operation........................................................................................................................................................................... 25

8.2.2.4

Entering the security code .......................................................................................................................................................... 27

8.2.2.5

Enrolling a fingerprint in the syste ......................................................................................................................................... 27

8.2.2.6

Deleting a user ............................................................................................................................................................................ 31

8.2.2.7

Setting a new security code........................................................................................................................................................ 32

8.2.2.8

changing the relay switching ti es .......................................................................................................................................... 33

General

8.2.2.9

RESETting to factory settings ..................................................................................................................................................... 34

8.2.2.10

Test ode .................................................................................................................................................................................. 35

8.2.2.11

LED INTENSITY ........................................................................................................................................................................... 36

8.2.2.12

LOGGING ................................................................................................................................................................................... 37

8.2.3

Electric connection ....................................................................................................................................................................... 38

8.2.4

Mounting ...................................................................................................................................................................................... 38

10.

TROUBLE-SHOOTING ................................................................................................................................................ 38

11.

MAINTENANCE ........................................................................................................................................................ 40

11.1

ARE

.................................................................................................................................................................................................... 40

11.2

LEANING

............................................................................................................................................................................................. 40

12.

DISPOSAL ................................................................................................................................................................ 40

13.

TECHNICAL DATA ..................................................................................................................................................... 40

14.

ACCESSORIES ........................................................................................................................................................... 41

15.

DECLARATIONS OF CONFORMITY ............................................................................................................................... 41

16.

EKEY BRANCH OFFICES .............................................................................................................................................. 41

General

Foreword

Congratulations on the purchase of this premium finger scanner system

ekey

home.

It has been manufactured with highest accuracy and guarantees a maximum amount of recognition

performance. Enjoy the convenience - no more lost keys and no longer memorizing complicated codes.

From now on your finger is the key!

We hope you will enjoy your product a lot!

Manufacturer´s warranty

ekey biometric systems (‘ekey’) guarantees, under conditions which you can view on our website

www.ekey.net, that the product is free from material or processing defects for

24 months from the date of purchase.

Warranty claims can only be made in the country where the product has been sold to you. ekey records

the production of each product.

Contact

Visit the website of ekey biometric systems GmbH at:

www.ekey.net

There you can always find the most up to date version of this document, as well as other additional

information about this and other products by ekey biometric systems.

Should you still have technical questions, please contact your ekey dealer!

In order to have the most important information at hand in case of complaints, we request that you enter

the serial number below:

The serial number has 14 digits and can either be found on the label below the barcode or can be

accessed via the menu on the control panel.

ekey

home finger scanner

ekey

home control panel

General

Note on the operating instructions

Warning signs and symbols

CAUTION! This symbol indicates a special notice, which you must pay attention to in the described

feature.

INFORMATION! This symbol indicates that you can find useful information and tips about the

product in the adjoining text.

STOP! This symbol indicates that you may under no circumstances carry out a given action. In the

majority of cases, in order to carry out the given feature, you need first to make some specific

settings.

Warning about dangerous electric voltage: This warning notice indicates that you are exposed

to electric voltage hazard

Warning about battery hazard

4.2

Depiction conventions

Depiction Signification

Listing

Follow the steps in this order

italic

underlined

Product name

4.3

Validity

These operating instructions are not subject to updating. You can find the most up-to-date version of

these instructions at

www.ekey.net

. Subject to optical and technical modifications, any liability for

misprints excluded.

General

Product overview - the ekey home system

For a complete operational ekey home system you will need the following components:

Not all parts are supplied by ekey!

ekey home is a biometric access system which is equipped with a finger scanner. This scanner reads

special features of your finger lines and uses them to recognise people with access rights. Each one of

your fingers has specific recognition features and also varies from the fingers of other people. ekey home

is available in different functional and mechanical versions and can therefore be optimally adapted to your

needs.

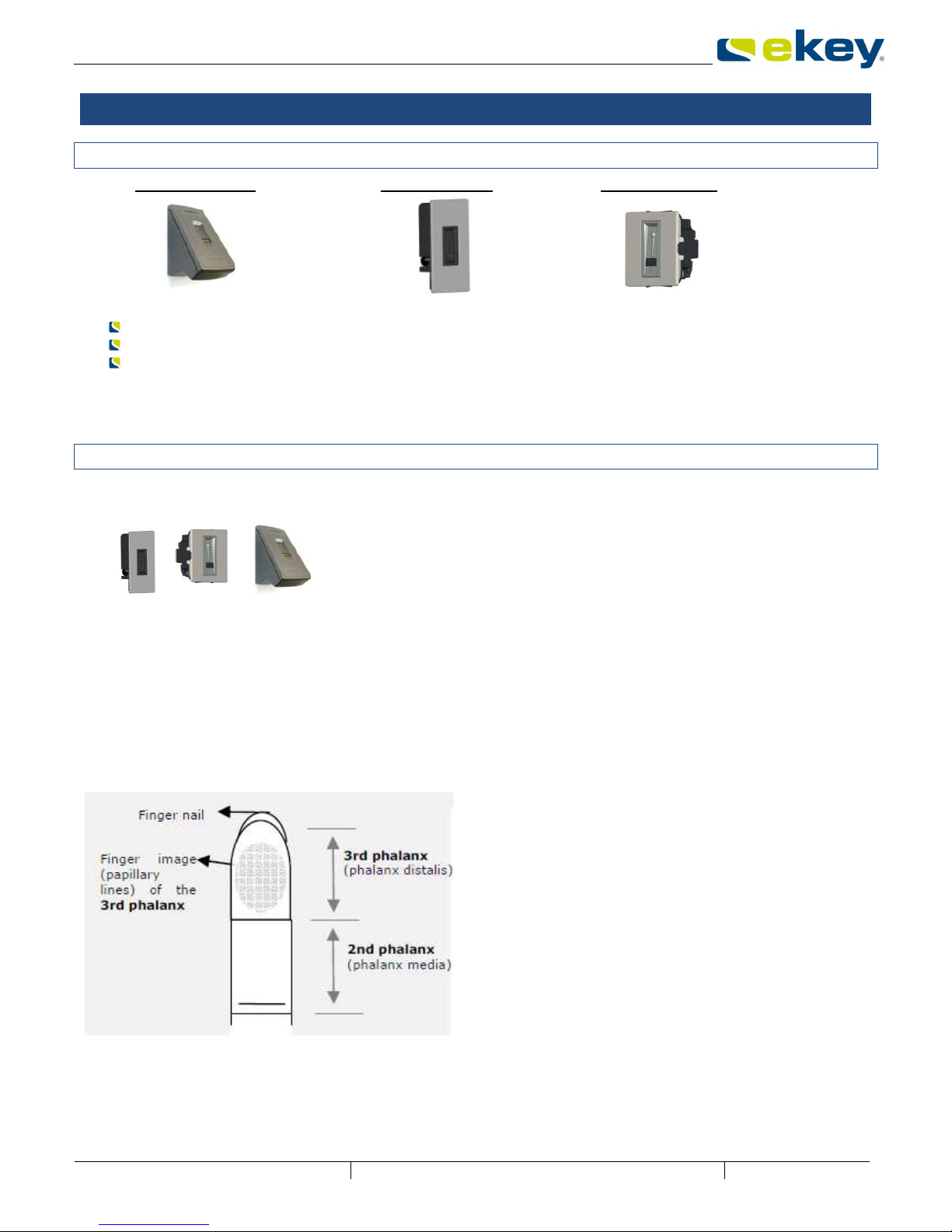

ekey home finger scanner versions

ekey home FS WM 2.0 wall-mounted

ekey

home FS IN 2.0 integrable (door)

ekey home FS OM outlet-mounted

Supplied by

ekey

Models

Description

on page

ekey home

inger

scanner

Yes

ekey home

control panel

Yes

Power supply

Yes

Motor

lock

Electric strike

Locking

system

optional

Cable transfer

Yes

1 2 3

ekey

FS OM

mounting

height varies

according to

finger scanner

model

floor

min. 3 (depending on motor

locking system)

General

ekey control panel versions

The ekey home control panels are intended to directly control an electric motor lock. This is usually relay

1 for a door wiring.

ekey

home CP WM 1 wall-mounted 1 relay

ekey

home CP WM 3 wall-mounted 3 relays

ekey

home CP IN 1 integrable 1 relay

ekey

home CP IN 2 integrable 2 relays

ekey home CP DRM 1 Electric control cabinet (switching cabinet on top hat rail) 1 relay

ekey home CP DRM 2 Electric control cabinet (switching cabinet on top hat rail) 1 relay

Essentially any finger scanner may be combined to any control panel. Based on the scope of delivery,

check precisely which units you have when you start up the systems.

General Safety Information

6. INTENDED USE

The ekey home system consisting of

ekey home finger scanner

ekey home control panel

ekey power supply

is a biometric access control system available in different hardware shapes and combinations. It captures

the unique features (minutea) of the fingerlines, which are then compared to the master templates saved

in the finger scanner. To authenticate a finger successfully, a certain degree of identicalness (threshold)

has to be reached. Based on this, a defined switching actuator is activated (relay output situated on the

control panel).

The system has been primarily developed for opening front doors, apartment doors, garage doors, etc. in

a residential and corporate environment. It has to be installed in a fixed position, and in accordance to the

accompanying installation manual and wiring diagrams.

Electrical Safety

All ekey home devices are to be operated by safety extra-low voltage and powered by adapters from

protection class 2 according to VDE 0140-1.

Such power adapters are typically marked with below shown symbol according to IEC 60417:

Your ekey home system is powered by electricity. Despite the exclusive operating clearance of

protection class 2 power adapters, all devices need to be handled with particular caution during

installation and wiring. For this reason, all services have to be carried out by qualified personnel

e.g. electrician, installer, etc.).

General

Please read carefully the provisions below before starting to wire the system:

The connections of the devices are NOT protected against reverse polarity! Incorrect

wiring of the devices can result in them being damaged beyond repair!

Only trained and qualified electricians should carry out electrical wiring of the units

and connection to the mains grid!

Lay the connecting cable between the e ey home CP (control panel) and the e ey

home FS (finger scanner) separately from any 230 V or 380 V mains voltage cables

in the house. The connecting cable carries low voltage signals that can be interfered

with by current-carrying mains voltage cables in the vicinity.

6.2 SECURITY AGAINST MANIPULATION

Your ekey home system consists of 2 electronic devices

the ekey home finger scanner

the ekey home control panel

The ekey home finger scanner is typically mounted in an outdoor environment and therefore accessible to

everyone. In order to avoid external tampering, which could theoretically result in an unauthorized

access, your system is equipped with below listed security features:

The ekey home control panel has to be mounted in a secure area. The switching actuator (relay

output) to operate a motor locking system is positioned on the control panel.

System changes (fingerprint enrollment, etc.) can only be made via the ekey home control panel

situated in a secure area.

The access to the menu in the ekey home control panel is secured with a security code. This is an

additional obstacle within the system for unauthorized users.

The finger scanner is connected to the control panel by a data line. The communication between

both components is encrypted.

The finger scanner and the control panel are “married”, i.e. they have been coupled during the

initial start-up. When replacing a device, a new coupling must be done via a specific key

combination on the control panel mounted in the secure area). Otherwise no access will be

granted.

Operation and data monitoring

Your ekey home finger scanner features software routines which run sanity checks of the system

operation data. If the system identifies inconsistencies, then the finger scanner will be recalibrated

automatically. This calibration procedure takes 3 to 5 seconds and can be followed via the LED signals

sequence (see section 7.3). These inconsistencies can be caused by:

abnormal electrostatic discharges (ESD),

abnormal electromagnetic interference fields.

It is not possible to operate the finger scanner during the calibration process. The device resumes its

normal operation after the calibration process is over.

General

6.3 RISKS ASSOCIATED WITH INTENDED USE

The sensor surface of the thermal line sensor, which is primarily used for the

ekey home FS WM

ekey home FS IN

can become very hot (>50°C) when exposed to direct sunlight. In order to avoid burns and scalds of the

fingertips, it is recommended to test the temperature by shortly touching the sensor. If needed, place

your hand over the scanner making a cooling shade.

Apart from that, there are no other known risks in normal use of the system.

6.4 REQUIREMENTS FOR THE USER

It is essential for the installer to study the supplied manuals (Mounting instructions, Wiring, and Operating

instructions) before installing the devices. The installer (system commissioner) is required to possess

professional certificated training in the area of electrotechnical engineering.

The user has to use the system in accordance with these instructions. Otherwise, no special knowledge is

necessary to operate the system.

6.5 NOTE ON PRODUCT LIABILITY

In below listed cases, the security provided respectively the protection of the device may be impaired.

The liability for the operability of the equipment is transferred to the operator / administrator / user:

The device is not operated, maintained and cleaned in accordance with the respective manual.

The device is used outside of the application area specified herein, e.g. in automotive applications,

hazardous areas, safety-critical applications (thereat to life or physical condition)

The operator carries out unauthorized changes on the devices

…

General

ekey home finger scanners

7. MODELS AND VERSIONS

There are 3 different ekey home finger scanner models.

ekey home FS WM 2.0 – wall-mounted

ekey home FS IN 2.0 – integrable into doors and intercoms

ekey home FS OM – outlet-mounted

The individual finger scanners essentially differ in their method of installation. The method of operation,

however, is identical for all models.

7.2 OPERATING THE FINGER SCANNERS

7.2. FUNCTION OF THE FINGER SCANNER

ekey finger scanners are exclusively equipped with line (swipe) sensors. To capture a fingerprint, please

draw your finger over the sensor. The system records the image of the fingerprint lines (papillary lines)

line by line and compiles an image from the individual rows. The finger scanner then calculates a

recognition template (minutia and their relative positions), which is compared to the previously stored

finger templates (reference finger templates). If a certain degree of congruence is exceeded (threshold), a

positive match (= finger was recognized) will trigger an allocated action (e.g. switch relay output 1). It is

important to note that no fingerprint images are stored.

Which part of the finger should be recorded by the finger scanner?

It is necessary to capture an image of the 3rd

phalanx. On the contrary, your finger scanner will not

function properly.

In order to ensure this, take care to operate the finger

scanner correctly. It is fundamental to place your

finger correctly in the finger recess and move it down

across the sensor at the right speed. Ergonomically

speaking, the best fingers are the index, the middle

finger and the ring finger. The thumb and the little

finger may not be used!

A finger scanner works like a camera. It makes a picture of the bottom side, the papillary lines, of your

finger´s third phalanx. However, this picture must be of good quality, so that physical access can be

granted whenever necessary.

Imagine you wish to make a picture of someone, and this person

e ey home FS WM e ey home FS IN e ey home FS OM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali eKey Telecamera di sicurezza

eKey

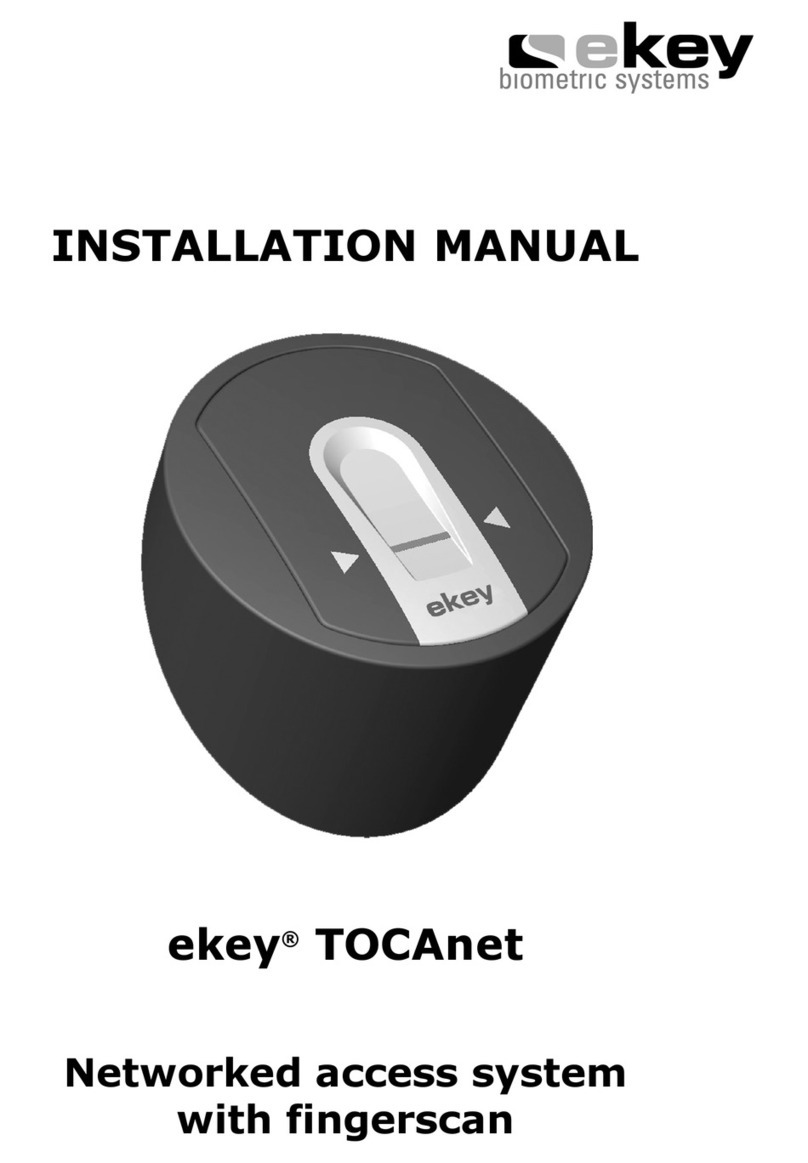

eKey TOCAnet Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

eKey Fingerscan Access Control System Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche
