USER GUIDE

MONOBLOCK

EK-Quantum

Momentum TRX40 Aorus Master

This product is intended for installation only by expert users.

Please consult with a qualiﬁed technician for installation. Improper

installation may result in damage to your equipment. EK Water

Blocks assumes no liability whatsoever, expressed or implied,

for the use of these products, nor their installation. The following

instructions are subject to change without notice. Please visit our

web site at www.ekwb.com for updates. Before installation of this

product please read important notice, disclosure and warranty

conditions printed on the back of the box.

Before you start using this product please follow these basic guidelines:

Please carefully read the manual thoroughly before beginning

with the installation process!

Please remove your motherboard from the computer to assure

safest mounting process in order to prevent any possible

damages to your CPU and/or motherboard’s circuit board (PCB).

The EK- Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber o-ring gaskets.

The use of quality, market proved corrosion inhibiting coolants

is always strongly recommended for any liquid cooling system.

- 3 -

TABLE OF CONTENT

PREPARING YOUR MOTHERBOARD 4

REMOVING FACTORY PROVIDED BACKPLATE 4

REMOVING STOCK COOLER 6

APPLYING THERMAL COMPOUND 7

CUTTING THERMAL PADS 7

PLACING THERMAL PADS ON THE MOTHERBOARD 8

PLACING THE BLOCK ON TO MOTHERBOARD 8

ATTACHING BLOCK ON THE MOTHERBOARD 9

CONNECTING THE DRGB LED STRIP 11

REQUIRED TOOLS 11

SUPPORT AND SERVICE 12

SOCIAL MEDIA 12

- 4 -

PREPARING YOUR MOTHERBOARD

REMOVING FACTORY PROVIDED BACKPLATE

STEP 1

Remove all encircled screws. There are seven (7) screws on the back

of the motherboard that needs to be removed. Please store away the

factory backplate as it will be reused.

STEP 1

- 5 -

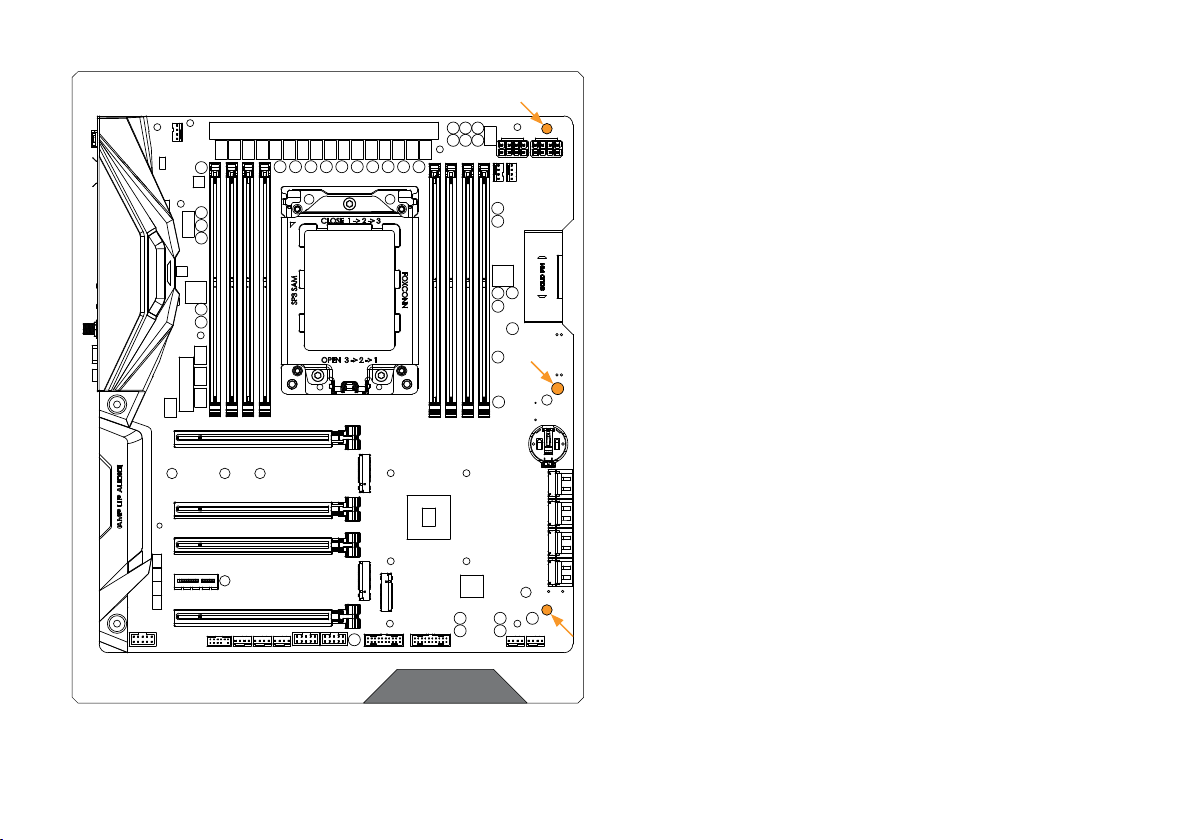

STEP 2

After removing the mention screws also remove three (3) remaining

screws from the front side of the motherboard(as shown on the

photo) using Phillips head screwdriver and take off the factory

provided backplate.

STEP 2

- 6 -

REMOVING STOCK COOLER

Remove all the encircled screws and standoffs (as shown on the

photo) in order to remove I/O cover and mosfet heat pipe cooling

solution. You can attach the I/O cover back, after you mount the

Monoblock.

- 7 -

APPLYING THERMAL COMPOUND

Apply thermal compound on CPU heat spreader with enclosed

thermal grease( as shown on the photo). There is no need to cover

the whole IHS. Applying too much thermal grease will have negative

impact on the cooling performance!

CUTTING THERMAL PADS

Your block comes with thermal pads which needs to be trimmed

in order to ﬁt the voltage regulation area (MOSFET) on the

motherboard’s circuit board.

1. Thermal PAD F 1,0mm - (120x16mm) EAN: 3830046996732

WARNING: Dimensions on pictures below are scaled.

Thermal Pad F – 1.0 mm

120

- 8 -

PLACING THERMAL PADS ON THE

MOTHERBOARD

Place thermal pads on PCB as shown on the picture.

Please remove the protective foil from both sides of the

thermal pads prior to installation!

Thermal Pad F 1.0mm

PLACING THE BLOCK ON TO MOTHERBOARD

Place the EK-Quantum Momentum TRX40 Aorus Master Monoblock

series water block to the motherboard or vice versa (as shown on the

photo). Make sure that mounting holes are aligned.

- 9 -

ATTACHING BLOCK ON THE MOTHERBOARD

STEP 1

Prior to fastening the screws please make sure the mounting holes

on the motherboard’s circuit board are aligned with the water block.

CPU part: Carefully tighten all the marked screws carefully using 2.5

mm Allen Key. Do not use excessive force.

STEP 1

Mosfet part

PART 1

Before placing backplate back on to the motherboard, attach four (4)

backplate standoffs (as shown on the photo).

Factory

(backplate)

standoffs

CPU

Screw

PART 1

- 10 -

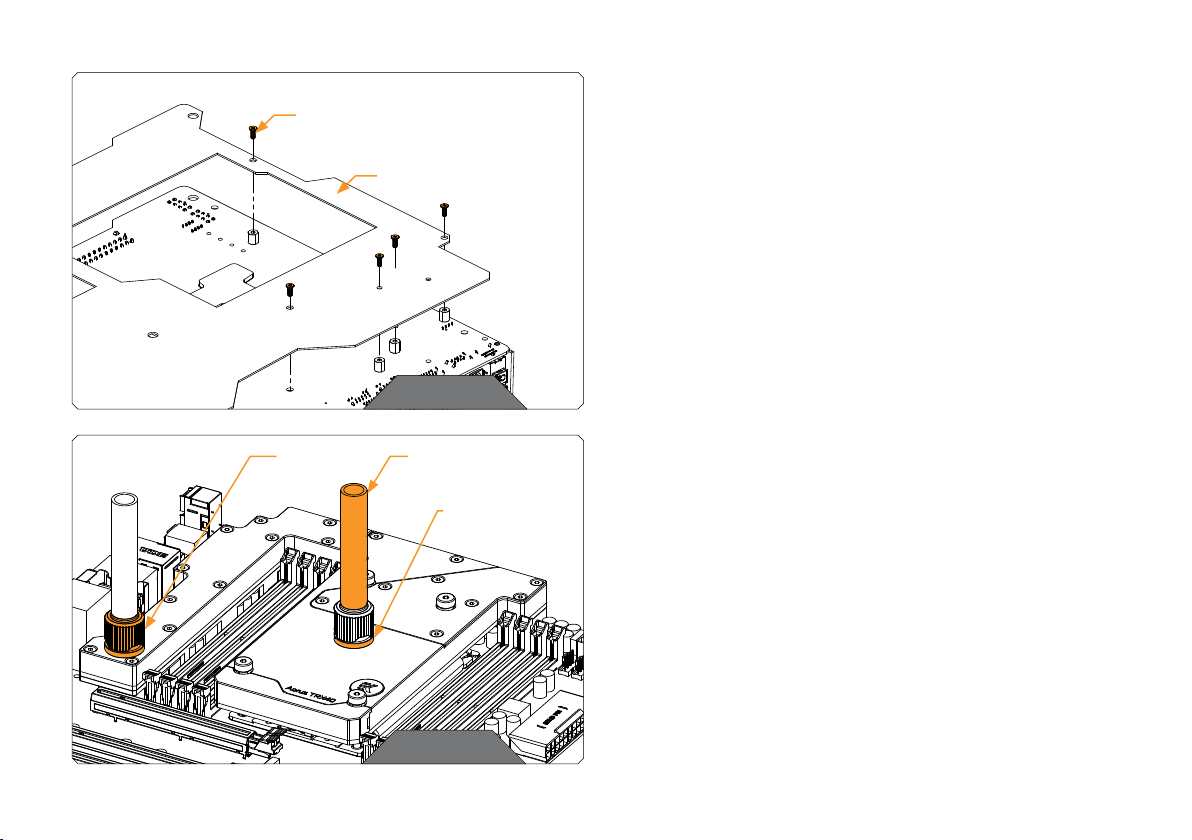

STEP 2

EK recommends the use of EK-Fittings. When using ﬁttings other

than EK series please use hose clamps or appropriate substitute

to secure the tubing to the barb. The use of biocide containing and

corrosion inhibiting coolant is always recommended for any liquid

cooling system.

STEP 2

Use this opening

as an Inlet Port!

TubingEK-Fitting

PART 2

Carefully place the backplate back on the motherboard and secure the

mosfet part with Factory provided motherboard (backplate) screws.

Backplate screws

PART 2

Factory provided

backplate
