USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² FE RTX 4090 D-RGB ABP Set

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion-inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water!

For best results, EK recommends the use of EK-CryoFuel

coolants! To reach optimal performance, make sure to

thoroughly bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

NICKEL ACETAL 7

PREPARING THE GRAPHICS CARD 8

REMOVING THE STOCK COOLER 8

PREPARING THE WATER BLOCK FOR INSTALLATION 8

CUTTING AND PLACING THERMAL PADS 10

APPLYING THERMAL COMPOUND 11

ATTACHING THE WATER BLOCK 11

ATTACHING THE AC TIVE BACKPLATE 13

FITTINGS AND TUBING 15

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 15

CONNECTING THE D-RGB LED STRIP 16

TESTING THE LOOP 16

WARRANTY 17

SUPPORT AND SERVICE 18

SOCIAL MEDIA 18

- 4 -

Thermal Grease (1 pc)

BOX CONTENTS

4 mm

8 mm

10 mm

EK-Loop Multi Allen Key (1 pc)

Allen Key 2 mm (1 pc)

Allen Key 2.5 mm (1 pc)

M2.5x8 AX1 Screw (1 pc)

I/O Bracket (1 pc)

M3x10 AX1 Screw (1 pc)

EK-Quantum Vector2FE RTX

4090 D-RGB ABP Set

M2.5x4 AX1 Screw (7 pcs)

Polyamid Washer M2.5 0.5mm (7 pcs)

Standoff Ø4.5/2.5 (1 pc)

Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Standoff M2.5-M3 x 6.6mm (1 pc)

Nut M2.5 (2 pcs)

Terminal OR - Vector

14x1 mm (2 pcs)

EAN: 105871

EAN: 104549

Thermal Pad F 1.0 mm (8 pcs)

(3830046996732)

Thermal Pad F 1.5 mm (3 pcs)

(3830046996749)

Thermal Pad F 2.0 mm (1 pc)

(3830046996756)

120 mm

16 mm

120 mm

16 mm

120 mm

16 mm

- 5 -

WATER BLOCK DIMENSIONS

236.3 mm

95.9 mm

123.9 mm

148 mm

135.5 mm

41 mm

35.5 mm

- 6 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (L x H x W): 236.3 x 148 x 41 mm

- D-RGB LED count: 28

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105849 Coldplate(Nickel) 1

2103964 Mylar sticker 2

3100663 EK - Badge 2

48208 Screw M3 x 8 7991DIN 2

5103942 Terminal Badge 1

6104106 Terminal OR - 14 x 1 mm 4

7105850 TOP plate (Plexi) 1

8105858 LED Cover (N.elox) 2

98533 Standoff M4/M2.5 x 2.5 mm 5

10 103986 Standoff M3.5-M2.5 x 11.3 mm 4

11 105876 Standoff M3.5-M2.5 x 12.9 mm 2

12 103975 Bridge Plate 1

13 103962 Plexi insert 1

14 105877 I/O Bracket (Black) 1

15 9024 Screw M4 x 10 DIN7984 12

16 105869 OR 130 x 2 mm 1

17 101556 LED D-RGB strip 500/300 mm 2

18 104098 Standout (Acetal) 1

19 104393 FC Terminal (Acetal) 1

20 8201 Screw M3 x 10 DIN7991 2

21 8311 Screw M4 x 20 DIN7984 6

22 104086 ABP Terminal Badge 1

23 105163 Disc magnet 3 x 2 4

24 104414 OR 52 x 2 mm 1

25 104395 Terminal Plate (Nickel) 1

26 105866 Sideplate (Bl. Elox) 1

27 104093 Standoff M2.5-M3 x 6.6 mm 6

28 104105 Screw M3 x 10 AX1 6

29 105862 Top plate ABP (Plexi) 1

30 105861 Coldplate ABP (Nickel) 1

31 9013 Screw M4 x 8 DIN7984 12

32 105870 OR ABP 129 x 2 mm 1

33 105872 PCB cardboard 1

- 7 -

NICKEL ACETAL

- Dimensions: (L x H x W): 236.3 x 148 x 41 mm

- D-RGB LED count: 28

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105849 Coldplate (Nickel) 1

2105851 Top plate (Acetal) 1

38533 Standoff M4/M2.5 x 2.5 mm 5

4103986 Standoff M3.5-M2.5 x 11.3 mm 4

5105876 Standoff M3.5-M2.5 x 12.9 mm 2

6103975 Bridge Plate 1

7103962 Plexi Insert 1

8105877 I/O Bracket (Black) 1

99024 Screw M4 x 10 DIN7984 12

10 105869 OR 130 x 2 mm 1

11 104393 FC Terminal (Acetal) 1

12 8202 Screw M3 x 12 DIN7991 2

13 8311 Screw M4 x 20 DIN7984 6

14 104106 Terminal OR 14 x 1 mm 4

15 104086 ABP Terminal Badge 1

16 103942 Terminal Badge 1

17 105163 Disc magnet 3 x 2 4

18 104414 OR 52 x 2 mm 1

19 104395 Terminal Plate (Nickel) 1

20 105866 Sideplate (B. Elox) 1

21 104093 Standoff M2.5-M3 x 6.6 Brass (Ni) 6

22 104105 Screw AX1 M3 x 10 6

23 105863 Top plate ABP (Acetal) 1

24 105861 Coldplate ABP (Nickel) 1

25 9013 Screw M4 x 8 DIN7984 12

26 105870 OR ABP 129 x 2 mm 1

27 104101 Stand Out (Acetal) 1

28 104095 Light guide 1

29 100663 EK - Badge 2

30 104211 Mylar sticker 2

31 104296 LED D-RGB Strip 500/130 mm 1

32 8201 Screw M3 x 10 DIN7991 2

33 105872 PCB cardboard 1

30 28

- 8 -

PREPARING THE GRAPHICS CARD

STEP 1

REMOVING THE STOCK COOLER

Place your graphics card on the ﬂat surface and carefully remove the

stock cooler. Do not forget to unplug all the LED and fan connectors.

Pay attention to the following steps when installing the EK-Quantum

Vector2FE RTX 4090 water block onto your graphics card.

Allen Key 2.5mm

TERMINAL

BADGE

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

First, remove the terminal badge which is attached to the terminal with

two magnets. Under the badge, unscrew three (3) screws M4 x 20

DIN7984. An additional six (6) screws M3 x 10 AX1 need to be removed

(as shown in the image). Save the removed parts for later use.

DO NOT REMOVE THE UPPER TERMINAL BADGE!

STEP 1

For this step, you will need:

Phillips Head Screwdriver

M3 x 10 AX1 SCREW

M4 x 20 DIN7984 SCREW

UPPER TERMINAL BADGE

- 9 -

STEP 3

Unscrew four (4) M2.5-M3 x 6.6 standoffs with the provided

tool (EK-Plug out Spludger Tool). Make sure not to unscrew the

M3.5-M2.5 x 11.3 standoff! In case the M3.5-M2.5 x 11.3 standoff

unscrews, carefully tighten it back with the 4 mm wrench. After

removing the standoffs, the PCB cardboard. Save the removed

parts for later use.

M2.5-M3x6.6 STANDOFF

M3.5-M2.5x11.3 STANDOFF

STEP 2

Carefully remove the complete active backplate with the terminal.

Additional two (2) O-rings 14 x 1 EPDM50 needs to be removed.

ACTIVE BACKPLATE

TERMINAL

O-RING 14x1 mm

For this step, you will need:

EK-Plug Out Spludger Tool

PCB

CARDBOARD

- 10 -

STEP 2

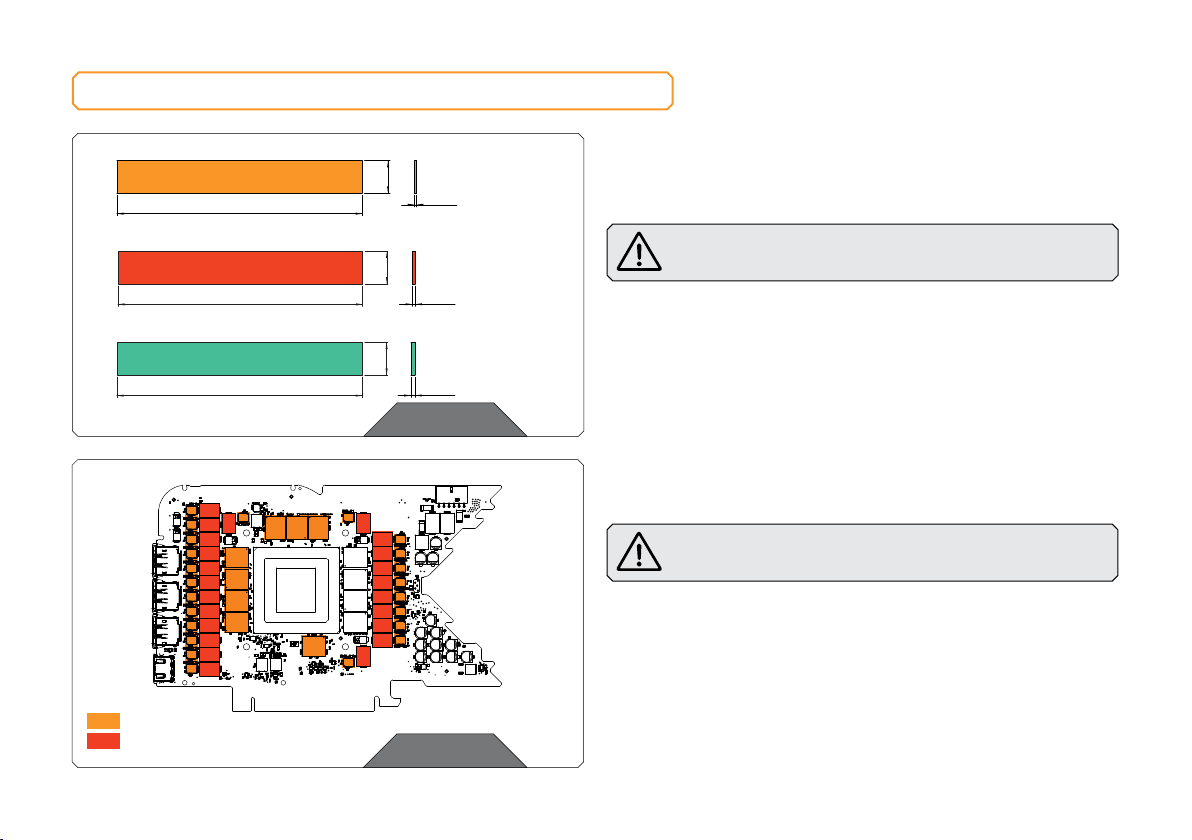

Once cut to the size, Thermal Pads should be placed on the PCB, as

shown in the picture:

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 2

STEP 1

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

Thermal Pad F – 2.0 mm (120 x 16 mm)

2 mm

120 mm

16 mm

STEP 1

The GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

Remove the protective foil from both sides of the thermal

pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad F 1.5 mm – (120 x 16 mm) EAN: 3830046996749

Thermal Pad F 2.0 mm – (120 x 16 mm) EAN: 3830046996756

Thermal Pad - 120 x 16 x 1.0 mm

Thermal Pad - 120 x 16 x 1.5 mm

F1.5

Thermal Pad F – 1.5 mm (120 x 16 mm)

1.5 mm

120 mm

16 mm

F1F1

F1 F1.5F1.5

F1.5

F1.5F1.5
