El Rocio Zarre Manuale utente
Dual Boiler
Stainless Steel
Variable
Pressure
1.2 pi / 3 Hole
Steam Tip
58mm
Group Head
Dual GuageOPV
Dual
Boiler OPV 58mm
El Rocio Zarre
Components
Precautions Before Use
Alert Indicator
User Guide
Cleaning & Maintenance
Frequent Questions
01 07
04 17
1806
1
Components
What’s in the box:
• Zarre
• Bottomless portalter
• Double spouted portalter
• Tamper
• Cleaning brush
• Backush disk
• Controller
• 7g basket
• 14g basket
2
5
4
3
2

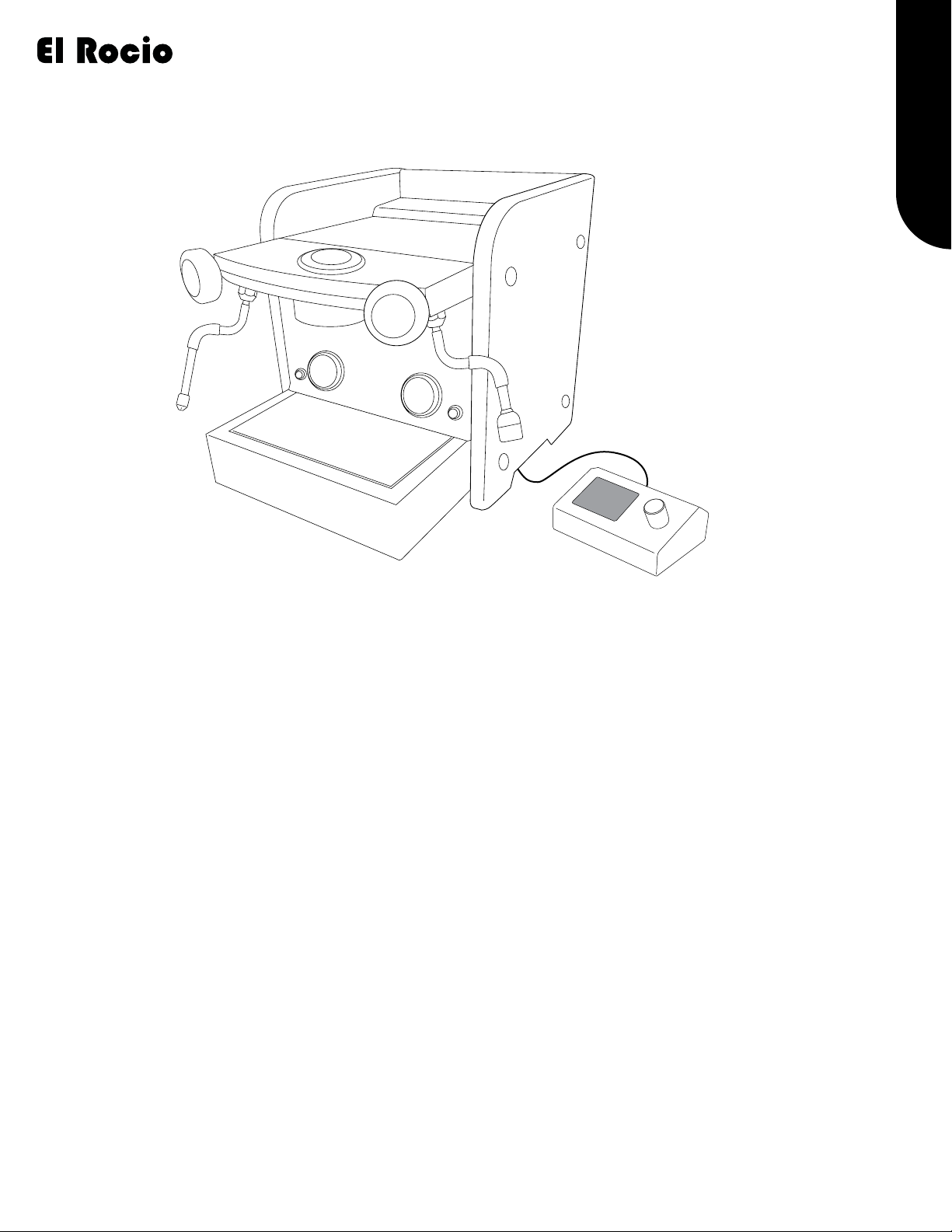

Components
1
6
9
11
10
7
8
Power switch
Extraction switch
Steam pressure gauge
Extraction gauge
Gouphead
Steam knob
Hot water knob
Hot water wand
Steam wand
Drain tray
Adjustable foot
1 7
2 8
3 9
4 10
5 11
6
3
Components
Cup warmer
Reservoir lid
Lid handle
Controller connection
Main power switch
Side panel
Tap bolt
12 16
13 17
14 18
15
12
16
13
17
14
18
15
4
Precautions Before Use
Precautions before use
The Zarre must be connected to an appropriate power
source (120V/60hz, 1.5KW)
Never turn on the Zarre without water in the reservoir. Doing
so may severely damage the machine.
Install the Zarre on a solid, at surface
Do not cover the Zarre with any cloths while it is turned on
Do not place any liquids on the cup warmer
When uninstalling or moving the Zarre
Empty the water from the drain drain and reservoir
Release pressure from the steam boiler by opening the
steam valve
Allow the machine cool completely.
5
It is recommended to plug the Zarre directly into a wall sock-
et instead of a power strip. The Zarre requires up to 1.5KW
while heating
Keep the power cord and controller cable away from liquids
and sharp objects
Keep the Zarre away from other heat sources
Turn both the steam and hot water valves clockwise to close
them prior to powering on the Zarre.
The steam and hot water wands are extremely hot directly af-
ter usage. Be sure to grip both wands by the silicone sleeve.
The grouphead of the Zarre is actively heated. Do not touch
the group head while the Zarre is powered on.
Precautions Before Use
Caution
6
Alert Indicator
Alert Indicators
Red light blinks at high speed - Water reservoir
is empty
Red light blinks at medium speed - Steam boiler
is lling
Red light blinks at slow speed - Brew boiler
is lling
Green light will blink until the brew boiler reaches
set temperature
The steam boiler is fully heated when the steam
pressure gauge reads between 1-2 bars.
7
User Guide
Direct plumbing (optional)
Installing the drain hose to the drip tray (optional)
1. Remove the cap from the center of the drip tray
2. Connect the drain hose to the barb tting on the
underside of the drip tray. If there are any leaks,
secure the hose with a hose clamp.
Install the direct water connection
A ¼ hose and valve, along with a push connect tting
are located at the back of the machine. Attach a ¼” line
to the tting.
8
User Guide

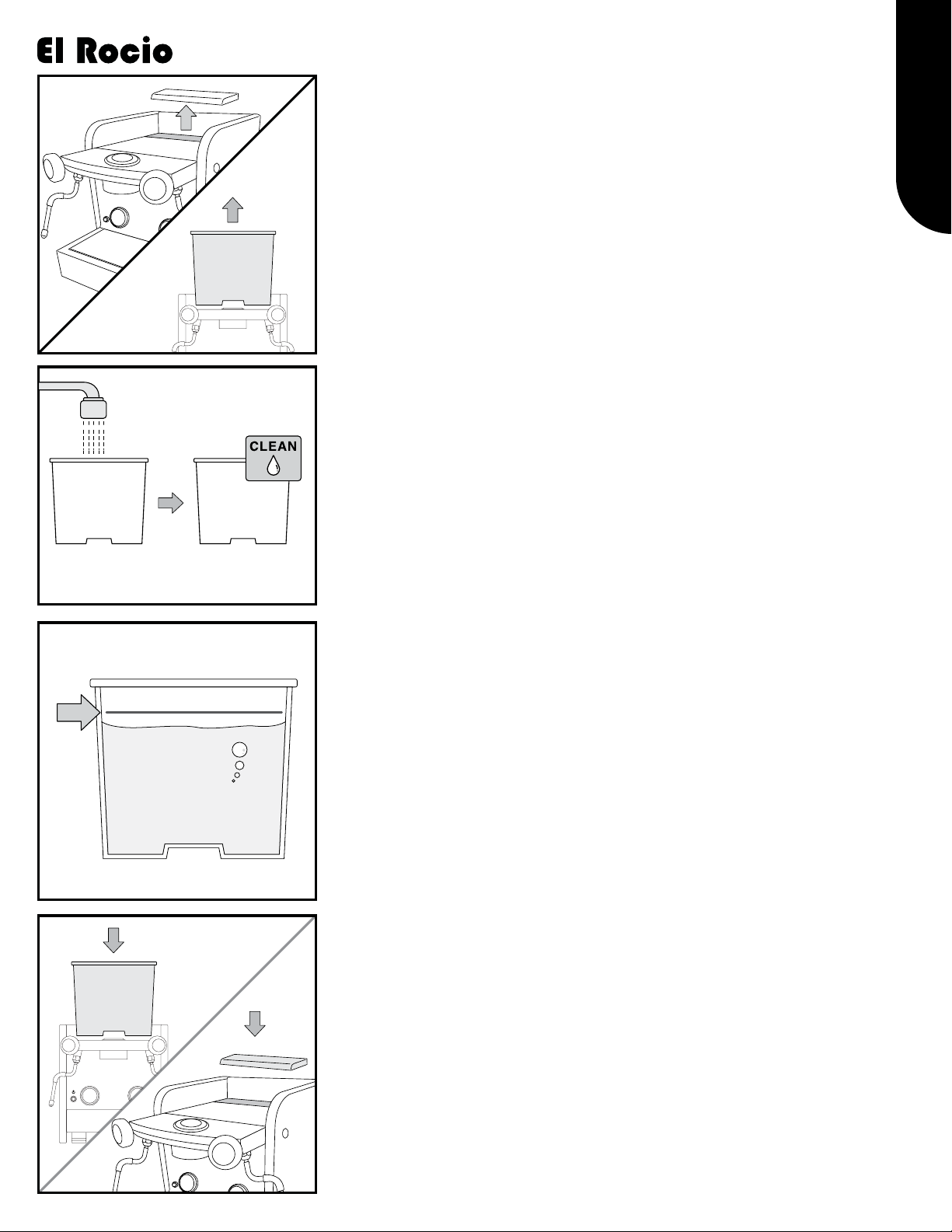

Detaching and Cleaning the
Water Reservoir
1. Remove the metal cover and the reservoir lid.
2. Detach the 1/8th inlet hose from the push tting at the
right of the reservoir
3. Pull the reservoir up and out of the Zarre body
4. Wash with warm water and soap and rinse thoroughly.
To avoid distortion of the plastic, do not use hot water.
5. Put the water reservoir back in the Zarre and reconnect
the 1/8th line to the push tting (only if direct-plumbed).
6. Fill the water reservoir and check to make sure the
sensor at the bottom is oating.
7. Replace the lid and metal cover.
