INSTALLATION MANUAL
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 1
Preface
Purpose of this Manual
This manual provides design information, step-by-step installation instructions and connection examples, along with basic user information
for installation and ongoing use of the S1616A Multi-Zone Controller Amplifier. This manual is written for the installer of this equipment.
This manual only covers the S1616A when used in Multi-Zone Mode. For installation instructions for using the S1616A in Amplifier Mode
please download the S1616A Amplifier Mode Installation manual at www.elanhomesystems.com/dealer.
Organization
The following information is contained in this manual:
Safety Information Provides a comprehensive list of safety practices and procedures allowing for the safe installation and
operation of the ELAN Home Systems S1616A Multi-Zone Controller Amplifier.
S1616A Introduction Provides an introduction to ELAN Home Systems S1616A Multi-Zone Controller Amplifier, along with system
features to include Front and Rear panel controls, indicators and connections, along with a short description of
each.
S1616A Design Provides information that will allow you to positively implement the S1616A’s features in your installations.
S1616A Connections Provides a description of the S1616A Multi-Zone Controller Amplifier system connections and direct
connections from the S1616A to other components.
Troubleshooting Provides troubleshooting tables to help fix common problems that may be encountered when installing the
S1616A Multi-Zone Controller Amplifier.
Specifications Provides equipment specifications for the S1616A Multi-Zone Controller Amplifier.
Appendix A Programming with Configurator.
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 2
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 3
Table of Contents
Preface ……………………………………………................................…….………….……..…… 1
Purpose of this Manual ………………………….……….......…………...……….….….…… 1
Organization ……………………………….…………………………...………….….…….….. 1
Safety Information ……………………………………………….………......……………...….…....….. 2
Chapter 1: Introduction ………...……………………...….………..…....……….….…… 4
The ELAN Story ……………………………………….…….……………..…………………..…….…… 4
S1616A Features ..…………………………………………….………………………………….…..…… 5
S1616A Front Panel Indicators …………………………………........……………………….….…….. 6
S1616A Rear Panel Connections ……………………………………....……...………….……….…... 7
Chapter 2: System Design and Applications ………….…………………... 8
Chapter 3: Unit Addressing ……………………….….....…...……………….……... 19
Updating Firmware ……..………………………......………………………………………… 19
Setting Unit ID ………………………………………...………………………………………. 20
Chapter 4: Connections ……………….…………………..…………………………….. 22
Chapter 5: Troubleshooting …………………………………………………..…...… 27
Specifications: …………………………………………………………………………..…...… 30
Appendix A: Programming With Configurator …………...…..……....... 31
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 4
Chapter 1: Introduction
The S1616A is the culmination of twenty-three years of ELAN experience in the design and
perfection of multi-source/multi-zone controllers and amplifiers. Incorporating the features and
reliability that has made ELAN a firmly established manufacturer of multi-room A/V products, the
S1616A is ELAN’s most powerful and flexible multi-source/multi-zone controller to date. The
S1616A is an integrated controller and amplifier whose inputs and outputs may be flexibly
configured in either stereo or mono. Used in Single Chassis configuration the S1616A allows for 8
stereo inputs or 16 mono inputs or for combinations of stereo/mono as the project requires.
Alternatively, the S1616A may be used in Dual Chassis configuration that provides sixteen stereo
inputs and sixteen stereo outputs per Dual Chassis pair. In Single Chassis mode up to sixteen
S1616A units can be linked for a total of 128 stereo outputs or 256 mono outputs. In Dual Chassis
mode eight pairs of S1616A units can be linked together providing 128 stereo outputs. The S1616A
is a dedicated g! system device and requires an HC series controller for configuration and
operation.
This unit has been designed with ultimate flexibility in mind. Allowing operation from all g!
interfaces, including iPad and iPhone, and being ultimately expandable the S1616A is the perfect
solution for mid to large audio and control systems. Multiple control methods combine with
expandability to offer the perfect solution for larger audio/video and automation control systems.
The ELAN Story
Located in Carlsbad, CA USA, ELAN is a part of The AVC Group, a collection of integration-centric
brands. ELAN has designed innovative multi-room audio/video systems since 1989. ELAN systems
were the first to integrate music, intercom and TV distribution features that used the homeowner’s
stereos, televisions and telephones to create the whole-house entertainment experience. These
systems allow people to move from room to room, controlling centrally located equipment with
ease.
ELAN’s product line includes:
•Power Amplifiers
•Multi-Zone Pre-Amps
•Intelligent Keypads
•In-Wall LCD Color Touch Panels
•Film Interactive Touchpads
•Hand Held Remote Controls
•In-Wall and In-Ceiling Speakers
•System Controllers
•Volume Controls
•Telephone-Based Intercom Controllers
•Video Switchers
•Satellite Radios
•Accessories for Home Systems Installation
•Outdoor Speakers
Items in Package:
•S1616A Power Amplifier
•Rack Mount Brackets
•Power Cord
•Safety Flyer
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 5
S1616A Features
•Two “Chassis Mode” Configurations
oSingle Chassis – 8 stereo inputs, 16 mono inputs or combinations thereof
oDual Chassis – 16 Stereo inputs
•Amplifier Mode Operation
oThe S1616A can act as a high quality amplifier (see Amplifier Mode manual)
•Flexible Input Configuration
oSingle Chassis
8 Stereo Inputs
16 Mono Inputs
Any combination of Stereo/Mono i.e. 6 stereo + 4 mono for 10 source
inputs
SPDIF input (2) usable in single unit systems
oDual Chassis
16 stereo inputs
oBuffered loop outputs
oInput level matching
•64 Zones
oBass/Treble/Loudness settings by zone
oPage, Doorbell, DND, WHM & Zone Group settings
oSub-Zoning
•Flexible Output Configuration
oSingle Chassis
16 outputs individually configured to
•Left
•Right
•Mono
High/Low pass per output
•Adjustable crossover points
Level adjustment
Expandable to 16 units for 256 outputs
oDual Chassis
16 stereo pair outputs
High/Low pass per output
•Adjustable crossover points
Level adjustment
Expandable to 8 pairs of units for 128 stereo outputs
•House Scenes allow memorization of power/input/level settings to be stored and recalled
quickly
•Zone Groups allow common areas to be grouped & un-grouped with ease
•Signal Sensing for all sources usable for automation and Event Maps
•Class D Digital Amplification
o50 watts (8 ohms) per output
o75 watts (4 ohms) per output
•Automatic Clipping Eliminator (ACE)
oMonitors output to eliminate clipping
•Automatic Volume Reduction (AVR)
oMonitors output to eliminate overdriving
•Intelligent Load Monitoring
oDetects load faults and shuts down only the affected channel pairs thereby
protecting speakers, wiring and the S1616A
•Rack Mount brackets included
•cTUVus, CE, C-Tick certified
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 6
S1616A Front Panel Indicators
Figure 1-1:S1616A Front Panel Controls and Display
Item Function
1 Channel Button
Cycles through information pertaining to each of the 16 audio channels
2 Menu Button
Cycles through various advanced setup features
3 Up Arrow Button
Increments selected menu item
4 Power Indicator
Illuminates when AC power is present and the power switch is on.
5 Down Arrow Button
Decrements selected menu item
6 IR Receive Indicator
Used in Amplifier Mode only
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 7

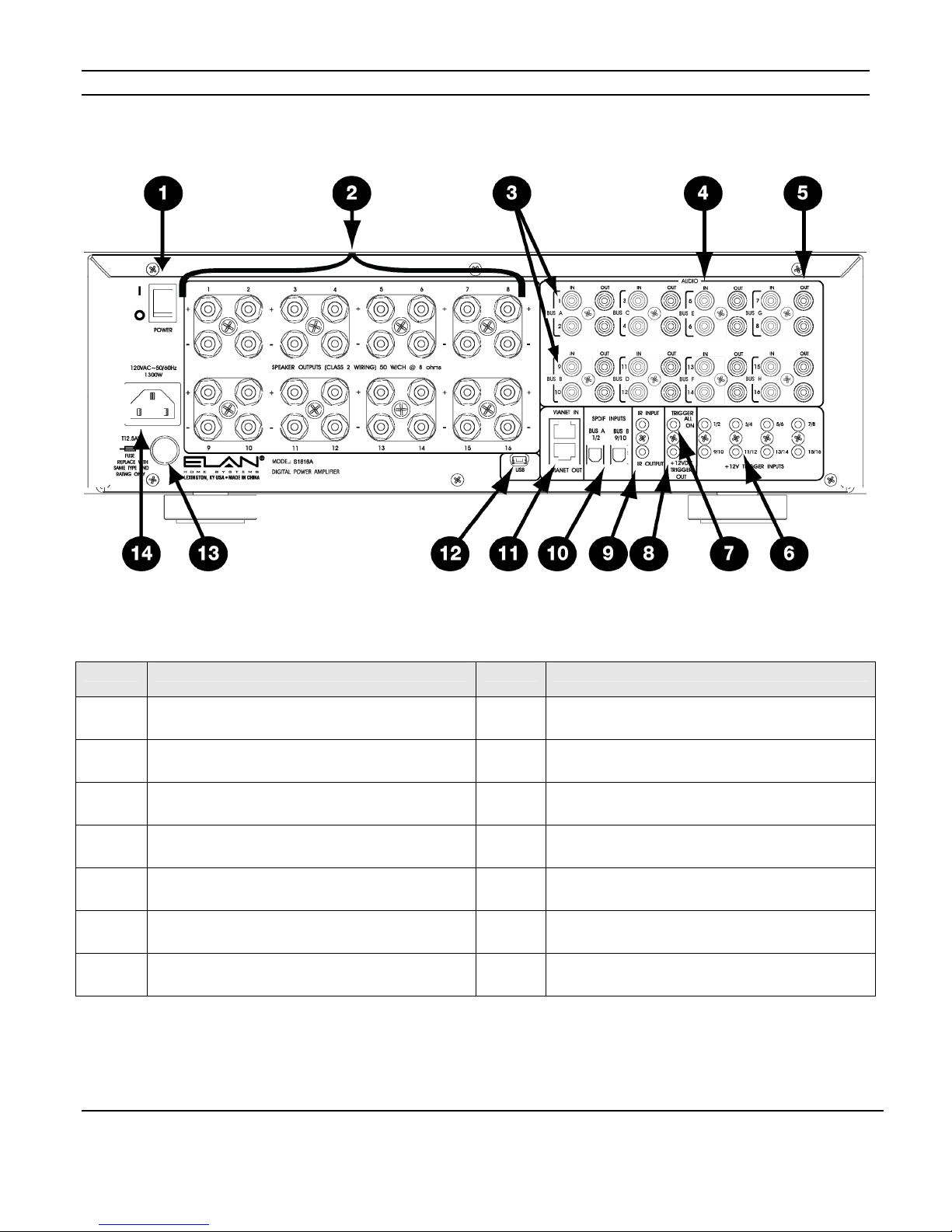

S1616A Rear Panel Connections
Figure 1-2
Item Function Item Function
1 Power Switch
Unit master power switch
8 12V Trigger Out
Used only in Amplifier Mode – see Manual
2 Speaker Outputs
Channels 1-16, Five Way Binding Posts
9 IR Input & Output
Used only in Amplifier Mode – see Manual
3 Bus Inputs, A-B
Used only in Amplifier Mode – see Manual
10 Digital Audio Inputs
Replaces inputs 1/2 and 9/10 when used
4 Line Level Inputs
Inputs 1-16
11 VIA!NET Input & Output
VIA!NET In/Out
5 Line Level Audio Loop Outputs
Used for sharing audio sources between units
12 USB Mini B Port
For in-field firmware updates
6 12V Trigger Inputs
Used only in Amplifier Mode – see Manual
13 Fuse Holder
Replace only with T12.5AL250V
7 Trigger All On
Used only in Amplifier Mode – see Manual
14 Power Cable Connector
IEC type C14
Note: All 3.5mm connectors are mono (two conductors)
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 8
Chapter 2: System Design and Applications
Introduction
The first step to a good design is to map the system. It is advisable to mark up a copy of the house
floor plan with speaker, touchpad, touchscreen, volume control, and equipment locations etc.
Make sure that all locations are decided upon before pre-wiring commences so that all necessary
wiring and installation hardware is in place. This unit will be interfacing with other components
such as amplifiers, source components, communications controllers, serial controllers, and user
interfaces, so it is essential that ALL system components are accounted for prior to the pre-wire
stage.
Secondly, make a detailed list of all components. Include source equipment, touchpads,
touchscreens, volume controls, amplifiers, communications gear and the S1616A itself. Be sure to
include necessary electrical boxes, structured wiring enclosures, telephone lines, rough-in
brackets, patch cords, power supplies, etc.
Design
The S1616A is a very flexible controller and as such many design opportunities exist.
Understanding the capabilities of the S1616A is critical. What follows are design definitions that will
help you maximize the capabilities of the S1616A in your installations.
Amplifier Mode
Information about Amplifier Mode is available in the S1616A Amplifier Mode Instruction Manual
available at www.elanhomesystems/dealer.
ELAN HOME SYSTEMS S1616A INSTALLATION MANUAL
© ELAN Home Systems 2012 | All rights reserved.
Page 9
Multi-Zone Operation
When used as a multi-zone controller amplifier the S1616A has two chassis options – Single
Chassis or Dual Chassis. These distinctions apply primarily to how the inputs are configured.
Additional S1616As (referred to as Units in this manual) will share identical input configurations as
the first chassis.
Single Chassis Mode
The Single Chassis system provides 8 stereo inputs or 16 mono inputs or any combination in
between. Figure 2-1 shows the input configuration options for a Single Chassis installation.
Whether an input is stereo or mono, the S1616A automatically adapts it to the stereo and mono
outputs.
Single Chassis Mono/Stereo
Mono Inputs Stereo Inputs
0 8
1/2 7
3/4 6
5/6 5
7/8 4
9/10 3
11/12 2
13/14 1
15/16 0
Figure 2-1
In systems configured for use with a C2 communication controller input pair 15/16 is automatically
set to mono and input 16 is used for the C2. In this configuration a maximum of seven stereo
sources and one mono source are allowed. Figure 2-2 indicates how to connect seven stereo
sources and one mono source along with a C2.
Figure 2-2
