Elan S1616A Guida rapida

ELAN Home Systems ● 1690 Corporate Circle ● Petaluma, CA 94954 USA

tech support: 800.622.3526 • main: 760.710.0990 • sales: 877.289.3526 • email: [email protected]

Integration Note

Manufacturer:

ELAN

Model Number(s):

System S1616A (Multi-Zone Control)

Minimum Core Module Version:

g! version 5.4, requires S1616A Firmware 2.0.2.2

Document Revision Date:

05-25-2017

OVERVIEW AND SUPPORTED FEATURES

THE FOLLOWING FEATURES ARE SUPPORTED:

Traditional Whole-House Audio: The ELAN S1616A is a multizone - multisource audio switcher that can

be controlled by the g! software using its VIA!Net port. The g! Viewer interface can be used to select

sources by zone, and control volume in each zone.

Multiple S1616A units: Up to 16 ELAN S1616A units can be controlled using the VIA!Net port on the g!

controller.

Independent Zone Settings: Volume, Bass, Treble, Loudness EQ, Do Not Disturb (DND) and Whole

House Music (WHM) settings can be selected independently for each zone.

Audio Sense Inputs: HC Series controllers can receive feedback from the audio inputs on the rear of the

S1616A chassis for use with Event Maps.

ELAN S1616A Programming: g! software supports programming ELAN S1616A features from

Configurator.

Note: The S1616A is not configurable using VIA!Tools.

THE FOLLOWING FEATURES ARE NOT SUPPORTED:

Control from HomeBrick/MultiBrick: Control of an S1616A is only available from the HC Series

controller’s VIA!Net connection. The S1616A cannot be controlled from legacy HomeBrick/MultiBrick

controllers.

NOTE: Sense inputs are not supported on SC Series Controllers.

Any feature not specifically noted as supported should be assumed to be unsupported.

2 of 16

ELAN S1616A Configurations:

1. Single Chassis Mode: Single Chassis Mode supports source audio inputs in any combination of

stereo or mono to a maximum of 16 total inputs. It supports integration of the C2 Communication

Controller. Single Chassis Mode supports a maximum of 64 audio zones with up to 256 audio

outputs (16 chassis required) in any combination or stereo or mono.

Number of Stereo Sources

Number of Mono Sources

2 max

4 max

6 max

8 max

10 max

12 max

14 max

16 max

The C2 Communication Controller requires the use of 1 Mono

Input

2. Dual Chassis Mode: Dual Chassis Mode supports stereo source audio inputs only, to a

maximum of 16 total sources. It supports integration of the C2 Communication Controller. When

a C2 Communications Controller is used there is a maximum of 15 stereo source inputs available.

Dual Chassis Mode supports a maximum of 64 audio zones with up to 128 stereo pairs of audio

output (8 chassis pairs required.)

In Dual Chassis Mode each S1616A is dedicated to the Left or the Right channel audio outputs. A

minimum of 1 chassis pair is required for a Dual Chassis Mode system.

INSTALLATION OVERVIEW

1. During the rough-in phase, install speaker wire for the speakers and Cat5 cable for keypads, in each

zone.

2. Also during the rough-in phase, run a Cat5 wire from the location of the ELAN S1616A to the HCxx

controller for VIA!Net communications.

3. Mount the speakers and keypads in each zone, and install the ELAN S1616As and the sources. Set

the VIA!Net Unit IDs for the S1616As. Refer to the S1616A Installation Manual for VIA!Net Unit ID

programming.

4. Connect the g! system to the ELAN S1616A system electrically. See the wiring diagrams for more

information.

5. Configure the g! system for the ELAN S1616A and confirm communication between the ELAN

S1616A and the Controller.

6. Test the system by changing sources in a zone to confirm the correct source plays and volume is

controlled. Test source control for any sources that are to be controlled from the g! interface.

3 of 16

CHECK/UPDATE THE S1616AFIRMWARE

IMPORTANT! Verify that the S1616A firmware on all chassis is one of the supported versions

listed in the document header above.

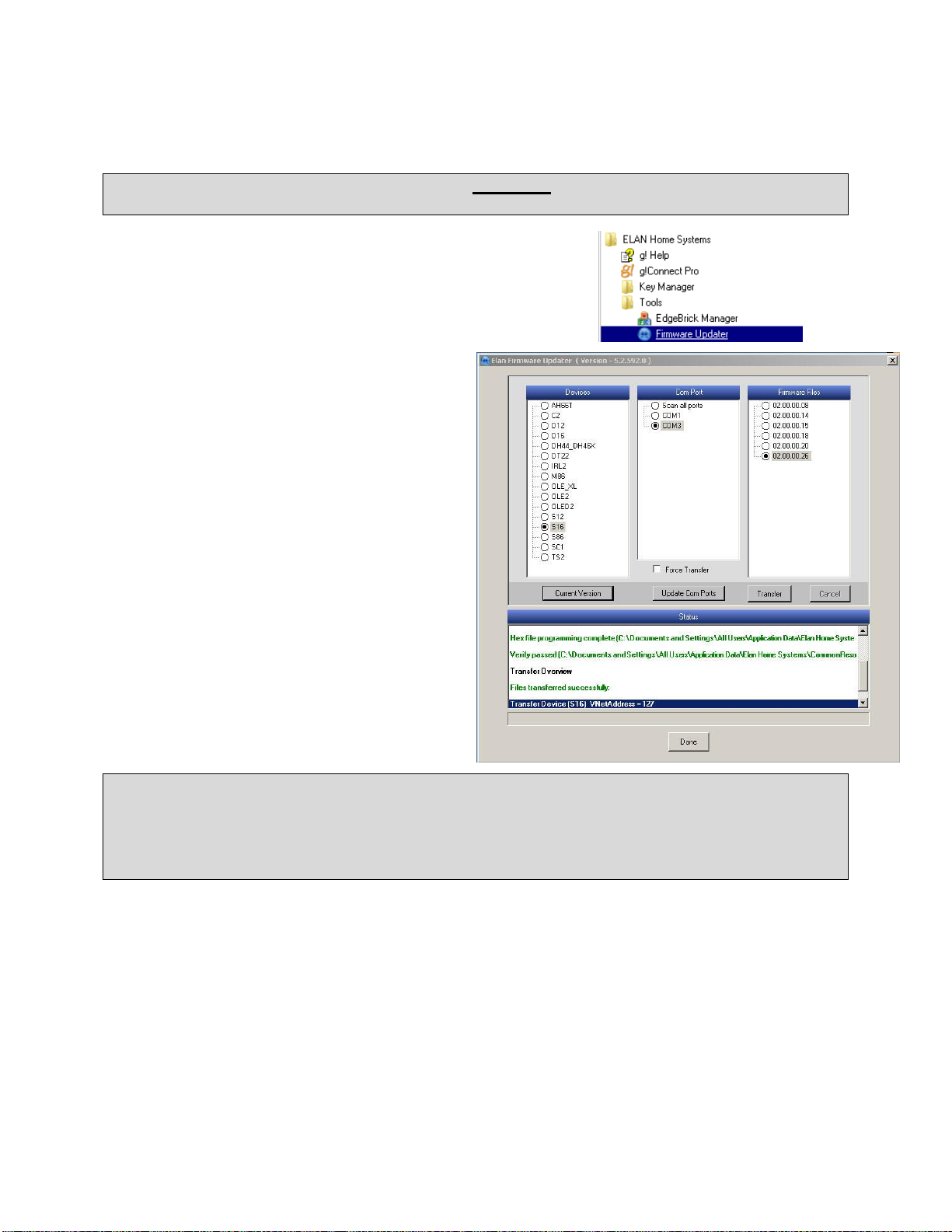

1. Connect a USB cable from your PC to the rear USB mini port on

the S1616A.

2. Start the ELAN Firmware Updater by selecting it from your start

button menu and navigating to it via the All Programs browser.

3. Click the Update Com Ports button.

4. To check the firmware: select the device as

an S1616A and click the Current Version

button. The application will search the com

ports for the S1616A then report the current

version of that chassis. If the firmware is

supported then remove the USB cable.

5. If the firmware needs to be updated: select

the device as an S1616, select the COM Port,

and the proper firmware version then click the

Transfer button. Wait for the transfer to

complete and state that it was successful as

shown in the screen on the right.

6. Remove the USB cable.

Important: After updating the firmware and Prior to writing the S1616A configuration from

configurator to the S1616, all S1616s MUST be Factory Defaulted.

This procedure WILL reset the Unit IDs of all S1616 chassis to 1. In a multiple chassis installation.

The Unit IDS will need to be reset to their correct values in order for the system to function

correctly. Failure to do this will result in severe control and programming issues with the S1616

FACTORY DEFAULT PROCEDURE (FIRMWARE 2.0.2.2)

1. Power up the S1616A

2. Press an hold MENU button (about 5 seconds) until the System Status screen appears

3. Press and release the MENU button until the Utility menu appears

4. Press and release the CHANNEL button until the Restore Defaults option is displayed

5. Press and release the Arrow keys to select the appropriate Default options

6. Press the CHANNEL button to select the desired option

7. Use the Arrow keys to select Restore (or Cancel)

8. Press the CHANNEL button to set the unit to Factory Default condition. Rebooting will be displayed

and then the ELAN boot screen.

4 of 16

CONNECTION DIAGRAMS

SINGLE CHASSIS MODE

5 of 16

DUAL CHASSIS MODE

BILL OF MATERIALS FOR SINGLE/DUAL CHASSIS MODE

Device

Manufacturer

Part Number

Protocol

Connector Type

Notes

Controller

ELAN

Various (e.g. HC12)6

VIA!Net

RJ45 Female

Cat5 Cable

Installer

N/A

VIA!Net

RJ45 Male x RJ45 Male

Use ELAN VIA!Net Color Code

Communications Controller

ELAN

VIA!Net

RJ45 Female

If used

RCA Cable

N/A

Analog

RCA x RCA

Speaker Wire

N/A

Various

6 of 16

g! CONFIGURATION DETAILS

The following table provides settings used in the g! Configurator when connecting to an ELAN S1616A system. Please refer to the g! Configurator

Reference Guide for more details.

In the table below:

o“<Select>” Select the appropriate item from the list (or drop-down) in the Configurator.

o“<User Defined>”, etc. Type in the desired name for the item.

Devices Variable Name Setting Comments

Communication Devices Name

ViaNet (Added by Default)

Type Serial Port / ViaNet HCxx

Location <User Defined> (Not Required)

<RS-232 Sources>

Other Audio Devices / Interfaces Name <User Defined> Add Interfaces for anysource thatdoes not have a built-in interface

Template <Select>

Default Device <Select> Selectthe RS-232 or IRcontrolled source for this interface

Audio Zone Controllers Name

<User Defined> (Default: ELAN S1616A )

Device Type

ELAN S1616A (Single or Dual Chassis Mode)

Location <User Defined> (Not Required)

Comm Device VIANET

Sources Name <User Defined>

Source Device <Select> Sources must be previouslyconfigured inorder to allowselection.

Source Volume <Select> See note 1

Source Icon <Select> This iconappears onthe source buttonin the ViewerInterface

Display Name <User Defined> This text appears on the source buttonin the Viewer Interface

Level <Select> Sets Source Input Gain Level for System Volume Balancing

Zones Name <User Defined>

Universal Receiver <Select> Zone IR Receiver assignment.

Show Source <Select>

Set to No for any inputs that are not used in that Zone

Settings Interface <Select> Drop-down field used to select the Settings interface for the zone.

Display 1 / 2 <Select> Drop-down field used to select which television display is assigned to the zone.

Slave Zone 1/2 <Select> Drop-down field used to assign a slave zone to this zone.

Tab Layout Interface Tabs <Select>

Move anyunused zones to the leftinto Available Zones to remove from the viewer

Notes:

1. For systems withdevices that have controllable volume (suchas anAudioTron), select the desired volume (normally100%).

Add any RS-232 controlled sources. Refer to the IntegrationNote foreachspecific source device.

Add IR devices onthe Input/Output tab for other IR controlled sources. Refer to the Configurator Reference Guide .

7 of 16

S1616APROGRAMMING

g! software version 5.4 and higher is required to program the S1616A.

Note: This document shows one method for programming, however other options are available. Please

refer to the Programming section of the S1616A Installation Manual for detailed programming information.

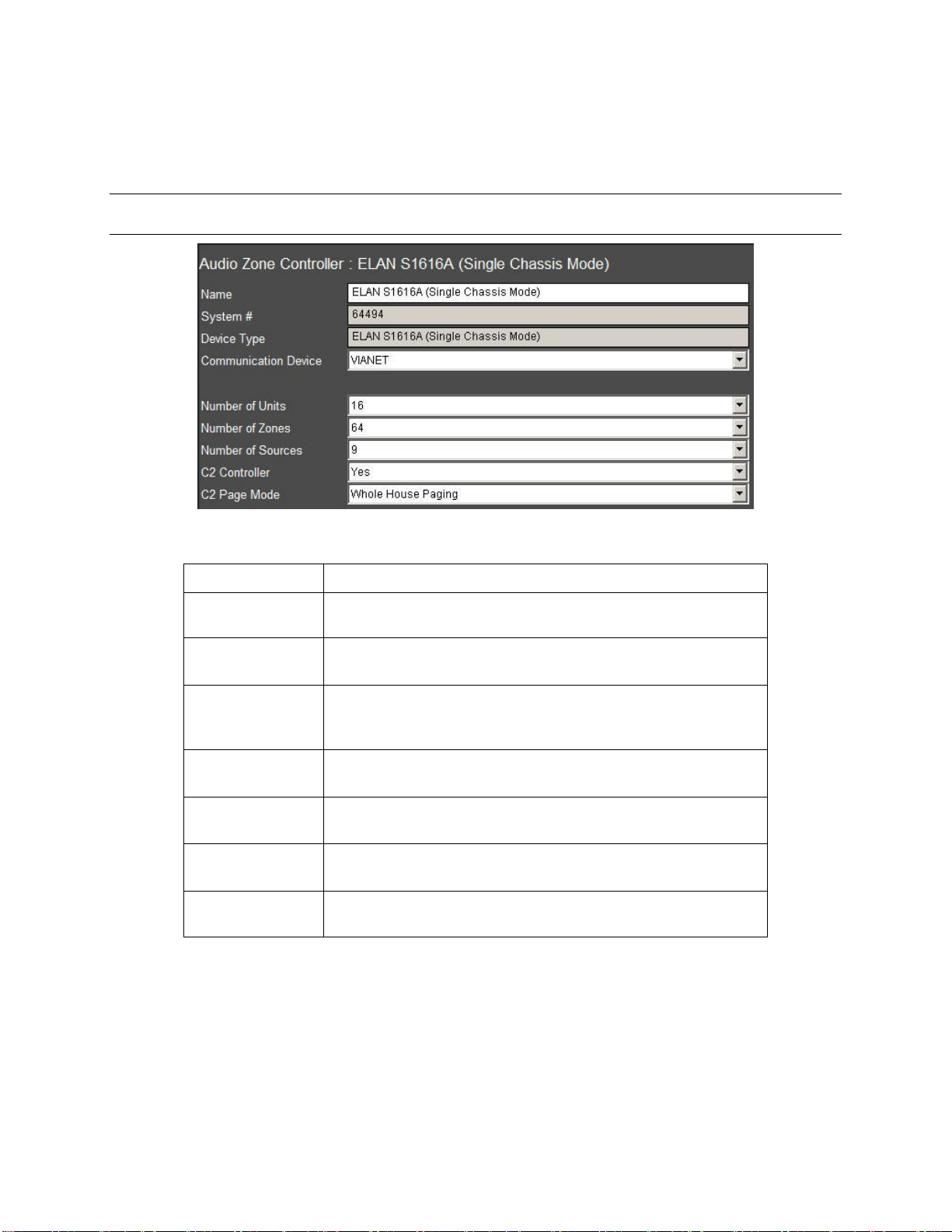

S1616A Settings: To access these settings. Click on the ELAN S1616A under Audio Zone Controllers on

the Media Tab of Configurator.

Name

System Name (Editable).

Device Type

ELAN S1616A –Single or Dual Chassis Mode determined

when the S1616A is added.

Communication

Device

VIA!Net (Default Setting) .

Number of Units

The number of S1616As in the system. 1-16 Single Mode

chassis are configurable; 1-8 Dual Mode chassis pairs are

configurable.

Number of

Zones

The number of Zones in the system. The Number of Units

affects the Number of Zones available.

Number of

Sources

The number of Sources in the system.

C2 Controller

Set to Yes if a C2 Controller is being integrated in the system,

otherwise leave at the default setting of No.

C2 Page Mode

Default setting is Whole House Page. Set to Group Page if

Page Groups will be used.

8 of 16

S1616ASOURCE INPUT CONFIGURATION

SINGLE CHASSIS MODE

S1616A Single Chassis Mode Source Settings: To access these settings, Select the S1616A node or

click on Sources under the ELAN S1616A within Audio Zone Controllers on the Media Tab of

Configurator.

Any Source can be assigned to any Input (Mono Source) or Input pair (Stereo Source).

Source Name

The names of the sources. Sources are assigned using the

Source tree.

Type

Right click in the Type column to set Sources as Stereo or

Mono.

Optical

Right click in the Optical column to set the Source input to the

SPDIF optical inputs of the S1616A. Only Input pairs 1/2 and

9/10 can be set to Optical.

Optical inputs are only available for systems that are

comprised of a single S1616A.

IMPORTANT: The S1616 must be power Cycled after

assigning the optical input for the source to function.

In 1 –In 16

Right click in the In columns to assign inputs to Sources.

Stereo Sources use input pairs (In1 / In2, In3 / In4, etc.),

Mono Sources use single inputs.

If a C2 Communications Controller is selected it will always

default to In 16. This setting cannot be changed.

Level

The source volume level (gain). Use these adjustments

(+ / –) on each source to maintain equivalent source volumes

throughout the system.

9 of 16

DUAL CHASSIS MODE

S1616A Dual Chassis Mode Source Settings: To access these settings, Select the S1616A node or

click on Sources under the ELAN S1616A within Audio Zone Controllers on the Media Tab of

Configurator.

Sources have dedicated Inputs. Source 1 uses Input 1; Source 2 uses Input 2, etc.

Source Name

The names of the sources. Sources are assigned using the

Source tree.

Level

The source volume level (gain). Use these adjustments

(+ / –) on each source to maintain equivalent source volumes

throughout the system.

Note: Dual Chassis Mode, if a C2 Communications Controller is selected it will

always default to Source 16. This setting cannot be changed.

10 of 16

S1616AZONE CONFIGURATION

S1616A Zone Settings: To access these settings click on Zones under the ELAN S1616A within Audio

Zone Controllers on the Media tab of Configurator.

Zone Name

Custom Name for Zone. Select the individual Zone Node in the

tree to access the Name field.

SubZone Of

Right click to assign the Zone as a SubZone of another Zone.

SubZones track to the same Source as their “master” Zone.

WHM

Determines if the Zone participates in WHM. Default is Yes.

Right click to change.

Group

Right click to select a Group. Zones are assignable to any 1 of 8

Groups. Zones that are grouped track to the same Source.

Note: Volume, EQ, DND and Loudness Control are always on a

zone by zone basis and will not be affected by Grouping.

Max Vol

The Maximum volume allowed for a zone. Use this setting to

prevent unpleasant volume levels or speaker damage in a zone.

Right click to change.

On Max

The maximum volume level for a zone when it is turned on. If the

zone is turned off with the volume above this point, it will return to

this level when reactivated. Right click to change.

On Min

The minimum volume level for a zone when it is turned on. If the

zone is turned off with the volume below this point, it will return to

this level when reactivated. Right click to change.

On Bass

The bass level for a zone when it is turned on. If the zone is

turned off with the level different, it will return to this level when

reactivated. Right click to change.

On Treble

The treble level for a zone when it is turned on. If the zone is

turned off with the level different, it will return to this level when

reactivated. Right click to change.

On Loudness

The Loudness setting for a zone when it is turned on. If the zone

is turned off with the setting different, it will return to this setting

when reactivated. Right click to change.

On DND

The DND setting for a zone when it is turned on. If the zone is

turned off with the setting different, it will return to this setting

when reactivated. Right click to change.

Altri manuali per S1616A

Indice

Altri manuali Elan Impianto stereo

Elan

Elan EL-IPD-PRE-MSI Manuale utente

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Sony

Sony SS-CEP50 Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Philips

Philips FWM583X Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips

Philips MCM159/98 Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente
