Elation ELAR PAR 72 UV Manuale utente

Rev. 12/08/2010 – visage Version 1.0

ELAR PAR 72 UV

Elation Professional™

6122 S. Eastern Ave.

Los Angeles, Ca 90040

www.elationlighting.com

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

TABLE OF CONTENS

1. General Information………………………………………………………………………3

a. Introduction……………………………………………………………………….3

b. Unpacking………………………………………………………..…………..… 3

c. Customer Support…………………………………………….………………… 3

d. Warranty Registration……………………………………………………..…… 4

2. Safety Instructions………………………………………………………........…………. 5

3. Features……………………………………………………………………………………7

4. General Guidelines……………………………………………………………………….8

5. Fixture Overview…………………………………………………………………………. 9

6. Mounting and Installation………………………………………………………….……. 12

7. Understanding DMX……………………………………………………………………...15

a. DMX Cables……..………………………………………………………………. 15

b. DMX Terminator…………………………………………………………………. 16

c. 3-Pin to 5-Pin Conversion……………………………………………………….17

d. Fixture DMX Addressing.………………………..………………………………17

8. Display Indicators….……………………………………………………..……………… 19

9. Display Menu….……………………………………………………..……………………20

10. DMX Addressing…………………………………………………….…………………… 27

a. Remote DMX Addressing (RDMX)……………………………………………. 27

11. DMX Traits…………………………………………………………………………………29

12. Working with Built-In programs………………………………………………………….31

13. Lens Replacement………………………………………………………………….…….34

14. Cleaning and Maintenance………………………………………………………………35

15. Warranty…………………………………………………………………………………...36

16. Photometric Data………………………………………………………………………… 38

17. Dimensional Drawings………………………………………………….……………….. 39

18. Circuit Schematic………...……………………………………………………………….40

19. Technical Specifications…………………………………………...………….………… 41

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable LED fixtures on the market today! The ELAR PAR 72 UV™ has been designed to

perform reliably for years when the guidelines in this booklet are followed. Please read and

understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the ELAR PAR 72 UV™ by Elation Professional®.

Every ELAR PAR 72 UV™ has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may have occurred

during shipping. If the carton appears to be damaged, carefully inspect your fixture for

damage and be sure all accessories necessary to operate the fixture have arrived intact. In

the event damage has been found or parts are missing, please contact our customer support

team for further instructions. Inside the box you should find: the fixture, a DMX XLR cable, a

safety cable, and this manual. Please do not return this unit to your dealer without first

contacting customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent the risk of fire and reduce the risk electrical shock, do not attempt to

operate this fixture with the lens cover removed.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

yourself. Doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The ELAR PAR 72 UV™ carries a two-year (730 days)

limited warranty. Please fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 582-3322.

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

To guarantee proper and consistent operation, it is important to

follow the guidelines in this manual. Elation Professional will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling. See page 12.

2. Never touch the fixture during normal operation.

3. Never look directly into the light source. You risk injury to your retina, which may

induce blindness.

4. For safe operation, follow the Installation guide described in chapter six of this

manual. Operating the ELAR PAR 72 UV™ without suited safety aids such as

safety cables or clamps can increase the risk of damage and/or personal injury.

5. Qualified and certified personnel should only perform installation.

6. When mounting this fixture, use only the original rigging points included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

7. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

8. Never open this fixture while in use.

9. This device falls under protection-class I. Therefore it is essential that the device

be grounded properly.

10.Qualified personnel should perform all electrical connections.

11.Be sure the available voltage matches the voltage requirements of the unit. Be

sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

12.Always disconnect from main power before performing any type of service or

any cleaning procedure.

13.Only handle the power cord by the plug. Never pull out the plug by tugging the

wire portion of the cord.

14.Please safe keeping the waterproof socket packed in the attached bag.

Cover the power cable and signal cable by the socket when the cable leave

unused.

15.Please be aware that damages caused by modifications to the device are

not subject to warranty.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

3. FEATURES

• IP65 Rated Fixture

• Low power consumption

• Minimal heat emission

• Maintenance free operation

• Equipped with 36 2-Watt UV led

• Silent Operation, convection cooled, no fans

• 100,000 hours rated LED life

• 20˚Beam Angle/60˚Field Angle (45˚Lens)

• USITT DMX-512 Complaint

• Preprogrammed colored macros

• Strobe-effect with a maximum flash rate of 18fps

• DMX-controlled operation or stand-alone operation with Master/Slave-function

• Sound-controlled via built-in microphone

• DMX Modes: 2 DMX channels

• DMX-control via standard DMX-controller

• Upgradable firmware via Elation “E-Loader” Data Pack

• Electronic Switching Power Supply 100v~240v

• Flicker-free operation for television and film

• Compact design: fits in 12” box truss

• 0%~100% Dimming

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, and other types of architectural installations. Do not attempt operation or

installation without a proper knowledge on how to do so.

Consistent operational breaks will ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around.Avoid brute force when installing or operating the fixture.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat

surface should be at least 0.5 meter (about 1.5ft). See page 12.

Always install the fixture with an appropriately rated safety cable. When installing the fixture

in a suspended environment always be sure to use mounting hardware no less than M10 x

25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.

Do not attempt to operate this fixture until you have familiarized yourself with all of its

functions.

Do not permit operation by persons not qualified for operating this type of architectural

fixture. Most damages are the result of improper operation.

Please use the original packaging to transport the fixture in for service.

For your own safety, please read this user manual carefully before installing the device.

ELAR PAR 72 UV™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

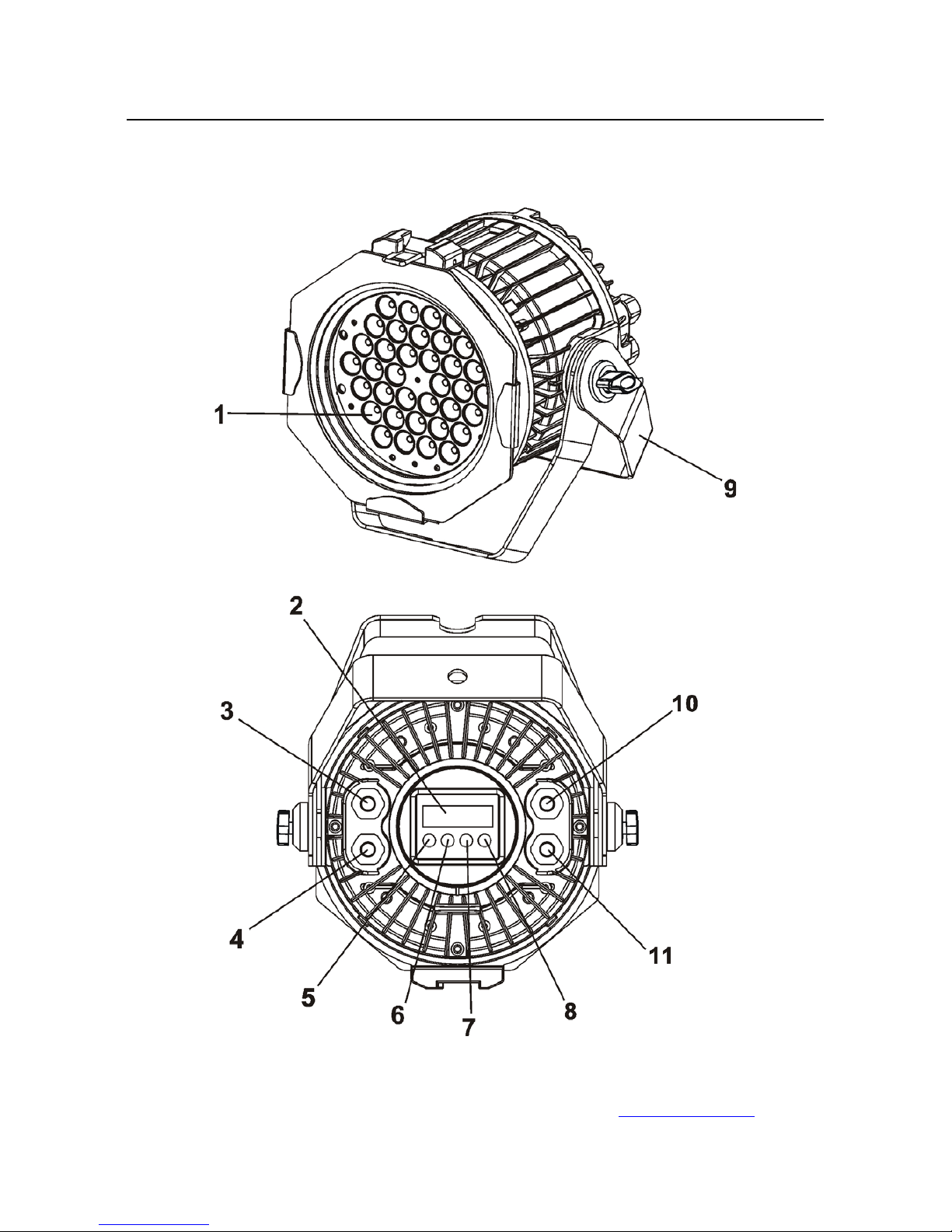

5. FIXTURE OVERVIEW
