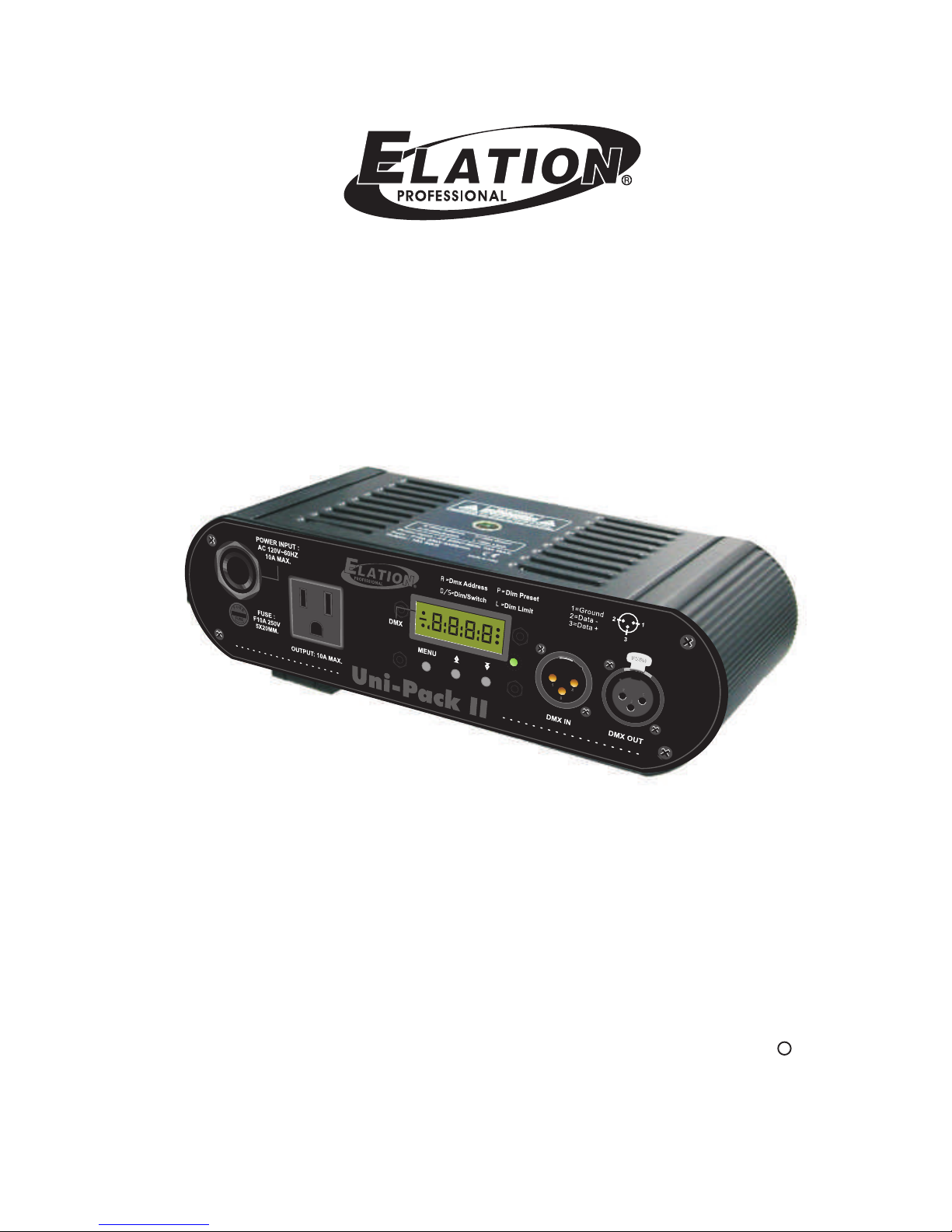

Uni-Pack II

User's Manual

Contents

Features..................................1

General Instructions..............2

1. Overview.............................3

2. Operation Guide.................5

Technical Specifications.......10

2.1 DMX Address Mode ..................5

2.2 Switch Pack Mode .....................6

2.3 Dimmer Pack Mode ...................7

Improvement and changes to

this manual, specifications

and design, may be made at

any time without prior notice.

Features

Thank you for purchasing this product by Elation Professional.

Included features are as follows:

Every effort has been made to design dependability, reliability and

comfort into each unit. New products are being designed constantly

to meet the needs of both entertainment and the lighting industry.

We welcome your comments about our product and services.

It is both a privilege and a pleasure serving you.

3-pin standard DMX IN/OUT ports providing dimmer information

Serves as a Switch Pack or Dimmer Pack, depending upon

the current operating mode.

Allows DMX Addressing, Dimmer Preset and Dimmer Limit.

Power failure memory.

4 digits Segment Display shows current activity

and function state.

Contents

Features..................................1

General Instructions..............2

1. Overview.............................3

2. Operation Guide.................5

Technical Specifications.......10

2.1 DMX Address Mode ..................5

2.2 Switch Pack Mode .....................6

2.3 Dimmer Pack Mode ...................7

Improvement and changes to

this manual, specifications

and design, may be made at

any time without prior notice.

Features

Thank you for purchasing this product by Elation Professional.

Included features are as follows:

Every effort has been made to design dependability, reliability and

comfort into each unit. New products are being designed constantly

to meet the needs of both entertainment and the lighting industry.

We welcome your comments about our product and services.

It is both a privilege and a pleasure serving you.

3-pin standard DMX IN/OUT ports providing dimmer information

Serves as a Switch Pack or Dimmer Pack, depending upon

the current operating mode.

Allows DMX Addressing, Dimmer Preset and Dimmer Limit.

Power failure memory.

4 digits Segment Display shows current activity

and function state.

General Instructions

Warning !!!

Cautions

To prevent fire or shock hazard, do not expose this product to

rain or moisture.

In the event of a malfunction(burning smell, etc.), immediately

stop operation, disconnect the power supply plug, and consult

authorized service personnel.

No user serviceable parts inside, always consult authorized

personnel for repairs.

Take care not to damage the power cord.

Do not make any inflammable liquids, water or metal objects

enter the unit.

This product must be earthed.

Do not dismantle or modify the unit.

Place this unit in a stable location.

Do not use the unit in places subject to excessive humidity,

vibration or bumps.

Unplug the power plug from the sockets when not using the

unit for extended period.

Provide occasional ventilation during use.

This product is intended for indoor use only.

To optimize the performance of this product , please read this instruction manual

carefully to familiarize yourself with the basic operations of this unit. This manual

contains important information for user, please keep it well for future reference.

DMX

DMX IN DMX OUT

OUTPUT: 10A MAX.

POWER INPUT :

AC 120V~60HZ

10A MAX.

1=Ground

2=Data -

3=Data +

FUSE :

F10A 250V

5X20MM.

Uni-Pack II

FUSE

PUSH

1. Overview

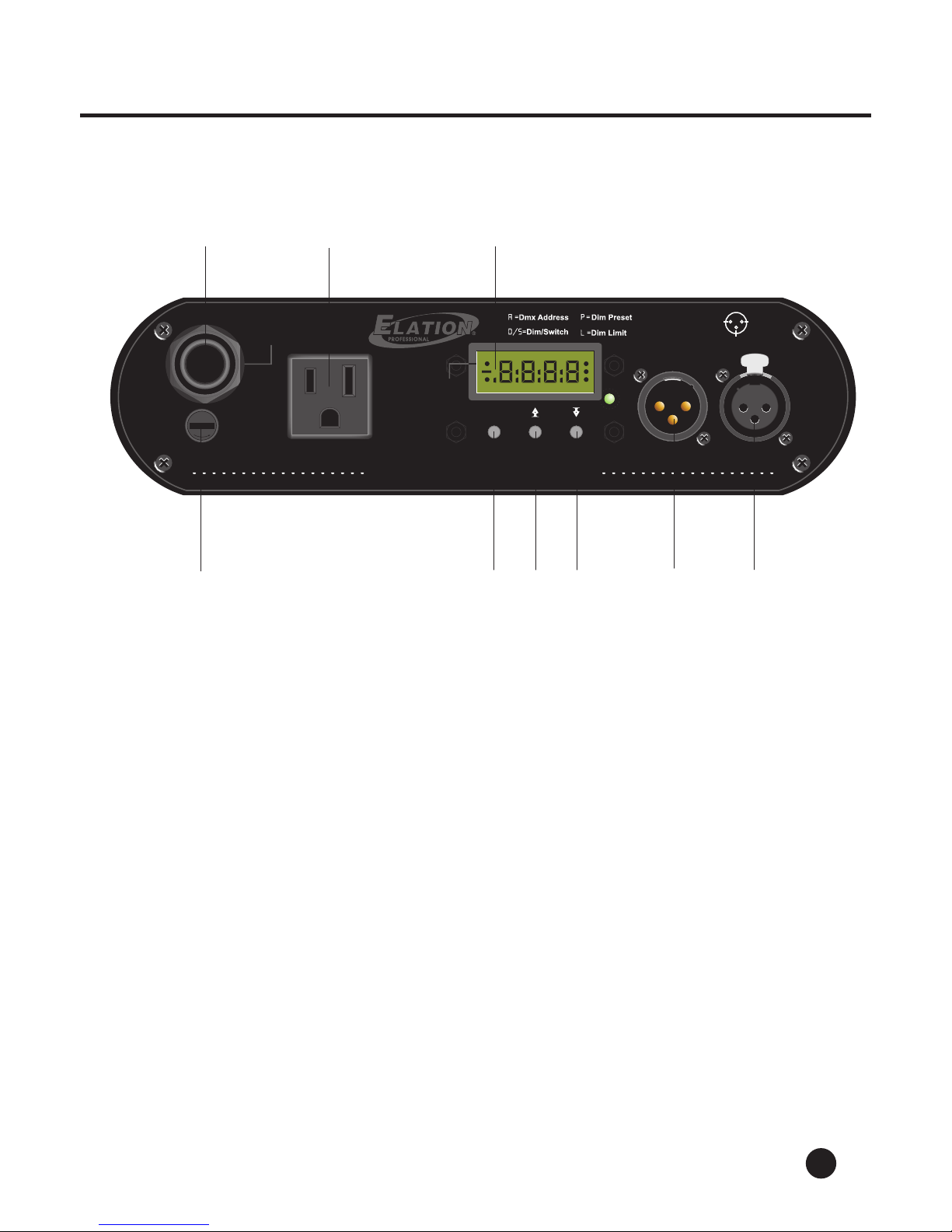

1. Power Input port: AC 120V~60Hz, 10A Max.

2. Output: 10A max.

3. Segment Display: Shows current activity or function state.

5. Menu button: Use this button to select desired function mode.

6. Up button: Each tap will increase the current value once. Pressing and

holding down this button will increase the value quickly.

Fuse: F10A 250V 5x20mm

7. Down button: Each tap will decrease the current value once. Pressing and

holding down this button will decrease the value quickly.

8. DMX In 3-pin XLR male socket, used to receive DMX data.

DMX Out 3-pin XLR female socket, used to send DMX data.

123

4567 8 9

General Instructions

Warning !!!

Cautions

To prevent fire or shock hazard, do not expose this product to

rain or moisture.

In the event of a malfunction(burning smell, etc.), immediately

stop operation, disconnect the power supply plug, and consult

authorized service personnel.

No user serviceable parts inside, always consult authorized

personnel for repairs.

Take care not to damage the power cord.

Do not make any inflammable liquids, water or metal objects

enter the unit.

This product must be earthed.

Do not dismantle or modify the unit.

Place this unit in a stable location.

Do not use the unit in places subject to excessive humidity,

vibration or bumps.

Unplug the power plug from the sockets when not using the

unit for extended period.

Provide occasional ventilation during use.

This product is intended for indoor use only.

To optimize the performance of this product , please read this instruction manual

carefully to familiarize yourself with the basic operations of this unit. This manual

contains important information for user, please keep it well for future reference.

DMX

DMX IN DMX OUT

OUTPUT: 10A MAX.

POWER INPUT :

AC 120V~60HZ

10A MAX.

1=Ground

2=Data -

3=Data +

FUSE :

F10A 250V

5X20MM.

Uni-Pack II

FUSE

PUSH

1. Overview

1. Power Input port: AC 120V~60Hz, 10A Max.

2. Output: 10A max.

3. Segment Display: Shows current activity or function state.

5. Menu button: Use this button to select desired function mode.

6. Up button: Each tap will increase the current value once. Pressing and

holding down this button will increase the value quickly.

Fuse: F10A 250V 5x20mm

7. Down button: Each tap will decrease the current value once. Pressing and

holding down this button will decrease the value quickly.

8. DMX In 3-pin XLR male socket, used to receive DMX data.

DMX Out 3-pin XLR female socket, used to send DMX data.

123

4567 8 9

2. Operation Guide

2.1 DMX Address Mode

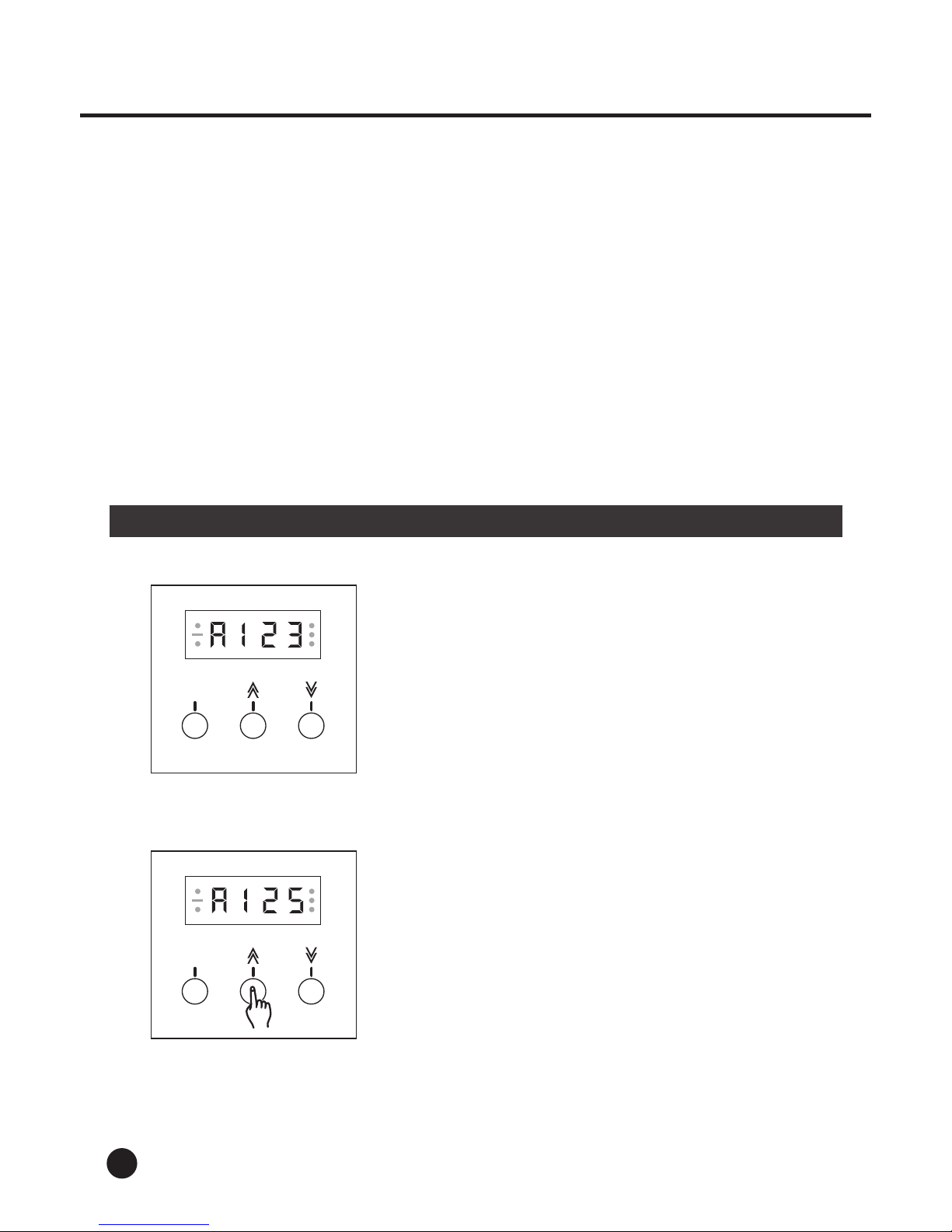

1. The Segment Display shows the DMX address

of last change when powered this unit.

If you've selected DMX address 123 for the last

time, then the Segment Display will read 123.

2. Each tap of the Up or Down button will change

the DMX address once. Pressing and holding

down will change the DMX address quickly.

Once the DMX address is selected, it will be

stored into memory automatically.

General

Plug in the appropriate power outlet, this unit recovers to the function state of

last time automatically by reasons of power failure memory, and the Segment

Display shows the DMX address of last change.

If the frequency of power is not stable, the Segment Display will show "AC-0",

wait until the power is stable.

The product serves as a dimmer pack or a switch pack, depending on operating

mode you've selected.

During DMX addressing, output is disabled.

NOTE:

NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit

2. Operation Guide

2.2 Switch Pack Mode

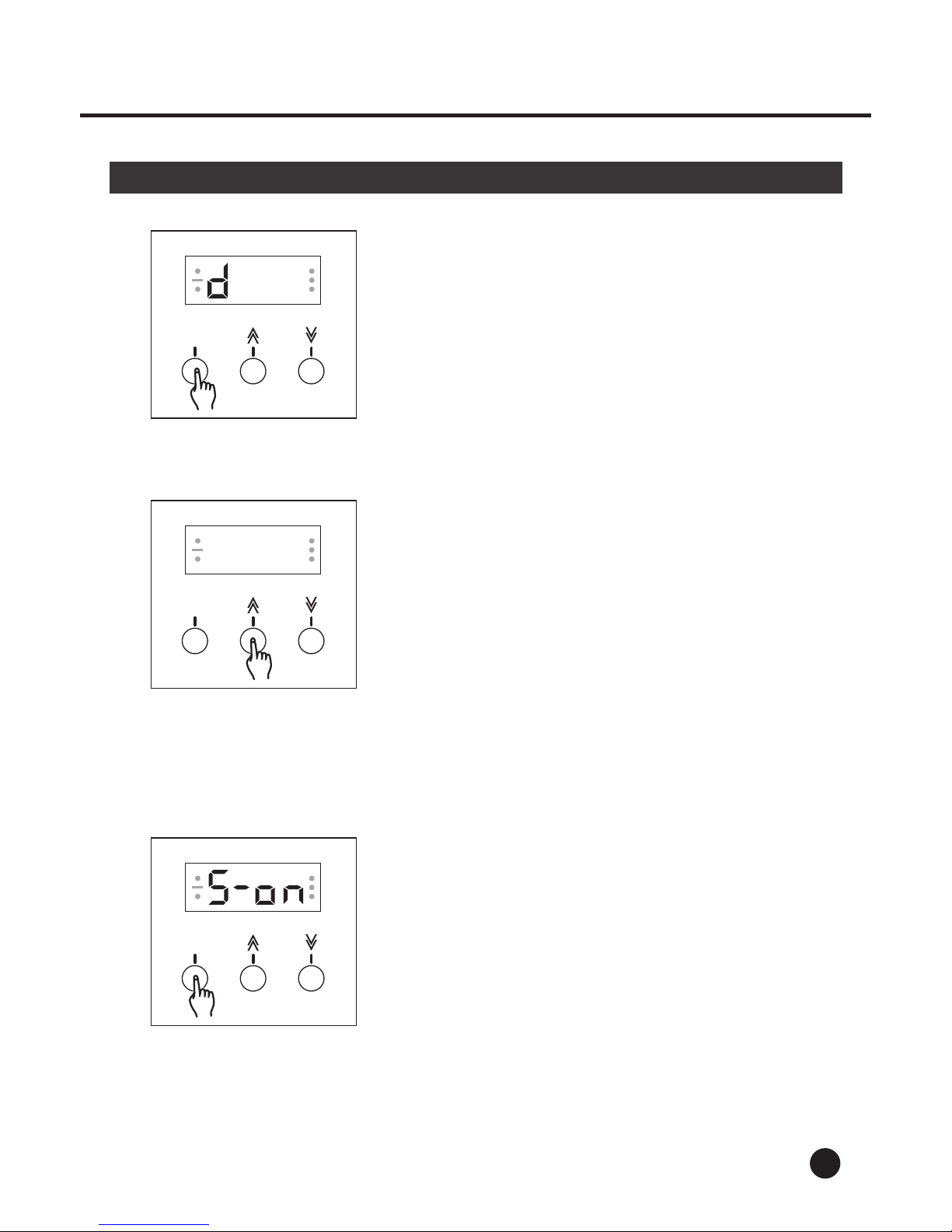

1. When DMX address is complete, Press Menu

button to enter next level.

2. Tap the Up or Down button causing the Segment

Display shows "s---".

3. Press Menu button to enter Switch Pack mode.

Switch Pack mode consists of Switch On(S-on)

and Switch Off(S-of).

In the Switch On mode, output is turned on and

the fixture lights regardless of DMX signal.

In the Switch Off mode, output is turned off and

the fixture is controlled by DMX signal. When

DMX level is less than 40%, the fixture goes out;

when DMX level exceeds 40%, the fixture lights.

s ---

---

2. Operation Guide

2.1 DMX Address Mode

1. The Segment Display shows the DMX address

of last change when powered this unit.

If you've selected DMX address 123 for the last

time, then the Segment Display will read 123.

2. Each tap of the Up or Down button will change

the DMX address once. Pressing and holding

down will change the DMX address quickly.

Once the DMX address is selected, it will be

stored into memory automatically.

General

Plug in the appropriate power outlet, this unit recovers to the function state of

last time automatically by reasons of power failure memory, and the Segment

Display shows the DMX address of last change.

If the frequency of power is not stable, the Segment Display will show "AC-0",

wait until the power is stable.

The product serves as a dimmer pack or a switch pack, depending on operating

mode you've selected.

During DMX addressing, output is disabled.

NOTE:

NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit

2. Operation Guide

2.2 Switch Pack Mode

1. When DMX address is complete, Press Menu

button to enter next level.

2. Tap the Up or Down button causing the Segment

Display shows "s---".

3. Press Menu button to enter Switch Pack mode.

Switch Pack mode consists of Switch On(S-on)

and Switch Off(S-of).

In the Switch On mode, output is turned on and

the fixture lights regardless of DMX signal.

In the Switch Off mode, output is turned off and

the fixture is controlled by DMX signal. When

DMX level is less than 40%, the fixture goes out;

when DMX level exceeds 40%, the fixture lights.

s ---

---

2. Operation Guide

2.2 Switch Pack Mode

2.3 Dimmer Pack Mode

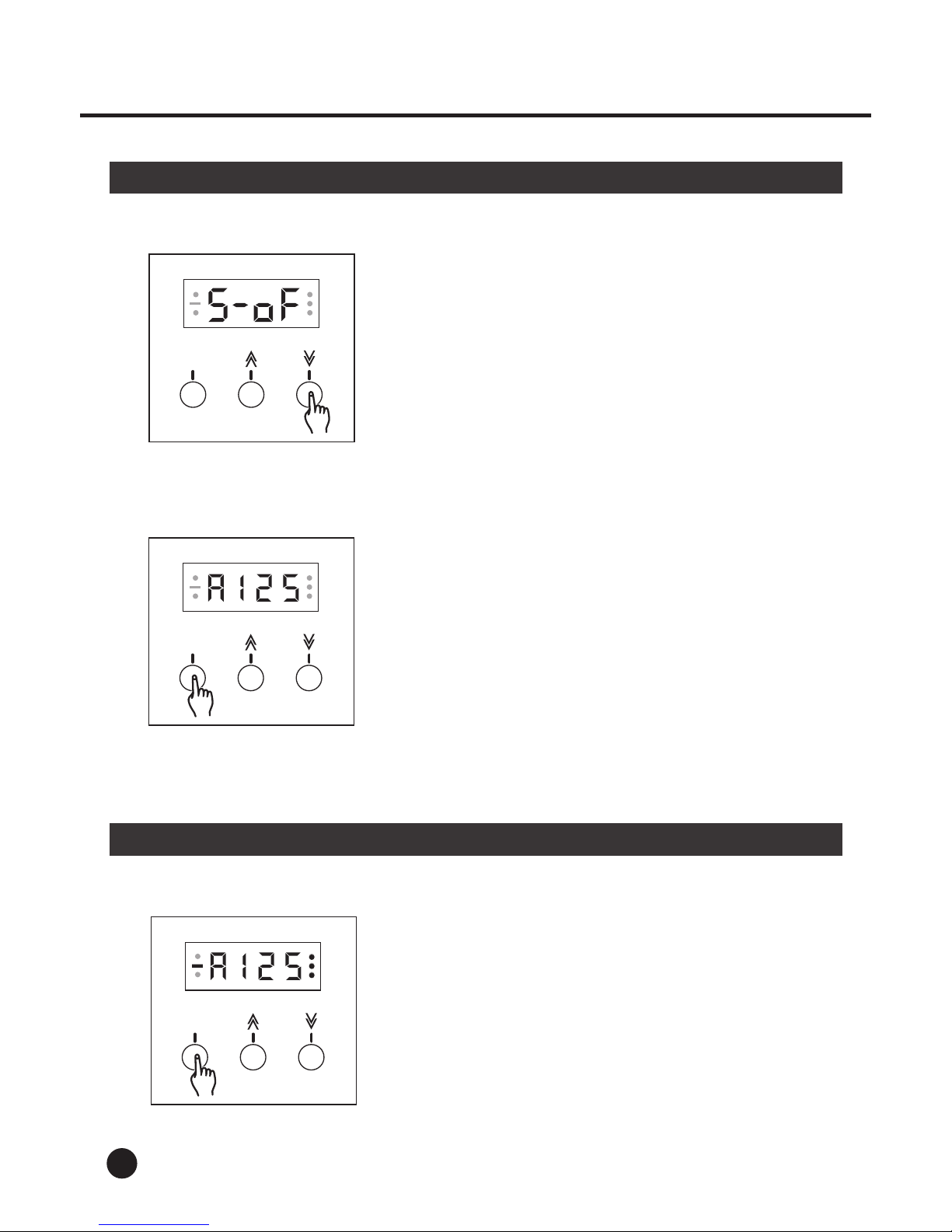

4. Tap the Up or Down button to change between

"Switch On" and "Switch Off".

If there is no timely operation on any of the fun-

ction button, the unit will automatically return to

the DMX Address function mode.)

5. Once the Switch Pack is selected, press Menu

button to return to DMX Address mode.

1. Press Menu button to enter next item.

2. Operation Guide

2.3 Dimmer Pack

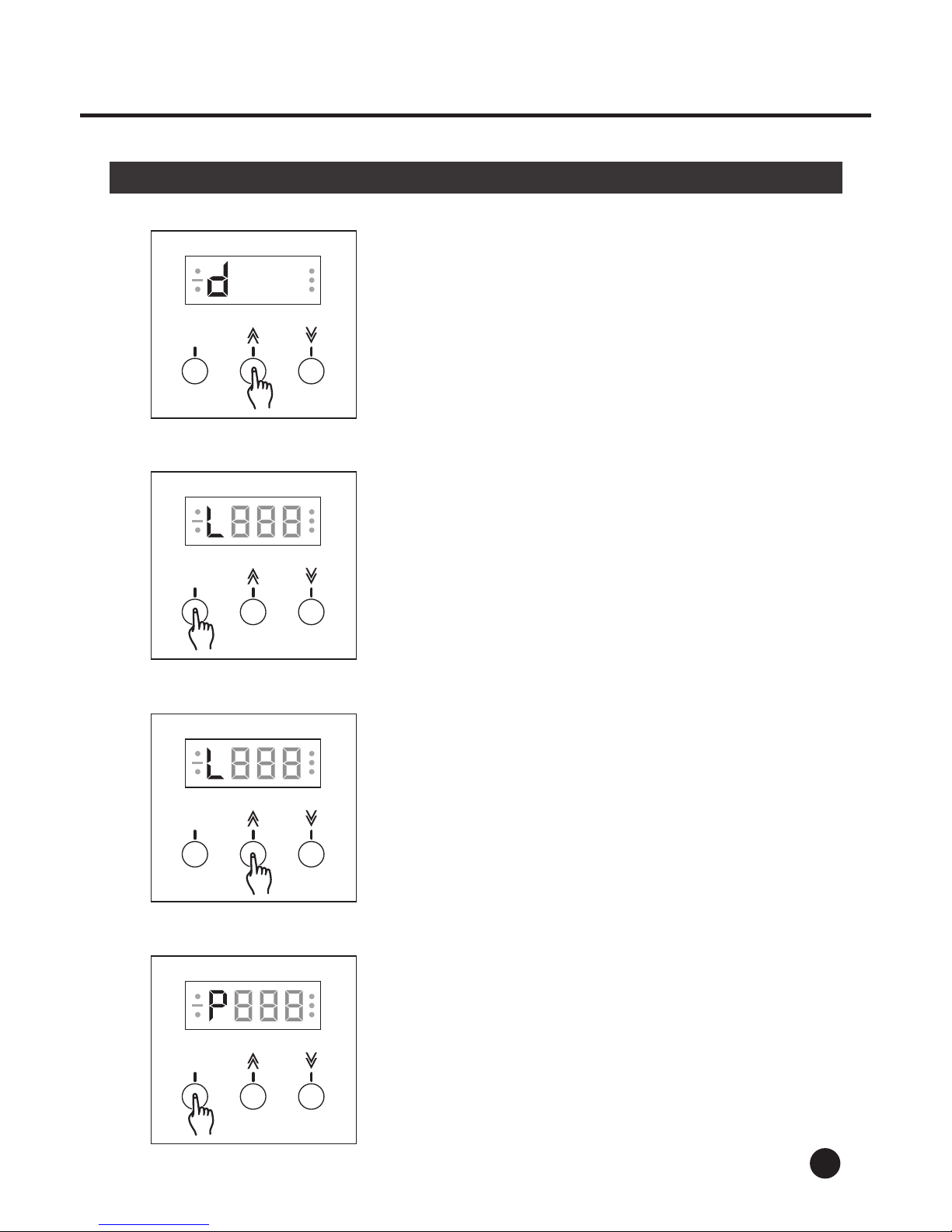

2. Tap the Up or Down button causing the Segment

Display shows "d---".

3. Then press Menu button to enter Dimmer Limit

mode.

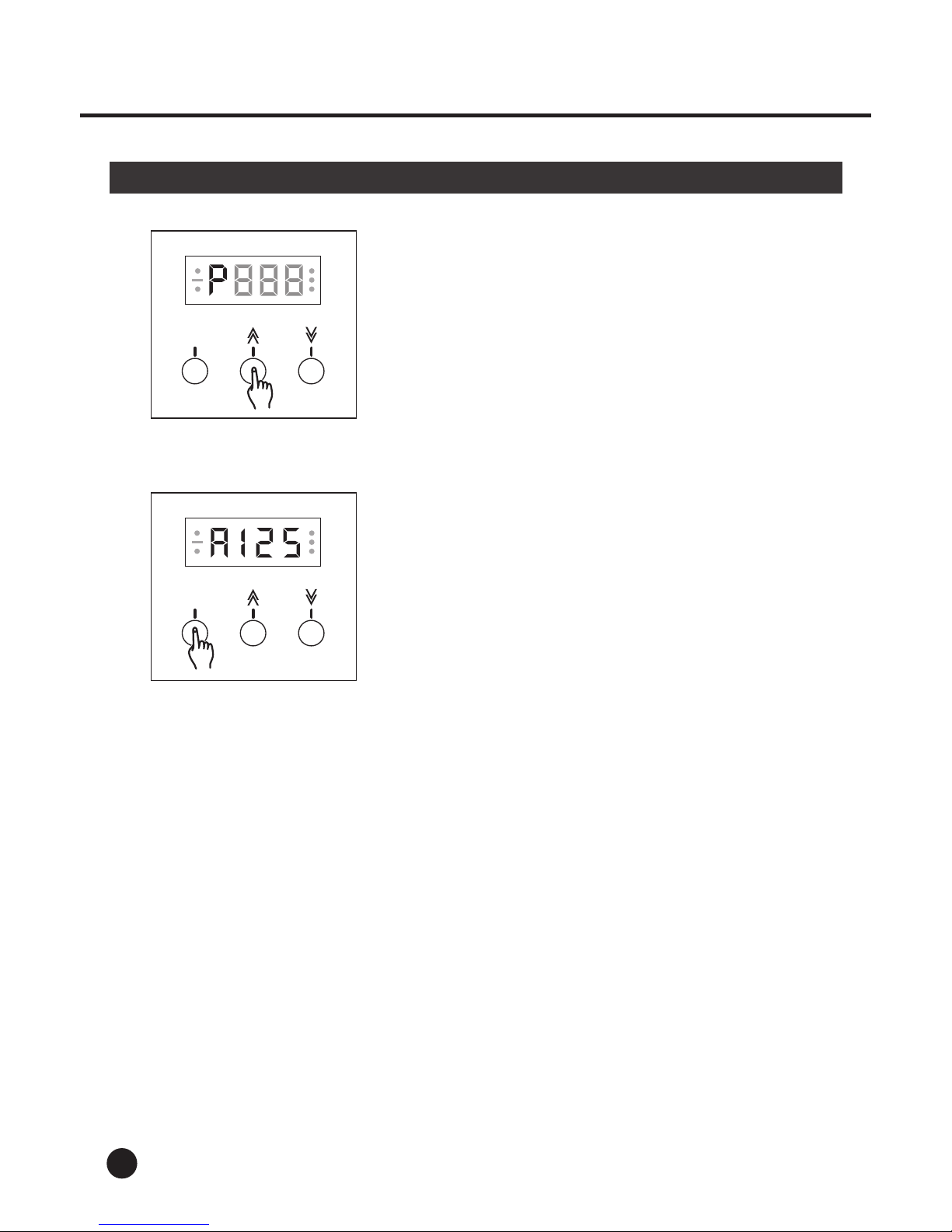

5. Press Menu button to enter Dimmer Preset mode.

4. Tap the Up or Down button to change the value

within the range of 10-100. Each tap will change

the value once, pressing and holding down will

change the value quickly. The Dimmer Limit level

will be stored into memory automatically.

---

( If there is no timely operation on the button for

more than 20 seconds, the unit will return to DMX

Address function mode again.)

2. Operation Guide

2.2 Switch Pack Mode

2.3 Dimmer Pack Mode

4. Tap the Up or Down button to change between

"Switch On" and "Switch Off".

If there is no timely operation on any of the fun-

ction button, the unit will automatically return to

the DMX Address function mode.)

5. Once the Switch Pack is selected, press Menu

button to return to DMX Address mode.

1. Press Menu button to enter next item.

2. Operation Guide

2.3 Dimmer Pack

2. Tap the Up or Down button causing the Segment

Display shows "d---".

3. Then press Menu button to enter Dimmer Limit

mode.

5. Press Menu button to enter Dimmer Preset mode.

4. Tap the Up or Down button to change the value

within the range of 10-100. Each tap will change

the value once, pressing and holding down will

change the value quickly. The Dimmer Limit level

will be stored into memory automatically.

---

( If there is no timely operation on the button for

more than 20 seconds, the unit will return to DMX

Address function mode again.)

2. Operation Guide

2.3 Dimmer Pack Mode

4. Tap the Up or Down button to change the value

within the range of 00-100. Each tap will change

the value once, pressing and holding down will

change the value quickly.

Once the Dimmer Preset is selected, it will be

stored automatically.

5. Press Menu button to return to DMX Address mode.

Technical Specifications

Power Input ........................................................... .AC 120V~60Hz, 10 A max.

Channel Output ..................................................................................10 A max.

DMX OUT ................................................................ .3-pin XLR female socket

DMX IN ....................................................................... .3-pin XLR male socket

Fuse ...................................................................................F10A 250V 5x20mm

Dimensions ............................................................................. 235x106x64mm

Weight ................................................................................................... 1.6 Kg

Indice

Altri manuali Elation Attrezzatura di illuminazione

Elation

Elation ELED PAR RGB ZOOM Manuale utente

Elation

Elation CRISP Manuale utente

Elation

Elation DW FRESNEL Manuale utente

Elation

Elation Opti Tri 30 Manuale utente

Elation

Elation Elar Quad Par Manuale utente

Elation

Elation Design LED 12 Brick II Manuale utente

Elation

Elation Design Spot 300E Manuale utente

Elation

Elation Design Spot 1200C Manuale utente

Elation

Elation PLATINUM BEAM 15R Manuale utente

Elation

Elation UNI BAR Manuale utente

Elation

Elation ELED STRIP RGBW Manuale utente

Elation

Elation Opti Tri 30 Manuale utente

Elation

Elation DW PROFILE Manuale utente

Elation

Elation UNI BAR Manuale utente

Elation

Elation 6+ Series Manuale utente

Elation

Elation DMX Partner Manuale utente

Elation

Elation PLATINUM BEAM 5R XM485-V1.0-NR Manuale utente

Elation

Elation DJ Equipment Manuale utente

Elation

Elation KLF060 Manuale utente

Elation

Elation SIXPAR 100WMG Manuale utente

Elation

Elation PLATINUM SPOT 35 PRO Manuale utente

Elation

Elation KL PANEL XL IP Manuale utente

Elation

Elation SIXBAR 500 Manuale utente

Elation

Elation CMY Zoom 575 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
