Elation PLATINUM SPOT LED II Manuale utente

11/11/2013 - visage Version 2.2.0

PLATINUM SPOT LED II

Elation Professional

6122 S Eastern Ave

Los Angeles, Ca 90040

www.elationlighting.com

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

CONTENTS

1. General Information………………………………………………………………………4

a. Introduction……………………………………………………………………….4

b. Unpacking………………………………………………………..…………..….. 4

c. Customer Support…………………………………………….………………… 4

d. Warranty Registration……………………………………………………..……. 5

e. Discharge Lamp Warning……………………………………………………….5

2. Safety Instructions………………………………………………………........…………. 7

3. Features……………………………………………………………………………………8

4. General Guidelines……………………………………………………………………….9

5. Fixture Overview…………………………………………………………………………. 10

6. Mounting and Installation………………………………………………………….……. 13

a. Mounting Positions……………………………………………………………… 13

b. Mounting Points…………………………………………………………………. 14

c. Securing………………………………………………………………………….. 15

7. Understanding DMX……………………………………………………………………...16

a. DMX Cable Requirements……..………………………………………………. 16

b. DMX Terminator…………………………………………………………………. 17

c. 3-Pin to 5-Pin Conversion……………………………………………………….18

d. DMX Addressing………………………………………………………………… 19

8. Fixture Menu………………………………………………………………………………20

9. DMX Addressing..……………………………………………………………..………….30

10. Operation…………………………………………………………………………………..32

11. Working with Built-In Programs..………………………………………………………..34

12. DMX Channel Traits…...….…………………………………………………………..… 37

13. Error Codes………………………………………………………………………….…….41

14. Cleaning and Maintenance………………………………………………………………43

15. Photometric Data………………………………………………………………………….44

16. Gobo Patterns……………………………………………………………..……………...54

17. Dimensional Drawings………………………………………………………………..…46

18. Circuit Schematics………………………………………………….…………………....47

19. 2-Year limited Warranty………...……………………………………………………..…48

20. Technical Specifications…………………………………………...………….……….….50

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable lighting fixtures on the market today! The PLATINUM SPOT LED II™ has been

designed to perform reliably for years when the guidelines in this booklet are followed.

Please read and understand the instructions in this manual carefully and thoroughly before

attempting to operate this unit, this fixtures uses a unique lamp that has very specific

guidelines that must be strictly followed. These instructions contain important information

regarding safety during use and maintenance.

UNPACKING: Thank you for purchasing the PLATINUM SPOT LED II™ by Elation

Professional®. Every PLATINUM SPOT LED II™ has been thoroughly tested and has

been shipped in perfect operating condition. Carefully check the shipping carton for damage

that may have occurred during shipping. If the carton appears to be damaged, carefully

inspect your unit for damage and be sure all accessories necessary to operate the unit

have arrived intact. In the event damage has been found or parts are missing, please

contact our customer support team for further instructions. Please do not return this unit to

your dealer without first contacting customer support at the number listed below.

CUSTOMER SUPPORT:Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 8:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: support@elationlighting.com

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to

rain or moisture.

Caution!There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself, doing so will void your manufactures warranty.

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The PLATINUM SPOT LED II™ carries a two-year (730

days) limited warranty. Please fill out the enclosed warranty card to validate your purchase.

All returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 582-3322.

Important: Damages caused by the disregard of the instructions in this user

manual are not subject to warranty.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the

lamp at all times.

Never open this fixture while in use!

During the initial operation of this fixture, a light smoke or smell may emit from the interior of

the fixture. This is a normal process and is caused by excess paint in the interior of the

casing burning off from the heat associated with the lamp and will decrease gradually over

time.

This device falls under protection-class 1. Therefore it is essential that the device be

grounded properly.

All electrical connections should be performed by a qualified electrician.

Be sure the available voltage matches the voltage requirements of the unit.

Be sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

Always disconnect from main power before performing any type of service or any cleaning

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

procedure.

Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion

of the cord.

This fixture is designed for use indoors. Use of this fixture outdoors will void the

manufactures warranty.

Please be aware that damages caused by manual modifications to the

device are not subject to warranty.

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

The PLATINUM SPOT LED II™ is an extremely sophisticated

piece of electronic equipment. To guarantee a smooth operation,

it is important to follow the guidelines in this manual. Elation will

not accept responsibility for damages resulting from the misuse o

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never blocked.

Allow about 6” (15cm) between this fixture and other devices or a wall to allow for

proper cooling.

2. Never touch the fixture during normal operation. This can cause severe personnel

injuries and/or damage to the fixture.

3. Be sure to unplug the PLATINUM SPOT LED II™ from the power outlet before

performing any service related issues.

4. Never look directly into the lamp beam. You risk injury to your retina, which may

induce blindness.

5. For safe operation, follow the Installation guide described in chapter two of this

manual. Operating the PLATINUM SPOT LED II ™ without suited safety aids

such as safety cables or clamps can increase the risk of damage and/or personal

injury.

6. Only qualified and certified personnel should perform installation.

7. When mounting this fixture, use only the original rigging parts included with this

fixture. Any structural modification will void the original manufactures warranty and

may increase the risk of damage and/or personal injury.

8. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.

9. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

3. FEATURES

•Pan 540° or 630˚(User selectable) / Tilt 265°

•3 operation mode: DMX controlled, stand alone, or sound activated

•3 DMX Channel Modes (14, 16, and 20 Channels)

•8 colors plus white

•User selectable color change modes (mode 1: full colors, mode 2: split-colors)

•Two Gobos Wheels:

oWheel 1: Rotating gobo wheel with 7 gobos plus open, all gobos can be easily

replaceable and gobo indexing

oWheel 2: Static/Fixed gobo wheel with 7 gobos plus open

•Strobe effect: 0~13 flashes per second or random strobe

•Prism and prism rotation, with 16 prism macros

•Frost Filter for Soft and Hard Edge Spot

•ProLight PU88-150FWL-NOON LED Light Source

•100,000 Hours Rated LED Life Source

•Dimmer intensity from 0%~100%

•Electronic Power Supply (120v/60Hz)

•Control board with full color LCD graphic display and foil touch keyboard

•RDMX (Remote DMX addressing from any DMX console)

•Auto test for all functions

•Automatic Pan/Tilt Correction

•Built-in Iris (5% ~ 100%), with Iris Pulse Effect

•Glass Dichroic Reflector for Even Lamp Output

•Anti-Reflective Coated Lenses

•USITT DMX-512 Complaint (3-pin and 5-pin DMX Connections)

•Electronic Focus via DMX

•Upgradable Firmware via Elation “E-Loader”

•7 User Assignable Program Presets - Internal Program: Edit and save programs to

the incorporated EEPROM. Maximum of 64 scenes.

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, etc. Do not attempt operation or installation without a proper knowledge on how to

do so.

This fixture was designed for indoor use only.

Consistent operational breaks may ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the device.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat

surface should be at least 1 meter (about 3.281 ft).

Always install the fixture with an appropriate safety cable. When installing the fixture in a

suspended environment always be sure to use mounting hardware no less than M10 x 25

mm, also be sure the hardware is insert in the pre-arranged screw holes in the base of the

fixture.

When using the quick release “Omega” cam-lock system, be sure the four quick lock

fasteners are locked in the quick lock holes correctly.

Do not attempt to operate this fixture until you have familiarized yourself with its functions.

Do not permit operation by persons not qualified for operating this type of theatrical fixture;

most damages are the result of operations by nonprofessionals.

Please use the original packaging to transport the fixture in for service.

PLATINUM SPOT LED II ™

©Elation Professional, Los Angeles Ca. 10 www.ElationLighting.com

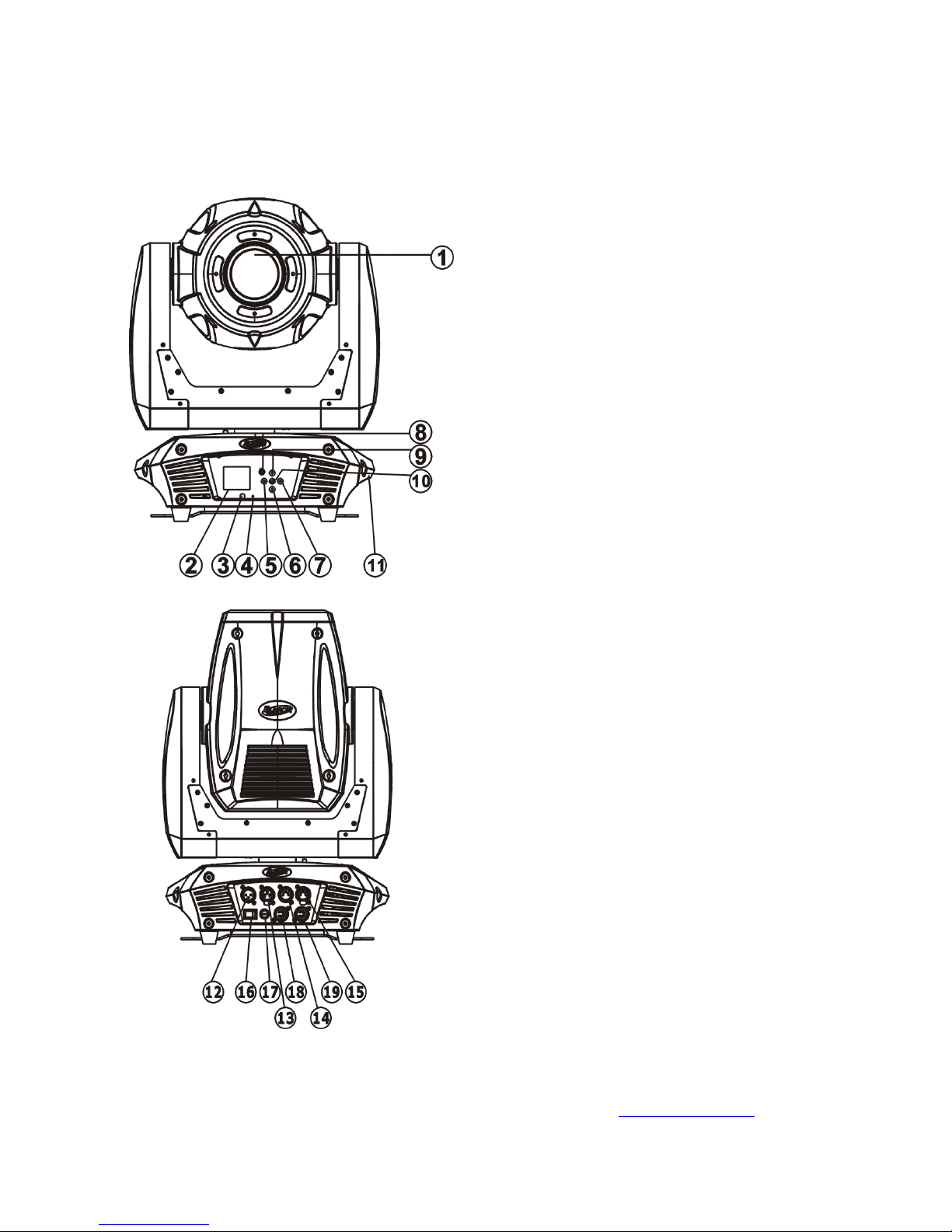

5. FIXTURE OVERVIEW

1: Main Output Lens

2: Display

3: DC Switch

4: Microphone

5: Left Button

6: Down Button

7: Right Button

8: Mode/Esc Button

9:Up Button

10:Enter Button

11: Handle

12: 3-Pin DMX in

13: 3-Pin DMX out

14: 5-Pin DMX in

15: 5-Pin DMX out

16: Power Switch

17: Fuse

18: Power in

19: Power out

Indice

Altri manuali Elation Riflettore

Elation

Elation Platinum Beam 5R Extreme Manuale utente

Elation

Elation KL FRESNEL 6 FC Manuale utente

Elation

Elation PROTHEUS HYBRID Manuale utente

Elation

Elation Platinum Beam 5R Extreme Manuale utente

Elation

Elation ELED FRESNEL 100WW Manuale utente

Elation

Elation RAYZOR 760 Manuale utente

Elation

Elation Epar QW Manuale utente

Elation

Elation OPTI QA PAR Manuale utente

Manuali Riflettore popolari di altre marche

Guangzhou Yinhe Lighting&Sound Equipment Factory

Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manuale utente

LIVARNO home

LIVARNO home 375304 2101 Istruzioni originali

Cameo

Cameo CLQS40WW Manuale utente

Leviton

Leviton Ellipsoid 5/50 Manuale utente

Monacor

Monacor img Stage Line PARL-56PDX/CR Manuale utente

Vector

Vector SL3AKV Manuale utente

Quantum

Quantum Q262 Manuale operativo

Philips

Philips Vari-lite VL3015LT Manuale utente

EUROSPOT

EUROSPOT C51 Manuale utente

DTS

DTS MINI BRICK ARC Manuale utente

Federal Signal Corporation

Federal Signal Corporation VISIBEAM II Manuale

ACME

ACME LED-MS350B Manuale utente

EuroLite

EuroLite Akku flat light 1 Manuale utente

Commercial Electric

Commercial Electric SPTM-1401 Manuale utente

Vision & Control

Vision & Control SLB-500-W5K7-P-SL Manuale utente

Teknik

Teknik FLEXI Manuale utente

Craftsman

Craftsman CMXLSB10 Manuale utente

EuroLite

EuroLite LED SLS-144 UV Floor Spot Manuale utente
