Elcomponent PowerPro Manuale utente

PowerPro with PowerFlow Firmware

8 Channel Power Quality Datalogger

User's Guide

PowerPro User's Guide

The information in this document is subject to change without notice.

Elcomponent Ltd has made every effort to ensure the accuracyof

this manual. However, Elcomponent Ltd makesno warranties

with respect to this documentation and disclaims any implied warranties of

merchantability and fitnessfor a particular purpose. Elcomponent Ltd

assumes no responsibility for any errors that may appear in this document.

Trademarks

IBM is a registered trademark of International Business Machines

Corporation.

Windows, Windows 95 and Windows 98 are trademarks of Microsoft

Corporation.

All other product names are copyright and may be trademarks and/or

registered trademarks of their respective companies.

Document number: CID1001.01

Date: May 2, 2002

Table of contents

Table of contents .............................................................................. i,ii

Introduction .........................................................................................1

Safety..................................................................................................2

Quick Start ..........................................................................................3

Hookup Configurations .......................................................................5

Hookup Diagnostic Warnings .............................................................7

Power Flow Firmware Features........................................................10

RMS Data Storage .....................................................................10

Harmonics and Waveform Storage ............................................10

Power Calculations ....................................................................10

Total Harmonic Distortion (THD)................................................10

Frequency ..................................................................................10

Event Capture ............................................................................11

Flicker (Optional) ........................................................................11

Side Panel ........................................................................................12

Front Panel .......................................................................................13

Logger Operation..............................................................................14

Turning On and Off ....................................................................14

Memory Card..............................................................................14

Setup ..........................................................................................16

Logging Setup.........................................................................16

RMS Storage Interval.........................................................16

Harmonic Storage Interval .................................................16

Connection Type (1P2W, 1P3W, 3P3W, 3P4W and 2.5E)17

Trigger Levels .........................................................................17

Line Voltage .......................................................................17

Line Frequency ..................................................................18

Over Voltage ......................................................................18

Under Voltage ....................................................................18

Over Frequency .................................................................19

Under Frequency ...............................................................19

Flicker Setup ...........................................................................19

PST Duration......................................................................19

PLT Duration ......................................................................19

Line Voltage .......................................................................20

Scale Factor ............................................................................20

Voltage Range ...................................................................20

Ext PT ................................................................................20

Phase Current ....................................................................20

Neutral CT..........................................................................21

System Setup..........................................................................21

Setup Lock .........................................................................21

Logger ID ........................................................................... 21

Time and Date Setting....................................................... 21

Calibration.......................................................................... 22

Display ....................................................................................... 23

Measured Data ....................................................................... 23

Voltage, Current and Frequency ....................................... 23

Neutral Voltage and Current.............................................. 24

Real Power and Apparent Power ...................................... 24

Reactive Power and Power Factor.................................... 24

Total Power ....................................................................... 24

Flicker ................................................................................ 24

Data Statistics......................................................................... 24

Voltage Statistics ............................................................... 25

Current Statistics ............................................................... 25

Power statistics.................................................................. 26

Neutral Voltage Current Statistics ..................................... 27

Flicker Statistics................................................................. 27

Waveform Display .................................................................. 28

Harmonic Bar Chart Display................................................... 28

Memory Statistics ................................................................... 28

Logger Statistics ..................................................................... 28

Logger Operation ............................................................................. 29

Record ....................................................................................... 29

Start Recording....................................................................... 29

Stop Recording....................................................................... 29

Sleep or Low Power Mode ..................................................... 29

Downloading..................................................................................... 30

RS-232 Cable Configuration...................................................... 30

Downloading using the RS-232 Serial Port ............................... 30

Serial Communications .................................................................... 31

Notes ................................................................................................ 32

PowerPro with PowerFlow Firmware

Introduction

The PowerPro represents leading edge technology in the

measurement of Power Quality. From the logger front panel or, for

more detail, using Candura Instrument’s PowerView software you can

view:

• Trends in Voltage, Current, Power and Frequency

• Waveforms and harmonic activity for both voltage and current

• Voltage sags and swells

• Frequency deviations

• Flicker (IEC 868 / IEC 61000-4-15) - Optional

The PowerPro is an 8 channel power quality data logger. It

can monitor 3 phases of voltage and current as well as a neutral

voltage and current. Measured parameters are updated every ½ cycle

to ensure that nothing is missed. Most measurements can be viewed

on the front panel LCD in the field and logged data can be transferred

to a computer using the removable memory card. The memory card

interface also provides the means to program the logger and to

upgrade the PowerPro firmware. The logger is powered from the V1

voltage measurement input, or if V1 is a weak source an auxiliary

power supply may be used. The PowerPro has an internal battery

that can power the logger for up to 8 hours in the event of a power

outage. Voltage inputs are transformer isolated and protected with

metal oxide varistors and fuses for safety. The entire unit is enclosed

in a rugged water tight case for use in harsh environments.

PowerPro with PowerFlow Firmware

Safety

Although this instrument is designed to be as safe as possible, safety

is ultimately the responsibility of the operator. This instrument should

only be operated by suitably qualified and authorized personnel.

Please read and UNDERSTAND the following information before

operating this instrument

• The PowerPro uses a membrane keypad that could be damaged

if a sharp object is brought into contact with it. This may expose

the operator to potentially hazardous voltages.

• Frequently inspect the test leads and the instrument for damage.

If the instrument shows any signs of physical damage or functions

improperly, it should not be used.

• Never work alone with high voltage circuits. Ensure that a

qualified observer is mindful of your activities.

• When performing any measurements involving high voltage

circuits, all connections should be made to the circuits while the

power is off. To ensure personal safety, the test leads and related

connectors should not be handled while the circuit is energized.

• Do not attempt to measure any voltage higher than the maximum

rating of 750V RMS. Failure to observe the maximum rating could

result in damage to the equipment or personal injury.

• Refer servicing of this instrument to qualified personnel only.

Potentially lethal voltages may be present inside the case. If any

of the protective circuitry is improperly repaired, the safety of this

product could be compromised.

PowerPro with PowerFlow Firmware

Quick Start

Connecting the PowerPro to the circuit to be measured is a

straightforward process.

1. Connect the voltage leads for each phase to be measured. For

proper operation V1 must always be used. Three phase circuits

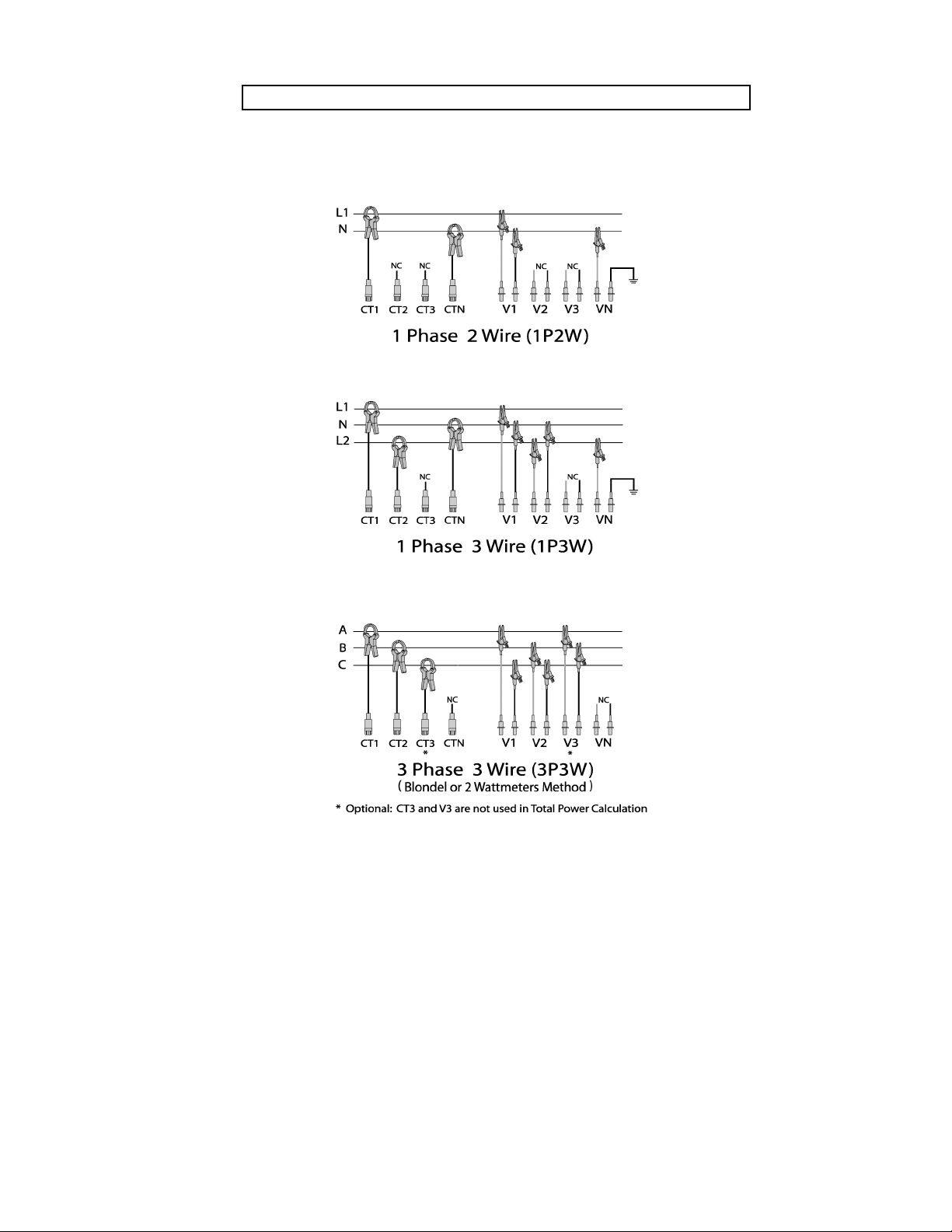

can be connected in either a ‘wye’ or 'delta’ configuration. Refer to

the ‘Hookup Configurations’ section for the various methods of

connecting the voltage leads.

2. Connect the phase CT clamps or the three phase Flex CT.

Note that only one or the other may be used – if the three phase

Flex CT is used then the phase CT clamps must be disconnected.

The neutral CT clamp may be used at the same time as the three

phase Flex CT.

3. Ensure a memory card is installed.

4. Turn the logger on (if it is turned off) by pressing and holding any

key except F6. If installed memory card has data, select 'NO'

when asked to load Setup and Data from card.

5. Use the ‘SETUP’ key and function keys to check and modify any of

the setup parameters. If a computer is connected to the serial

port, run PowerView software and select 'Logger' and 'Configure'

to check and modify any of the setup parameters.

6. Press the ‘Record’ key and then F2 to start recording. If there are

any error messages, please refer to the ‘Hookup Diagnostic

Warnings’ section.

7. The measured values can be viewed from the logger using

'DISPLAY' key and function keys. If a computer is connected to

the serial port run the PowerView software and select 'Logger' and

'Status'.

Continued....

Retract Shroud to Release

PowerPro with PowerFlow Firmware

Quick Start continued

8. To stop logging press the ‘RECORD’ key and then F4 followed by

F1 to confirm the stop command.

Note: Static discharges may occur when connecting leads,

communication cable or memory card, depending on

environmental conditions. This is not hazardous and will not

damage the logger. However it may affect the integrity of the data

if the logger is recording. Connection and disconnection of leads

etc. should be done while the logger is not recording. Before

handling a logger that is recording the operator should discharge

any potential static by touching a grounded object.

9. Data is transferred to a computer using the memory card. When

logging has been stopped the memory card can be removed from

the logger. The memory card can be inserted directly into an

ImageMate Card reader or, with a PCMCIA adapter, it can be

inserted into a PCMCIA slot in a laptop computer. Run

PowerView and select 'File', 'Open' and then go to the drive that

has been configured for the memory card, it will have the

description 'Power Pro'. Change the file type to 'Data Card Files'.

If there is data on the card you will then see a file that can be

opened. After opening the file a directory and file name (you can

keep the same file name) must be selected for the processed file.

PowerPro with PowerFlow Firmware

Hookup Configurations

The PowerPro can be used to monitor all of the most common power

distribution systems. Following are descriptions of the five most

common field setups:

Continued….

PowerPro with PowerFlow Firmware

Hookup Configuration continued

Indice

Altri manuali Elcomponent Registratore di dati

Elcomponent

Elcomponent EnergyPro Manuale utente

Elcomponent

Elcomponent SPCMini Manuale utente

Manuali Registratore di dati popolari di altre marche

TESTO

TESTO 176 Manuale utente

HT Italia

HT Italia XL421 Manuale utente

HBM

HBM SOMAT XR CX22B-R Manuale utente

Agtrix

Agtrix 380i Manuale utente

Hobo

Hobo H8 Pro Manuale utente

Beijing ART Tech

Beijing ART Tech PCI2320 Manuale utente

Athena

Athena GET SL1 Manuale utente

Motec Systems

Motec Systems C185 Manuale utente

Beijing ART Tech

Beijing ART Tech USB2832 Manuale utente

Rotronic

Rotronic HygroLog HL20 Manuale utente

MRC

MRC DW-6092 Manuale utente

Racelogic

Racelogic VBOX LapTimer Manuale utente

Edu-Logger

Edu-Logger 900-240 Manuale utente

Elma

Elma DT173 Manuale utente

MadgeTech

MadgeTech PRTemp140 Scheda tecnica

Comet

Comet U0121M Manuale utente

pico Technology

pico Technology PT-104 Manuale utente

Soil Instruments

Soil Instruments GTecLink Manuale utente
