ElectrIQ EiQ-32MCV4KAFSHDR Manuale utente

USER MANUAL

32 INCH CURVED LED MONITOR

eiQ-32MCV4KAFSHDR

Thank you for choosing electriQ

Please read the user manual before using this monitor and keep it safe for future reference

Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals

CONTENTS

SAFETY

PARTS LIST

STAND INSTALLATION

WALL MOUNT INSTALLATION

CONNECTIONS AVAILABLE

GETTING STARTED

MONITOR CONTROLS

INITIAL SET UP

SHORTCUT BUTTONS

MENU OPTIONS

INPUT SOURCE

BRIGHTNESS / CONTRAST

COLOUR SETTINGS

PICTURE QUALITY SETTINGS

DISPLAY

AUDIO

MULTI WINDOW

OSD

OTHER

TECHNICAL SPECIFICATION

TROUBLESHOOTING

SUPPORT

SAFETY INFORMATION

•

Read these instructions - All the safety and operating instructions should be

read before this product is operated.

•

Keep these instructions - The safety and operating instructions should be

retained for future reference.

•

Heed all warnings - All warnings on the appliance and in the operating

instructions should be adhered to.

•

Follow all instructions - All operating and usage instructions should be followed.

•

Do not use this equipment near water, or in humid environments - The

appliance should not be used near water or moisture e.g. in a wet basement or

near a swimming pool.

•

Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.

•

Do not block any ventilation openings.

•

Do not install near any heat sources such as radiators, stoves or other apparatus

(including amplifiers) that produce heat.

•

Do not tamper with the supplied plug. This plug is a BS1363 standard plug.

•

Protect the power cord from being walked on or trapped, particularly at the plug

and at the point where it exits from the appliance.

•

Only use attachments/accessories specified by the manufacturer.

•

Use only with a cart, stand, tripod, bracket or table specified by the

manufacturer or sold with the apparatus. When a cart or stand is used, use

caution when moving it to avoid any injuries or damage from it tipping over.

•

Unplug the apparatus during lightning storms or when unused for long periods

of time.

•

Refer all servicing to qualified personnel. Servicing is required when the

apparatus has been damaged in any way, such as if the power supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the

apparatus or it has been exposed to rain or moisture, it does not operate

normally or has been dropped.

•

Please keep the unit in a well-ventilated environment.

•

The monitor should only be connected to a mains power supply as rated on the

back of the equipment.

•

To prevent overload, do not share the same power supply socket with too many

other electronic components.

•

Do not place any connecting wires where they may be stepped on or tripped

over.

•

Do not place heavy items on the cable as this may cause damage.

•

When removing from a socket hold by the plug and not the wires.

•

Disconnect the power immediately and seek professional help if the plug or

cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water

or moisture, if anything accidentally penetrates the ventilation slots or if the

unit does not work normally.

•

Do not remove the safety covers. There are no user serviceable parts inside.

Trying to service the unit yourself is dangerous and may invalidate the product's

warranty. Only qualified personnel should service this apparatus.

•

Do not block ventilation slots on the back cover. The monitor can be placed in a

cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake

the screen, this may damage internal components.

•

Due to our continuous product development, the operation and or features of

the product received may vary slightly from the information provided within the

manual.

•

WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture. The apparatus shall not be exposed to dripping or

splashing and objects filled with liquids, such as vases, shall not be placed on the

apparatus.

•

WARNING: The wall plug socket is used as a disconnection device and should

remain readily accessible.

•

WARNING: The batteries shall not be exposed to excessive heat such as direct

sunlight or fire.

•

Although every effort is made to maintain the accuracy of the manual, due to

continuous product development, some variation from the manual is possible.

•

The availability of features and settings may vary depending on the input source

and method of connection.

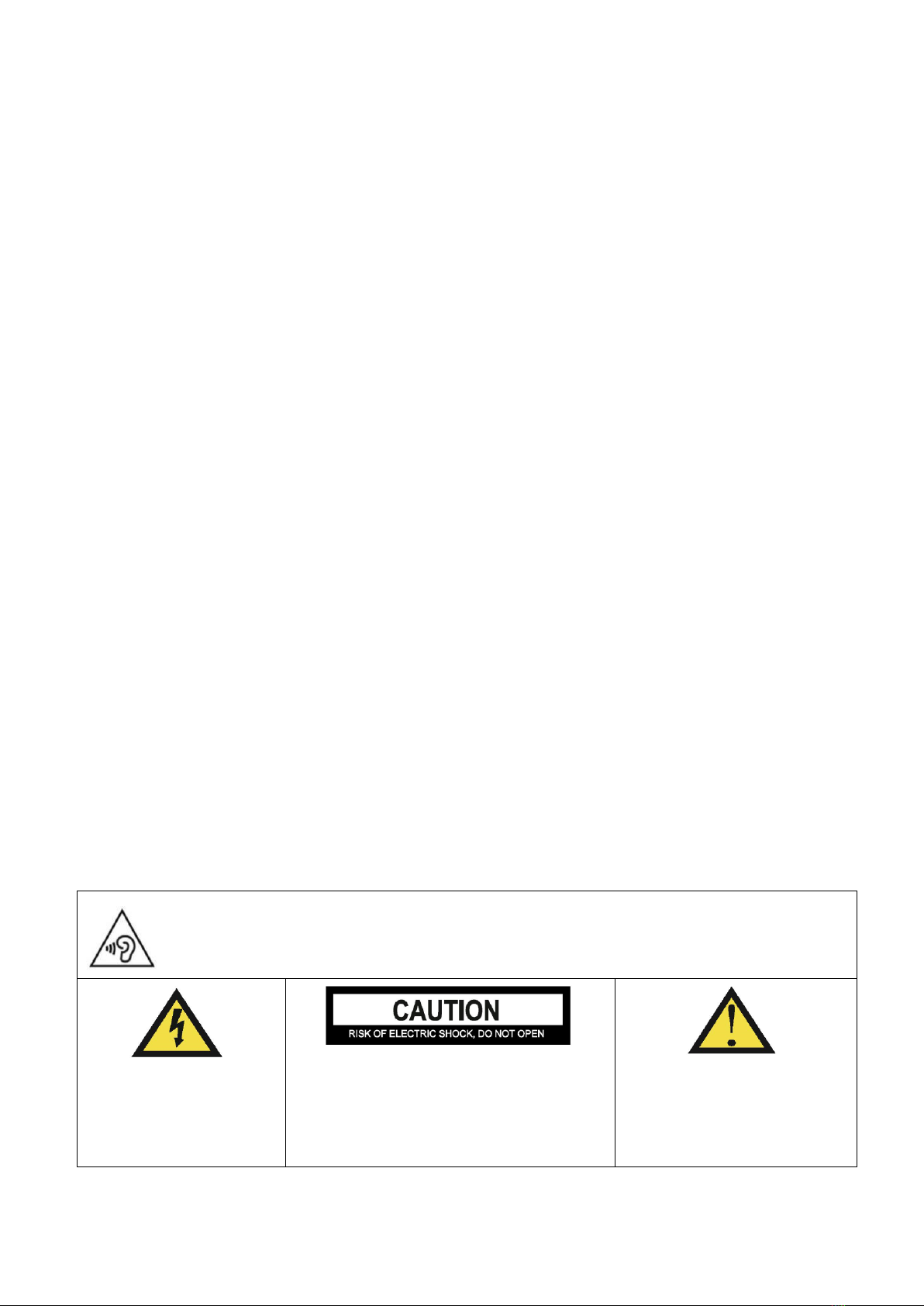

AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE

USER’S HEARING.

This warning sign is to

warn of dangerous

voltage inside the

product.

CAUTION: To reduce the risk of electric

shock, DO NOT remove the cover (or

back). No user serviceable parts inside.

Refer servicing to qualified service

personnel.

This warning sign is to alert

you of important

instructions accompanying

the product.

PARTS LIST

Monitor

Bolts x 4

(For Stand

Assembly)

Extension Bolts x 4

(For Wall Mount Installation)

DP Cable

USB Cable

Cable Clip

Power Cable

(AC 100-240V,

50/60Hz)

User Manual

Stand - Base

Stand –Upright Section

STAND INSTALLATION

1. Open the packing box, take out the upright section of the stand, cable clip and base. Use a

screwdriver and one bolt to fasten the base to the stem.

2. Use 2 x Bolts to secure the mounting plate to the rear of the monitor.

3. Use both hands to stand the assembled monitor on a flat desktop.

NOTES:

•Due to the heavy weight and dimensions of the LCD screens and their fragile nature, we

recommend that they are unpacked and assembled by 2 people.

•electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by

improper installation, improper use or failure to observe these safety instructions. In such cases any

guarantee will expire.

•The stand can be removed from the rear of the monitor by pressing the quick release button on the

rear of the monitor.

Bolts x1

Cable clip

Stand

Base

WALL MOUNT INSTALLATION

•The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not

supplied).

•Unscrew the 2 bolts on the mounting plate and press the button to remove the monitor from the

bracket if mounting.

•M4 x12 bolts (not supplied) should be used to attach the bracket to the extension bolts.

•Do not use bolts longer than specified or damage will occur to the internal components. If the

monitor is already attached to the stand, remove the stand.

•Remove the original bolts x4 (1) from the opening in the back of the monitor.

•Follow the directions received with your mount, stand, or accessory and

install the monitor on the wall or fixture as desired. Remember to use the

included 4 extension bolts when mounting the monitor. Refer to image (2)

for correct screw placement.

NOTES:

•Do not pinch the screen directly with your hand when hanging the product

to prevent the screen from breaking.

•Due to the heavy weight and dimensions of LCD screens and their fragile nature, we recommend

that they are unpacked and assembled by 2 people and professional installers are used to wall

mount them (Wall mounting is optional).

•If you do not understand the instructions, or are unsure how to install this product, please

contact a professional for assembly advice and assistance.

•Careful consideration should be made regarding the location the monitor is to be wall mounted

as some walls are not suitable for installation. If the monitor is to be mounted on drywall, the

mount must be anchored into a wooden stud, concrete block or brick behind the drywall.

Installing on drywall alone may not support the weight of the display.

•When drilling holes, it is particularly important to take care of electrical cables, water or gas

pipes in the wall. Please follow the instructions provided by the wall bracket manufacturer and

ensure that all fixing screws supplied are used.

•electriQ and its distributors and dealers are not liable or responsible for damage or injury caused

by improper installation, improper use or failure to observe these safety instructions. In such

cases any guarantee will expire.

Bolts x4

Mounting plate

CONNECTIONS AVAILABLE ON THE MONITOR

GETTING STARTED

MONITOR CONTROLS

Select signal source or Exit the menu

Go Up within the Main Menu or increase the value of the selected

item

Go Down within the Main Menu or decrease the value of the selected

item

Enter the Main OSD Menu and Select submenu

Turn the monitor On or Off

1. Power

2. AUDIO OUTPUT

3. DP 1

4. HDMI 1 - HDMI 2 –HDMI3

INITIAL SETUP

CONNECT THE MONITOR TO A POWER OUTLET

1. Press the POWER button on the monitor or to turn it on (The indicator will be blue)

2. Connect the relevant cable to the corresponding input on the monitor. The source will be

automatically detected.

SHORTCUT BUTTONS

The monitor includes one touch options to access common settings.

MENU OPTIONS

The menu for the monitor can be accessed by pressing the menu button on the control panel. This menu

is separated into the following sub menus: Input source, Brightness/Contrast, Colour Settings, Picture

Quality Settings, Display, Audio, Multi-Window, OSD (On screen display), and other. Details of each

menu can be found in the following section.

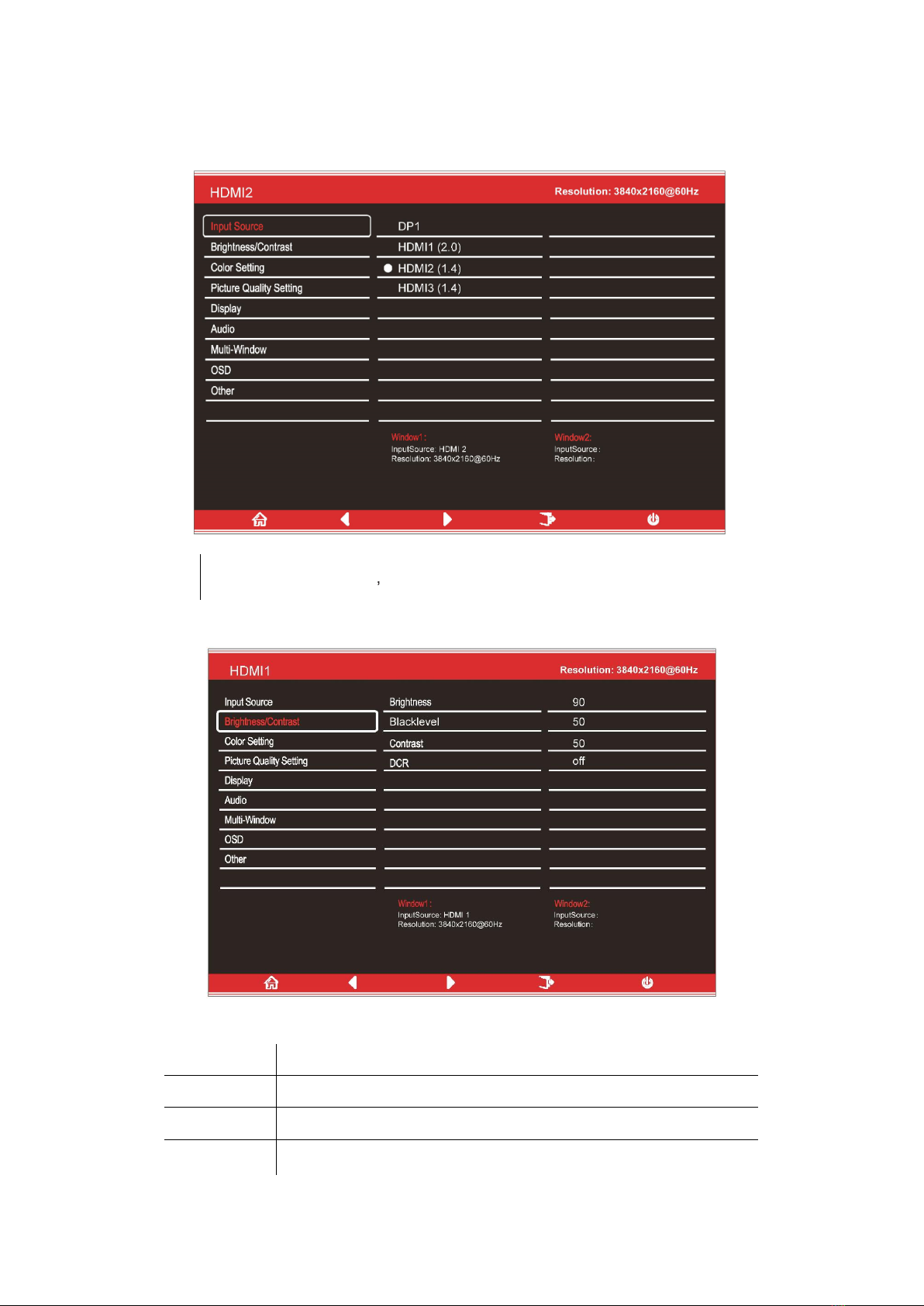

OSD MENU

INPUT SOURCE

Signal

Switch the signal input or select the source. DP, HDMI1, HDMI2,

HDMI3

BRIGHTNESS/CONTRAST

Brightness

Adjust the brightness of the display between 0 and 100.

Contrast

Adjust the contrast of the display between 0 and 100.

DCR

Turn the Dynamic Contrast Ratio Feature On or Off.

Black level

Adjust the black level of the display between 0 and 100.
