Electro-Voice RE50/B Manuale utente

KeyFeatures:

• Ultimate news gathering microphone

• Extremely effective and unique handling-

noiseisolationsystem

• Unsurpassed ruggedness and reliability in

every environment

• Self generating, no battery or phantom

power required

• Consistent response with distance, no

muddy lows when used close to lips

Technical Specifications:

:tnemelEnoitareneGcimanyD

:esnopseRycneuqerF)trahcees(zH000,31otzH08

:nrettaPraloPlanoitceridinmO

:Z-woL,ecnadepmIsmho051

tiucriCnepO,ytivitisneS :zHk1,egatloV lacsaP/Vm8.1

:lairetaMesaCmunimulA

:snoisnemiD)"57.7(mm791=htgneL )"49.1(mm94=retemaiD.xaM )"0.1(mm52=retemaiDknahS

:hsiniFkcalBssolG-imeS

:dedulcnIseirosseccA)kcalB(retpadAdnatS

:seirosseccAlanoitpOneercsdniWlaocrahC673 neercsdniWkcalB1-973 neercsdniWdeR2-973 dnatSkseDA224

:thgieWteN).zo5.9(smarg962

:thgieWgnippihS).zo91(smarg935

RE50/B

OmnidirectionalDynamic

Microphone

General Description:

The Electro-Voice® RE50/B is specially shock-isolated,

omnidirectional, dynamic microphone created for the

most exacting professional applications. An advancement

in shock-mounting techniques, it was designed

particularly for handheld broadcast and sound-

reinforcement use. All handling noise, clothing noise, and

even cord shock have been isolated from the microphone

element so that mechanically induced noise is greatly

reduced. By use of a high-mass zinc internal acoustic

chamber, shock mounted within the machined-aluminum

outercasing, the RE50/B offers a degree of isolation

unprecedented in omnidirectional dynamic microphones.

The internal transducer uses a mechanical nesting

concept all its own. Each part is nested inside another so

that the transducer (head assembly) is nearly a solid

structure. It is highly resistant to damage from shock.

The diaphragm is unaffected by temperature extremes

and atmospheric conditions. A carefully designed integral

windscreen and blast filter provides excellent protection

from wind noise, excessive sibilance and annoying “P-

popping.” The RE50/B has a grille that bounces back to

retain its shape. A four-stage pop filter prevents dust and

magnetic particles from reaching the diaphragm. The

RE50/B’s attractive, nonreflecting, semi-gloss black finish

is ideal for on-camera use.

Frequency Response:

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumber534340 RevC

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/553-5992 or 402/467-5321

For technical assistance, contact Technical Support at: 800/392-3497 or 952/736-4656

Specifications subject to change without notice.

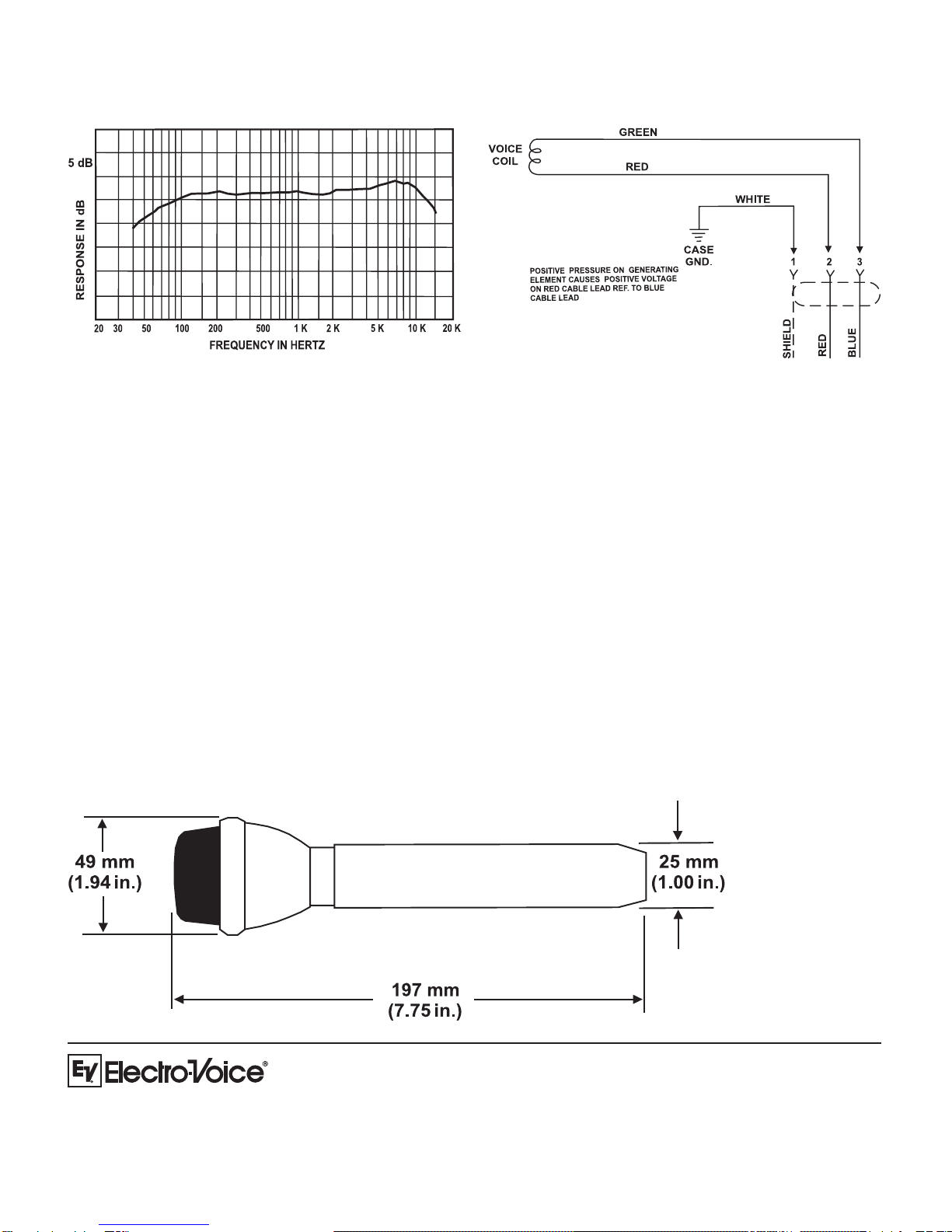

Wiring Diagram:

Dimension Drawing:

Architects’ and Engineers’ Specifications:

The microphone shall be an omnidirectional, dynamic type with broadcast range response from 80-13,000 Hz. It shall

employ a high-mass zinc acoustic chamber, integral with the head assembly that shall be shock isolated within an

external aluminum case. It shall have a four-stage pop filter to prevent dust and magnetic particles from reaching the

diaphragm.Nominal impedance shallbe 150 ohms(such that itwill match 50-150,and 250-ohms inputs).Theline shallbe

balancedtoground andphased. Outputlevel shall be1.8mV/pascal.The magnetic circuitshallbe a nonweldedcircuitand

employAlnico V and magnetic iron. The inner case shall be made of zinc and the outer case of machined aluminum.The

microphone shall have a maximum diameter of 49 mm (1.94 in.) and a length of 197 mm (7.75 in.). Shank diameter shall

be 25 mm (1.0 in.). Weight shall be 269 grams (9.5 oz.). Finish shall be semi-gloss black. The microphone shall have a

built-in connector similar or equivalent to the SwitchcraftA3M.The Electro-Voice RE50/B is specified.
