Electro-Voice FRX+181 Manuale utente

Key Features:

• Unequalized flat response to 42 Hz

• Usable Bass Output to 32 Hz

• Built-in L-track rigging

• Available in black, white and

unfinished

• Enclosure shell identical to FRX+ full-

range

• High sensitivity, 100 dB below 100 Hz1

FRX+181

Vented Direct Radiating

18 inch Subwoofer

Speaker System

General Description:

The FRX+181 is designed for applications where extended

low frequency response is desired in an FRX+ installation. It is

a trapezoidal enclosure identical in size, appearance and

rigging to the FRX+ full-range systems. An 18" LF transducer

is centrally mounted in a large optimally-vented enclosure for

efficient deep-bass response that requires only minimal

equalization. These professional fixed install speakers

deliver a broad range of performance options including

multiple rotatable horn patterns, matching sub-woofer, full-

range systems with easily switchable passive or bi-amp

operation, and EV’s world renowned transducer technology for

response that is smooth and linear. The FRX+ Series is an

economical and flexible solution for the most demanding

installations.

Same size full-range and sub-woofer systems allow the

installer to construct arrays covering the most demanding

acoustical environments while maintaining an aesthetic and

uniform installation. The structural integrity of the FRX+

cabinets allows for vertical arrays up to 2 boxes in depth. All

FRX+ systems are available in weather resistant black or

white EVCoatTM, and unfinished. A severe environment

weatherization option is also available. Performance my be

further enhanced by bi-amping or tri-amping with the Electro-

Voice Dx-38 Digital Sound System Processor.

Technical Specifications:

esnopseR.qerF

:)Bd3-(zHk2.2-zH73

egnaR.qerF

:)Bd01-(zHk8.2-zH82

LPSdetaluclaCxaM

:)kaeP(Bd231

:egarevoClatnoziroHlanoitceridinmO

:egarevoClacitreVlanoitceridinmO

:gnildnaHrewoPFLkaePW0061,suounitnoCW004

)pmA-iB(ytivitisneSFL

:m1/W1,Bd001

:ecnadepmI).niM(smho4.6,)lanimoN(smho8

:recudsnarTFLrevirD)mm754("81tm81LD

:qerFgninuTerusolcnEzH63

ssaP-iHdednemmoceR :ycneuqerF .nimtco/Bd21,zH23

revossorCdednemmoceR :ycneuqerF yllieR-ztiwkniLzH08

:srotcennoCspirtSreirraB

:lairetaMerusolcnEdoowylphcriBylp-31

:ellirGleetsAG61

:cepSlatnemnorivnE42PI925CEI 018DTSLIM

:)DxWxH(miD"0.72x"5.82x"5.13 )mm686x427x008(

:)hcae(thgieWteN)gk5.54(sbl001

:thgieWgnippihS)gk7.74(sbl501

1 Half Space measurement.

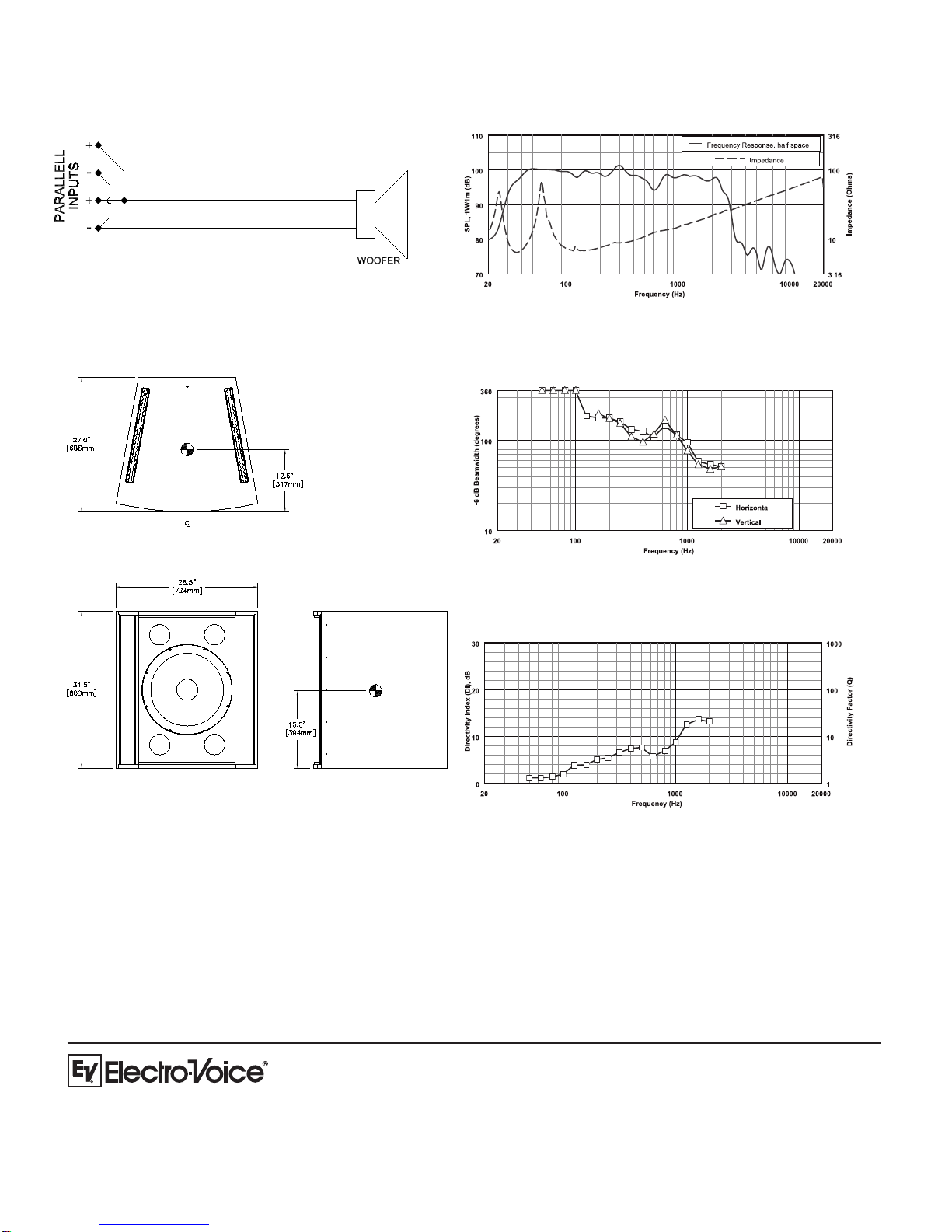

Block Diagram: Frequency Response:

Dimension Drawings:

PerformanceMatch:

• FRX+640 (Unfinished) - 301234-000

• FRX+640 (Black) - 301234-001

• FRX+640 (White) - 301234-002

• FRX+660 (Unfinished) - 301237-000

• FRX+660 (Black) - 301237-001

• FRX+660 (White) - 301237-002

• FRX+940 (Unfinished) - 301238-000

• FRX+940 (Black) - 301238-001

• FRX+940 (White) - 301238-002

FRX+181PartNumbers:

• FRX+181 (Unfinished) - 301264-000

• FRX+181 (Black) - 301264-001

• FRX+181 (White) - 301264-002

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumber38110-104 RevE

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Beamwidth:

Directivity:
