Technical Specifications:

TheElectro-Voice®MTL-1X is a 1,200-watt subwoofer

loudspeaker system which combines the attributes of

bothhorn-loadedandventedbox designs.TheMTL-1X

designutilizesthe unique double SubScoop™ cabinet

constructionwith two EVX-180B woofers,asused in X-

ArrayTM concert systems. The design behaves like a

hornover much of its range, but withoutthe time delay

and weight problems usually associated with

conventionaldesigns.Vented-box principles takeover

for the lowest octave and assist in producing

exceptionally high levels of clean, punchy bass from a

modest-sizedbox. The reverse woofer orientation has

been used to optimize the rear chamber volume and

decrease the horn flare rate for extended low end

performance. When used with the MTH-1 mid/high

module, the MTL-1X provides high-output sound

reinforcement for clubs, large halls, or outdoor events

ina compact package which can be moved easily by a

two-person crew.Although the MTL-1X was designed

for use with the MTH-1 system, it may be used to

augment the bass performance of any Electro-Voice

stage system.

General Description:

MTL-1X

Dual 18” Low-Frequency

Horn-Loaded Sub-ScoopTM

Loudspeaker System

Key Features:

• Dual Horn-Loaded EVX-180B 18” LF

Transducers for Reliable, Extended Low

Frequency Output

• 1200W Continuous (4800W Peak) Power

Handling

• High-Efficiency Sub-ScoopTM Design

• Horn Loading Provides IncreasedThrow

• Rugged, Road-Ready Cabinet with Metal

Grille and Black Carpet Finish

• Neutrik Speakon®Inputs

• Rear Casters for Improved Portability

esnopseR.qerF

:)Bd3-(zH061-zH25

egnaR.qerF

:)Bd01-(zH002-zH64

:ytivitisneSlaixA)m1/W1(Bd101

LPSdetaluclaCxaM

:Bd831

:egarevoClatnoziroHlanoitceridinmO

:egarevoClacitreVlanoitceridinmO

:rewoPmetsySdetaRkaePW0084,suounitnoCW0021

:srecudsnarTFLsrevirD)mm754(.ni81,B081-XVE)2(

revossorCdednemmoceR :ycneuqerF zH061-zH08

:ecnadepmIlanimoNsmhO4

:srotcennoCs'4LNnokaepSkirtueN)2(

:lairetaMerusolcnEtepraCkcalBhtiwdoowylP"4/3

:ellirGhtgneL-lluF,detaoCredwoPretseyloP ogoLelbatatoRhtiwleetS

:)DxWxH(miDmm857xmm275xmm3611 )58.92x"05.22x"8.54(

:thgieWteN)sbl561(gk0.57

:thgieWgnippihS)sbl091(gk4.68

1 Half Space measurement.

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051,Fax:952/884-0043

www.electrovoice.com

Part Number 534861 Rev. B

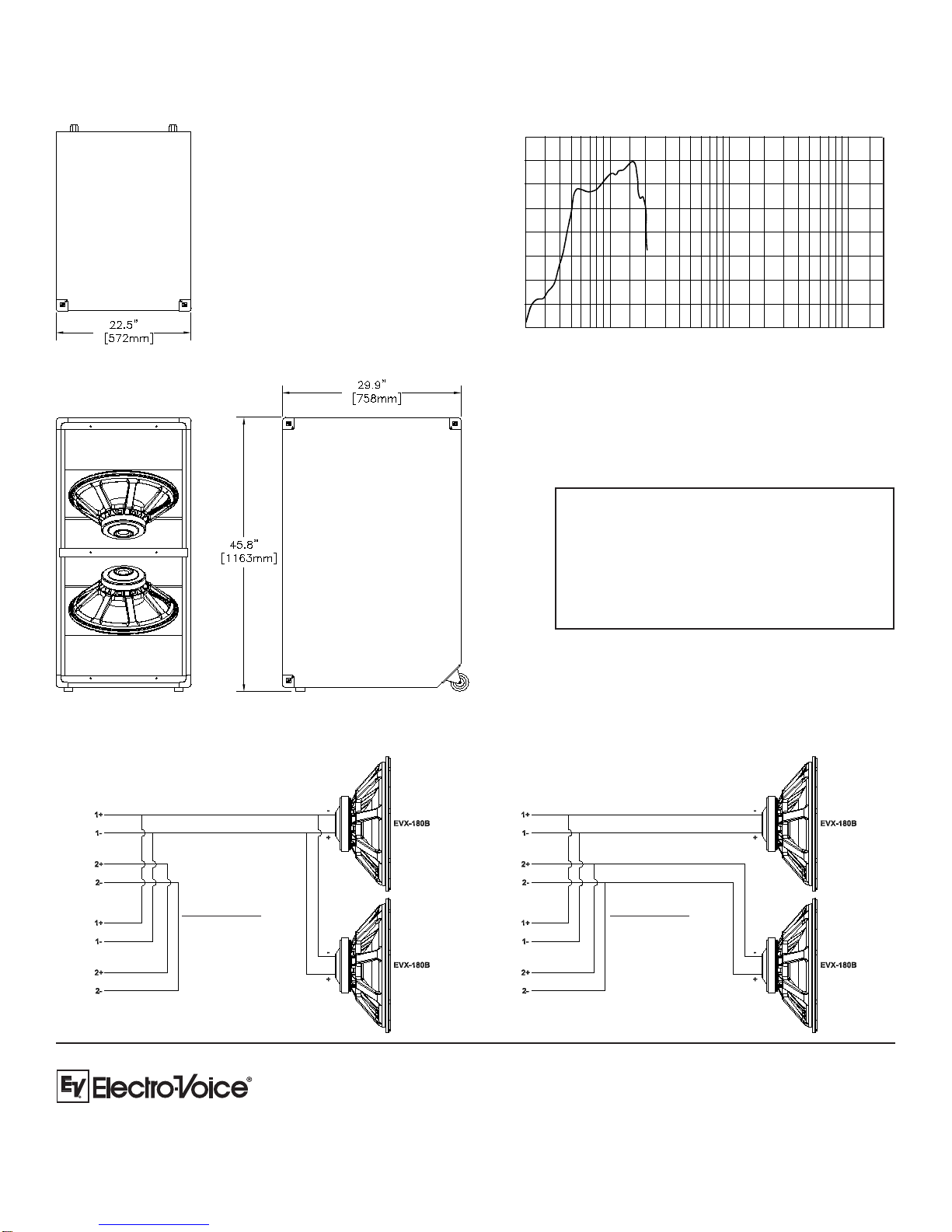

Frequency Response:Dimension Drawings:

Front View

Top View

Right View

MTL-1XPartNumber

• 1109-3088 MTL-1X, Dual 18” Subwoofer, Black

PerformanceMatch

• D170401 CP4000S, 120V, 1400W x 2, Compact

Precision Series Amplifier

• D170312 CP3000S, 120V, 1100W x 2, Compact

Precision Series Amplifier

• D170348 DX38, Digital Loudspeaker Processor

!# # # 



FREQUENCY IN HERTZ

100

110

SPL in dB

Block Diagram (Dual Mode):Block Diagram (Parallel Mode):

20000

DiagramNote:

This wiring results in

positive acoustic

pressure with a

positive voltage at

the input because

the woofers are

physically reversed.

DiagramNote:

This wiring results in

positive acoustic

pressure with a

positive voltage at

the input because

the woofers are

physically reversed.
