Electro-Voice Plasma Plasma P2 Manuale utente

KeyFeatures:

• 800W Dynamic Output Power

• Compact, Ergonomic Size for Easy

Transportation

• EVX-180B, Direct Radiating 18” Woofer

• Built-in Crossover

• LPN-Filter to Compensate LF Transient

Distortion for Full Extended Bass Response

• Integrated Heavy-Duty Casters

• Linear Response, Fail-Safe Operation

• Voice Coil Tracking Protection

Plasma P2

Single 18”

Powered Subwoofer

General Description:

TheElectro-Voice®PlasmaP2isanewgenerationofhi-power

compactsubwoofers.DesignedforEV’sPlasmaP1speakers,

it’sanidealsystemextensionforPlasmaP1poweredspeakers.

A class H amplifier requires no fans for quiet operation,

lowmaintenance, andlong-term reliability. Coupledwith

signal processing for linear acoustic response, and

unobtrusive protection it delivers the power required for

high-level reinforcement. Dynamic linearity is another

benefitof amplifiersdesignedfor systemintegration with

large format transducer motors.

The Patented LPN (Low-Pass-Notch) filter compensates for

transientdistortionofdynamicsignalsandallows,thePlasma

P2 to achieve a higher acoustic output than expected from a

compactcabinet.

P1’sapplications areforwherethehighest qualitysound

is required; Theater, A/V, Stage monitoring, Sound re-

inforcement.

Technical Specifications:

:)Bd3-(esnopseR.qerFzH001-zH04

)Bd01-(egnaR.qerF

:zH011-zH03

:LPSxaMdetaluclaCBd231

:ngiseDreifilpmAHssalC

:DHT%50.0<

:ecnadepmItupnIK02 Ω

:rewoPreifilpmA)kaePW008(SMRW055

:revossorCssaP-woLzH001

:lortnoCleveL-θBd6+ot

:ytivitisneStupnItuptuollufrofBd6+

:recudsnarTB081XVE)mm064("81

:srotcennoC :stupnIeniLdecnalaB :tuptuOdecnalaB noitanibmoCenohp"¼dnaRLX RLX

:tnemeriuqeRrewoPzH06-05,CAV042ro,032,021,001

:lairetaMerusolcnEdoowylPhcriBylp-31

:hsiniFtenibaCarutuF

:ellirGhtolChtiwleetSdetaoCredwoP

:dedulcnIerawdraHegnalFgnitnuoMeloP;sretsaC

:)DxWxH(miD"6.32x"8.81x"8.53 )mm006x674x019(

:thgieWteN)gk6.36(sbl041

:thgieWgnippihS)gk1.86(sbl051

Frequency Response:

PlasmaP2PartNumbers

• 301506-001 - 120V

• 170298 - 230V

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

©Telex Communications, Inc.11/2003

Part Number 38110-307 Rev A

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

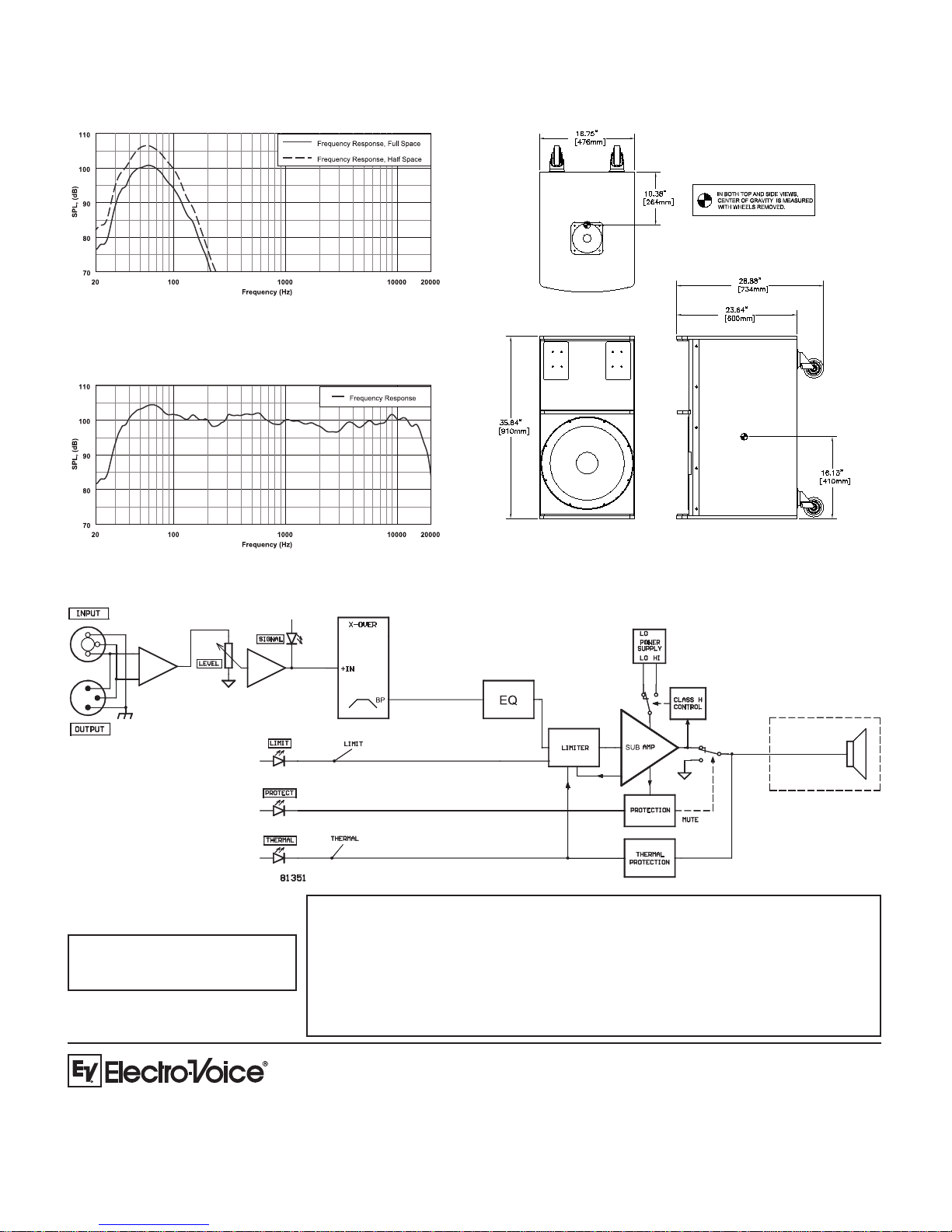

Dimension Drawing:

Front View Side View

Top View

Block Diagram:

PerformanceMatch

• 301504-001 Plasma P1 (Right) Two-Way 120V Powered Loudspeaker, Black Futura

• 170297 Plasma P1 (Right) Two-Way 230V Powered Loudspeaker, Black Futura

• 301505-001 Plasma P1 (Left) Two-Way 120V Powered Loudspeaker, Black Futura

• 170296 Plasma P1 (Left) Two-Way 230V Powered Loudspeaker, Black Futura

Accessories

• D112934 PowerCon to PowerCon 1.5M (4.5ft) Cable

• D112935 PowerCon to PowerCon 8M (24ft) Cable

• 301397-135 PCL35 Speaker Pole, Threaded, Black

Frequency Response, Plasma P1 &

P2 (Combined):
