ECI 6D

Balanced Integrated Ampliﬁer

(with a built-in DAC)

Owner's Manual

ENGLISH

ENG

Unpacking the ECI 6D

Immediately upon receipt of the ECI 6D, inspect the carton for

possible damage during shipment. The carton and packaging have been

designed to provide the safest possible protection for transport of your

integrated amplifier. Unpack the unit carefully. Save all packaging

materials for future shipment.

The contents of the carton

• 1 pc. Electrocompaniet ECI 6D integrated amplifier.

• 1 pc. AC main cord.

• 1 pc. Spare main fuse (located in the fuse drawer).

• 1 pc. Inspection card.

• 1 pc. CD with the owner's manual and drivers.

• 1 pc. IR Remote control

• 2 pcs. Batteries

Set up procedure

Before connecting the ECI 6D to the AC Power outlet, check that the

main voltage indicated on the rear panel corresponds to the line voltage

in the country were you intend to use the unit.

How to avoid damages

Do not under any circumstances connect or disconnect equipment when

power is turned on. The design of the RCA plug generates a huge tran-

sient when inserted. Connecting or disconnecting equipment with the

power on can result in severe damage to both speakers and amplifier.

How to avoid noise problems

The ECI 6D contains delicate circuits that are sensitive to magnetic stray

fields. The unit should not be placed near power voltage transform-

ers, TV sets etc. Care should also be taken regarding placement of the

interconnect cables. Do not run interconnect cables in parallel with main

cords or speaker cables. Keep interconnect cables as short as possible.

How to avoid possible antenna problems

In some set-ups hum may occur when you connect the radio, VCR or TV

to your system. The problem is caused by DC voltage coming from your

antenna. Please contact your cable network operator.

ENG

How to connect your system

Please read this page carefully and follow, page 11-12 as reference.

Balanced XLR input and operation

The balanced mode can only be used if the signal source has a

balanced output. Use an XLR interconnect with GND on pin 1, + on

pin2, and - on pin 3. To use the balanced input with a source single

ended, connect the ECP5XLR in the XLR

Single ended RCA input and operation:

The left channel is the top row on the rear, marked black. All inputs are

similar regarding sonic performance. Unused inputs may be shorted to

ground, using a RCA shorting plug.

HT (Home Theatre)

HT is a direct input where the volume control is bypassed. ECI 6D will

work like a power amplifier with fixed gain. When selected the output

will be muted for a few seconds as a safety against accidental overload.

Preamp out:

The preamp out is dependent on the volume control setting, and MUTE

function. These outputs (balanced and single ended) can be used to con-

trol an additional power amplifier.

Speaker output:

Never short the positive output to ground or chassis. Switch the amplifier

off when connecting the speakers.

How to power up your system

You should always power up your system the following way:

Signal sources (CD player, tuner etc.) first. Allow a 30 seconds warm-up

before you turn on the ECI 6D.

When switching off your system

Start with the ECI 6D, then the signal sources. If the preamplifier output

is connected to a power amplifier, then turn off the power before or at

the same time as ECI 6D.

ENG

SPDIF inputs

ECI 6D will accept optical SPDIF sources up to 96 kHz/24bit on inputs

TOSLink1 and TOSLink2. Please use a optical TOSLink cable for this

connection. Connect coaxial sources up to 192kHz/24bit to inputs

COAX1 and COAX2. Please use a coaxial SPDIF cable for this

connection.

12V trigger Input/Output

The 12V trigger output may be used to automatically power up a

CD-player (or other equipment with 12V trigger input) when ECI 6D is

powered up. When ECI 6D powers up the 12V trigger output will be set

to 12V and will support up to 75 mA current output. Please keep the cur-

rent draw below 75 mA by limiting the number of devices connected to

the 12V trigger output.

The ECI 6D will power up (leave standby) when a voltage in range

8-20V (AC or DC) is present on the 12V trigger input, and stays pow-

ered on for as long as the voltage is present. The current draw at the

12V trigger input is 3.3mA.

RS-232 Control Port

The RS-232 control port may be used in home installation setups or general

usage for controlling basic functionality on the ECI 6D. Please refer

to document "ECI6DS RS232 Command Reference V1.pdf" for further infor-

mation. This document may be downloaded from www.electrocompaniet.no

ENG

Audio

Source

Display

Text

Description

CD CD Analog balanced XLR input

AUX AUX Analog single-ended RCA input

DVD DVD Analog single-ended RCA input

HT HT Analog single-ended home theater RCA input

COAX 1 COAX1 Coaxial S/PDIF input up to 192 kHz/24 bit

COAX 2 COAX2 Coaxial S/PDIF input up to 192 kHz/24 bit

TosLink 1 TOSLNK1 Optical S/PDIF input up to 96 kHz/24 bit

TosLink 2 TOSLNK2 Optical S/PDIF input up to 96 kHz/24 bit

USB USB Asynchronous High Speed USB 2.0 input up to

192kHz/24bit

Front panel

(see illustration, page 9)

The main switch is located in the center of the lower part of the front

panel. In daily operation, switch off the ECI 6D by press and hold the

Mute button on the remote control (see page 13). If the ECI 6D has been

switched off, allow two hours of warm-up for optimal sonic performance.

When the ECI 6D is not to be used for a long period of time, use the

main switch to turn the unit off. Then disconnect the AC main cord for

maximum safety.

Navigator

Button Function Description

UP Volume Up Increases the volume level.

DOWN Volume Down Decreases the volume level.

LEFT Select source left Selects the next source to the left.

RIGHT Select source right Selects the next source to the right.

Navigator window

ENG

Error codes

If the ECI 6D is not working properly, the display will show an error code.

The error codes are:

Display Error

text

Description What to do

DC FAULT LEFT DC voltage left channel Please contact service center.

DC FAULT

RIGHT

DC voltage right

channel

DC DC left + right channels

OVERLOAD

FAULT

LEFT

Overload of left

channel Make sure that the + and – leads

of the loudspeaker cables are

not shorted, and that the speaker

cables are not in contact with the

chassis of ECI 6D.

OVERLOAD

FAULT

RIGHT

Overload right channel

OVRLOAD Overload left+right chan-

nels

TEMPERATURE Over temperature

left+right channel

The ampliﬁer is overheated. This is

caused by either playing to loud

for a long period of time, or not

enough free space on the sides or

above the ECI 6D.

Turn down the volume and make

sure there is enough free space

around the ampliﬁer.

For troubleshooting please contact your local dealer or our support depart-

ment. All contact information you will find at www.electrocompaniet.no

ENG

Replacing a blown main fuse

The main fuse is located in a small drawer inside the AC inlet of the unit.

If, for some reason the fuse is blown, turn the unit off, and remove the

AC cord from the AC inlet. Open the drawer with a small screwdriver

and remove the blown fuse. The spare fuse is located inside a holder in

front of the main fuse.

1. Remove the spare fuse gently by pushing it sideways out of its holder.

2. Insert the spare fuse as the active fuse.

3. Push the drawer gently back to closed position.

4. Re-insert the AC cord and turn the unit on.

Never replace the fuse with another value than indicated on the unit!

Input configurations

XLR input: 1 = ground 2 = positive 3 = negative

RCA: Center = positive Circle = ground.

Output configurations

XLR output: 1 = ground 2 = positive 3 = negative

Speaker: Red = positive Black or White = ground

ECP5XLR:

RCA to XLR adapter: 1 & 3; ground and negative = shorted 2 = positive

Updating the ECI 6D firmware

Please download the update instruction from our website at: "Downloads -

Firmware" area.

ENG

Technical specifications ECI 6D:

The following technical data were measured on randomized test objects

and are typical data. All measurements are made at 120V / 240V //

50Hz / 60Hz. Clipping point of the amplifier is set to a level where

total harmonic distortion (THD) is 0.2 %.

Preamplifier section

Input impedance (Balanced input)....................................... 47 kOhm

Noise floor (1Vrms, 20 - 20 kHz, balanced)....................... < -135 dB

THD + N (1Vrms, 20 - 20 kHz, balanced) ......................... <0,003%

Gain (Balanced)................................................................... ...0 dB

Amplifier section

Output Impedance ........................................................< 0,02 Ohm

Frequency response (- 3 dB)............................................1 – 150 kHz

Channel separation........................................................> 120 dB

THD + N (20 - 20 kHz).................................................< 0,004%

Maximum peak current...................................................>100A

Damping factor (8 ohm load)..........................................>350

Input sensitivity (125W output)......................................1.3Vrms

Input sensitivity HT (125W output)....................................1Vrms

Gain HT (input)..............................................................31dB (x36)

SPDIF inputs.................................................. 2 x Coax, 2 x TOSLink

USB......................................................................1x 192kHz/24bit

Rated output power

10 % change in line voltage will give approximately 20 % change in

output power.

8 Ohm..........................................................................2 x 125 W

4 Ohm..........................................................................2 x 200 W

2 Ohm..........................................................................2 x 370 W

Power consumption (no load or signal)...................................110 W

Standby....................................................................................1W

Dimensions

Width: 483 mm - 19 inch

Depth: 405 mm - 16 inch

Height: 135 mm - 5,3 inch

Weight: 20 Kg - 44 lbs

*Specifications are subject to change without further notice.

ENG

ECI 6D Front panel illustration

ENG

TYPE : ECI 6D

Made in Norway

USB

TRIGGER

RS-232 IN OUT CD-R CD-L DVD AUX HT RIGHT LEFT

Manufactured by:

Electrocompaniet

Norway

PREAMP OUT

ANALOG INPUT

COAX 1 COAX 2 TOSLINK

RIGHT LEFT

DIGITAL INPUT

SPEAKER OUTPUT

1 2 3 4 5 6 7 8 910 11 12 13 14 15 16 17 18

1. Optical digital input, TOSLink 1

2. RS 232 connection

3. USB audio input

4. Coaxial digital input 1

5. 12 V trigger input

6. Coaxial digital input 2

7. 12 V trigger output

8. Optical digital input 2, TOSLink 2

9. Balanced analog right CD input

10. Balanced analog left CD input

11. DVD analog inputs

12. AUX analog inputs

13. Home theater analog inputs

14. Pre-ampliﬁer analog output

15. Pre-ampliﬁer Balanced analog right output

16. Pre-ampliﬁer Balanced analog left output

17. Serial number

18. AC Power Inlet

19. Speaker outputs

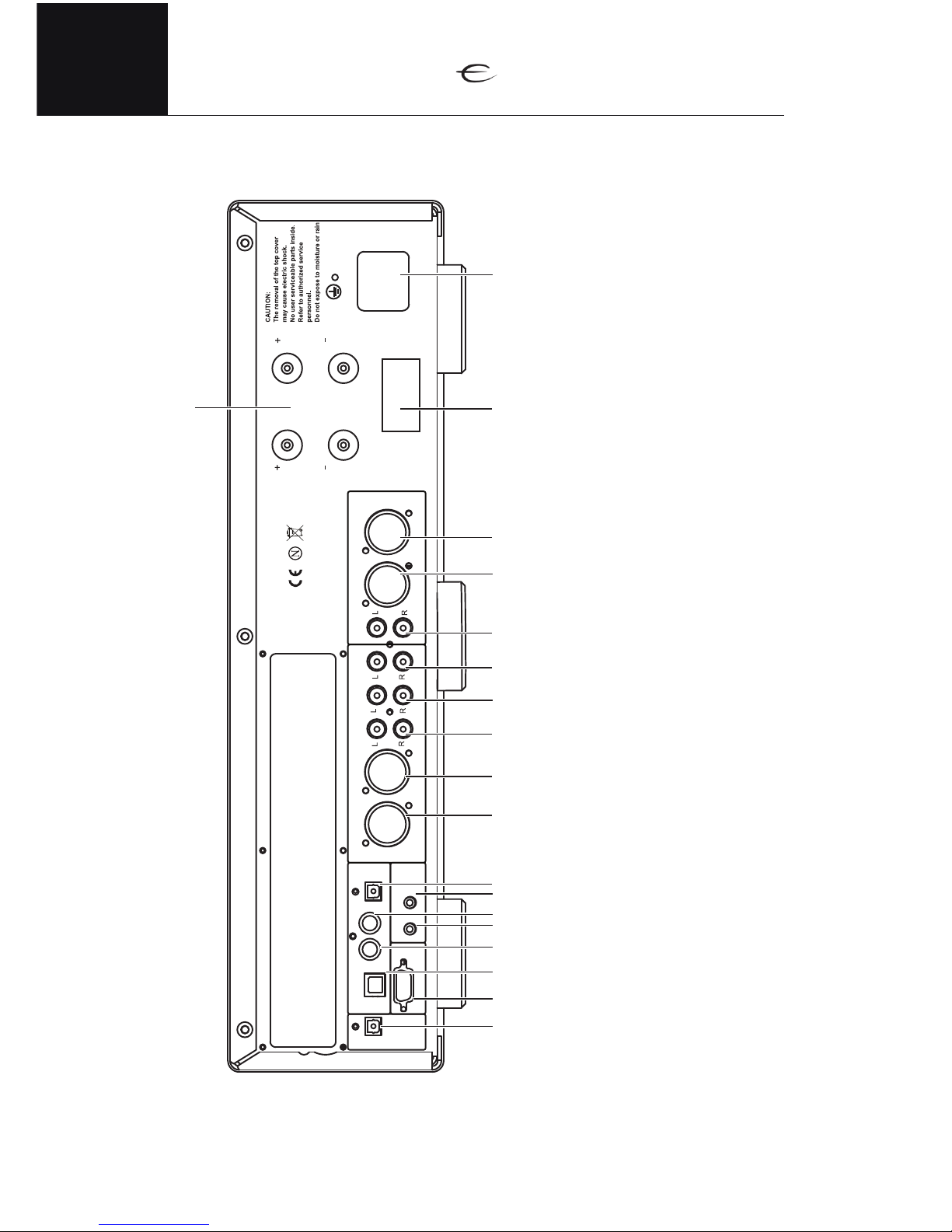

ECI 6D Rear panel illustration

Indice

Altri manuali ELECTROCOMPANIET Amplificatore

ELECTROCOMPANIET

ELECTROCOMPANIET EC4R Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECP 2 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW 800 M Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECI 6DX Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECP1 MC Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECI 5 MKII Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECC-1 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW 180 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW 180 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET EC 4.7 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECP 2 MKII Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW-250 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW 300 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECI2 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW-120 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET EC-3 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW 250R Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET EC 4.8 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET PI-1 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET EC 4.8 MKII Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW600 NEMO Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET ECI 80D Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET EC 4.7 Manuale utente

ELECTROCOMPANIET

ELECTROCOMPANIET AW400 Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
