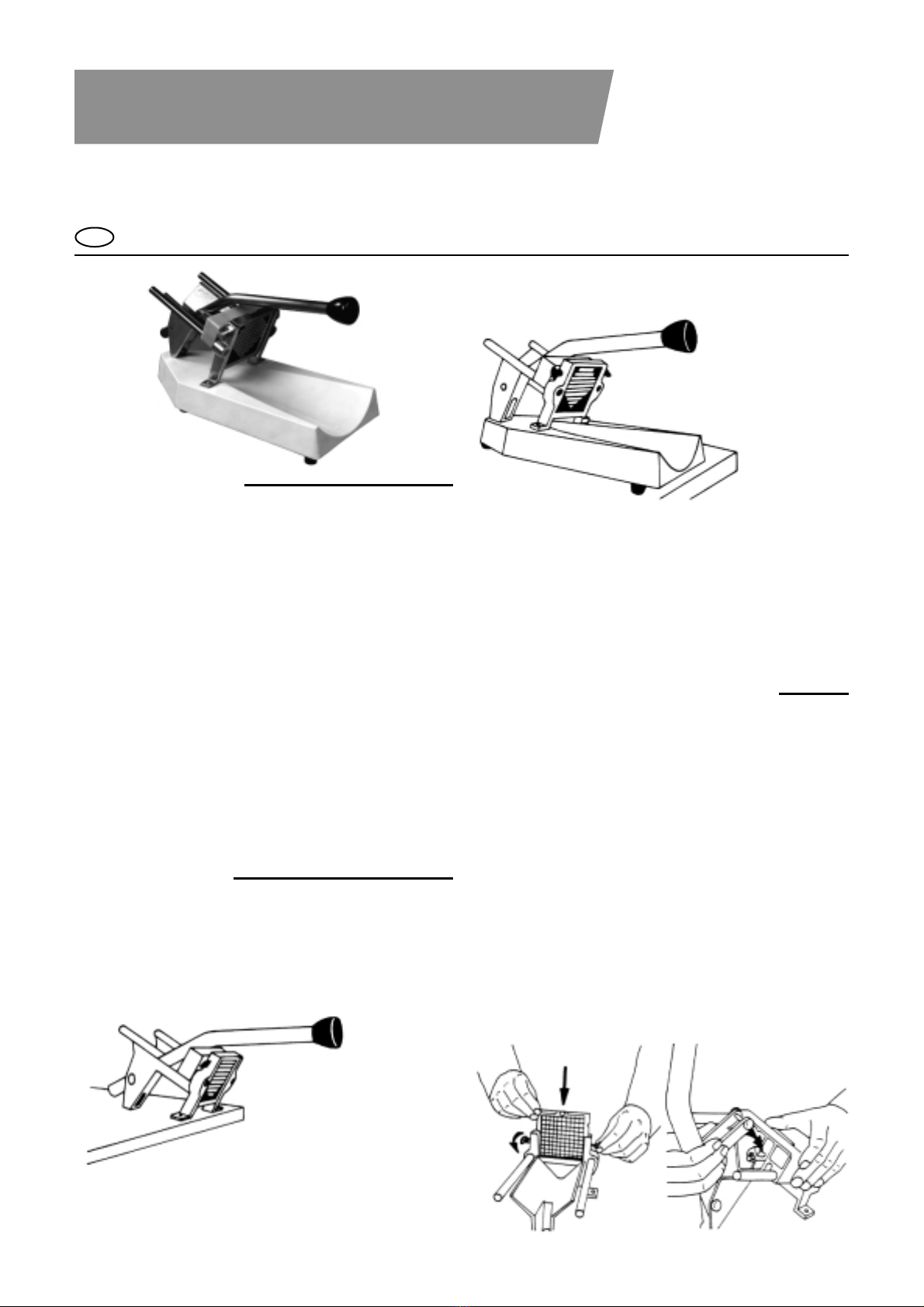

3.3OPERATION
- With the control lever pushed back, placed a peeled potato insi-
de the groove lengthways in order to obtain long chips.
- Bring the pressure block into contact with the potato and continue
pushing in a smooth, continuous motion.
- The CF 4 is angled so that the chips fall directly into the collection
tub.
• The CF 4 can produce chips of different sizes (7 x 7, 9 x 9 and 11 x
11) by a rapid change of the grid and the pressure block.
• Each grid has a matching pressure block.
Never use a pressure block with a grid that does not match (risk
of damage).
4. CLEANING AND MAINTENANCE
4.1CLEANING
- The pressure blocks and the grids are easily cleaned under the
tap with the aid of a brush or in the dishwasher. Keep the bottom
of the pressure block grooves very clean.
- The base, body and other parts can be easily cleaned with a sponge
(smooth surfaces with no recesses).
4.2MAINTENANCE
When using the potato chipper for the first time and afterwards pe-
riodically, clean and lubricate the pivot pins and the guide rods with
Vaseline.
5.PARTS LIST AND ASSEMBLY DIAGRAM
6. ONEYEAR WARRANTY
•Warranty: The warranty is strictly limited to the free replacement
of any original part which is recognised as being defective by us,
due to faulty material or workmanship.
It does not cover any damage resulting from use or installation which
does not conform with the instructions and recommendations which
accompany each machine, nor from lack of maintenance or heavy-
handed use.
In all circumstances, the costs for the transport, labour and call-outs
are at the buyer’s expense.
• Repairs: All of our shipments are sent C.O.D.
7. ADDRESS FOR SERVICE REQUIREMENTS
•We advise you to contact the dealer who sold you the machine.
Dealer’s stamp
* Date of purchase .................................................................
* If you have any problems, you can contact DITO SAMA directly,
for any technical information or advice.
• With all orders for spare parts, specify:
-the type and references of your machine,
-the description and part numbers of the spare parts.
• DITO SAMA reserves the right to modify and make improvements
to the products without giving prior warning.
• Brands, patents and models registered in France and in other countries.
Item N°Qty Code Description
1 1 7391
Body with guide rods
2 1 7397 Control lever with handle
3 1 7392 Connecting rod
4 1 7395 Pressure block hook
5 1 7387
Phillips screw dia. 5x30 mm
6 2 7388 Grid retention screw
7 1 7403 7 x 7 grid
8 1 7404 9 x 9 grid
9 1 7405 11 x 11 grid
10 1 7400 7 x 7 pressure block
11 1 7401 9 x 9 pressure block
12 1 7402 11 x 11 pressure block
13 3 7393 Pin GO6 6 x 45
14 2 7394 Plastic washer dia. 6 mm
15 6 2190 Cover dia. 6 mm
16 1 8729 Safety pin
1 7385 Base sub-assembly
1 7386 Base
3 7550 Foot
3 3501 Screw H5 x 20 mm
3 3767 Washer AZ5
3 3652 Nut H5
