1 Safety Precautions

• Servicing shall be carried out only by authorized personnel.

• Only authorized spare parts, accessories and consumables shall be used.

• Only use detergent intended for water-wash of textiles. Never use dry cleaning agents.

• The machine shall be connected with new water hoses. Re-used water hoses must not

be used.

• The machine's door lock must under no circumstances be bypassed.

• If the machine develops a fault, this must be reported to the person in charge as soon

as possible. This is important both for your safety and that of others.

• DO NOT MODIFY THIS APPLIANCE.

• When performing service or replacing parts, the power must be disconnected.

• When the power is disconnected, the operator must see that the machine is discon-

nected (that the plug is removed and remains removed) from any point to which he has

access. If this is not possible, due to the construction or installation of the machine, a

disconnection with a locking system in the isolated position shall be provided.

• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to

facilitate installation and service operations.

• If different rated voltages or different rated frequencies (separated by a /) are stated at

the machine data plate, instructions for adjusting the appliance for operation at the re-

quired rated voltage or rated frequency are stated in the installation manual.

• Stationary appliances not fitted with means for disconnection from the supply mains

having a contact separation in all poles that provide full disconnection under overvolt-

age category III, the instructions state that means for disconnection must be incorpo-

rated in the fixed wiring in accordance with the wiring rules.

• The openings in the base, shall not be obstructed by a carpet.

• Maximum mass of dry cloth: WS6–8: 8.5 kg, WS6–9: 9.5 kg, WS6–11: 11.5 kg, WS6–

14: 14.5 kg, WS6–20: 21 kg, WS6–28: 29.5 kg, WS6–35: 38.5 kg.

• A-weighted emission sound pressure level at working stations:

– Wash: WS6–8: <70 dB(A), WS6–9: <70 dB(A), WS6–11: <70 dB(A), WS6–14: <70

dB(A), WS6–20: <70 dB(A), WS6–28: <70 dB(A), WS6–35: <70 dB(A).

– Extraction: WS6–8: <70 dB(A), WS6–9: <70 dB(A), WS6–11: <70 dB(A), WS6–14:

<70 dB(A), WS6–20: <70 dB(A), WS6–28: <70 dB(A), WS6–35: <70 dB(A).

• Maximum inlet water pressure: 1000 kPa

• Minimum inlet water pressure: 50 kPa

• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,

FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,

TR, UK:

– The appliance can be used in public areas.

– This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and knowl-

edge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved. Children shall not play with the ap-

pliance. Cleaning and user maintenance shall not be made by children without

supervision.

• Additional requirements for other countries:

6User manual

– This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they

do not play with the appliance.

– This appliance is intended to be used in household and similar applications such as:

(IEC 60335-2-7) staff kitchen areas in shops, offices and other working environments,

farm houses, by clients in hotels, motels and other residential type environments, bed

and breakfast type environments, areas for communal use in blocks of flats or in

launderettes.

1.1 General safety information

The machine is only intended for water-wash use.

Do not hose down the machine with water.

In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-

chine should be placed in room temperature for 24 hours before being used for the first time.

1.2 Commercial use only

The machine/machines covered by this manual is/are made for commercial and industrial use only.

1.3 Symbols

Caution

Caution, high voltage

Read the instructions before using the machine

User manual 7

2 Warranty terms and exclusions

If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-

ject to the product being installed and used for the purposes as designed, and as described within the appropriate

equipment documentation.

Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance

in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-

tronic format.

Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling

agents to obtain optimal results and maintain product efficiency over time.

The Electrolux Professional warranty does not cover:

• service trips cost to deliver and pick up the product;

• installation;

• training on how to use/operate;

• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-

ported within one (1) week from the failure;

• correction of external wiring;

• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting

from;

– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/

or outages);

– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply

with the technical requirements for each appliance);

– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;

– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within

the appropriate equipment documentation;

– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out

by third parties not authorized third parties) and modification of safety systems;

– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);

– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)

stress;

– foreign objects placed in- or connected to- the product;

– accidents or force majeure;

– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,

unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-

ery unless otherwise agreed;

• product with original serial numbers that have been removed, altered or cannot be readily determined;

• replacement of light bulbs, filters or any consumable parts;

• any accessories and software not approved or specified by Electrolux Professional.

Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of

cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.

Check on Electrolux Professional website the list of authorized customer care.

8User manual

3 Program description

3.1 General

The machine is equipped with a number of programs adapted to the range of use to which the machine is intended

— different segments use different programs. The following program description is a short description of some exam-

ples of programs that can be used.

For a complete and detailed information about all the available wash programs, please refer to Electrolux Professio-

nal web-site.

It is recommended to follow the care labelling of the garment as far as possible.

3.2 Program description

The following table shows some examples of available programs and a short description of those:

Program Description

NORMAL COLOUR

Cotton and terry.

Different temperatures can be selected. 30°C - 60°C.

Detergent without bleach should be used.

For an optimal result, full load is recommended.

NORMAL WHITE

Cotton and terry.

Different temperatures can be selected. 40°C - 95°C.

Detergent with bleach should be used.

For an optimal result, full load is recommended.

MILD

Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-

cotton and delicate fabrics.

Different temperatures can be selected. 40°C - 60°C.

For an optimal result, half load is recommended.

DELICATE

Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-

cotton and delicate fabrics.

30°C.

For an optimal result, half load is recommended.

HANDWASH Very delicate fabrics.

For an optimal result, only a few items is recommended.

WOOL Wool fabrics.

40°C.

For an optimal result, only a few items is recommended.

RINSE Used for rinse and extraction.

ALLERGY

A program which removes dust mites and the like.

60°C.

DRUM RINSE

Used for rinse the drum and all compartments.

Used with empty drum.

User manual 9

The following table shows some examples of different groups of programs that are used for special markets such as

hospitals, restaurants, farms etc. and a short description of those:

Group of program Description

General Programs for normal household textiles and textiles in hotels and restaurants.

Mop Programs for mops.

Programs for workwear.

Special mop program for microfibres.

Hygiene Hygiene programs to meet the demands and recommendations of standards in different countries.

Farm Programs for udder towels.

Programs for workwear.

Camping Short programs designed for slightly and normally soiled textiles.

Quick service restaurants Programs for mops.

Programs for workwear.

Programs for fatty clothes

The following table shows some examples of available programs used on coin operated machines and a short de-

scription of those:

Program Description

COLD

Cotton and terry.

40°C.

For an optimal result, full load is recommended.

WARM

Cotton and terry.

60°C.

For an optimal result, full load is recommended.

HOT

Cotton and terry.

95°C.

For an optimal result, full load is recommended.

MILD

Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-

cotton and delicate fabrics.

40°C.

For an optimal result, only a few items is recommended.

DELICATE

Delicate fabrics.

30°C.

For an optimal result, only a few items is recommended.

10 User manual

3.3 Option buttons

The machine is equipped with a number of options adapted to the range of use to which the machine is intended —

different markets use different options.

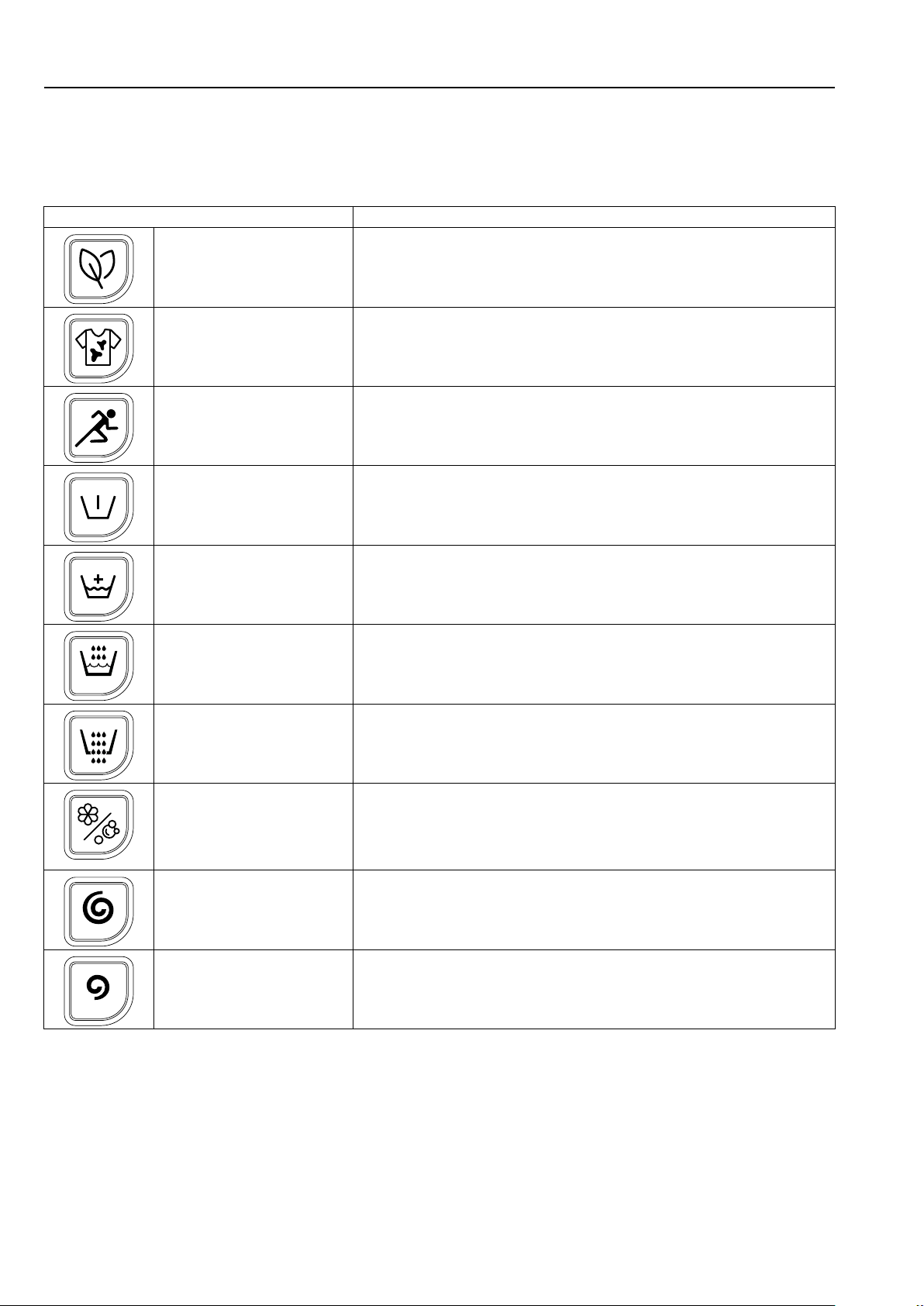

The following table shows some examples of available options and a short description of those:

Option button Description

ECO Washes using less water and energy.

Eco friendly wash for normally soiled textiles.

HEAVY SOIL Long wash for heavy soiled textiles.

QUICK Short wash for light soiled textiles.

The program will be ready as quick as possible.

PREWASH One pre-wash is added.

EXTRA RINSE One rinse is added.

STOP

RINSE STOP The program will pause before the last rinse.

PRERINSE Pre rinse(s) added.

NO SOFTENER On machines with automatic detergent dosing system. Push the button to select

function:

One push = No softener is added.

Two pushes = No softener or detergent is added.

Three pushes = Both softener and detergent is added.

EXTRACTION Different extraction times can be selected.

GENTLE EXTRACTION No extraction between rinses and short end extraction.

For synthetics/blended textiles.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Professional Rondella

Electrolux Professional

Electrolux Professional WH5 Manuale utente

Electrolux Professional

Electrolux Professional WH6-20LAC Manuale utente

Electrolux Professional

Electrolux Professional QuickWash QWC Manuale utente

Electrolux Professional

Electrolux Professional Compass Pro WN6-9 Manuale utente

Electrolux Professional

Electrolux Professional WB6-20 Manuale utente

Electrolux Professional

Electrolux Professional Compass Pro WB6-13 Manuale utente

Electrolux Professional

Electrolux Professional WE170V Manuale utente

Electrolux Professional

Electrolux Professional ESI Manuale utente

Electrolux Professional

Electrolux Professional W575N Manuale utente

Electrolux Professional

Electrolux Professional WE 170 P Manuale utente

Electrolux Professional

Electrolux Professional WE 170 P Manuale utente

Electrolux Professional

Electrolux Professional WB5130H Manuale utente

Electrolux Professional

Electrolux Professional WB6-20 Manuale utente

Electrolux Professional

Electrolux Professional Lagoon WH6-6 Manuale utente

Electrolux Professional

Electrolux Professional WE 170 V Manuale utente

Electrolux Professional

Electrolux Professional Compass Pro WB6-18 Manuale utente

Electrolux Professional

Electrolux Professional myPRO XL WE1100P Manuale utente

Electrolux Professional

Electrolux Professional Clarus Vibe WH6-7 Manuale utente

Electrolux Professional

Electrolux Professional DOUBLE SKIN XL Manuale utente

Electrolux Professional

Electrolux Professional Lagoon WH6-6 Manuale utente

Electrolux Professional

Electrolux Professional myPRO XL W1100P Manuale utente

Electrolux Professional

Electrolux Professional Clarus Vibe WH6-7 Manuale utente

Electrolux Professional

Electrolux Professional ZPPWES Manuale utente

Electrolux Professional

Electrolux Professional WP4 700H Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
