Electrolux Handling System
Slide Conveyors w/splashb. deep basin
Some Electrolux dishwasher models can perform to their full potential, if combined with
the Electrolux Handling System range. The modular system allows to design ergonomic
and reliable solutions to handle, transport and sort kitchenware, obtaining the most
effective flow in the dishwashing room. The wide range contains cord conveyors for trays,
manual, motorized and dishwasher driven sorting tables and a variety of roller, slide and
cord conveyors for baskets.
EASY TO INSTALL
• ±50mm adjustable feet.
• The conveyors are
supplied as knock-down.
• Connection to another
rack conveyor or the
dishwasher is possible on
the left or the right.
• Thick welded flanges for
sturdy connection between
the units.
• Provided with “key holes”
and “snap-on” system for
fast and easy installation.
• "Snap on" system reduces
the number of screws
needed. Easy to assemble
and clean.
• Two legs included as
standard.
• Self bearing undershelf
eliminates the need for
additional frames.
EASY TO USE
• Manual rack movement on
slide rails.
• Designed for 500x500 mm
dishwashing baskets.
• Integrated splash guards
prevents water leakages.
• Stainless steel strainer.
EASY TO CLEAN
• All surfaces are smooth
with polished finish.
• All corners in the bottom
of the basin are rounded.
• Slide rails are bent into the
profile of the conveyor.
• The sloping bottom of the
basin grants a smooth and
rapid drainage.
• Include stainless steel
waste bucket.
EASY TO MAINTAIN
• Basin constructed in AISI
304 1,2 mm stainless steel.
• AISI 304 feet and square
40x40 mm tubular legs.
Electrolux Handling System
Slide Conveyors w/splashb. deep basin
Internet: http://www.electrolux.com/foodservice
IIAF0202012-09-03Subject to change without notice
SHUT-OFF VALVE FOR BASIN CONVEYORS 865037 865037 865037
SHELF+UPSTAND-STATIONARY CONVEYOR 1600MM 865026
SHELF+UPSTAND-STATIONARY CONVEYOR 1100MM 865025
SHELF CONNECTION BRACKET-ENTRY RT 865042 865042 865042
SHELF CONNECTION BRACKET FOR RACK TYPE 865040 865040 865040
SHELF CONNECT.BRACKET-RACKT. SHORT PREW. 865041 865041 865041
PRE-RINSE SPRAY UNIT,MIXER,TAP,SHOWER 865038 865038 865038
PRE-RINSE SPRAY UNIT,AUTOM,THERMO.MIXER 865039 865039 865039
GRID SHELF-STATIONARY CONVEYOR 1600MM 865167
GRID SHELF-STATIONARY CONVEYOR 1100MM 865166
END PLATE FOR CONVEYORS 865022 865022 865022
EMERGENCY STOP KIT FOR RACK TYPE DW 865162 865162 865162
CONNECTION PLATE-HANDLING TO WT90/RT10 865165 865165 865165
CONNECT.PL(SHORT)-HANDL.TO HOODTYPE-LEFT 865163 865163 865163
CONNECT.PL(LONG)-HANDL.TO HT-FRONT/RIGHT 865164 865164 865164
ACCESSORIES
Knockdown ● ● ●
Net weight - kg. 17 29 39
Max. speed, m/min
Legs material 304 AISI 304 AISI 304 AISI
Dimension of square section legs - mm 40x40 40x40 40x40
Basin material 304 AISI 304 AISI 304 AISI
Basin dimensions 530x800x330h; 530x1100x330h; 530x1600x300h;
height adjustment 50, 50 50, 50 50, 50
height 1370 1370 1370
depth 620 620 620
width 800 1100 1600
External dimensions - mm
TECHNICAL DATA
HSDB8SB
865019
HSDB11SB
865020
HSDB16SB
865021
EASY ON THE
ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Developed and produced
in ISO 9001 certified factory.
Electrolux Handling System
Slide Conveyors w/splashb. deep basin
Internet: http://www.electrolux.com/foodservice
IIAF0202012-09-03Subject to change without notice

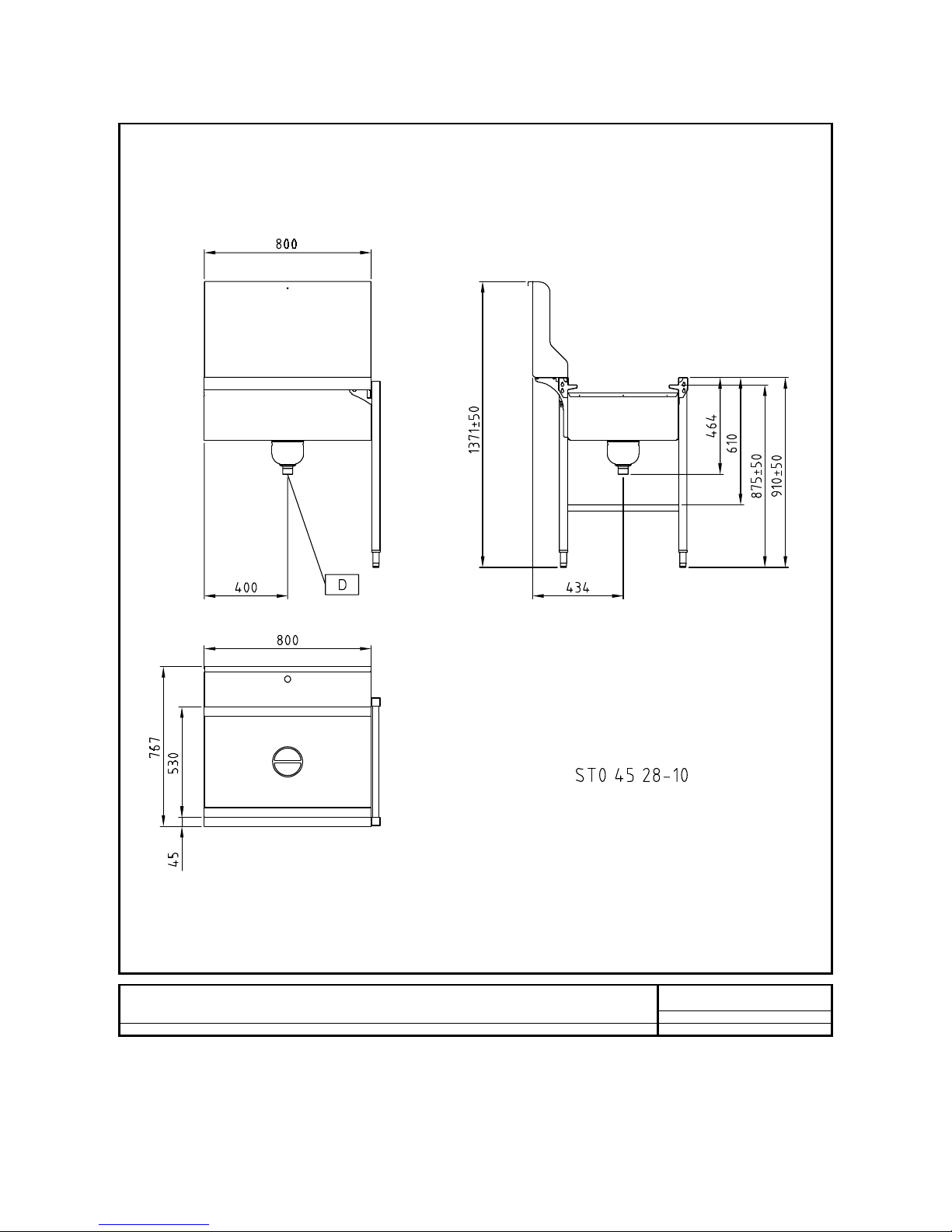

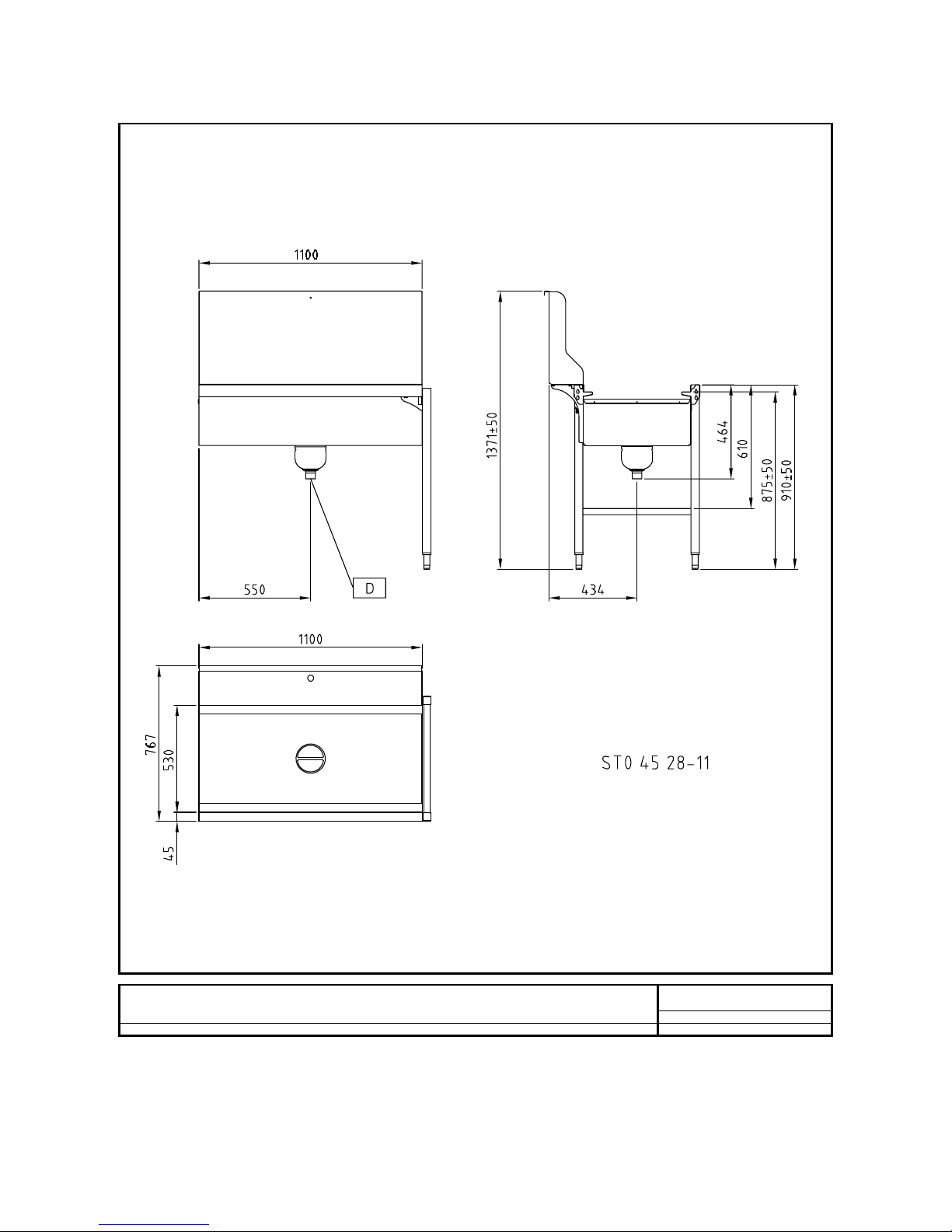

D - Water drain 1"1/2
LEGEND
HSDB8SB
865019
865019
Electrolux Handling System
Slide Conveyors w/splashb. deep basin
Internet: http://www.electrolux.com/foodservice
IIAF0202012-09-03Subject to change without notice
D - Water drain 1"1/2
LEGEND
HSDB11SB
865020
865020
Electrolux Handling System
Slide Conveyors w/splashb. deep basin
Internet: http://www.electrolux.com/foodservice
IIAF0202012-09-03Subject to change without notice

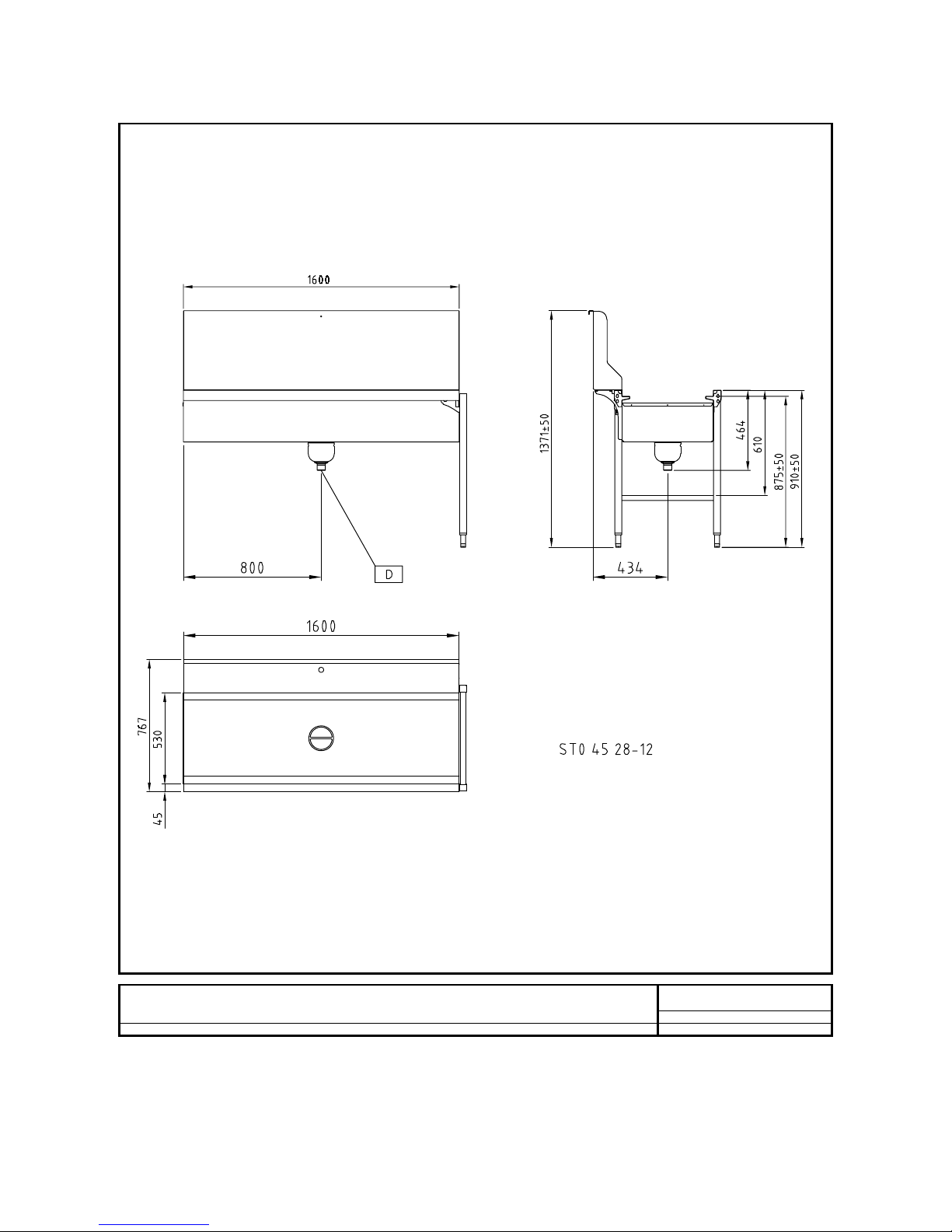

D - Water drain 1"1/2
LEGEND
HSDB16SB
865021
865021
