Electrolux FAH08EN1 Manuale utente

Product No. FAH08EN1T

Series TTW/Builder

Volts 115

BTU-Cooling 8000 BTU

BTU-Heating 1250

Wiring Diagram 309201102

Owner's Guide 309000856

Installation Instructions 309000913

Market North America

P40L2012.eps FAH08EN1T.eps 309201102.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437380

05/05/23

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAH08EN1

Publication No: 5995437380 FAH08EN1T

05/05 2

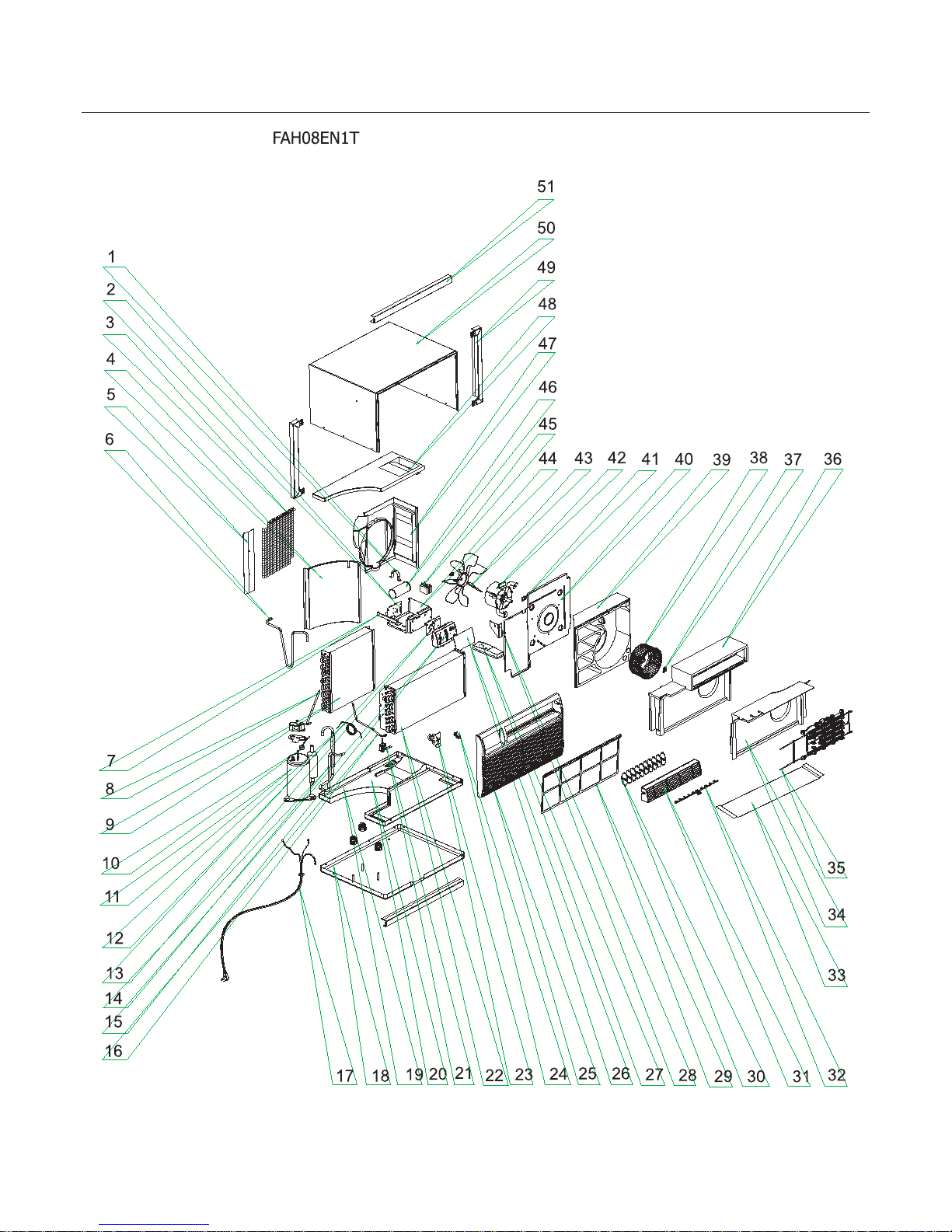

RECOMMENDED SPARE PARTS

FAH08EN1T Publication No: 5995437380

# Functional Parts 3 05/05

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 5303303077 Strap, capacitor mtg.

2 309201002 PC Board, power, 115 V

3 309636101 Screen, safety, wire mesh, cabinet rear

4 309629001 Partition, shroud, galv-steel

5 309335201 Baffle, air

6 309202101 Tube, discharge

7 309203101 Support, control box

8 # 5304413933 Tube, process, cond. outlet

9 # 309632303 Evaporator

10 # 309205101 Overload Protector

11 # 309260301 Compressor Assembly, w/electricals, 115 V, & mtg grommets

12 # 309372301 Tube, capillary

13 # 309201301 PC Board, input/display

14 # 309202201 Tube, suction

15 309200201 Enclosure, input pcb, control panel

16 # 309337001 Tube, anti gurgle

17 # 309343125 PWR Cord, W/O TEST/RESET, 14 AWG, 115 V, type A

17# 309343129 PWR Cord, W/TEST/RESET, 14AWG, 115V, W/TEST RESET

18 309632007 Base, compressor mt., with studs

19 309628704 Tray, evap base

21 # 309363601 Valve, water drain

22 # 309641901 Condenser

23 5308017123 Holder, thermistor clip, 3/8 inch, with seal

24 309205001 Clip, filter, deflector

25 309200101 Panel, front grille

26 309201402 Overlay, control display

27 # 309342611 Remote Control, transmitter, with batteries

28 309335001 Baffle, splash/motor

29 309628204 Filter, air, molded plastic, grey

30 309628104 Louver, vertical

31 309628004 Louver, horizontal

32 309324004 Link, vertical louver, with handle

33 309629502 Shield, heat, 20.94 L, base

34 309633401 Shield, elec. heater, vertical

35 # 309627004 Heater, 1250 W, 115 V

36 309625501 Scroll Plate

37 309112101 Clamp, blower wheel mt, compression

38 309631701 Blower Wheel

39 309622802 Scroll

40 309627401 Bulkhead

41 309111201 Grommet, wire protector

42 # 309647503 Motor, fan, 3 speed

43 # 309629102 Fan Blade

44 309200301 Control Box

45 # 309201702 Relay, electric heater, 115 V

46 # 5304426336 Capacitor, 250 V, 35+10 mfd

47 309628901 Shroud, fan

48 309628802 Cover, fan, top

49 309628603 Trim, frame, side

50 309627504 Cabinet, wrapper

51 309628604 Trim, frame, top & bottom

Publication No: 5995437380 FAH08EN1T

05/05 4

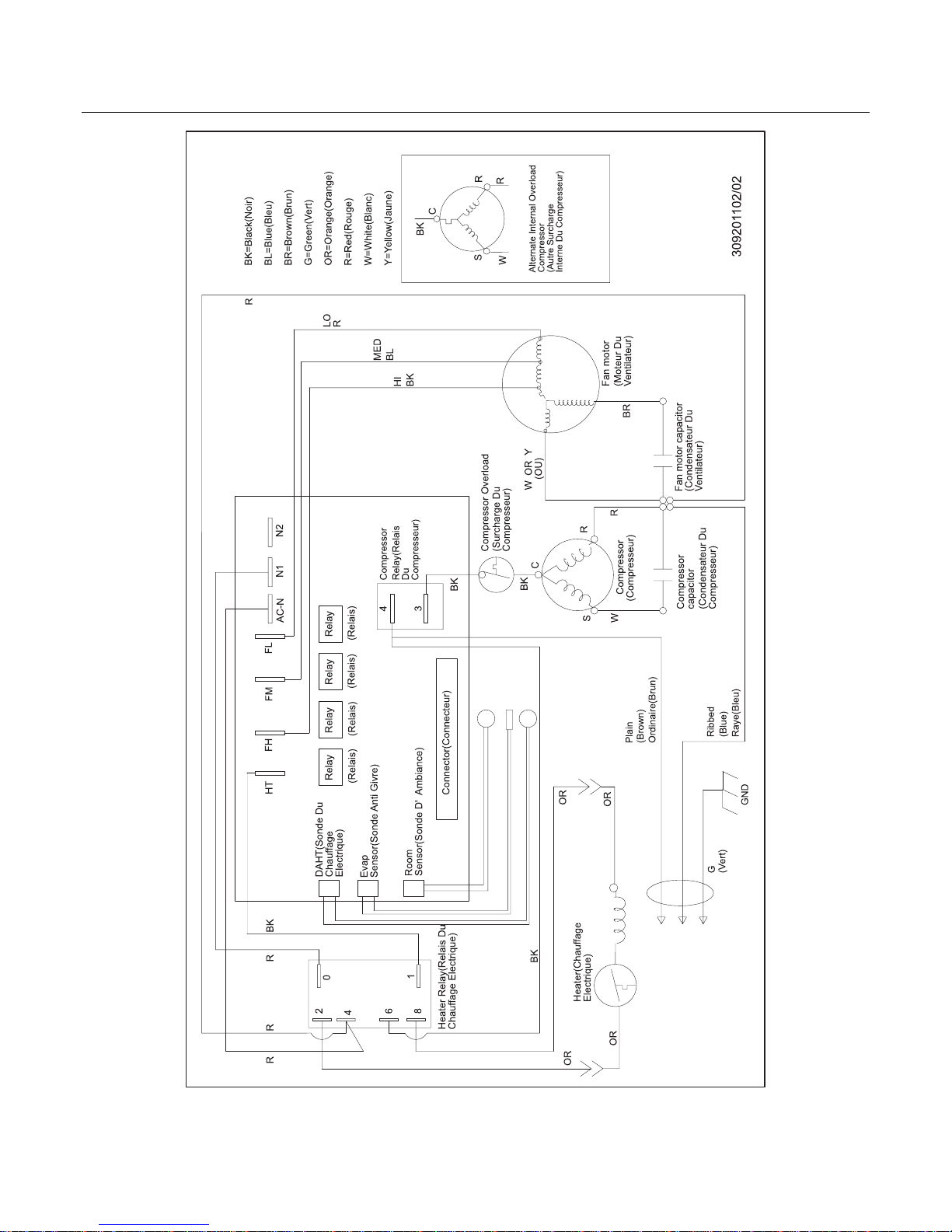

WIRING DIAGRAM
