5N2T1 FAH12 / FAH125N2 Publication No: 5995437703

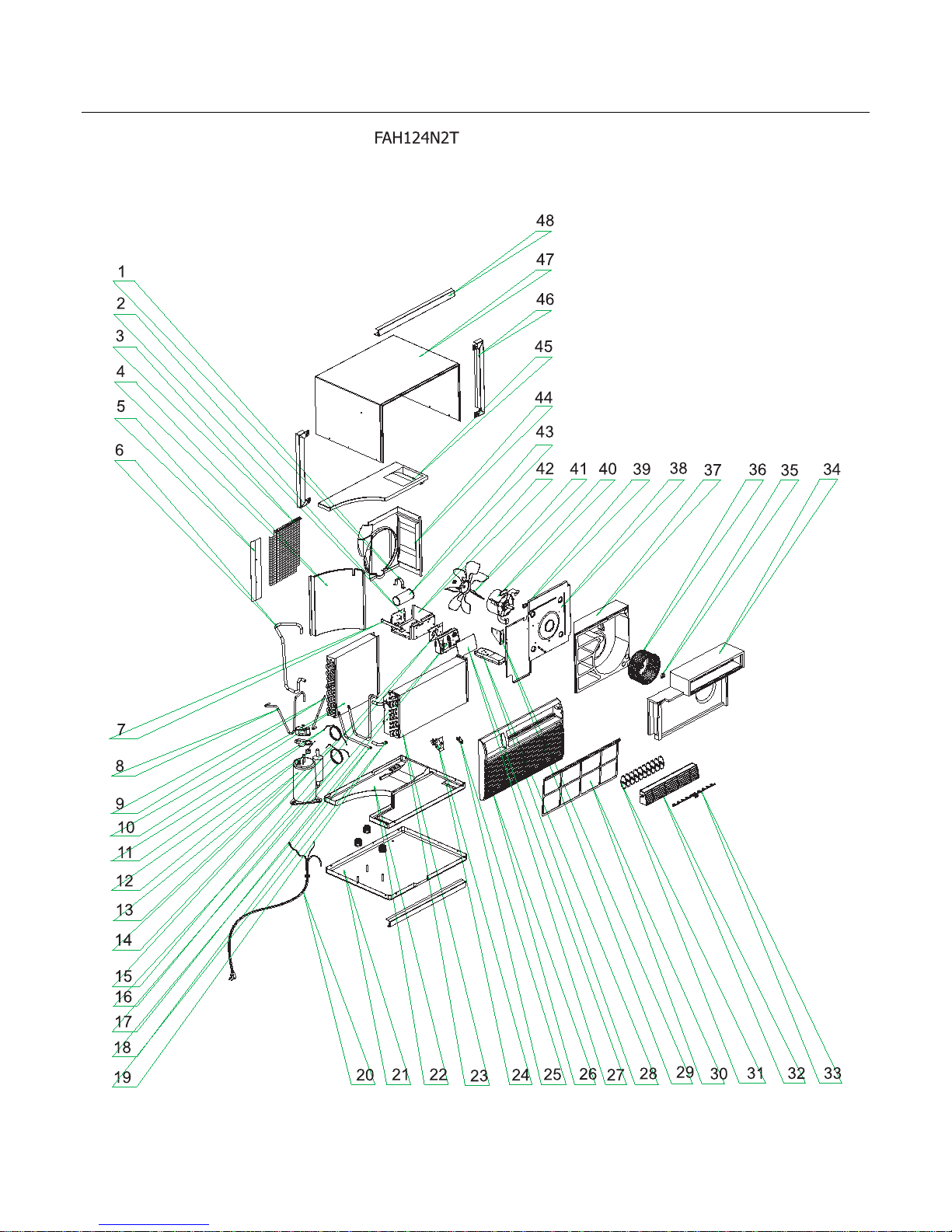

# Functional Parts 3 05/05
* Non-Illustrated Parts
RECOMMENDED SPARE PARTS
Model Index: AFAH125N2 (FAH125N2T)
BFAH125N2 (FAH125N2T1)
CFAH125N2 (FAH125N2T2)
POS. NO PART NO. DESCRIPTION
1 5303303077 A B C Strap, capacitor mtg.
2 # 309201004 A B C PC Board, power, 230 V
3 309636101 A B C Screen, safety, wire mesh, cabinet rear
4 309629001 A B C Partition, shroud, galv-steel
5 309335201 A B C Baffle, air
6 # 309375901 A B C Tube, suction
7 309203101 A B C Support, control box
8 # 309373501 A B C Tube, discharge
9 # 5304417604 A B C Tube, process, cond. outlet
10 # 309632403 A B C Evaporator
11 # 309376001 A B C Tube, capillary, top
12 # 5304430634 A B C Overload Protector
13 # 309202801 A B C Compressor Assembly, w/electricals, & mtg grommets
14 # 309358101 A B C Tube, anti gurgle, top
15 # 309201302 A B C PC Board, input/display, 115 V
16 # 309376101 A B C Tube, capillary, bottom
17 309200201 A B C Enclosure, input pcb, control panel
18 # 309358201 A B C Tube, anti gurgle, bottom
19 # 309113304 A B C Manifold Assembly, w/brazing rings
20 # 309343128 A B - Power Cord, LCDI-type C, 16 AWG, 230 V, with test/reset
20 # 309343132 - - C Power Cord, Electw/LCDI, 16 AWG, 230 V, type C
21 309632006 A B C Base, compressor mt., with studs
22 309628705 A B C Tray, evap base
23 # 309632507 A B C Condenser
24 5308017123 A B C Holder, thermistor clip, 3/8 inch, with seal
25 309205001 A B C Clip, filter, deflector
26 309200101 A B C Panel, front grille
27 309201403 A B C Overlay, control display
28 # 309342611 A B C Remote Control, transmitter, with batteries
29 309335001 A B C Baffle, splash/motor
30 309628204 A B C Filter, air, molded plastic, grey
31 309628104 A B C Louver, vertical
32 309628004 A B C Louver, horizontal
33 309324004 A B C Link, vertical louver, with handle
34 309622901 A B C Plate, scroll cover
35 309112101 A B C Clamp, blower wheel mt, compression
36 309631701 A B C Blower Wheel
37 309622801 A B C Housing, blower scroll
38 309627401 A B C Bulkhead
39 309111201 A B C Grommet, wire protector
40 # 309647502 A B C Motor, fan
41 # 309629102 A B C Fan Blade
42 309200301 A B C Control Box
43 # 5304430633 A B C Capacitor, 370 V, 30+7.5 mfd
44 309628901 A B C Shroud, fan
45 309628802 A B C Cover, fan, top
46 309628603 A B C Trim, frame, side
47 309627504 A B C Cabinet, wrapper

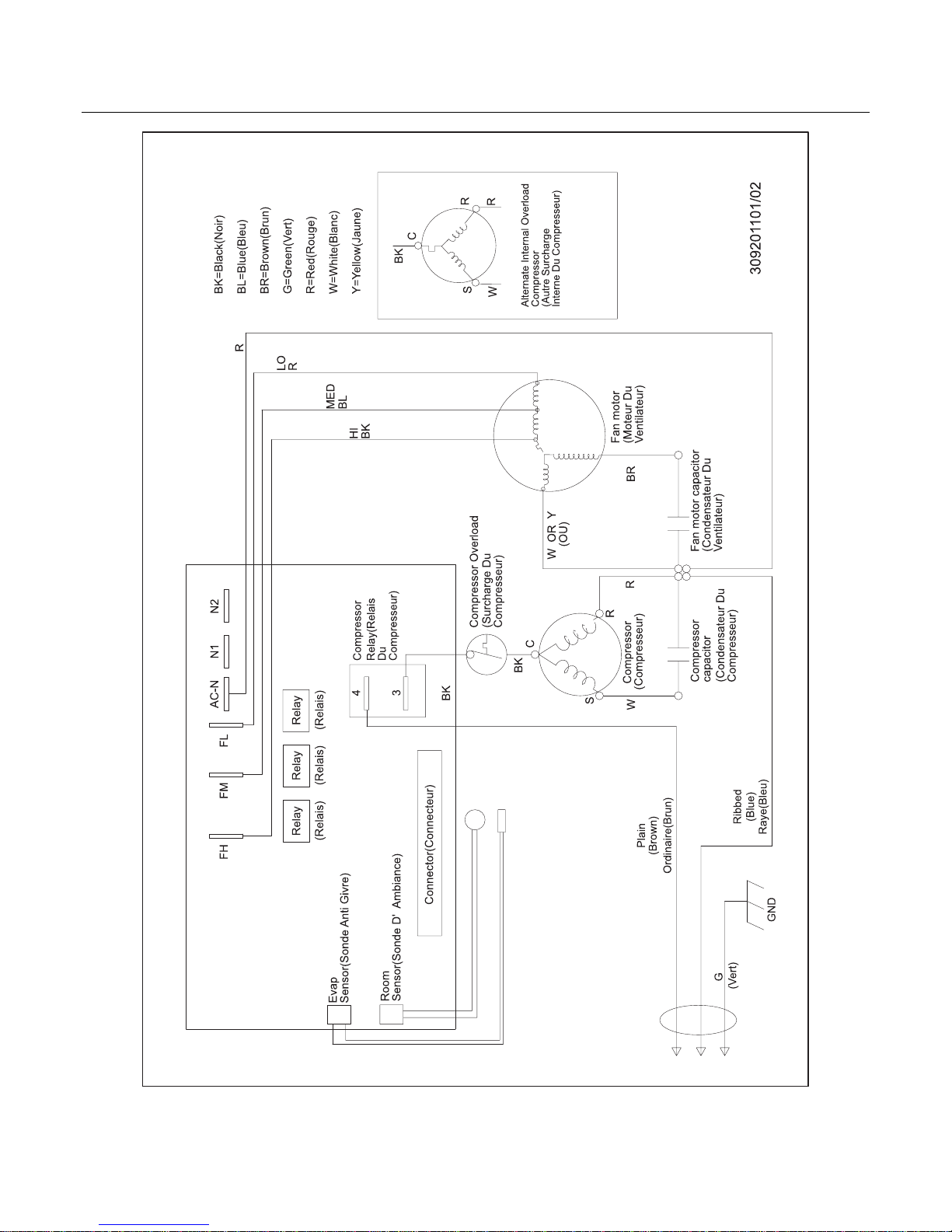

48 309628604 A B C Trim, frame, top & bottom
