USER MANUAL Integrated burner

EQBW316AS

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux barbecue.

You’ve chosen a product that brings with it decades

of professional experience and innovation. Ingenious

and stylish, it has been designed with you in mind.

So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time.

Welcome to Electrolux.

BEFORE USING YOUR APPLIANCE

Check for any damage or marks. If you ﬁnd the appliance

damaged or marked you must report it within 7 days to

claim for damages under the manufacturers warranty.

Before you use the appliance, we recommend that you

read through the whole user manual which provides the

description of the product and its functions. To avoid

the risks that are always present when you use a gas

appliance, it is important that the product is installed

correctly and that you read the safety instructions carefully

to avoid misuse and hazards.

For future reference, please store this booklet in a

safe place.

This appliance complies with the requirements of

Australian Standard AS4557.

CONDITIONS OF USE

This appliance is intended to be used in household and

similar applications such as:

• Staff kitchen areas in shops, ofﬁces and other working

environments

• Farm houses

• By clients in hotels, motels and other residential

type environments

• Bed and breakfast type environments.

• Catering and similar non-retail applications

BEFORE YOU CALL

Please ensure you read the instruction manual fully before

you call for service, or a full service fee could be applicable.

RECORD MODEL AND SERIAL

NUMBER HERE:

Model:

Serial No:

CONTENTS

3General warnings

4Electrolux Integrated burner product description

6Gas specifications

6Gas connection detail

7Universal LPG installation

7Gas bottle safety information

8Natural Gas installation

10 Leak test procedure

11 Installation warnings

11 Installation instructions

13 Gas requirements

13 Locating integrated burner adjacent to

integrated barbecue

14 Connecting with Electrolux integrated barbecue

15 Burner operation

15 Pivoting lid safety leg

16 Cleaning and care

16 Maintenance

17 Troubleshooting

17 Accessories

19 Warranty

SYMBOLS

WARNING!

This symbol indicates information concerning your

personal safety.

CAUTION!

This symbol indicates information on how to avoid

damaging the appliance.

IMPORTANT!

This symbol indicates tips and information about use

of the appliance.

ENVIRONMENT!

This symbol indicates tips and information about

economical and ecological use of the appliance.

GENERAL WARNINGS

Please read the user manual carefully and store in a handy

place for later reference. Pass the user manual on to

possible new owners of the appliance.

Read the following carefully to avoid damage or injury.

NOTE! You must read these warnings carefully

before installing or using the appliance. If you need

assistance, contact your Customer Care Department.

The manufacturer will not accept liability, should these

instructions or any other safety instructions incorporated

in this book be ignored.

For your safety please read this book before operating

your barbecue.

WARNING!

This appliance MUST be installed and serviced only

by a qualified licensed person.

Improper installation, adjustment, alteration or

maintenance can cause injury or property damage.

Please contact your nearest Electrolux Service

Department for additional information or assistance

for an approved installer.

NOTE TO THE INSTALLER

This manual must remain with the owner for future

reference.

WARNING!

IF YOU SMELL GAS, do not attempt to light the burner.

Locate the leak and re-tighten the leaking joint. Carry

out the Leak Test procedure as described in this

manual. If the leak persists, turn off the gas supply and

call Electrolux Service Centre or a Licensed Gas Fitter.

WARNING!

•Do not lean over barbecue when lighting.

•Do not leave the barbecue unattended when alight.

•Do not delay lighting once the gas has been

turned on.

•Do not store or use aerosol cans in the vicinity

of the barbecue.

•Do not store ﬂammable liquids in the vicinity

of the barbecue.

•Do not use caustic or abrasive based cleaners

on the barbecue.

•Do not operate the barbecue with the cover on.

•Do not attempt to dismantle or adjust the

control valves.

•Do not attempt to dismantle or adjust the regulator.

•Do not test for leaks with a naked ﬂame.

•Do not modify the construction of this appliance or

modify the injector oriﬁce size.

•Do not obstruct any ventilation of the barbecue.

•Do not allow children to operate or play near

the barbecue.

CAUTION!

This barbecue is supplied set up for Universal LPG and

is labelled accordingly. A Natural Gas conversion kit is

available if required. Conversion of this unit to Natural

Gas must be carried out by a qualiﬁed licensed person

and a Certiﬁcate of Compliance must be issued to the

owner on completion of the installation and conversion.

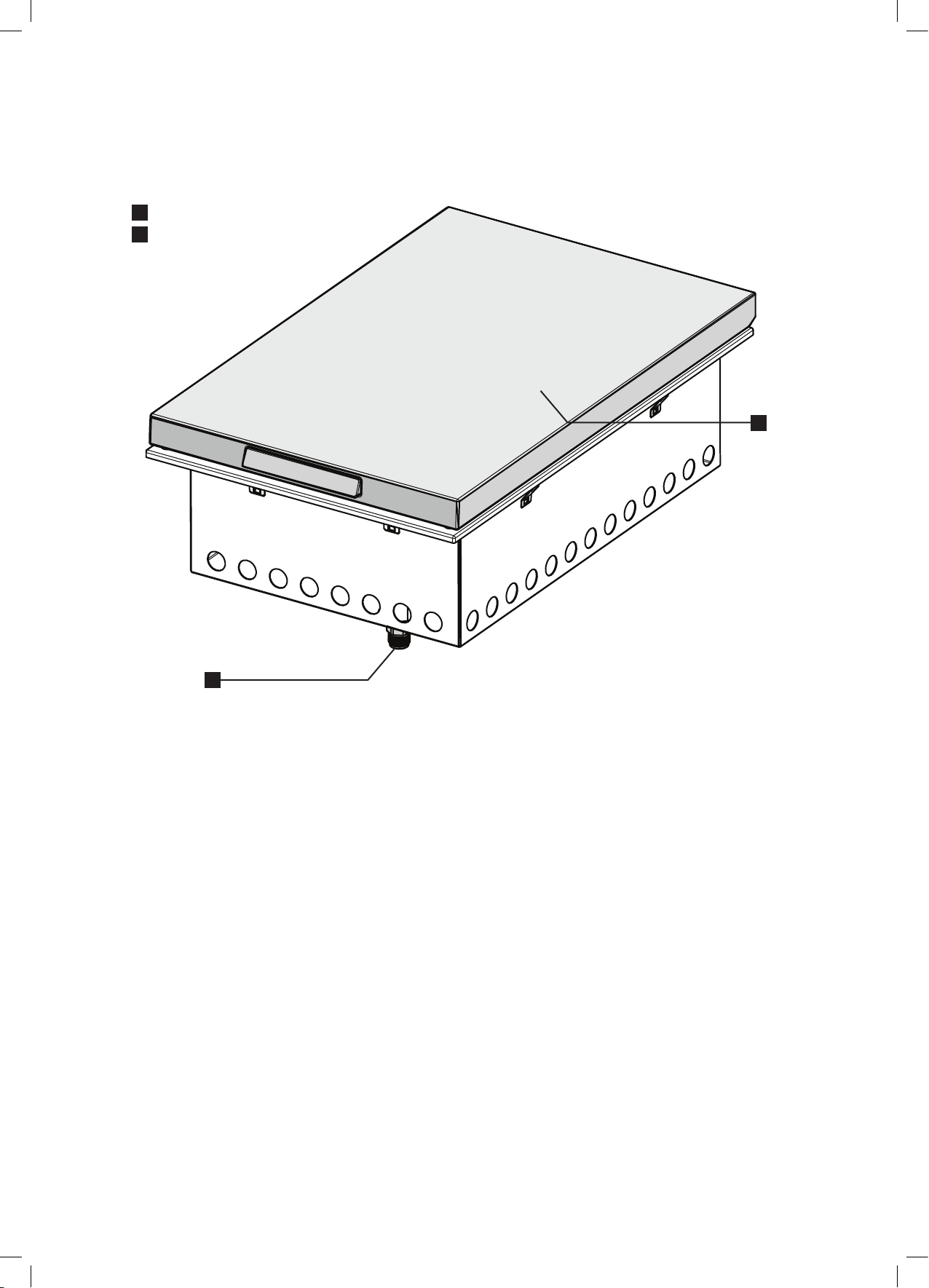

1Slimline lid

2Gas connection point

INTEGRATED BURNER

3Pivoting lid safety leg

4Lid mounting bracket

5Trivet

6Burner

7Burner control

8Reversible cast grill plate

GAS SPECIFICATIONS GAS CONNECTION DETAIL

Gas type Natural gas Universal LPG

Maximum gas

consumption

22 MJ/h 23 MJ/h

Injector oriﬁce

diameter (mm)

2.10 m m 1.25mm

Number of injectors 1 1

Regulator pressure 1.00 kPa 2.75 kPa

NOTES:

• This appliance MUST be installed and serviced only by

a qualiﬁed licensed person.

• This product is intended for outdoor use only.

• This product must be installed as per the instructions

which requires the installation of venting to enable

the barbecue to operate correctly. Failure to provide

adequte ventilation for supply of air to the appliance

may result in poor burner performance or excessive

heat build-up within the mounting enclosure.

• Ventilation holes in the unit must not be obscured by

the installation.

112

170

UNIVERSAL LPG INSTALLATION

This barbecue is supplied set up for Universal LPG and

is labelled accordingly. A Natural Gas conversion kit is

available if required. Refer to Natural Gas installation

for details.

Connecting the appliance to an LPG gas supply

The appliance may be supplied LPG from either:

• A 9 kg portable LPG cylinder, or

• A remote supply of LPG via ﬁxed pipework.

Connecting to a Portable 9kg LPG Cylinder

The components required to make this type of connection

are included.

The components required are:

• LPG hose and regulator assembly to suit 9 kg cylinder

• Brass adapter

• Sealing washer.

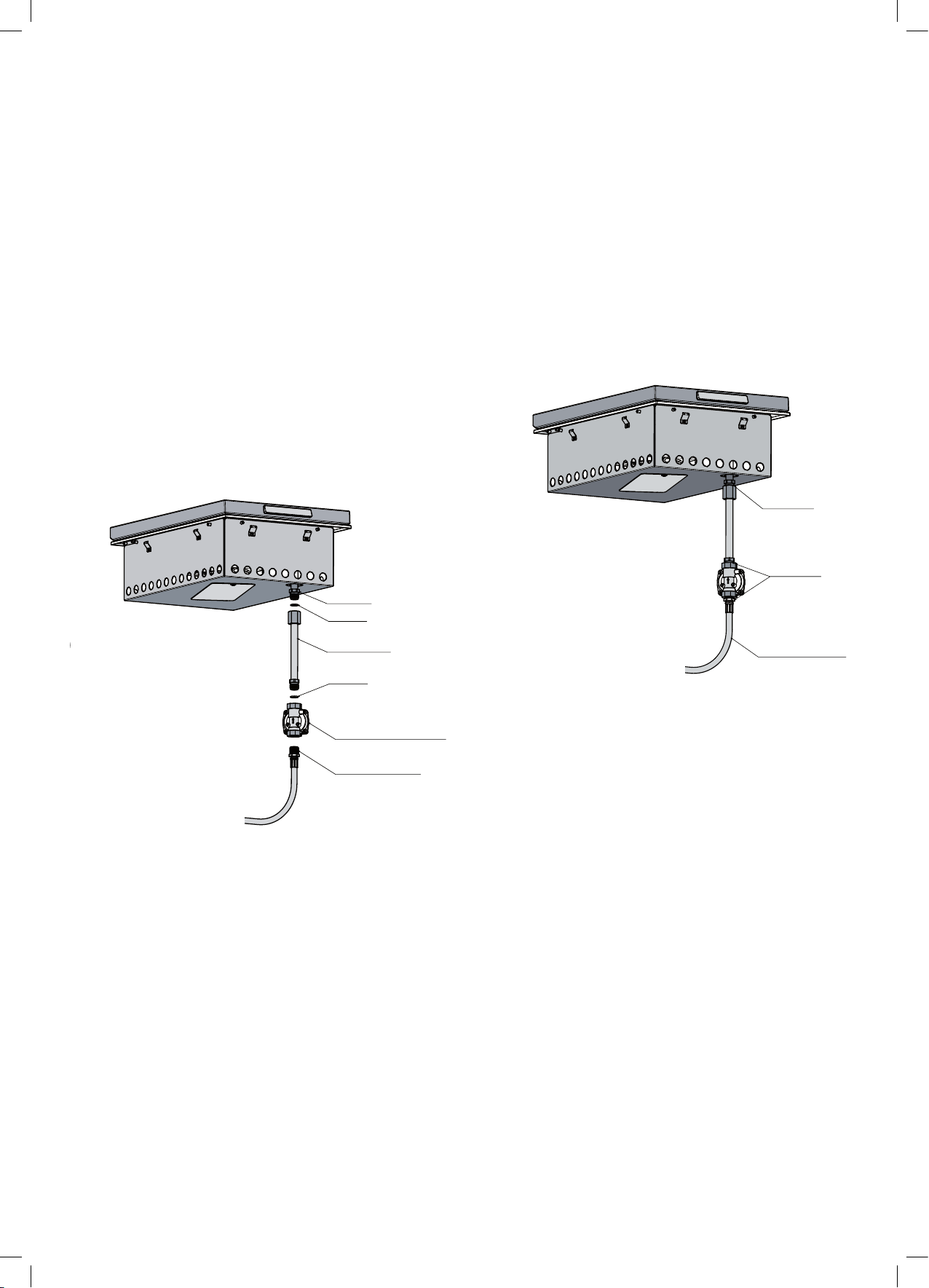

To assemble the connection (refer diagram below):

• Connect the brass adapter to the barbecue gas inlet

with the sealing washer in place to seal the connection.

Then assemble the hose to the brass adapter.

• Connect the POL ﬁtting at the inlet of the regulator to

the valve on the LPG cylinder.

• Leak test all connections in the assembly as described

under LEAK TEST PROCEDURE.

Gas inlet pipe

Fibre washer

Brass adaptor

LPG hose

and regulator

GAS BOTTLE SAFETY INFORMATION

• This appliance is designed to use a 9kg (20 lbs)

gas cylinder.

• The gas cylinder must be made and marked in

accordance with speciﬁcations for LPG cylinders.

• It is recommended to turn off the cylinder valve when

the appliance is not in use.

• Gas cylinders must be stored in an approved housing

out of reach of children.

• When disconnecting the gas bottle ensure that all the

control valves are in the ‘OFF’ position.

• Remove the bottle from any housing in which it may

be stored before disconnection.

• When reconnecting the hose to the bottle, ensure that

all connections are tight before replacing in the storage

compartment.

• Carry out a leakage check as detailed on page 8 after

each re-connection.

Gas inlet pipe

Fibre washer

Test point adaptor

- ensure arrow is in

the right direction

Supply hose or

pipework with 1/2’

tapered thread

- sealed with thread

seal tape or

compound suitable

for gas connection

Connecting to a remote supply of LPG

The components required to make this type of connection

are available as an accessory and can be purchased either

on the Electrolux spare parts website or by contacting the

Electrolux Customer Service Centre. Refer to Accessories

section on page 17 for part numbers.

Never connect the barbecue to an unregulated LPG

supply. Ensure that the supply pressure at the inlet of the

barbecue is 2.75kPa.

Electrolux strongly recommends installation of a manual

shut-off valve, or hose assembly with a certiﬁed quick

connect that is accessible with the appliance installed, so

that the appliance may be isolated from gas in the event of

an emergency or for servicing.

The components required are

• Brass test point adapter

• Sealing washer

To assemble the connection:

• Connect the brass test point adapter to the barbecue

gas inlet with the arrow on the adapter oriented

according to direction of gas ﬂow, with the sealing

washer in place to seal the connection.

• The inlet to the adapter has a standard internal ½”

pipe thread and can connect to any standard external

½” tapered threaded connection. This connection is

sealed with any thread tape or sealing compound that

is suitable for gas connections. Connect the ﬁxed LPG

pipework to the inlet of the test point adapter by any

suitable means in accordance with requirements of

AS 5601.

• Leak test all connections in the assembly as described

under LEAK TEST PROCEDURE.

NATURAL GAS INSTALL ATION

NOTE: Conversion of this unit to Natural Gas must be

carried out by a qualiﬁed licensed person and a Certiﬁcate

of Compliance must be issued to the owner on completion

of the installation and conversion.

Converting the Unit to Natural Gas

This barbecue is supplied set up for Universal LPG and

is labelled accordingly. A Natural Gas conversion Kit is

available as an accessory and can be purchased either

on the Electrolux spare parts website or by contacting the

Electrolux Customer Service Centre. Refer to Accessories

section on page 17 for part numbers.

The components required for conversion are:

• Natural Gas Regulator

• Small Plastic Bag containing a 2.10mm brass injector.

• Natural Gas Installation Pipe

• 2 x Sealing Washer

• 1 Natural Gas sticker.

To convert the appliance, proceed as follows:

1. Remove screw and cover panel on base of burner box.

Screw

Cover panel

Burner

Screw

2. Remove two screws fastening burner.

3. Remove burner from burner box.

4. Replace Universal LPG Injector (1.25mm) with

Natural Gas injector (2.10mm).

Turndown adjustment screw

5. Replace burner and cover panel.

6. Remove LPG sticker on the base panel and replace

with natural gas sticker provided.

The ﬁnal step in the conversion of the barbecue to Natural

Gas is the adjustment of the turndown setting. This can

only be completed after the barbecue has been connected

to a supply of natural gas. Refer to ‘Connection to Natural

Gas Supply’ detailed in next section.

Adjust the turndown setting on the valve.

To complete the conversion to natural gas the turndown

setting of the valve will need to be adjusted, and at the

same time the operation of the appliance can be tested.

Proceed as follows:

• Check that the burner ignites (REFER OPERATING

INSTRUCTIONS).

• Light the burner and rotate the control knob to the

lowest setting, then remove the knob from the valve

shaft, and remove the grommet.

• Using a small ﬂat-blade screwdriver adjust the

turndown adjustment screw to achieve a small steady

ﬂame on the burner.

• Replace the grommet and the knob.

• Recheck the operation of the burner at maximum

and turndown.

Injector

LEAK TEST PROCEDURE

• Ensure gas valve is in the ‘OFF’ position.

• In a small container, mix a solution of water and

detergent or soap.

• After connection of the hose, turn on the valve at the

gas bottle or mains as appropriate.

• Using a brush apply the solution to the gas connection

points and look for bubbles forming.

• Bubbling will indicate a leak.

• Turn off the valve and re-tighten the joint. Repeat the

leak test.

• If the leak persists, turn off the gas at the isolation

valves and contact a licensed gas ﬁtter to correct.

Leak test point

Check hose for

signs of abrasion,

cracks or leaks

NATURAL GAS INSTALL ATION

Preparing the unit for Natural Gas connection

to mains

Natural gas connection to be made by a licensed gas ﬁtter.

Preparing the unit for Natural Gas installation

Fit natural gas installation pipe to the gas inlet to enable

access to the regulator in the installed position. When

tightening the regulator or any other connection

do not over-tighten.

1. Fitting the natural gas installation pipe.

Fit pipe ensuring the blue ﬁbre washer is in place.

Do not over-tighten.

2. Fitting the regulator.

Fit the regulator ensuring the blue ﬁbre washer is in

place and the arrow indicating the gas ﬂow is correct.

Do not over-tighten.

3. Connect consumer piping to regulator inlet.

- The Regulator inlet has 1/2” parallel pipe thread.

Gas inlet pipe

Fibre washer

NG installation pipe

NG regulator

(ensure arrow is in

correct direction)

Consumer piping

Indice

Altri manuali Electrolux Bruciatore

Electrolux

Electrolux EQBM100AS Manuale utente

Manuali Bruciatore popolari di altre marche

Riello

Riello RS 28/M Guida rapida

True Induction

True Induction TI4B Manuale utente

Weishaupt

Weishaupt WG20 Series Manuale utente

Carolina Cooker

Carolina Cooker M116672 Manuale utente

Riello

Riello RX 500 S/PV Manuale di istruzioni

Unigas

Unigas HTP2000 Manuale utente

baltur

baltur BT 250 DSG 4T Manuale utente

muenkel design

muenkel design round burner Manuale utente

Ecoflam

Ecoflam Multicalor 170.1 Manuale utente

baltur

baltur BT 14 DSGW Manuale utente

artisan

artisan Art-SB1 Guida

Riello

Riello P 140 T/G Guida rapida

AESYS

AESYS TurboFire II Manuale utente

Riello

Riello RG1RKD Guida rapida

IKEA

IKEA GRILLSKÄR Manuale utente

RUSTA

RUSTA SAREK Manuale utente

PROPOINT

PROPOINT 8933657 Manuale utente

baltur

baltur TBL 1000 ME Manuale di riferimento
