Dear Customer

Thank you for choosing one of our highquality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per

formance and control  indeed we are setting the highest standards of excel

lence.

In addition to this you find environmental and energy saving aspects as an inte

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

3Contents

Contents

Operating Instructions 5

Safety instructions 5

Description of the Appliance 7

General Overview 7

Control Panel 8

Cooking surface 9

Oven Features 10

Oven accessories 11

Before Using for the first time 12

Setting and changing the time 12

Initial Cleaning 13

Using the Rings 14

Setting the heat setting 15

Switching on the dual fry/cook area 15

Residual heat indicator 15

Using the Oven 16

Switching the Oven On and Off 16

Oven Functions 17

Inserting the Combination Shelf, Baking Tray and Roasting Pan 18

Inserting/Removing the Grease Filter 19

Clock Functions 20

Switching Off the Time Display 21

Uses, Tables and Tips 26

Pans 26

Cooking table 27

Baking 28

Baking table 30

Table for Bakes and Gratins 35

Frozen Ready Meals Table 35

Roasting 36

Roasting table 36

Grill Sizes 38

Grilling table 38

Defrosting 39

Defrosting table 39

Drying 40

Making Preserves 41

Contents4

Cleaning and Care 42

Outside of the appliance 42

Cooking surface 42

Hob Frame 43

Oven interior 43

Accessories 43

Fat Filter 43

Oven Shelf Runner 44

Cleaning the Oven Shelf Runner 45

Oven Lighting 45

Oven Ceiling 46

Oven door 47

Oven door glass 49

Pan drawer 52

What to do if … 53

Disposal 54

Instruction on setting up 55

Setting up 55

Making the appliance level 55

Safety information for the installer 56

Guarantee/Customer Service 57

Service 59

5Operating Instructions

Operating Instructions

1Safety instructions

5This appliance conforms with the following EU Directives:

–73/23/EEC dated 19.02.1973 Low Voltage Directive

–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive

92/31/EEC

–93/68/EEC dated 22.07.1993 CE Marking Directive

Electrical safety

•This appliance must be only connected by a registered electrician.

•In the event of a fault or damage to the appliance: Take the fuses out or

switch off.

•Repairs to the appliance must only be carried out by qualified service engi

neers. Considerable danger may result from improper repairs. If repairs be

come necessary, please contact our Customer Services or your dealer.

Child Safety

•Never leave children unsupervised when the appliance is in use.

Safety whilst Using

•This appliance is intended to be used for cooking, roasting and baking food in

the home.

•Take care when connecting electric appliances to sockets nearby. Do not allow

connecting leads to come into contact with or to catch beneath the hot oven

door.

•Warning: Risk of burns! The interior of the oven becomes hot during use.

•Using ingredients containing alcohol in the oven may create an alcoholair

mixture that is easily ignited. In this case, open the door carefully. Do not have

embers, sparks or naked flames in the vicinity when opening the door.

Safety instructions6

3Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, espe

cially in products containing starch, can constitute a health risk due to acryla

mides. Therefore we recommend cooking at the lowest possible temperatures

and not browning foods too much.

How to avoid damage to the appliance

•Do not line the oven with aluminium foil and do not place baking trays, pots,

etc. on the oven floor, as the heat that builds up will damage the oven enamel.

•Fruit juices dripping from the baking tray will leave stains, which you will not

be able to remove. For very moist cakes, use a deep tray.

•Do not put any strain on the oven door when open.

•Never pour water directly into the oven when it is hot. This could cause dam

age to or discoloration of the enamel.

•Rough handling, especially around the edges of the front panel, can cause the

glass to break.

•Do not store any flammable materials inside the oven. These could ignite

when the oven is switched on.

•Do not store any moist foods inside the oven. This could damage the oven

enamel.

•After switching off the cooling fan, do not keep uncovered dishes in the oven.

Moisture may condense in the oven interior or on the glass doors and may get

into the units.

3Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not af

fect the appliance’s suitability for normal and correct use. They therefore do not

constitute a defect in the sense of the warranty law.

7Description of the Appliance

Description of the Appliance

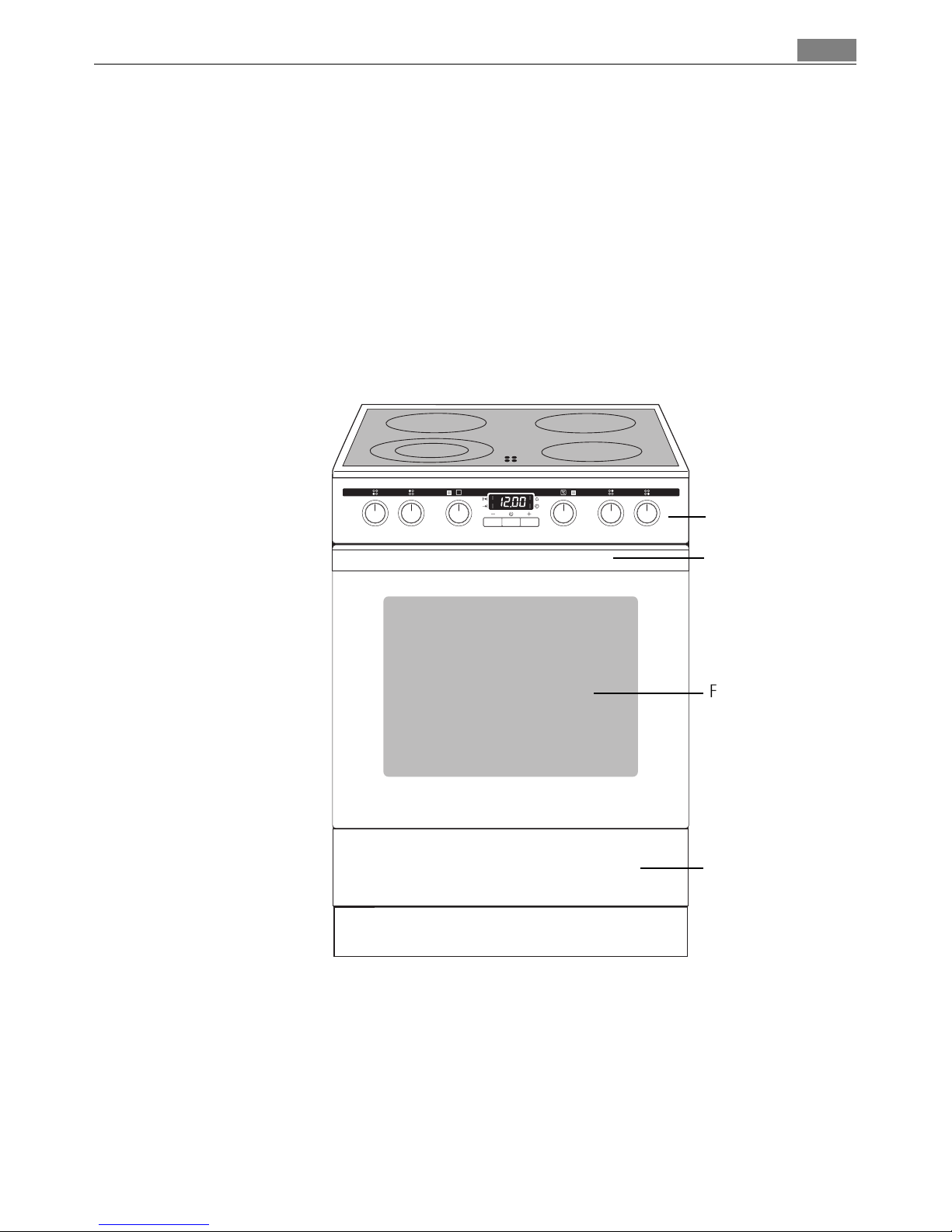

General Overview

Full glass door

Door

handle

Control panel

Pan drawer

Description of the Appliance8

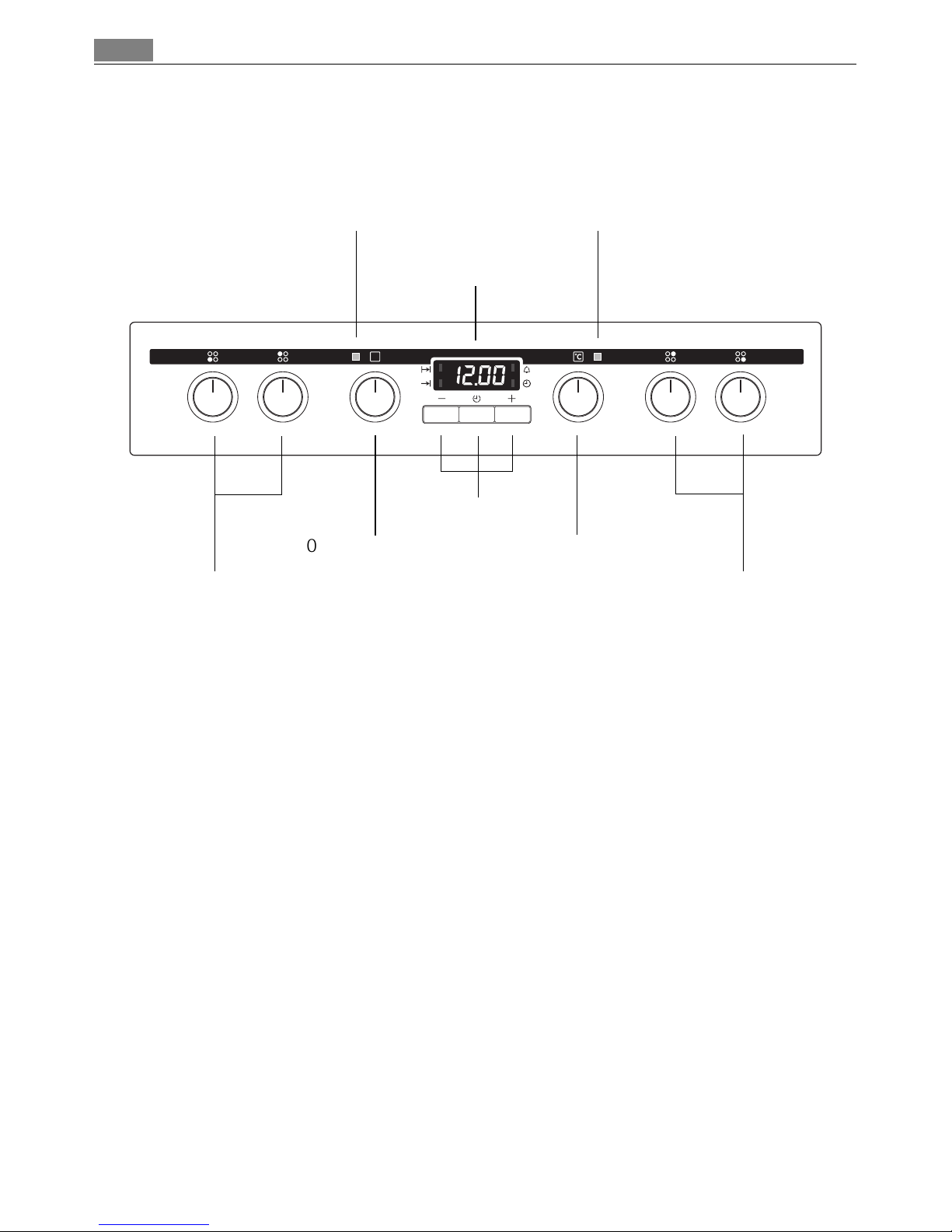

Control Panel

Oven Functions Temperature selector

Hob Cooking Zone Control Knobs

Clock function buttons

Hob Cooking Zone Control Knobs

Oven Power Indicator Temperature Pilot Light

Time display

9Description of the Appliance

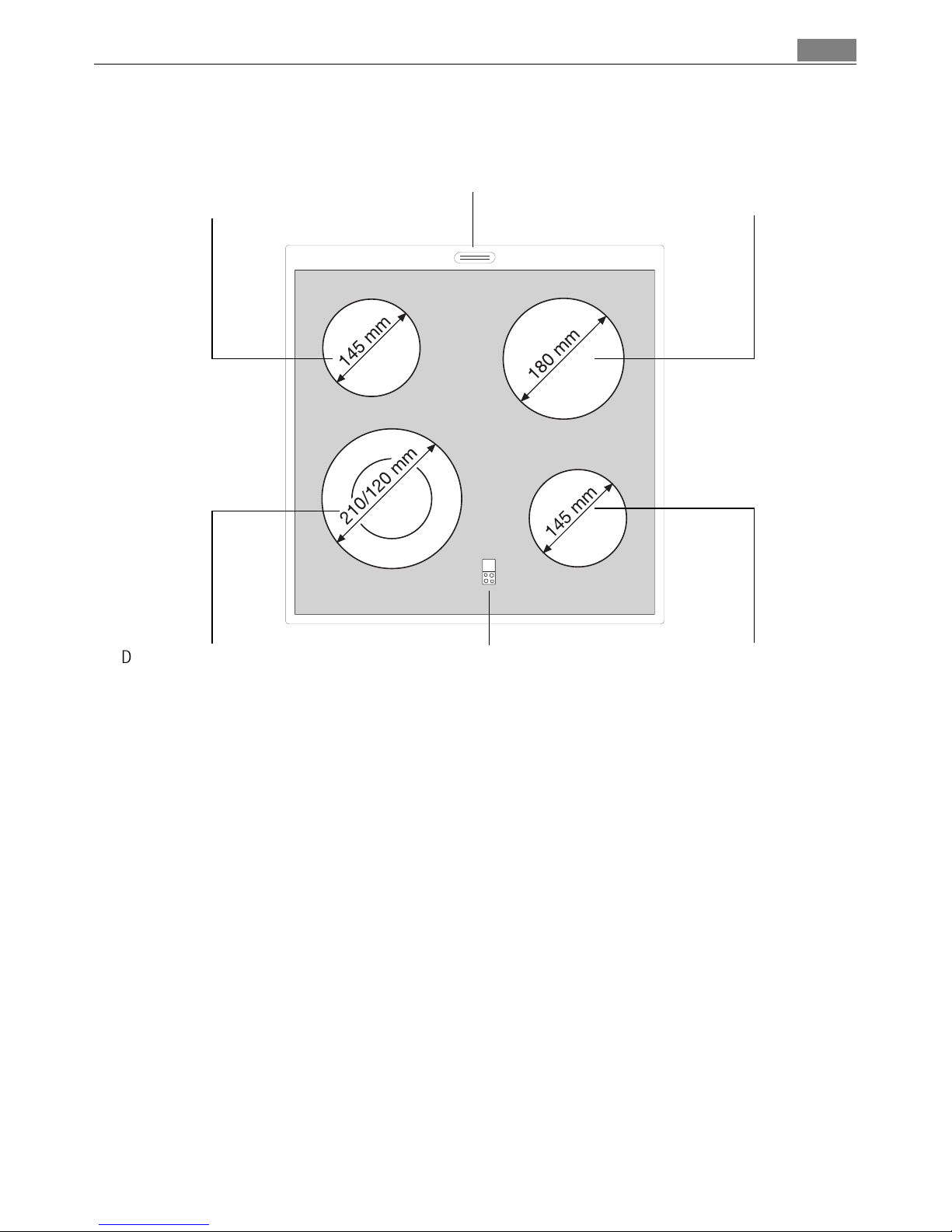

Cooking surface

Double ring cooking zone

2200W

Single cooking zone

1200W

ingle cooking zone

1800W

Residual heat indicator

ingle cooking zone

1200W Oven steam outlet

Description of the Appliance10

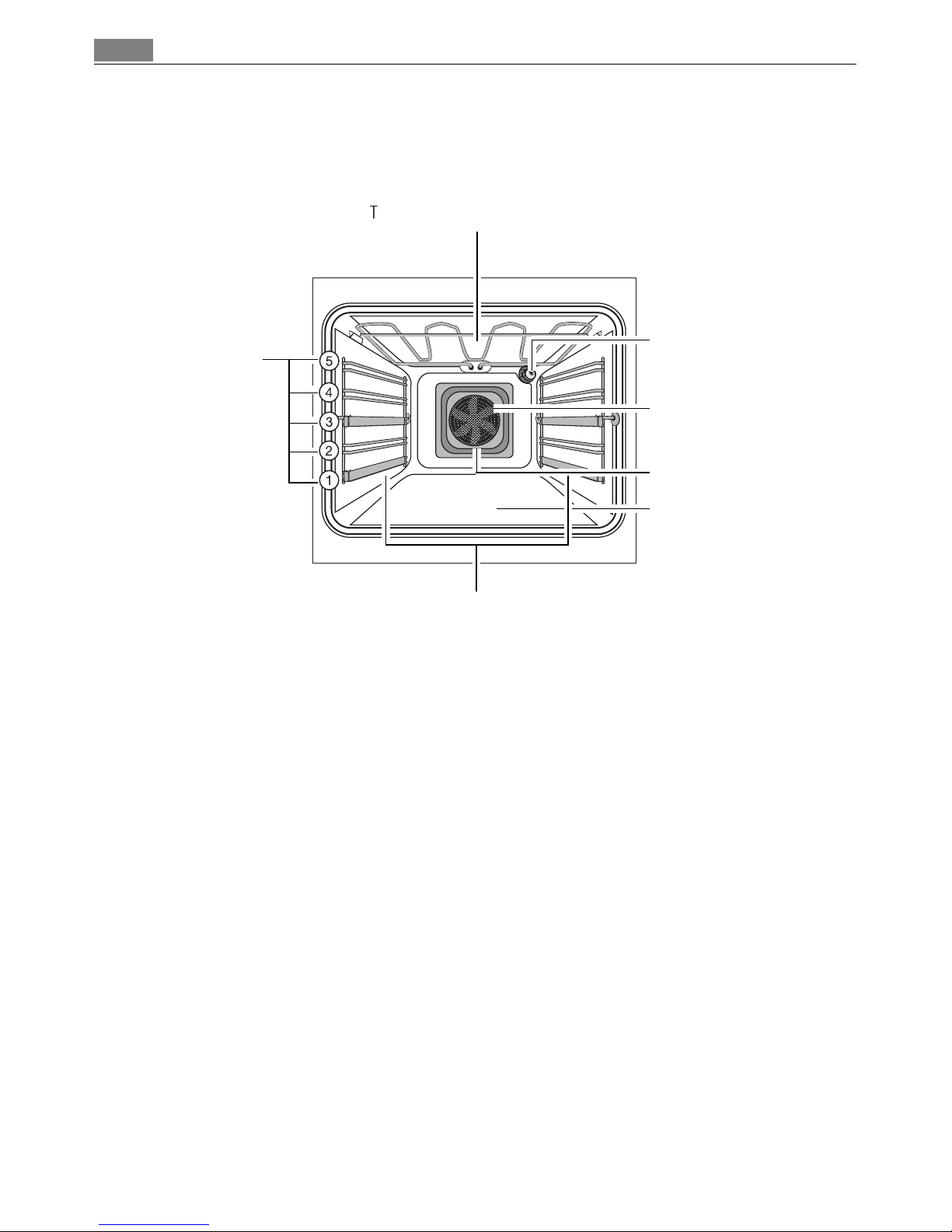

Oven Features

Top heat and heating elements

Oven lighting

Fat Filter

Fan heating element

Fan

Bottom Heat

Shelf positions

Oven shelf runners,

removable
