Electrolux E30GC74GPS1 Manuale utente

E30GC74GPS1.tif ME30GC74GPS1.eps BRE30GC74GPS1.eps 318047111.eps

Product No. E30GC74GPS1

37766226970S1

Series 30" gas

Color stainless

Market North America

Wiring Diagram 318047111

Owner's Guide 318200687

Installation Instructions 318201475

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995533915

09/02/24

(EN/SERVICE/ECL)

377

30” GAS COOK-TOP

Model No.

E30GC74G

Publication No: 5995533915 E30GC74GPS1

02/09 2

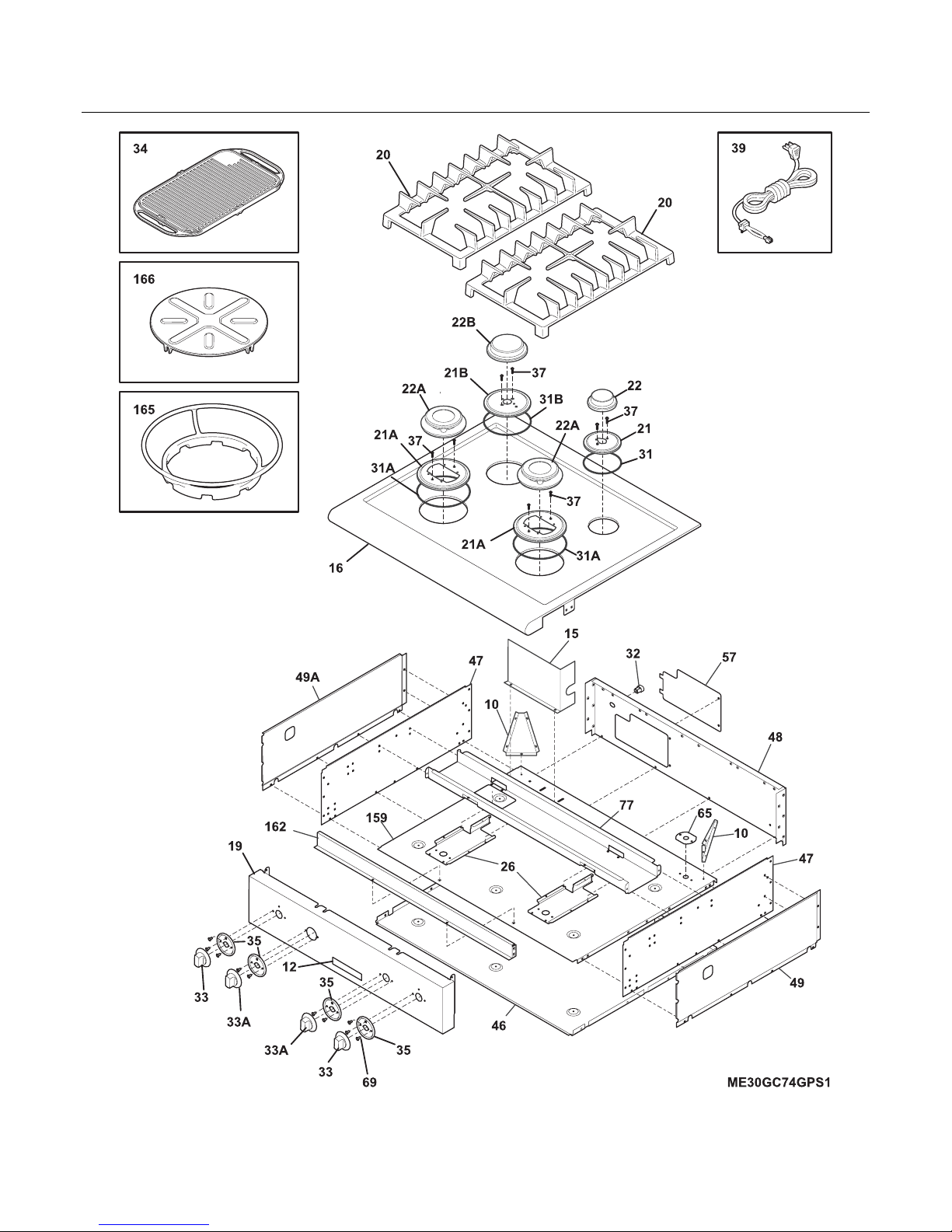

COOK TOP

E30GC74GPS1 Publication No: 5995533915

# Functional Parts 3 02/09

* Non-Illustrated Parts

COOK TOP

POS. NO PART NO. DESCRIPTION

10 7318392500 Bracket, box, (2)

12 7241603101 Label, nameplate, elux/icon

15 7318024206 Deflector, spark module

16 7318185221 Main Top Assy, frame/glass, stainless/black

19 7318285747 Panel, control, stainless

20 7318361403 Grate, top burner, black, (2), double

21 7316514800 Skirt, 5K burner, black

21A 7316515100 Skirt, 18K burner, black, (2)

21B 7316515000 Skirt, 14K burner, black

22 7316510902 Cap, 5K burner, black

22A 7316511502 Cap, 18K burner, black, (2)

22B 7316511302 Cap, 14K burner, black, (2)

26 7318363802 Bracket, channel mtg, (2)

31 7316515200 Seal, 5K burner

31A 7316515203 Seal, 18K burner, (2)

31B 7316515202 Seal, 14K burner

32 73201437 Strain relief

33 7318242225 Knob, control, (2)

33A 7318242226 Knob, control, dual, (2)

34 7318251600 Griddle

35 7318251911 Skirt, (4)

37 7316518100 Screw, ignitor assy mt, 6-32 x .62

39 7318144006 Cord, service

46 7318242810 Panel, base

47 7318241712 Panel, side, (2)

48 7318241820 Panel, rear

49 7318241904 Panel, interior side, RH

49A 7318241905 Panel, interior side, LH

57 7318286400 Panel, service

65 75303304032 Seal, rubber

69 75303300265 Screw, 8-18 X 1/2, (4)

77 7318355502 Bracket, channel mtg.

159 7318242920 Panel, bottom

162 7318245612 Brace, manifold

165 7318254300 Support, WOK

166 7318254200 Simmer Plate

* 7316459400 Pad, cleaning

* 7318163601 Cleaner-cooktop

* 7318163602 Cleaner, stainless steel

* 708016432 Screw, truss head, 8-18 x 0.375

* 75303211311 Screw, 8 x 0.500

* 75303323140 Screw, ground, 10-32 x 0.375

Publication No: 5995533915 E30GC74GPS1

02/09 4

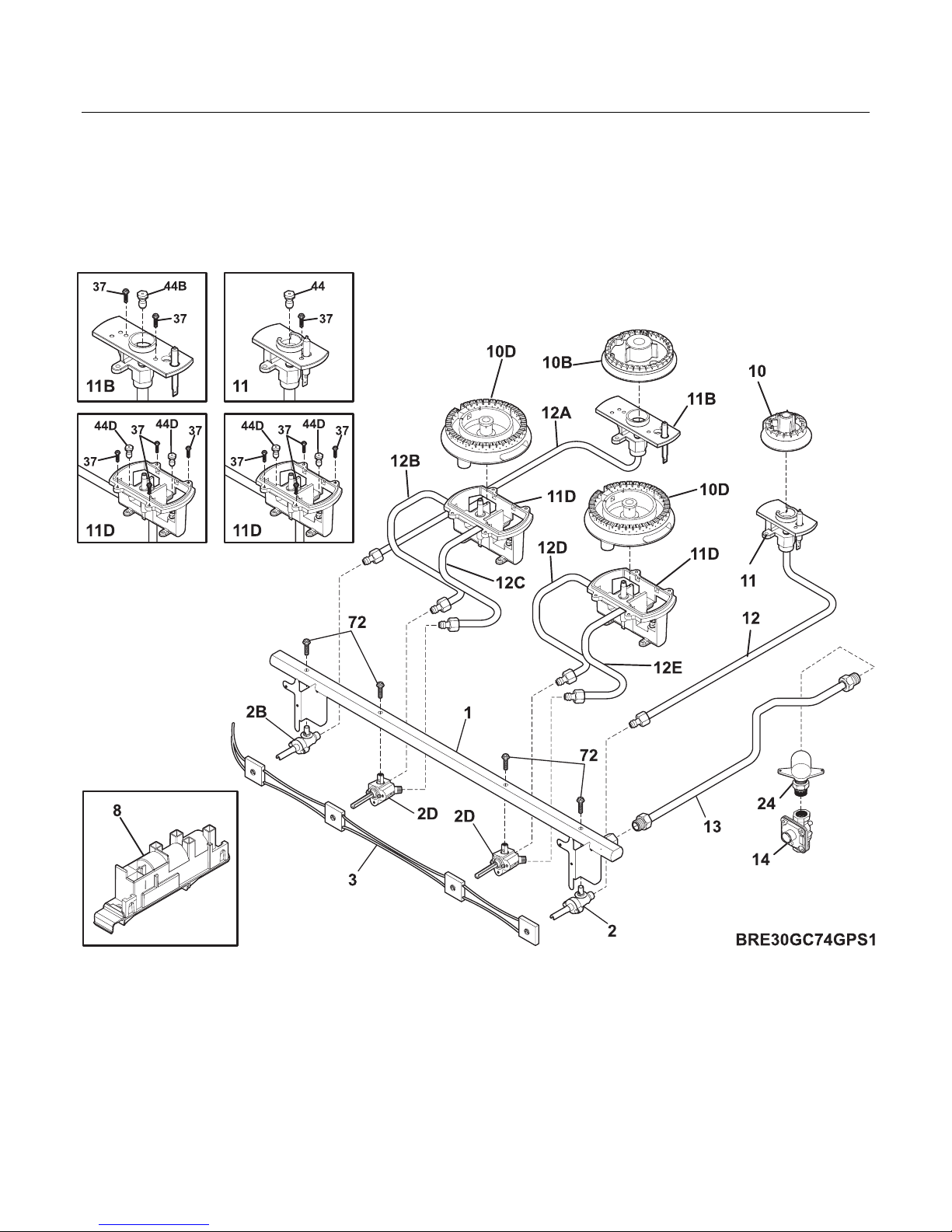

BURNER

E30GC74GPS1 Publication No: 5995533915

# Functional Parts 5 02/09

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 7318234315 Manifold Pipe

2 # 7316520700 Valve, burner, 5K

2B # 7316520703 Valve, burner, 14.2K

2D # 7316412510 Valve, top burner, 18K, dual port

3 # 7318232637 Wiring Harness, w/igntr switch

8 # 7316135701 Module, spark

* 75303323140 Screw, ground, 10-32 x 0.375

* 75303321221 Screw, 8-32 x 3/4

10 # 7316510800 Burner, sealed, 5K

10B# 7316511200 Burner, sealed, 14K

10D# 7316525400 Burner, sealed, dual, 18K

11 # 7316524800 Ignitor/orifice assy., top burner, 5K, w/holder

11B# 7316525000 Ignitor/orifice assy., top burner, 14K, w/holder

11D# 7316525100 Ignitor/orifice assy., top burner, 18K, w/holder

12 # 7318221375 Tubing, 5K, RH rear

12A# 7318221376 Tubing, 14K, LH rear

12B# 7318221377 Tubing, 18K, LH front

12C# 7318221379 Tubing, 18K, LH front

12D# 7318221378 Tubing, 18K, RH front

12E# 7318221380 Tubing, 18K, RH front

13 7318054513 Connector, manifold tube

14 # 7318122706 Regulator, pressure

24 7318054010 Elbow, fitting

* 708011955 Screw, 10-24 x 0.375, square drive

37 75303305528 Screw, 8-32 x 1/4

44 7316523504 Orifice, top burner, 5K

44B 7316523506 Orifice, top burner, 14K

44D 7316523508 Orifice, top burner, 18K

72 7316215600 Screw, valve mtg., 1/4 - 20

* # 7318127440 LP Conversion Kit

* # 7318199778 Wiring Harness, ignitor

Publication No: 5995533915 E30GC74GPS1

02/09 6

WIRING DIAGRAM
