Electrolux E36EC75HSS1 Manuale utente

E36EC75HSS1.tif CE36EC75HSS1.eps ME36EC75HSS1.eps 318046841.eps

Product No. E36EC75HSS1

38066423880S1

Series 36" icon

Color stainless

Market North America

Wiring Diagram 318046841

Owner's Guide 318203609

Installation Instructions 318201413

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995528972

08/11/17

(EN/SERVICE/ECL)

377

36” ELECTRIC

COOK-TOP

Model No.

E36EC75H

Publication No: 5995528972 E36EC75HSS1

11/08 2

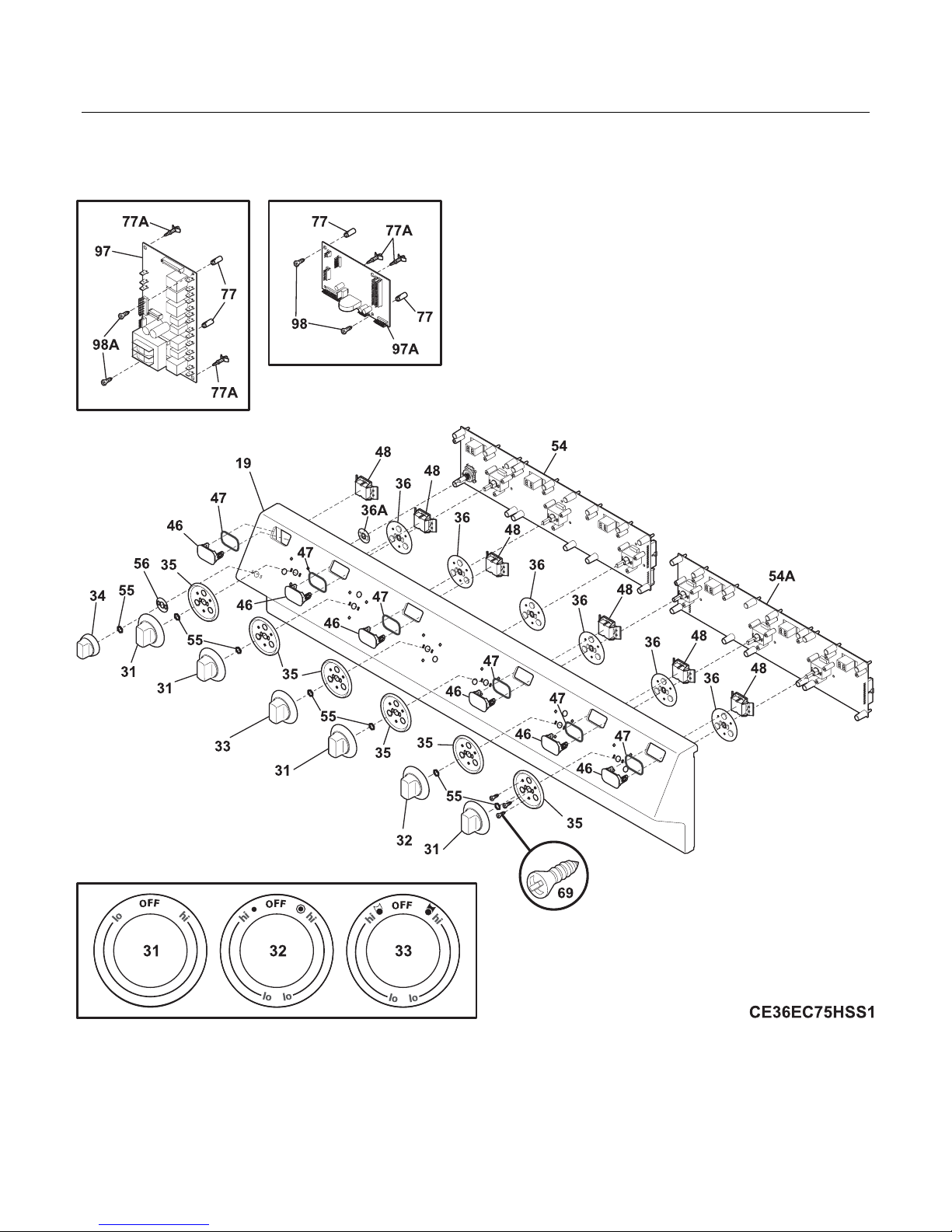

CONTROL PANEL

E36EC75HSS1 Publication No: 5995528972

# Functional Parts 3 11/08

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

19 7318234910 Panel, control, stainless

* 708016432 Screw, truss head, 8-18 x 0.375

31 7318242250 Knob, control, stainless, (4)

32 7318242251 Knob, control, stainless, dual

33 7318242257 Knob, control, stainless, bridge

34 7318314705 Knob, selector, stainless

35 7318251905 Skirt, (6)

36 7318146305 Bushing, (6)

36A 7318146307 Bushing

46 7318319020 Lens, indicator light, (6)

47 7318367102 Clamp, lens, (6)

48 7318337101 Gasket, O'ring, (6)

54 # 7316541800 Control Assembly, LH, w/potentiometer

54A# 7316541801 Control Assembly, RH, w/potentiometer

55 7316247700 Nut, mounting

55* 7316247800 Washer, lock, mtg

56 7318086006 Flat washer, stainless

69 75304468081 Screw, mouinting, 6-32 x 3/8, (18)

77 7316247900 Spacer, power board

77A 7316114100 Spacer

97 # 7316442113 Board, power, relay

97A# 7316442053 Board, user interface, (UIB)

98 75304401490 Screw, 6-18 x 1, (2)

98A 75304400427 Screw, 6-20 x 1/2, (2)

* # 7318083058 Wiring Harness, interface, to power relay

* # 7318402301 Wiring Harness, interface, UIB board, to LH/RH cntrl

* # 7318402302 Wiring Harness, interface, UIB board, to RH control

* # 7318402331 Wiring Harness, interface, UIB board, to LH control

* 75304400192 retainer wire

* 7318163602 Cleaner, stainless steel

Publication No: 5995528972 E36EC75HSS1

11/08 4

MAIN TOP/SURFACE UNITS

E36EC75HSS1 Publication No: 5995528972

# Functional Parts 5 11/08

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

POS. NO PART NO. DESCRIPTION

15 # 7318198830 Element, surface, 6", 1200 W, (2)

15A# 7316465001 Element-surface, 9", 3000W, radiant

15B# 7318258203 Element, bridge, 1800/2600

15C# 7318297804 Element, surface, triple, 800/900/1000

16 7318185223 Main Top Assy, frame/glass, stainless/black

* 75303323130 Screw, 8 x 1/4, (5)

34 7316432200 Griddle

46 7318242806 Panel, base

47 7318241704 Panel, side, (2)

48 7318241804 Panel, rear

49 7318241902 Panel, interior side, RH

49A 7318241903 Panel, interior side, LH

51 7318389600 Bracket, conduit mtg.

52 7318122006 Spring, element mtg, small

52A 7318122010 Spring, element mtg, 3000W

52B 7318122008 Spring, element mtg, 1800W/3000W

57 7318402801 Plate, cover

62 7316056000 Terminal Block

62* 75303323144 Nut, 10-32

62* 75303323139 Screw, 10-24 x 0.906

159 7318242951 Panel, bottom

162 7318245508 Shield, heat

* # 7318394455 Box & wires assy

* # 7318199491 Harness, wiring, main

* 75304400192 retainer wire

* 708016432 Screw, truss head, 8-18 x 0.375

* 7318163602 Cleaner, stainless steel

* 7318163601 Cleaner-cooktop

* 7318406000 Sponge, cleaning

* 75303323140 Screw, ground, 10-32 x 0.375

Publication No: 5995528972 E36EC75HSS1

11/08 6

WIRING DIAGRAM
