Electrolux 587.14683200A Manuale

58714683.jpg D58714683110.wmf UEIDW1805KS0A.eps M58714683110.wmf

R58714683110.wmf P30F0007.EPS P30R0024.EPS

REPAIR

PARTS

LIST

587.14683200A

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

18-INCH BUILT-IN DISHWASHER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the right hand

side of the front tub flange, directly behind the door of the dishwasher.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Publication number 5995630588

587.14683200A

04/13 2

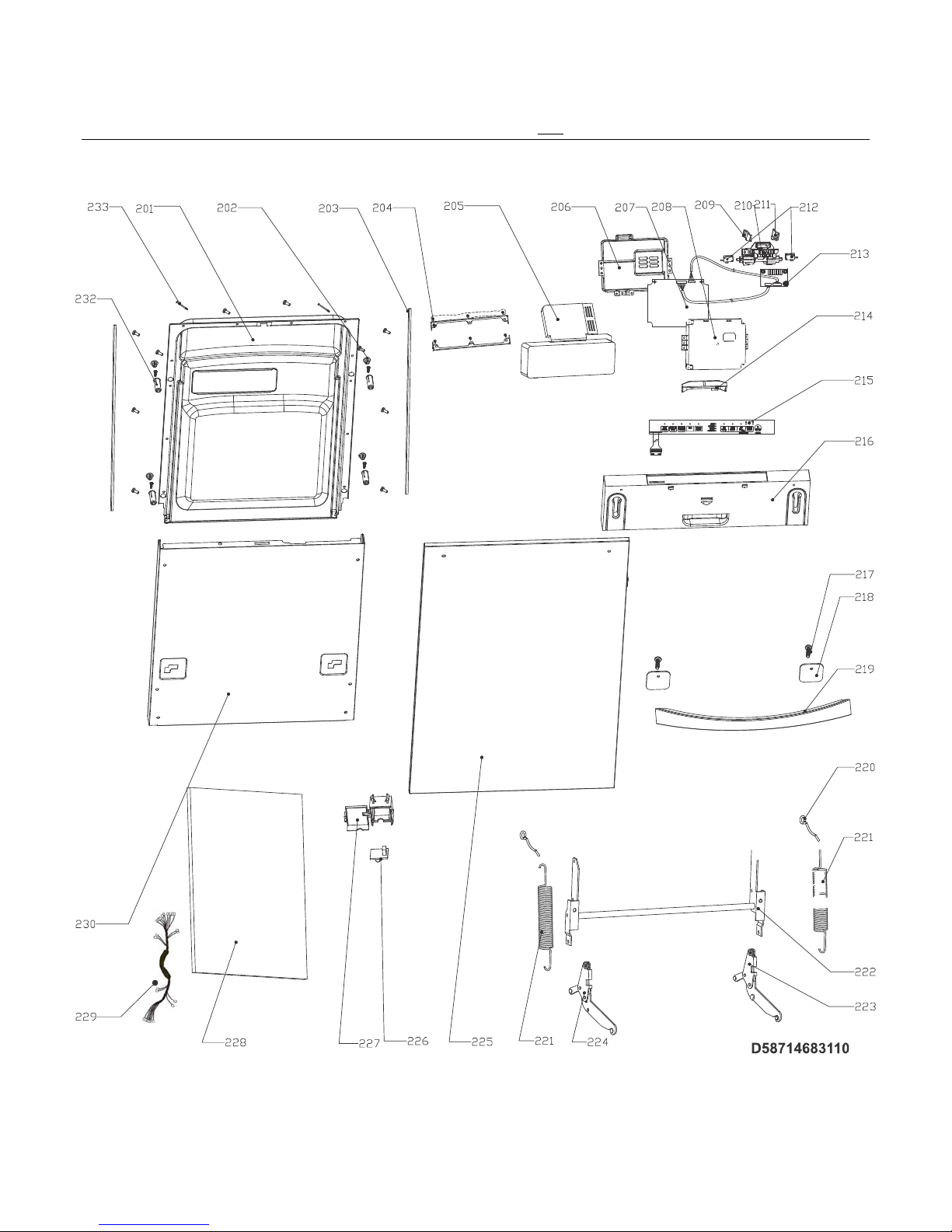

CONTROL PANEL/DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.14683200A

# Functional Parts 3 04/13

* Non-Illustrated Parts

CONTROL PANEL/DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

201 5304483637 Liner Assembly, door, inner

202 5304483638 Cap, screw cover, (4)

203 5304482448 Guard, door, black, side, (2)

204 5304482449 Bracket, dispenser mtg., (2)

205# 5304484723 Dispenser Assembly, detergent

206 5304483458 Cover, control board

207# 5304483640 Board Assembly, control, main

208 5304483466 Box, main board

209 5304483464 Barrier, switch, LH

210 5304482428 Latch, door

211 5304483465 Barrier, switch, RH

212# 5304483463 Switch, micro, (2), latch assembly

213# 5304483461 Control Board, small

214 5304483641 Cover, console

215# 5304485740 Membrane, touch control, assembly

216 5304485741 Console Assembly

217 5304485742 Screw, handle mtg., M5 x 16, (2)

218 5304483645 Plate, handle support, (2)

219 5304485743 Handle Assembly, door

220 5304482486 Bolt, door spring, (2)

221 5304483475 Spring, door hinge, (2)

222 5304483476 Hinge Assembly, door

223 5304482484 Hinge, door, RH

224 5304482483 Hinge, door, LH

225 5304483647 Door Assembly, outer

226# 5304483648 Indicator, LED

227 5304483649 Cover, LED indicator

228 5304483650 Insulation, door, foam

229# 5304483651 Harness, wiring, main

230 5304483652 Frame, door, inner

232 5304483654 Cover, screw, (4)

233 5304483655 Screw, 3.5 x 45, (2)

* 5995630588 Repair Parts List

* 5304485755 Owners Manual

* 5304485757 Service Data Sheet

* 5304485756 Installation Instrctions

* 5304485758 Label, energy guide

587.14683200A

04/13 4

TUB/FRAME

CAUTION: Use the Kenmore part number to order part, not the illustration number.

UEIDW1805KS0

587.14683200A

# Functional Parts 5 04/13

* Non-Illustrated Parts

TUB/FRAME

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

101 5304483668 Insulation, blanket, outer

102# 5304483573 Tub Assembly

103 5304483487 Brace Assembly, upper, black, front

104 5304483484 Block, coupling

105 5304483485 Hook, door lock

106 5304482409 Holder, leveling foot, (4)

107 5304482372 Block, top, black, (2)

108 5304483631 Guard, tub band, (2)

109 5304483632 Cap, guide rail, (4)

110 5304483491 Gasket, tub, w/fasteners

110* 5304485149 Fastener, tub gasket, bottom, (2)

111 5304483633 Roller Assembly, tub, (4)

112 5304483489 Rail, guide, upper rack, (2)

113 5304482366 Upright Assembly, RH

114 5304483494 Cover, junction box

115 5304483634 Grommet, junction box

116 5304483495 Box, junction

117 5304483502 Brace, back, lower

118 5304483492 Support, toeplate, (2)

119 5304483635 Toe Plate

120 5304483636 Toe Plate, adjustable

121 5304483501 Brace, front, lower, (3)

122 5304482408 Foot, leveling, (4)

123 5304482365 Upright Assembly, LH

124 5304482411 Bracket, motor support

587.14683200A

04/13 6

MOTOR & PUMP

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.14683200A

# Functional Parts 7 04/13

* Non-Illustrated Parts

MOTOR & PUMP

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

301 5304483437 Delivery Hose, assembly

302 5304482363 O Ring, delivery tube, (2)

303 5304483656 Casing, guide, delivery tube

304 5304483657 Nut, pipe, delivery tube

305# 5304483450 Spray arm, assembly, lower

306 5304483451 Axis Assembly, spray arm, lower

307 5304483452 Connector Assembly, spray arm, lower

308 5304482464 Filter Assembly, screen, stainless

309 5304483438 Filter Assembly

310 5304483439 Filter Assembly, micro

311 5304483440 Nut, sump mtg.

312 5304482467 Gasket, sump

313# 5304483442 Sump Assembly

314# 5304483441 Thermistor

315 5304482469 Flapper, check valve

316 5304482470 Bracket, thermostat

317# 5304482472 Thermostat, 90

318 5304482391 Cover, water tunnel

319 5304482392 Tunnel, water

320 5304483658 Hose, inlet, tunnel

321 5304482394 Gasket, ring nut

322 5304483443 Ring Nut

323# 5304483444 Pump, drain

324 5304482501 Screw, rec, ST4 x 15.5, (2)

325 5304482462 Casing, haeting element, (2)

326# 5304483447 Element Assembly, heating

327# 5304483659 Spray Arm Assembly, upper

328 5304483660 Fill Tube, spray arm, upper

329 5304483661 Dispensing Assembly, spray arm, upper

330 5304482453 Clamp, hose, OTK310, (7)

331 5304482455 Duct, connecting, (2)

332# 5304483454 Pump Assembly, motor, w/capacitor

333 5304485744 Support, motor

334 5304485745 Cushion, motor assy.

335 5304482473 Duct, connecting, external pipe

336# 5304482397 Switch, pressure

337 5304483455 Hose, pressure switch

338# 5304482406 Valve, inlet

339 5304483457 Support, pressure switch

340 5304483663 Tunnel, water

341 5304483456 Hose, drain

587.14683200A

04/13 8

RACKS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.14683200A

# Functional Parts 9 04/13

* Non-Illustrated Parts

RACKS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

401 5304485746 Rack Assembly, upper

402 5304483665 Rack Assembly, lower

403 5304483666 Bracket, fence, fold down, (4)

404 5304483667 Basket Assembly, silverware

405 5304485747 Handle, rack

406 5304485748 Basket, small

® Registered Trademark /

Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /

Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países

Marque de commerce /

Marque déposée de Sears Brands, LLC
