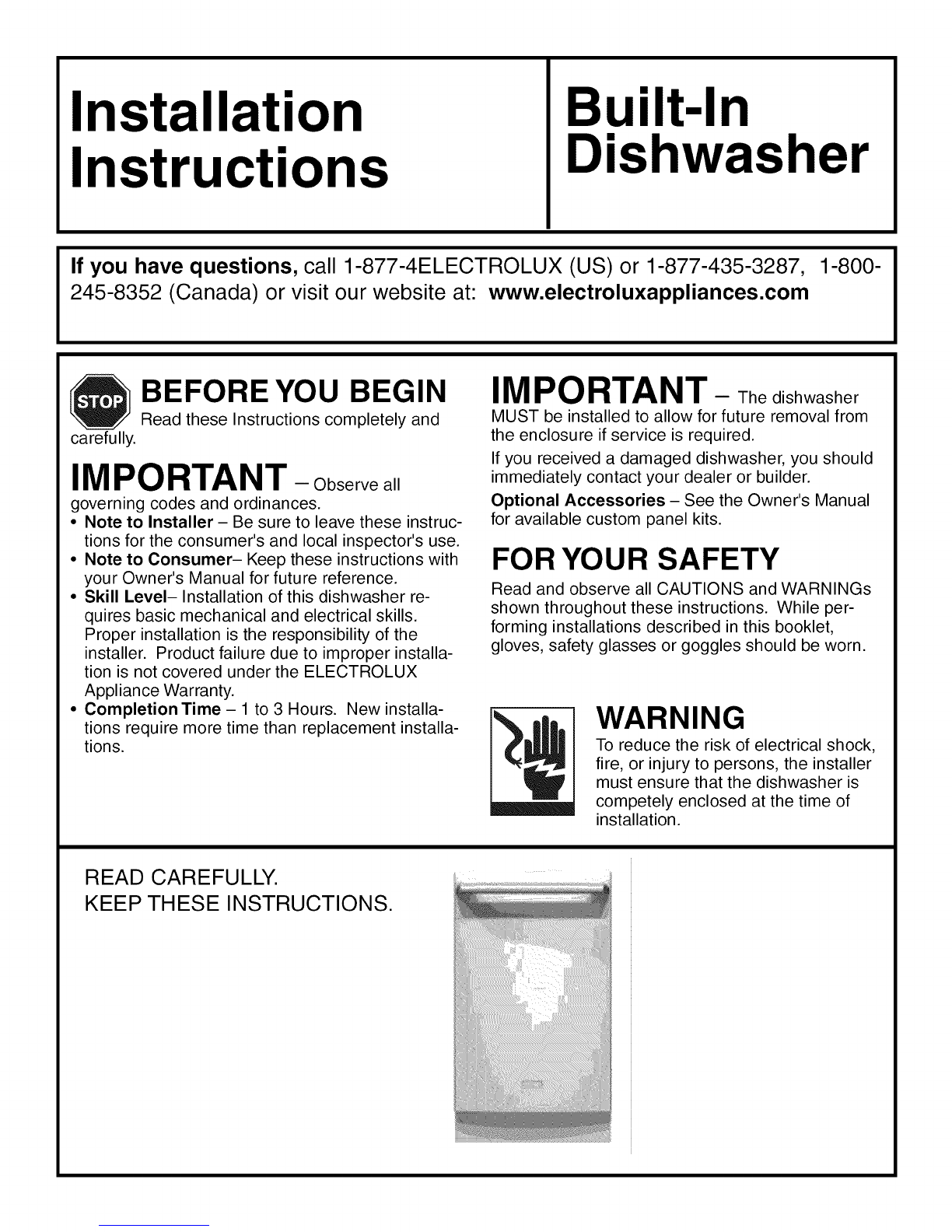

Installation

Instructions Built-In

Dishwasher

If you have questions, call 1-877-4ELECTROLUX (US) or 1-877-435-3287, 1-800-

245-8352 (Canada) or visit our website at: www.electroluxappliances.com

BEFORE YOU BEGIN

Read these Instructions completely and

carefully.

IMPORTANT --Observe all

governing codes and ordinances.

•Note to Installer - Be sure to leave these instruc-

tions for the consumer's and local inspector's use.

• Note to Consumer- Keep these instructions with

your Owner's Manual for future reference.

• Skill Level- Installation of this dishwasher re-

quires basic mechanical and electrical skills.

Proper installation is the responsibility of the

installer. Product failure due to improper installa-

tion is not covered under the ELECTROLUX

Appliance Warranty.

• Completion Time - 1 to 3 Hours. New installa-

tions require more time than replacement installa-

tions.

IMPORTANT - Thedishwasher

MUST be installed to allow for future removal from

the enclosure if service is required.

If you received a damaged dishwasher, you should

immediately contact your dealer or builder.

Optional Accessories - See the Owner's Manual

for available custom panel kits.

FOR YOUR SAFETY

Read and observe all CAUTIONS and WARNINGs

shown throughout these instructions. While per-

forming installations described in this booklet,

gloves, safety glasses or goggles should be worn.

WARNING

To reduce the risk of electrical shock,

fire, or injury to persons, the installer

must ensure that the dishwasher is

competely enclosed at the time of

installation.

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

Installation Preparation

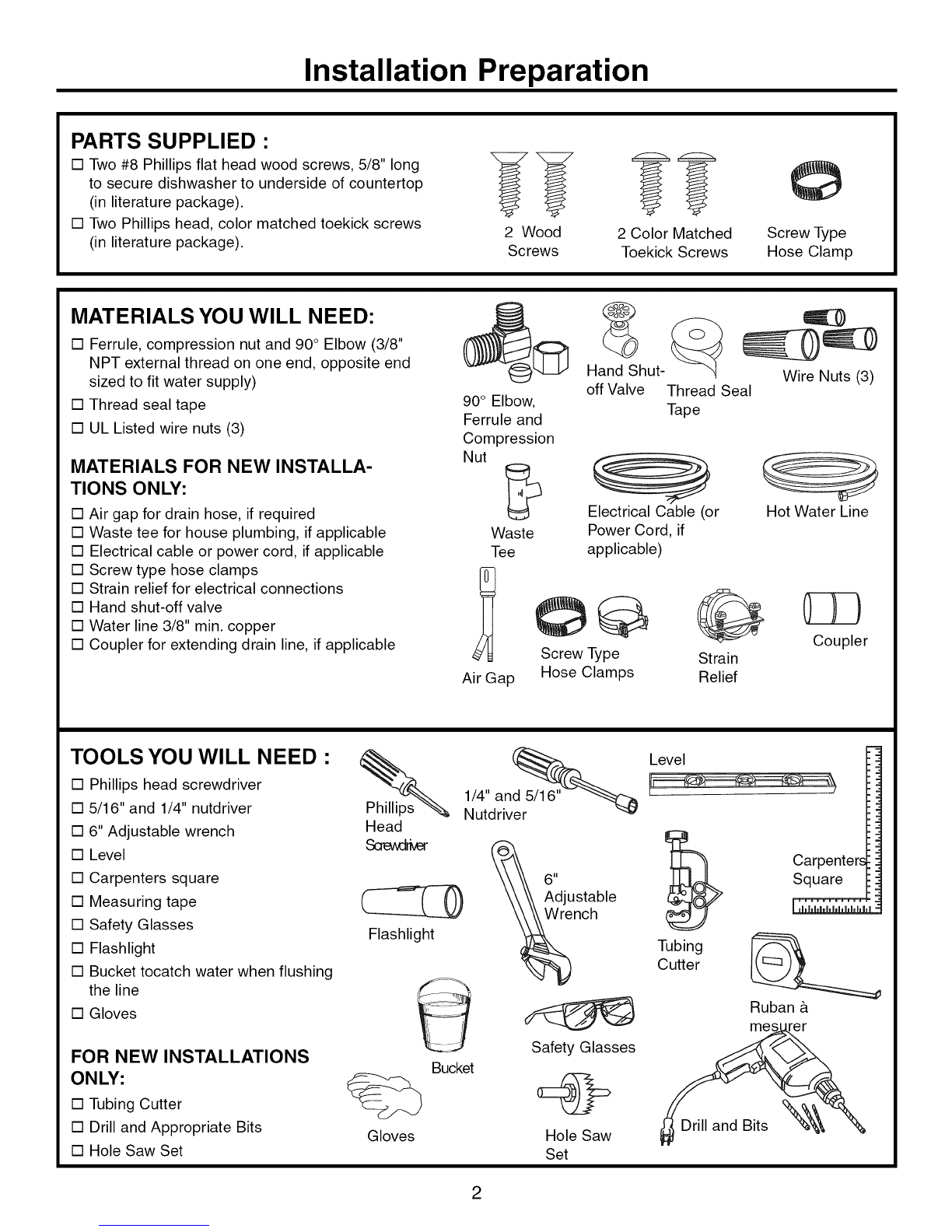

PARTS SUPPLIED :

[] Two #8 Phillips flat head wood screws, 5/8" long

to secure dishwasher to underside of countertop

(in literature package).

[] Two Phillips head, color matched toekick screws

(in literature package). 2 Wood

Screws TY

2 Color Matched

Toekick Screws Screw Type

Hose Clamp

MATERIALS YOU WILL NEED:

[] Ferrule, compression nut and 90° Elbow (3/8"

NPT external thread on one end, opposite end

sized to fit water supply)

[] Thread seal tape

[] UL Listed wire nuts (3)

MATERIALS FOR NEW INSTALLA-

TIONS ONLY:

[] Air gap for drain hose, if required

[] Waste tee for house plumbing, if applicable

[] Electrical cable or power cord, if applicable

[] Screw type hose clamps

[] Strain relief for electrical connections

[] Hand shut-off valve

[] Water line 3/8" min. copper

[] Coupler for extending drain line, if applicable

90° Elbow,

Ferrule and

Compression

Nut

Waste

Tee

Air Gap

Hand Shut-

off Valve Thread Seal

Tape

Electrical Cable (or

Power Cord, if

applicable)

Wire Nuts (3)

Hot Water Line

OcDCoupler

Screw Type Strain

Hose Clamps Relief

TOOLS YOU WILL NEED :

[] Phillips head screwdriver

[] 5/16" and 1/4" nutdriver

[] 6" Adjustable wrench

[] Level

[] Carpenters square

[] Measuring tape

[] Safety Glasses

[] Flashlight

[] Bucket tocatch water when flushing

the line

[] Gloves

FOR NEW INSTALLATIONS

ONLY:

[] Tubing Cutter

[] Drill and Appropriate Bits

[] Hole Saw Set

Head

Screwcbw

czzZb

Flashlight

Bucket

Gloves

1/4" an_

Nutdriver

6 ".i.sta ,e

nch

Safety Glasses

Hole Saw

Set

Level

Carpenters

Square

Tubing

Cutter

Ruban &

Installation Preparation

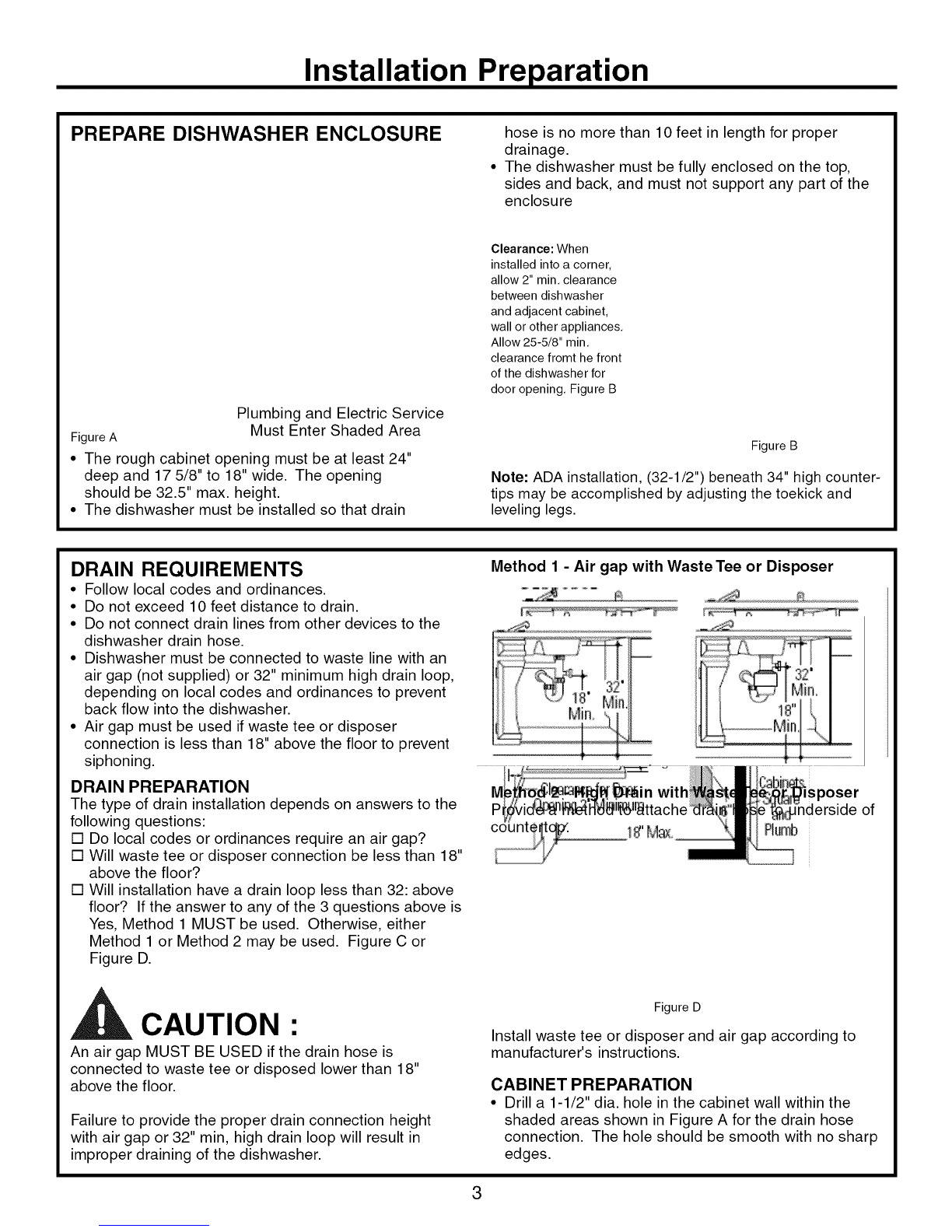

PREPARE DISHWASHER ENCLOSURE hose is no more than 10 feet in length for proper

drainage.

• The dishwasher must be fully enclosed on the top,

sides and back, and must not support any part of the

enclosure

Plumbing and Electric Service

FigureA Must Enter Shaded Area

• The rough cabinet opening must be at least 24"

deep and 17 5/8" to 18" wide. The opening

should be 32.5" max. height.

• The dishwasher must be installed so that drain

Clearance: When

installed into a corner,

allow 2" min. clearance

between dishwasher

and adjacent cabinet,

wall or other appliances.

Allow 25-5/8" min.

clearance fromt he front

of the dishwasher for

door opening. Figure B

Figure B

Note: ADA installation, (32-1/2") beneath 34" high counter-

tips may be accomplished by adjusting the toekick and

leveling legs.

DRAIN REQUIREMENTS

• Follow local codes and ordinances.

• Do not exceed 10 feet distance to drain.

• Do not connect drain lines from other devices to the

dishwasher drain hose.

• Dishwasher must be connected to waste line with an

air gap (not supplied) or 32" minimum high drain loop,

depending on local codes and ordinances to prevent

back flow into the dishwasher.

• Air gap must be used if waste tee or disposer

connection is less than 18" above the floor to prevent

siphoning.

DRAIN PREPARATION

The type of drain installation depends on answers to the

following questions:

[] Do local codes or ordinances require an air gap?

[] Will waste tee or disposer connection be less than 18"

above the floor?

[] Will installation have a drain loop less than 32: above

floor? If the answer to any of the 3 questions above is

Yes, Method 1 MUST be used. Otherwise, either

Method 1 or Method 2 may be used. Figure C or

Figure D.

CAUTION :

An air gap MUST BE USED if the drain hose is

connected to waste tee or disposed lower than 18"

above the floor.

Failure to provide the proper drain connection height

with air gap or 32" min, high drain loop will result in

improper draining of the dishwasher.

Method 1 - Air gap with Waste Tee or Disposer

_sposer

lderside of

Plumb

Figure D

Install waste tee or disposer and air gap according to

manufacturer's instructions.

CABINET PREPARATION

• Drill a 1-1/2" dia. hole in the cabinet wall within the

shaded areas shown in Figure A for the drain hose

connection. The hole should be smooth with no sharp

edges.

Installation Preparation

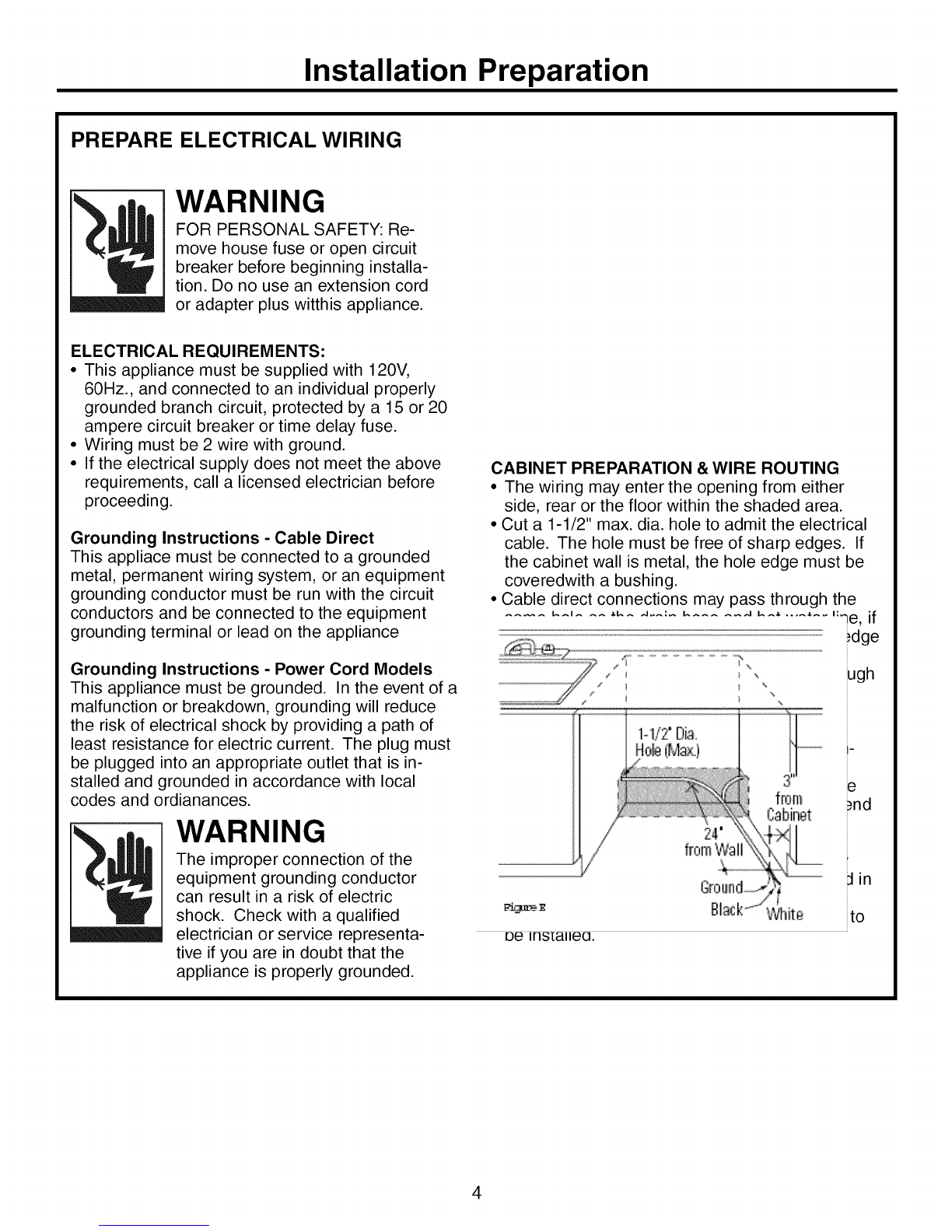

PREPARE ELECTRICAL WIRING

WARNING

FOR PERSONAL SAFETY: Re-

move house fuse or open circuit

breaker before beginning installa-

tion. Do no use an extension cord

or adapter plus witthis appliance.

ELECTRICAL REQUIREMENTS:

•This appliance must be supplied with 120V,

60Hz., and connected to an individual properly

grounded branch circuit, protected by a 15 or 20

ampere circuit breaker or time delay fuse.

• Wiring must be 2 wire with ground.

• If the electrical supply does not meet the above

requirements, call a licensed electrician before

proceeding.

Grounding Instructions - Cable Direct

This appliace must be connected to a grounded

metal, permanent wiring system, or an equipment

grounding conductor must be run with the circuit

conductors and be connected to the equipment

grounding terminal or lead on the appliance

Grounding Instructions - Power Cord Models

This appliance must be grounded. In the event of a

malfunction or breakdown, grounding will reduce

the risk of electrical shock by providing a path of

least resistance for electric current. The plug must

be plugged into an appropriate outlet that is in-

stalled and grounded in accordance with local

codes and ordianances.

WARNING

The improper connection of the

equipment grounding conductor

can result in a risk of electric

shock. Check with a qualified

electrician or service representa-

tive if you are in doubt that the

appliance is properly grounded.

CABINET PREPARATION & WIRE ROUTING

• The wiring may enter the opening from either

side, rear or the floor within the shaded area.

• Cut a 1-1/2" max. dia. hole to admit the electrical

cable. The hole must be free of sharp edges. If

the cabinet wall is metal, the hole edge must be

coveredwith a bushing.

• Cable direct connections may pass through the

.... '-^' .... '-^ -'-^=- '-..... -' '- ......... '=qe, if

.,dge

ugh

Installation Instructions

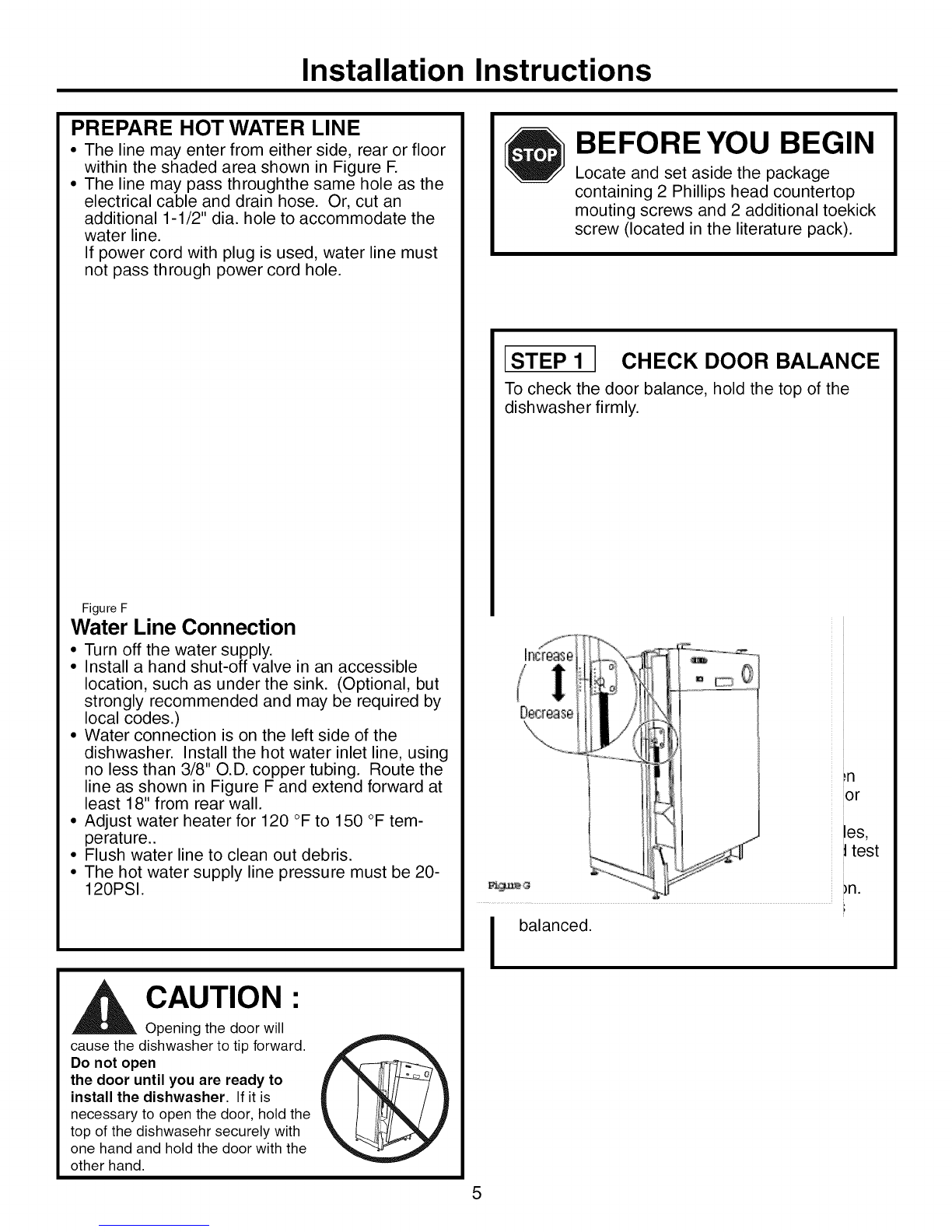

PREPARE HOT WATER LINE

•The line may enter from either side, rear or floor

within the shaded area shown in Figure R

• The line may pass throughthe same hole as the

electrical cable and drain hose. Or, cut an

additional 1-1/2" dia. hole to accommodate the

water line.

If power cord with plug is used, water line must

not pass through power cord hole.

Figure F

Water Line Connection

• Turn off the water supply.

• Install a hand shut-off valve in an accessible

location, such as under the sink. (Optional, but

strongly recommended and may be required by

local codes.)

• Water connection is on the left side of the

dishwasher. Install the hot water inlet line, using

no less than 3/8" O.D. copper tubing. Route the

line as shown in Figure F and extend forward at

least 18" from rear wall.

• Adjust water heater for 120 °F to 150 °F tem-

perature..

• Flush water line to clean out debris.

• The hot water supply line pressure must be 20-

120PSI.

CAUTION :

Opening the door will

cause the dishwasher to tip forward.

Do not open

the door until you are ready to

install the dishwasher. If it is

necessary to open the door, hold the

top of the dishwasehr securely with

one hand and hold the door with the

other hand.

BEFORE YOU BEGIN

Locate and set aside the package

containing 2 Phillips head countertop

mouting screws and 2 additional toekick

screw (located in the literature pack).

STEP 1CHECK DOOR BALANCE

To check the door balance, hold the top of the

dishwasher firmly.

ior

les,

test

I balanced.

Installation Instructions

_STEP 2 ] ADJUST LEVELING

LEGS

• Move the dishwasher close to the installation

location and lay it on its back.

• Measure installation height and dishwasher

height. Extend leveling legs out from the

dishwasher base, 1/4" less than installation

height.

STEP 3 REMOVE KICKPLATE

• Remove the 4 toekick screws. Lift off the 2

piece toekick.

STEP 4 INSTALL 90 °ELBOW

• Wrap 90 ° elbow with thread seal tape.

• Install a 90 ° elbow onto the water valve.

• Do not over tighten 90 ° elbow, water valve

bracket could bend or water valve fitting could

break.

Elbow

Position the end of the elbow to face the rear of

the dishwasher.

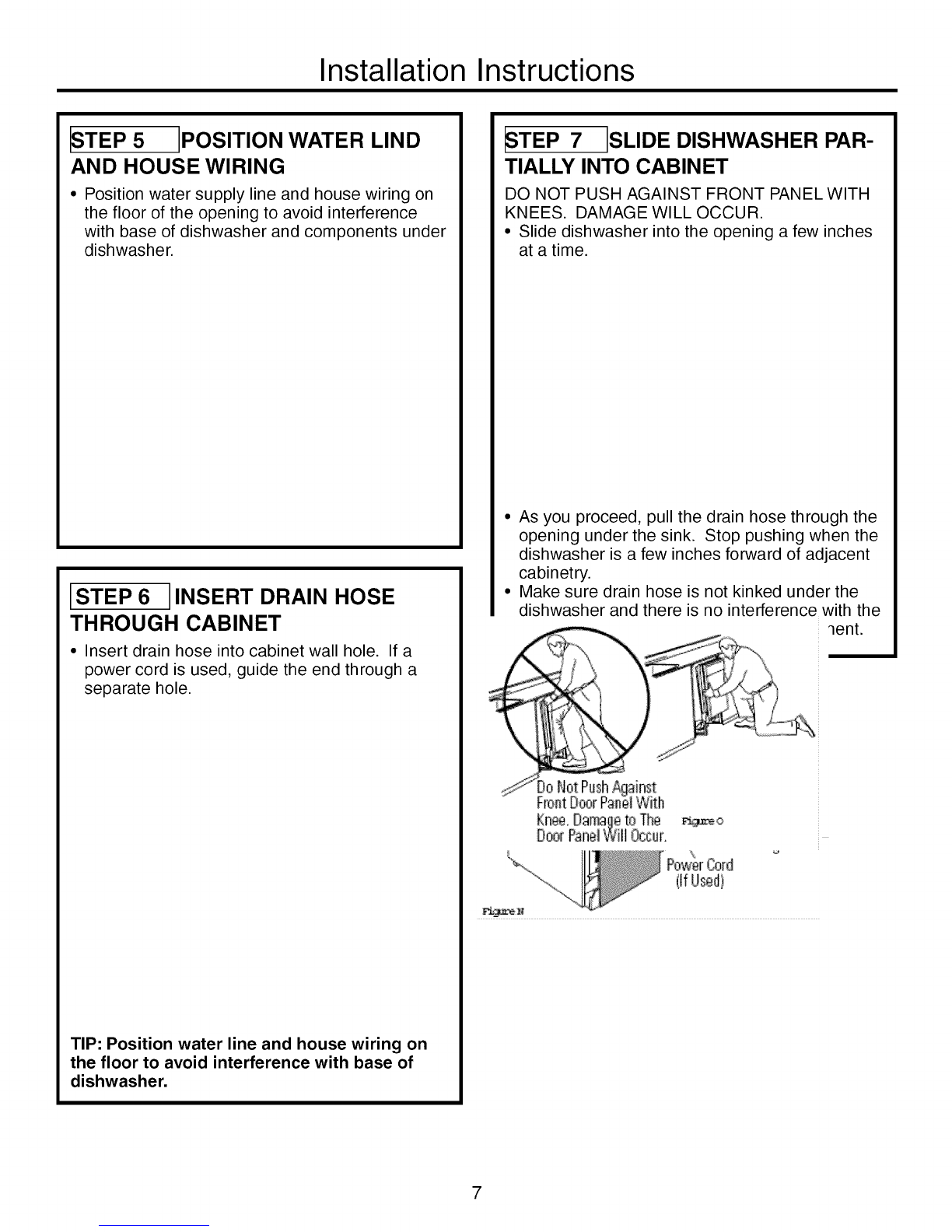

Installation Instructions

ISTEP 5 POSITION WATER LIND

AND HOUSE WIRING

• Position water supply line and house wiring on

the floor of the opening to avoid interference

with base of dishwasher and components under

dishwasher.

[STEP 6 ]INSERT DRAIN HOSE

THROUGH CABINET

• Insert drain hose into cabinet wall hole. If a

power cord is used, guide the end through a

separate hole.

TIP: Position water line and house wiring on

the floor to avoid interference with base of

dishwasher.

ISTEP 7 SLIDE DISHWASHER PAR-

TIALLY INTO CABINET

DO NOT PUSH AGAINST FRONT PANELWITH

KNEES. DAMAGE WILL OCCUR.

• Slide dishwasher into the opening a few inches

at a time.

• As you proceed, pull the drain hose through the

opening under the sink. Stop pushing when the

dishwasher is a few inches forward of adjacent

cabinetry.

• Make sure drain hose is not kinked under the

dishwasher and there is no interference with the

'_ent.

Installation Instructions

STEP 8 POSTION DISHWASHER UNDER COUNTERTOP

•Check to be sure that wires are secure under

the dishwasher and not pinced or in contact

with door springs or other dishwasher compo-

nents

TIP: Check tub insulation blanket, if equipped. It

should be positioned so it is not bunched up or

interfering with door springs. Check by opening

and closing the door.

• Push dishwasher into cabinet. The front cor-

ners of the dishwasher door should be flush

with cabinet doors. Be careful not to dent front

panels with knees or damage countertop or

cabinets with dishwasher parts.

[STEP 9 LEVEL DISHWASHER

IMPORTANT - Dishwasher

must be level for proper dish rack operation and

wash performance.

• Place level on door

and rack track

inside the tub as

shown to check

that the dishwasher

is level.

Figure Q

Level the dish-

washer by adjusting

the four leveling

legs individually.

IT G not

n door to

Llled

tub.

Installation Instructions

[STEP 10 ]SECURE DISHWASHER

TO COUNTERTOP OR CABINET

In this step you will need the 2 Phillips special

head screws set aside prior to Step 1. The

dishwasher must be secured to the countertop or

the cabinet sides. When countertops are mad of

wood, use Method 1. When countertops are

granite or other materials that will not accept

screws, use Method 2 tos secure dishwsher at the

sides.

Figure S-2

Figure S-1

IMPORTANT : Drive Screws straight and flush.

Protruding screw heads will scratch the top or

sides of the control panel and can interfere with

door closing.

Method 1 : Secure dishwasher to Wood

Countertop.

• Fasten the dishwasher to the underside of the

countertop with the 2 Phillips special head

screws provided.

Method 2" Securew dishwasher with side-mount-

ing brackets.

• Remove plug buttons (one on each side).

• Install screws through the dishwasher side

mount bracket and into the adjacent cabinet on

each side. Reinstall plug buttons.

When step is complete, close dishwasher door

and verify that gap between countertop and top of

dishwasher door is at least 1/2".

STEP 11 CONNECT WATER

SUPPLY

Connect water supply to 90 ° elbow.

• Slide compression nut, then ferrule over end of

water line.

• Insert water line into 90 ° elbow.

• Slide ferrule against elbow and secure with

compression nut.

IMPORTANT- Check to be

.£1Jrp.thRt dnnr .£nrinn.£ dnp..£ nnt nJh nr cnntact the

ing and

)ing

Installation Instructions

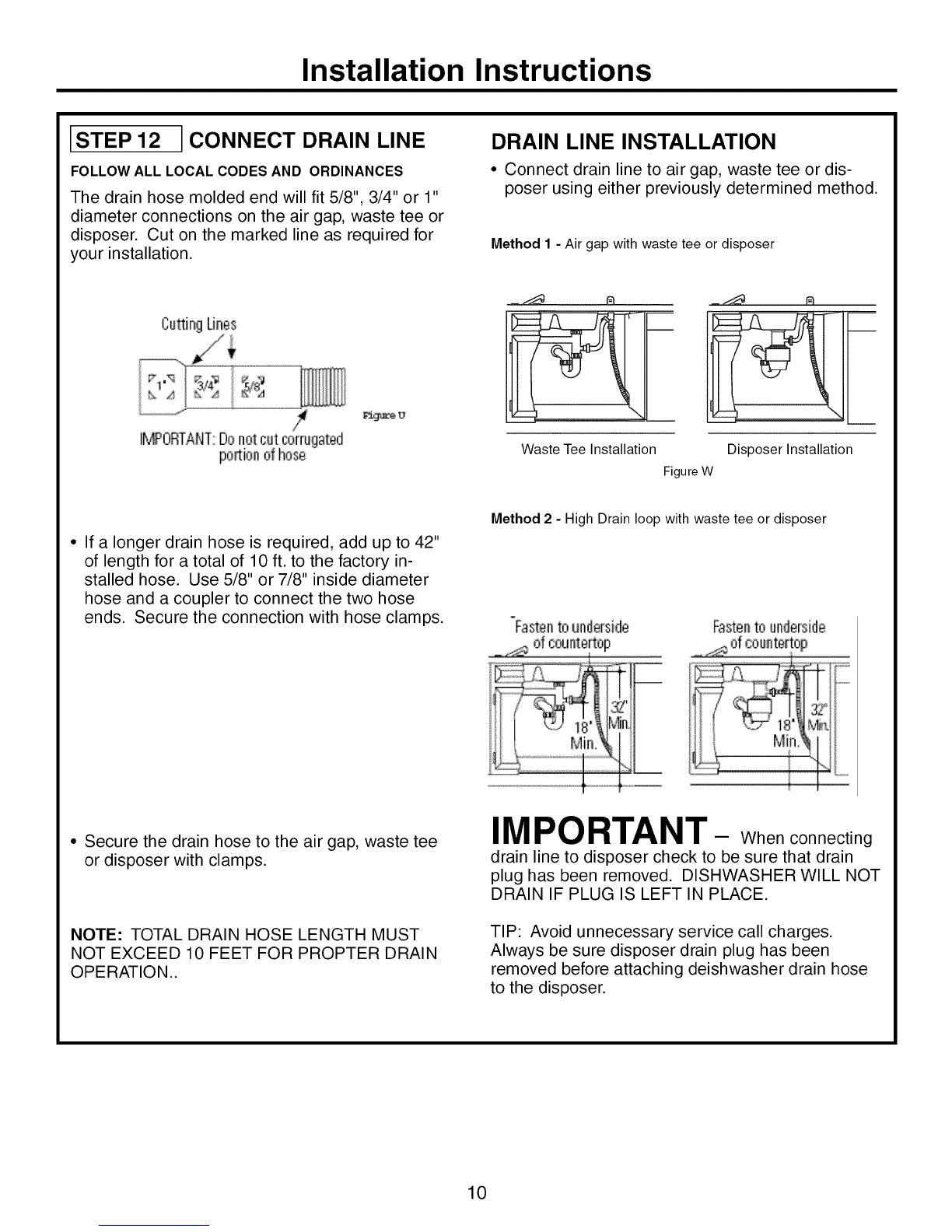

STEP 12 CONNECT DRAIN LINE

FOLLOW ALL LOCAL CODES AND ORDINANCES

The drain hose molded end will fit 5/8", 3/4" or 1"

diameter connections on the air gap, waste tee or

disposer. Cut on the marked line as required for

your installation.

DRAIN LINE INSTALLATION

• Connect drain line to air gap, waste tee or dis-

poser using either previously determined method.

Method 1-Air gap with waste tee or disposer

CuttingLines

iMPORTANT:De,notcut corrugated

pe_ienofhose

___ ra __ r_

Waste Tee Installation Disposer Installation

Figure W

• If a longer drain hose is required, add up to 42"

of length for a total of 10 ft. to the factory in-

stalled hose. Use 5/8" or 7/8" inside diameter

hose and a coupler to connect the two hose

ends. Secure the connection with hose clamps.

Method 2 - High Drain loop with waste tee or disposer

-Fasteatounderside

• Secure the drain hose to the air gap, waste tee

or disposer with clamps.

NOTE: TOTAL DRAIN HOSE LENGTH MUST

NOT EXCEED 10 FEET FOR PROPTER DRAIN

OPERATION..

IMPORTANT- When connecting

drain line to disposer check to be sure that drain

plug has been removed. DISHWASHER WILL NOT

DRAIN IF PLUG IS LEFT IN PLACE.

TIP: Avoid unnecessary service call charges.

Always be sure disposer drain plug has been

removed before attaching deishwasher drain hose

to the disposer.

Altri manuali per EIDW1805KS0A

Indice

Altri manuali Electrolux Lavastoviglie

Electrolux

Electrolux ESI5525LAX Manuale utente

Electrolux

Electrolux ESI6180X Manuale utente

Electrolux

Electrolux ESF 2420 Manuale utente

Electrolux

Electrolux EDW 1001 Manuale utente

Electrolux

Electrolux FAVORIT 99020 I Manuale utente

Electrolux

Electrolux ESF 620 Guida

Electrolux

Electrolux ESF2210DW Manuale utente

Electrolux

Electrolux EEA17200L Manuale utente

Electrolux

Electrolux ESF 6248 Manuale operativo

Electrolux

Electrolux ESI 67050 Manuale utente

Electrolux

Electrolux TT 893 Manuale utente

Electrolux

Electrolux ESI 9112 Manuale utente

Electrolux

Electrolux ESF 4101 Manuale utente

Electrolux

Electrolux ESL 6370RO Manuale utente

Electrolux

Electrolux EI24ID30QS Manuale utente

Electrolux

Electrolux EDW5505EPS - ICON - Dishwasher Manuale utente

Electrolux

Electrolux ESF6121 Manuale utente

Electrolux

Electrolux ESF 6162 Manuale utente

Electrolux

Electrolux EDW7505HPS Manuale utente

Electrolux

Electrolux ESL 67010 Manuale utente

Electrolux

Electrolux NHT8 Manuale utente

Electrolux

Electrolux ESI 4120 Manuale utente

Electrolux

Electrolux ESL 414 Manuale utente

Electrolux

Electrolux 587.15362102C Manuale

Manuali Lavastoviglie popolari di altre marche

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Siemens

Siemens SN 56N591 Manuale utente
