Safety information 5

Product description 7

Control panel 8

First use 11

Daily use 15

Washing programmes 25

Care and cleaning 26

Something not working 28

Technical data 31

Hints for test institutes 33

Installation 34

Environment concerns 38

Guarantee/Customer Service 39

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117985 59/0en 16-05-2007 14:37 Pagina 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mista es and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and ma e sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

Safety information

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

●Under no circumstances should

you attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons will cause

in ury or serious malfunctioning.

Contact your local Service Force

Centre. Always insist on genuine

spare parts.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent

residues may still be present in

your machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

117985 59/0en 16-05-2007 14:37 Pagina 5

6electrolux safety information

Child safety

●This appliance is designed to be

operated by adults. Don’t allow

children to use the dishwasher

unsupervised.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

117985 59/0en 16-05-2007 14:37 Pagina 6

product description electrolux 7

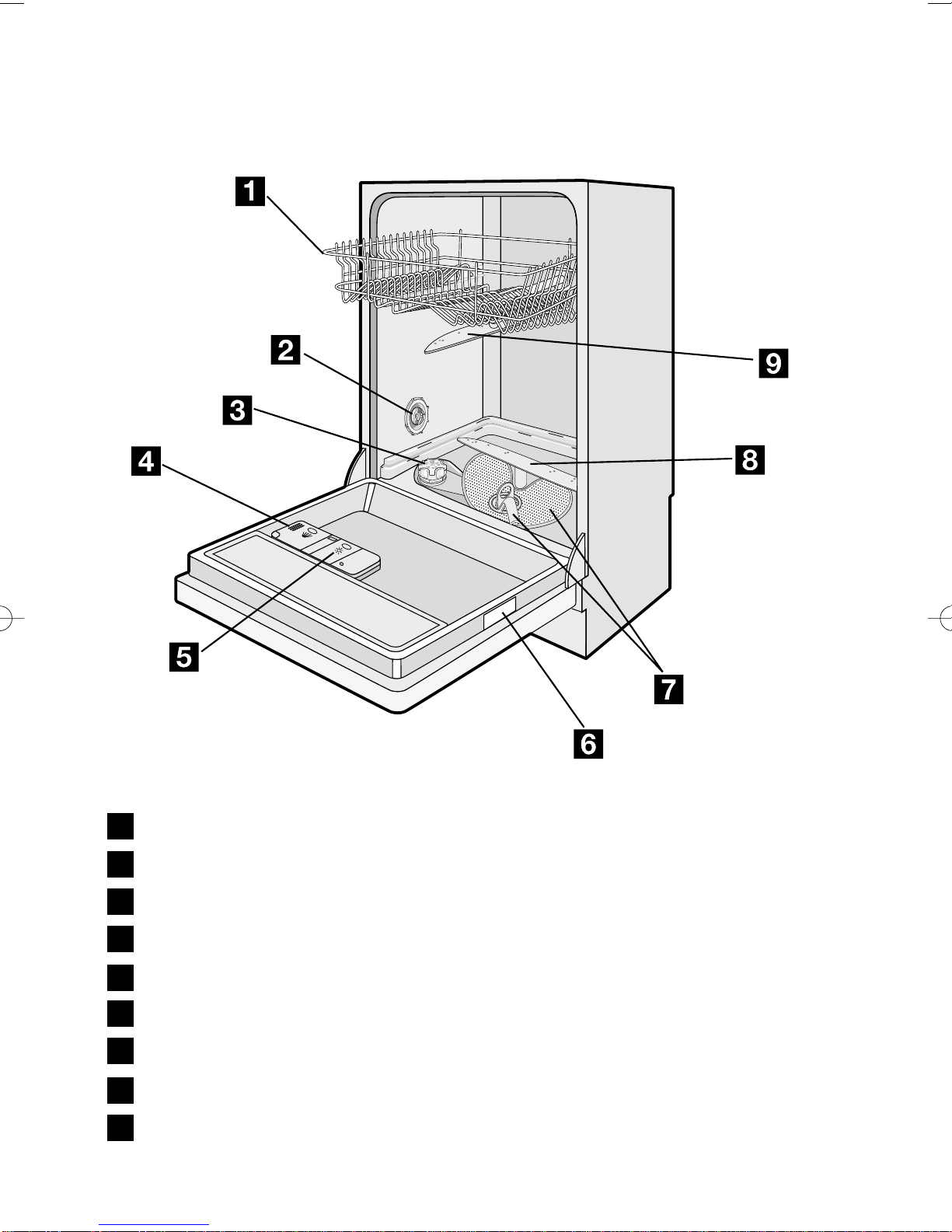

Product description

Upper basket

Water hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

117985 59/0en 16-05-2007 14:37 Pagina 7

8electrolux control panel

Control panel

On/Off button

Programme selection buttons

Delay start button

Indicator lights

End of programme Illuminates when a washing programme has

ended. It also has added functions of visual

signalling as:

- the setting of the water softener,

- activation/deactivation of the audible signals,

- activation/deactivation of the rinse aid

dispenser,

- intervention of an alarm due to the

malfunction of the machine.

Multi-tab function Indicates the activation/deactivation of the

"Multi-tab function" (see "Multi-tab function").

Salt Illuminates when the special salt has run out.

117985 59/0en 16-05-2007 14:37 Pagina 8

control panel electrolux 9

Always remember that when:

- setting the water softener,

- activating/deactivating the audible

signals,

- activating/deactivating the rinse aid

dispenser,

the appliance MUST be in setting

mode.

To cancel a set programme or a

programme in progress

Simultaneously press and hold the

two programme buttons positioned

over the word Cancel, until all the

programme button lights will

illuminate.

The programme has been cancelled

and the machine is now in setting

mode.

Setting mode

●Press On/Off button, ALL

programme button lights are

illuminated = appliance in setting

mode.

●Press On/Off button, ONLY a

programme button light is

illuminated = last performed or

selected programme still set.

In this case, to return to setting

mode, the programme has to be

cancelled.

117985 59/0en 16-05-2007 14:37 Pagina 9

10 electrolux control panel

Audible signals

Audible signals have been introduced

to help indicate which operations the

dishwasher is performing:

-setting of the water softener

-end of programme

-intervention of an alarm due to

malfunction

It is possible to deactvate the audible

signals, using some of the programme

buttons on the control panel.

Factory setting: audible signals

activated

4. To deactivate the audible signals,

press again button 3, the end of

programme indicator light turns

off, indicating that the audible

signals have been deactivated.

5. To memorise the operation, switch

off the dishwasher by pressing the

On/Off button.

To activate again the audible signals

simply follow the above operations

until the end of programme indicator

light illuminates.

Deactivation/activation of the

audible signals

1. Press the On/Off button. The

dishwasher must be in setting

mode.

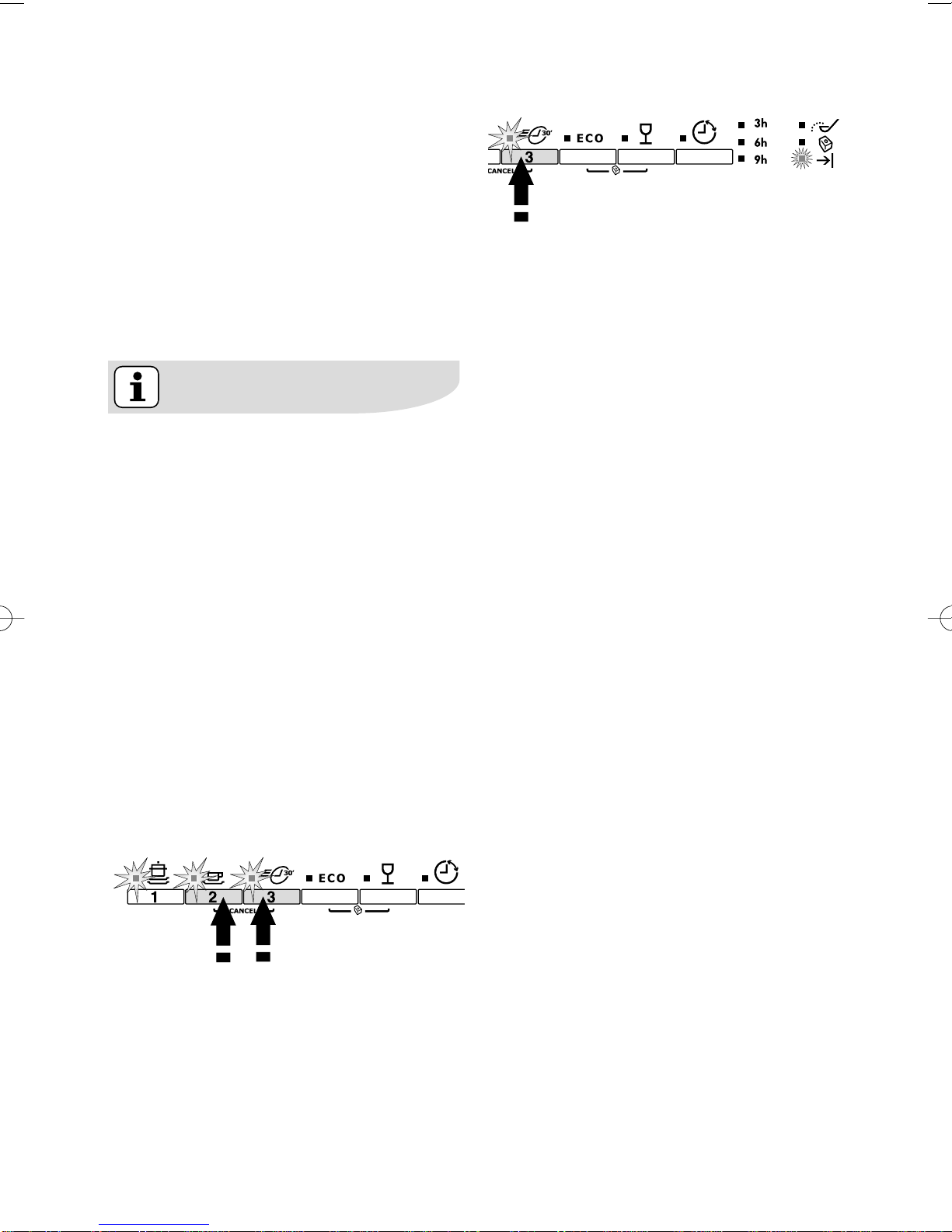

2. Simultaneously press and hold

buttons 2 and 3 until the lights of

the buttons 1, 2 and 3 start

flashing.

3. Press button 3, the lights of

buttons 1 and 2 turn off while the

light of button 3 goes on flashing.

At the same time the end of

programme indicator light

illuminates indicating that the

audible signals are active.

117985 59/0en 16-05-2007 14:37 Pagina 10
