CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 5

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES ................................................................................................ 6

6. DAILY USE.........................................................................................................8

7. HINTS AND TIPS............................................................................................. 11

8. CARE AND CLEANING....................................................................................12

9. TROUBLESHOOTING......................................................................................13

10. INSTALLATION.............................................................................................. 16

11. TECHNICAL INFORMATION......................................................................... 18

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.3 (0.03) / 10 (1) bar

(Mpa)

•Obey the maximum number of 6 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put knives and cutlery with sharp points in the cutlery

basket with the points down or in a horizontal position.

•Do not keep the appliance door open without

supervision to prevent to fall on it.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•The ventilation openings in the base (if applicable)

must not be obstructed by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

ENGLISH 3

1.2 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Cleaning and user maintenance shall not be made by

children without supervision.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Obey the installation instruction

supplied with the appliance.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

• Do not move the appliance without

disconnecting it from the electrical

supply.

• The appliance must be installed in a

cabinet.

• Do not use the appliance without a

wooden panel, assembled on the

door.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• Only for UK and Ireland. The

appliance has a 13 amp mains plug. If

it is necessary to change the fuse in

the mains plug, use fuse: 13 amp

ASTA (BS 1362).

2.3 Water connection

• Make sure not to cause damage to

the water hoses.

www.electrolux.com4

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

• If the water inlet hose is damaged,

immediately disconnect the mains

plug from the mains socket. Contact

the Authorised Service Centre to

replace the water inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

completed. There can be detergent on

the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

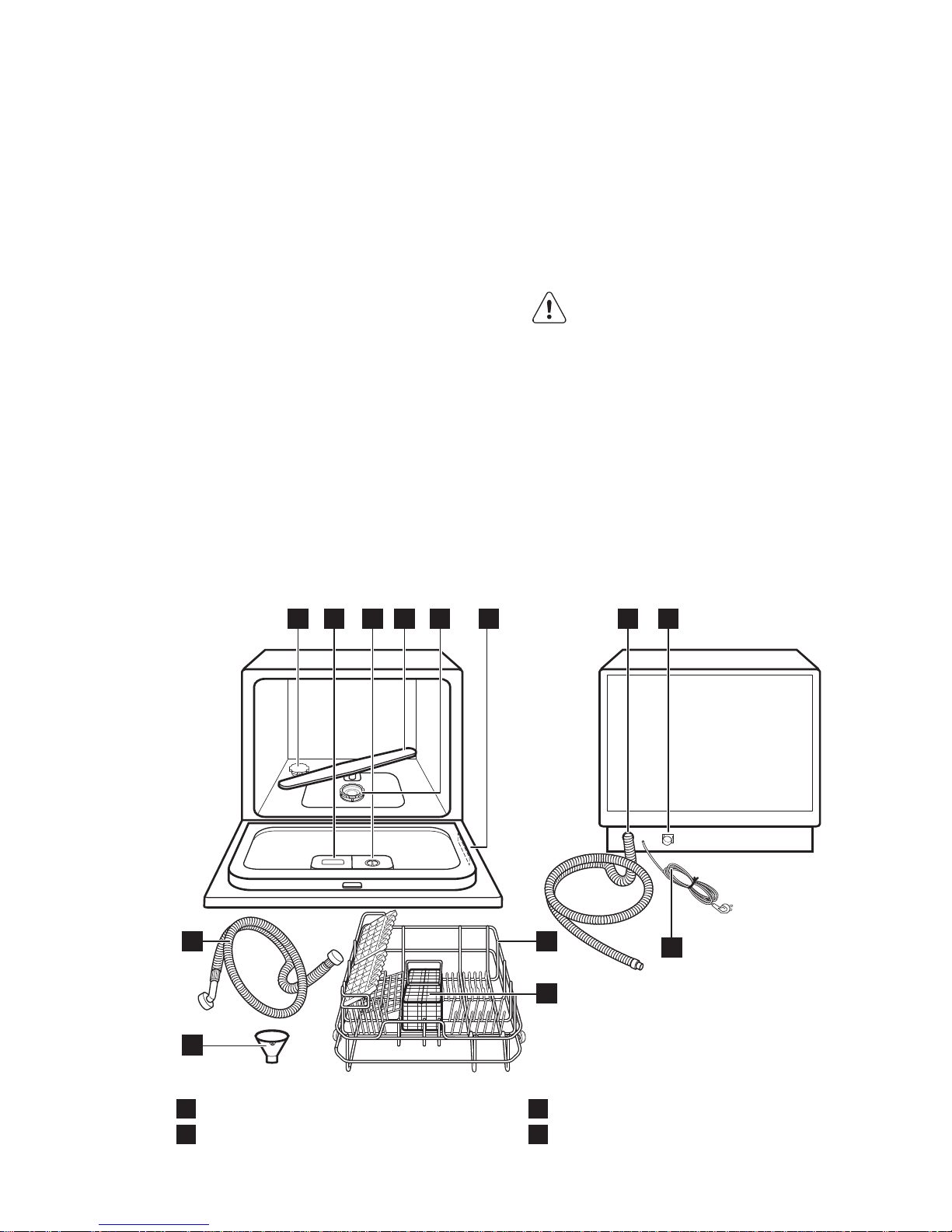

1 2 5 63

1Salt container

2Detergent dispenser

3Rinse aid dispenser

4Spray arm

ENGLISH 5

5Filters

6Rating plate

7Drain hose

8Inlet hose connection

9Mains cable

10 Basket

11 Cutlery basket

12 Inlet hose

13 Funnel

4. CONTROL PANEL

1 2 43 85 6 7

1On/off button and indicator

2Salt indicator

3Rinse aid indicator

4Delay Start

5Delay Start indicator

6Display

7Programmes indicators

8Programmes

5. PROGRAMMES

5.1 Programmes

Pro‐

gramme Degree

of soiling

Type of

load

Phases in

the cycle Detergent

pre-wash /

main wash

Dura‐

tion

(min)

Ener‐

(kWh)

Water

(l) Rinse aid

Intensive

Heavy ,

dried-on

soiling

Pans,

pots, cas‐

serole

dishes

• Pre-

wash

50°C

• Wash

70 °C

• Rinse

70 °C

• Drying

3g / 15g 145 0.94 11 YES

Normal

soiling

Pots,

plates,

glasses,

pans

• Pre-

wash

• Wash

60 °C

• Rinse

70 °C

• Drying

3g / 15g 125 0.70 8.4 YES

www.electrolux.com6

Pro‐

gramme Degree

of soiling

Type of

load

Phases in

the cycle Detergent

pre-wash /

main wash

Dura‐

tion

(min)

Ener‐

(kWh)

Water

(l) Rinse aid

Eco

EN 50242

Normal

soiling

Crockery,

cutlery

• Pre-

wash

• Wash

50 °C

• Rinse

70 °C

• Drying

3g / 15g 170 0.61 7.0 YES

Glass

Normal or

light soil‐

ing

Glasses,

crystal,

fine china

• Wash

45 °C

• Rinse

60 °C

• Drying

15g 75 0.48 6.8 YES

Party

Fresh

soiling

Coffee

cup,

glasses

• Wash

45 °C

• Rinse

40 °C

5g 20 0.30 7.0

Quick

Plus

Light soil‐

ing

All

• Wash

40 °C

• Rinse

15g 30 0.30 6.0

5.2 Setting and starting a

programme

Starting a programme

Open the water tap.

1. Open the appliance door.

2. Press the on/off button to activate the

appliance.

The on/off indicator comes on.

3. To set a programme, press

Programmes until the indicator of the

selected programme comes on.

4. Close the door.

Programme starts automatically after 10

seconds.

Starting a programme with

Delay Start

1. Open the water tap.

2. Press the on/off button to activate the

appliance.

The on/off indicator comes on.

3. Set a programme.

4. Press Delay Start to delay start of a

programme by up to 24 hours.

The pre-wash indicator comes on.

5. Close the door to start the

countdown.

When the countdown is completed, the

programme starts automatically.

Cancelling Delay Start

1. Press Start / Pause.

2. Press Delay Start until 0 comes on.

3. Press Start / Pause. The programme

starts automatically.

Interrupting a programme

1. Open the appliance door.

The appliance stops.

ENGLISH 7

2. Close the appliance door.

The programme continues from the point

of interruption.

Cancelling a programme

Press and hold Programmes for about 3

seconds to cancel the programme.

Make sure that there is

detergent in the detergent

dispenser before you start a

new programme.

End of a programme

When a programme is completed, an

intermittent acoustic signal sounds for

approximately 8 seconds.

1. Press the on/off button to deactivate

the appliance.

2. Close the water tap.

• Let the dishes become

cold before you remove

them from the appliance.

Hot dishes can be easily

damaged.

• There can be water on

the sides and on the door

of the appliance.

Stainless steel becomes

cool more quickly than

the dishes.

6. DAILY USE

6.1 Use of the appliance

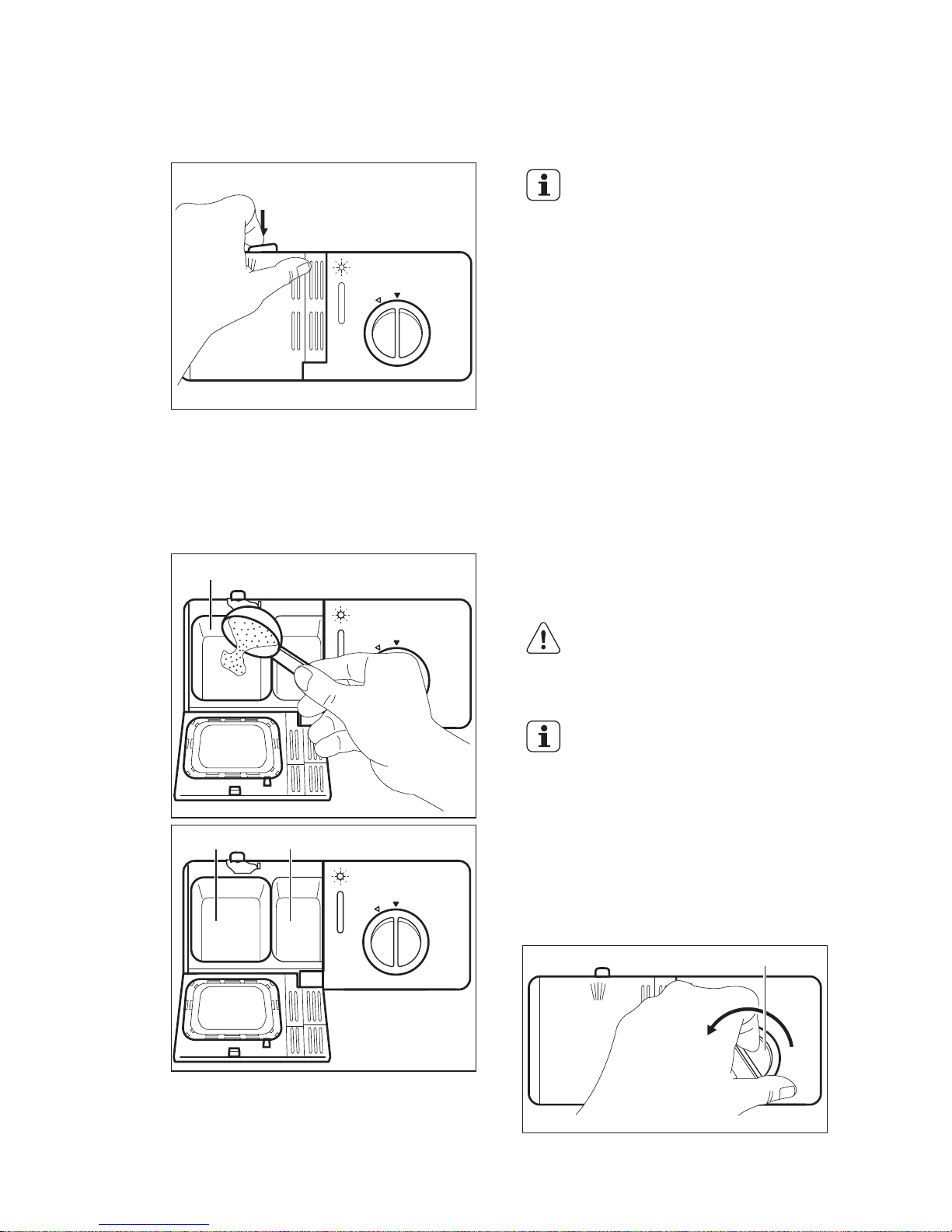

1. Fill the salt container with salt for

dishwashers.

2. Fill the rinse aid dispenser with rinse

aid.

3. Load the basket.

4. Open the water tap.

5. Set the correct programme for the

type of load and the degree of soil.

6. Add the detergent.

7. Start the programme.

6.2 Use of dishwasher salt

Hard water contains a high quantity of

minerals that can cause damage to the

appliance and bad washing results. The

water softener neutralises these

minerals.

Contact your local water authority for

information about the hardness of the

water in your area.

CAUTION!

Only use salt specifically

designed for dishwashers.

Other types of salt will cause

damage to the appliance.

Filling the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (Only for the first time).

3. Use the funnel to fill the salt

container with dishwasher salt.

4. Remove the salt around the opening

of the salt container.

5. Turn the cap of the salt container

clockwise to close the salt container.

www.electrolux.com8

Water and salt can come out

from the salt container when

you fill it which poses a risk

of corrosion. To prevent it,

start a programme

immediately after filling the

salt container.

Refill the salt container when

salt indicator on the display

comes on.

The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

To change the water softener setting:

1. Open the door

2. Press and hold Programme for 5

seconds . Current water softener

level appears.

3. Press Programme to set the

necessary water softener level

4. Do not change the setting for 5

seconds to confirm the choice.

Water hardness

Water hardness Water softener level

German degrees (°dH) International unit

(mmol/l)

0 - 5 0.0 - 0.9 H1

6 - 11 1.0 - 2.0 H2

12 - 17 2.1 - 3.0 H3

18 - 22 3.1 - 4.0 H4

23 - 34 4.1 - 6.1 H5

35 - 45 6.2 - 8.0 H61)

1) Factory setting.

If you use standard detergent, set a

proper water hardness level to keep

the salt refill indicator active.

6.3 Use of detergent

CAUTION!

Use only detergents for

dishwashers.

To help the environment, do

not use more than the

recommended quantity of

detergent given by the

detergent manufacturer.

Refill the detergent

dispenser before each wash

cycle.

ENGLISH 9

Filling the detergent dispenser

1. Press the release button to open the

lid of the detergent dispenser.

2. Put the detergent (approximately 15

g) in the compartment (C). The

compartment has 2 parts (D) and (E)

that refer to different quantities of

detergent (15 g and 25 g). Put

detergent tablets in part (E) of the

compartment.

D E

3. Close the detergent dispenser. Press

the lid until the release button locks

into position.

4. If the programme has a prewash

phase, put a small quantity of

detergent (approximately 3 g) on the

lid of the detergent dispenser.

Detergent tablets do not fully

dissolve with short

programmes and detergent

residues can remain on the

dishes when the programme

is completed.

We recommend that you use

detergent tablets with long

programmes.

6.4 Using again separately

detergent, salt and rinse aid

1. Fill the salt container and the rinse

aid dispenser.

2. Start a programme without loading

dishes.

3. When the programme is completed,

adjust the position of the rinse aid

dispenser.

6.5 Use of rinse aid

CAUTION!

Only use rinse aid

specifically designed for

dishwashers.

Rinse aid helps to dry the

dishes without streaks and

stains.

The rinse aid is

automatically released

during the last rinsing phase.

Filling the rinse aid dispenser

1. Turn the cap (A) counterclockwise

and remove it.

www.electrolux.com10

Indice

Lingue:

Altri manuali Electrolux Lavastoviglie

Electrolux

Electrolux ESF 63025 Manuale utente

Electrolux

Electrolux EES69310L Manuale utente

Electrolux

Electrolux ESF 64010 Manuale utente

Electrolux

Electrolux ESL7845RA Manuale utente

Electrolux

Electrolux ESL 47020 Manuale utente

Electrolux

Electrolux FAVORIT 50875 Manuale utente

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Guida utente

Electrolux

Electrolux ESL 4115 Manuale utente

Electrolux

Electrolux ESI 67050 Manuale utente

Electrolux

Electrolux ESL 679 Manuale utente

Electrolux

Electrolux ARTHUR MARTIN ASL67050 Manuale utente

Electrolux

Electrolux EDW 1600 Manuale utente

Electrolux

Electrolux ESF9516LOX Manuale utente

Electrolux

Electrolux ESS42220SW Manuale utente

Electrolux

Electrolux Zanussi DX 6452 Manuale utente

Electrolux

Electrolux ESF5511LOX Manuale utente

Electrolux

Electrolux ESF2300 Manuale utente

Electrolux

Electrolux ESI 6105 Manuale utente

Electrolux

Electrolux ICON EDW5500DSS0 Manuale utente

Electrolux

Electrolux GA55LIWE Manuale utente

Electrolux

Electrolux GA60GLVS Manuale utente

Electrolux

Electrolux 506033 Manuale utente

Electrolux

Electrolux ESL5391 Manuale utente

Electrolux

Electrolux ESL 6225 Manuale utente

Manuali Lavastoviglie popolari di altre marche

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Siemens

Siemens SN 56N591 Manuale utente
