ESL4201LO
EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 5
4. CONTROL PANEL............................................................................................. 6
5. PROGRAMMES................................................................................................. 6
6. SETTINGS..........................................................................................................7
7. BEFORE FIRST USE....................................................................................... 10
8. DAILY USE....................................................................................................... 11
9. HINTS AND TIPS............................................................................................. 12
10. CARE AND CLEANING..................................................................................14
11. TROUBLESHOOTING....................................................................................15
12. TECHNICAL INFORMATION......................................................................... 19
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 9 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
ENGLISH 3
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
www.electrolux.com4
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
ENGLISH 5
9Cutlery basket
10 Lower basket
11 Upper basket
4. CONTROL PANEL
21
3
4
1On/off button
2Programme indicators
3Indicators
4Programme button
4.1 Indicators
Indicator Description
End indicator.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme
phases
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
225 0.778 9.9
Heavy soil
Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
160 - 168 1.1 - 1.3 13-14
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
130 - 140 1.0 - 1.2 14-15
www.electrolux.com6
Programme Degree of soil
Type of load
Programme
phases
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
3) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.7 8
4) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
4) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance. Do not use detergent with
this programme.
5.1 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of
the acoustic signal for end of
programme.
• The activation or the deactivation of
AirDry
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
is blinking.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold the programme button
until the appliance is in programme
selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
ENGLISH 7
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold the programme button until the
indicator flashes and the
indicator and are on.
2. Wait until the indicators and
are off and the indicator flashes.
The indicator still flashes.
The intermittent flashing of the
indicator shows the current
setting.
• e.g. 5 flashes + pause + 5 flashes
= level 5.
3. Press programme button repeatedly
to change the setting. Each pressing
of the programme button increases
the level number. After reaching level
10, the count starts again from level
1.
4. Press the on/off button to confirm the
setting.
6.3 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
www.electrolux.com8
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold the programme button until the
indicator flashes and
indicators and are on.
2. Press the programme button
immediately.
• The indicator and are
on.
• The indicator flashes.
3. Wait until the indicator and
are off. The indicator still
flashes.
• The indicator shows the
current setting: off = Acoustic
signal off.
4. Press the programme button to
change the setting.
• on = Acoustic signal on.
5. Press on/off confirm the setting.
6.4 AirDry
AirDry improves the drying results with
less energy consumption.
While the drying phase
operates, a device opens the
appliance door. The door is
then kept ajar.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic
open. This can cause
damage to the appliance.
AirDry is automatically activated with all
programmes excluding and
(if applicable).
CAUTION!
If children have access to
the appliance, it is advised to
deactivate AirDry as opening
the door may pose a danger.
How to deactivate AirDry
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold the programme button until the
indicator flashes and
indicators and are on.
2. Press the programme button twice.
• The indicator and
are on.
• The indicator flashes.
3. Wait until the indicator and
are off. The indicator still
flashes.
• The indicator shows the
current setting: off = AirDry is
deactivated.
4. Press the programme button to
change the setting.
• on =AirDryis activated .
5. Press on/off to confirm the setting.
ENGLISH 9
7. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
After starting a programme, it may take
up to 5 minutes for the appliance to
recharge the resin in the water softener.
It seems that the appliance is not
working. The washing phase starts only
after this procedure is completed. The
procedure is repeated periodically.

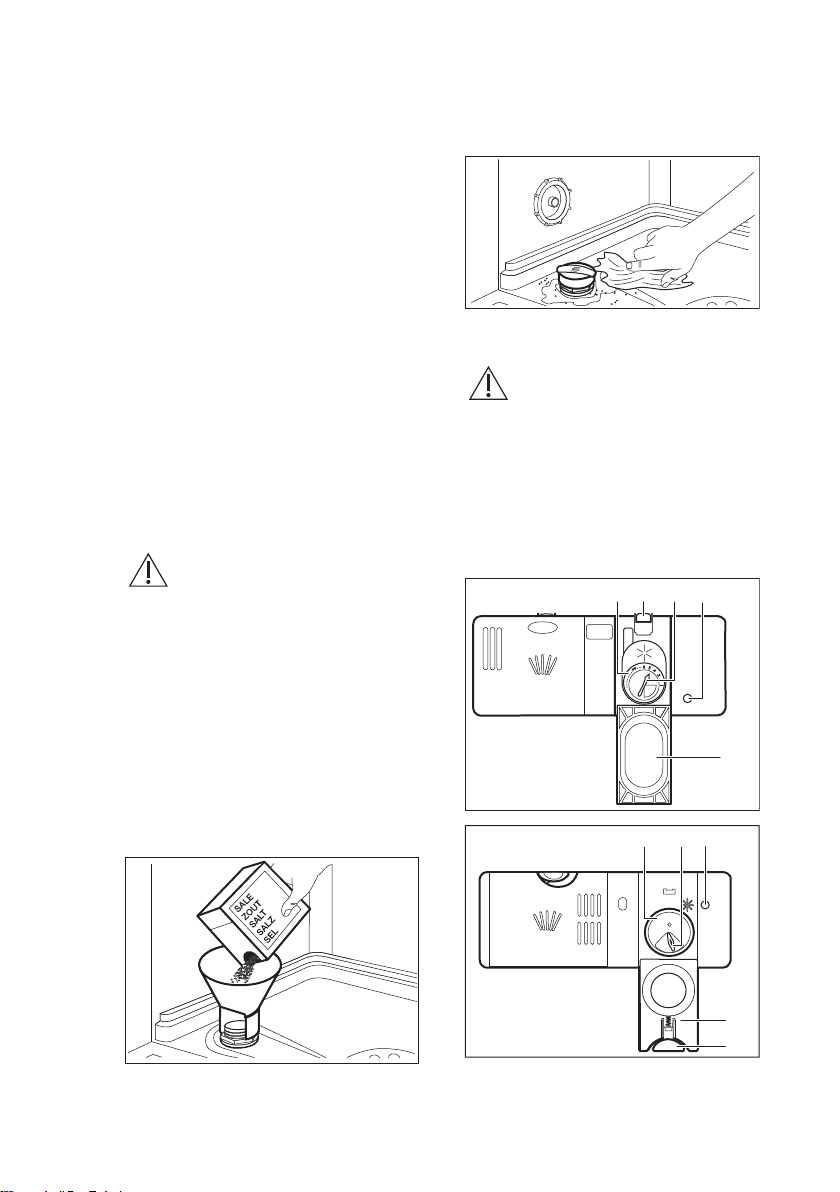

7.1 The salt container
CAUTION!
Only use salt specifically
designed for dishwashers.
The salt is used to recharge the resin in
the water softener and to assure good
washing results in the daily use.
How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt
container (Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening
of the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
CAUTION!
Water and salt can come out
of the salt container when
you fill it. After you fill the
salt container, immediately
start a programme to
prevent corrosion.
7.2 How to fill the rinse aid
dispenser
ABE
D
C
M
A
X
1
2
3
4
+
-
AB
D
C
E
www.electrolux.com10
Indice
Altri manuali Electrolux Lavastoviglie
Electrolux
Electrolux ESF 66010 Manuale utente
Electrolux
Electrolux ESC67300SX Manuale utente
Electrolux
Electrolux ESF5542LOW Manuale utente
Electrolux
Electrolux ESF5206LOW Manuale utente
Electrolux
Electrolux EEQ47310L Manuale utente
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuale utente
Electrolux
Electrolux DFB09JFCWD Manuale utente
Electrolux
Electrolux ESF4520LOW Manuale utente
Electrolux
Electrolux ESF47000 Manuale utente
Electrolux
Electrolux ESF 66814 Manuale utente
Electrolux
Electrolux ESF 63012 Manuale utente
Electrolux
Electrolux ESF 4120 Manuale utente
Electrolux
Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Manuale utente
Electrolux
Electrolux EDW 1000 Manuale utente
Electrolux
Electrolux ESL 6370RO Manuale utente
Electrolux
Electrolux 587.15362102C Manuale
Electrolux
Electrolux 534116 Manuale utente
Electrolux
Electrolux ESA42110SX Manuale utente
Electrolux
Electrolux 1000 Series Manuale utente
Electrolux
Electrolux esl 830ro Manuale utente
