Electrolux ESL4510LO Manuale utente
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES................................................................................................. 7
6. SETTINGS..........................................................................................................8
7. OPTIONS..........................................................................................................11
8. BEFORE FIRST USE....................................................................................... 12
9. DAILY USE....................................................................................................... 13
10. HINTS AND TIPS........................................................................................... 15
11. CARE AND CLEANING..................................................................................17
12. TROUBLESHOOTING....................................................................................18
13. TECHNICAL INFORMATION......................................................................... 22
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 9 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS
1362) fuse.
www.electrolux.com4
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5
3. PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• When the programme starts, a red
light comes on and stays on for the
duration of the programme.
• When the programme is completed, a
green light comes on.
• When the appliance has a
malfunction, the red light flashes.
The Beam-on-Floor is off
when the appliance is
deactivated.
When AirDry is activated
during the drying phase, the
projection on the floor may
not be completely visible. To
see if the cycle has ended,
check the control panel.
www.electrolux.com6
4. CONTROL PANEL
123456789
1On/off button
2Display
3Delay button
4Program button
5MyFavourite button
6TimeManager button
7XtraDry button
8Reset button
9Indicators
4.1 Indicators
Indicator Description
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• TimeManager
• XtraDry
P2
2)
• All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
• XtraDry
P3 • Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeManager
• XtraDry
P4
3)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C or 65 °C
• Rinses
• XtraDry
ENGLISH 7
Programme Degree of soil
Type of load
Programme phases Options
P5
4)
• All • Prewash
1) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 9.9 0.778 245
P2 6 - 12 0.5 - 1.2 40 - 150
P3 11 - 13 1.0 - 1.2 130 - 150
P4 8 0.6 - 0.8 30
P5 4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
5.2 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The level of water softener according
to the water hardness.
• Activation or deactivation of the
acoustic signal for the end of a
programme.
www.electrolux.com8
• Activation or deactivation of the rinse
aid empty notification.
• Activation or deactivation of AirDry.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
Press and hold Reset until the appliance
is in programme selection mode.
How to enter user mode
Make sure the appliance is in
programme selection mode.
To enter user mode, press and hold
simultaneously and until the
indicators , , and flash and
the display is blank.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
ENGLISH 9
How to set the water softener
level
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator still flashes.
• The display shows the current
setting: e.g. = level 5.
2. Press repeatedly to change the
setting.
3. Press the on/off button to confirm the
setting.
6.3 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If the drying results are
satisfactory while using multi-tablets only,
it is possible to deactivate the notification
for refilling rinse aid. However, for best
drying performance, always use rinse
aid.
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
empty notification
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator still flashes.
• The display shows the current
setting:
= the rinse aid empty
notification is activated (factory
setting).
2. Press to change the setting.
= the rinse aid empty notification is
deactivated.
3. Press on/off to confirm the setting.
6.4 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator still flashes.
• The display shows the current
setting:
– = Acoustic signal off.
– = Acoustic signal on.
2. Press to change the setting.
3. Press on/off to confirm the setting.

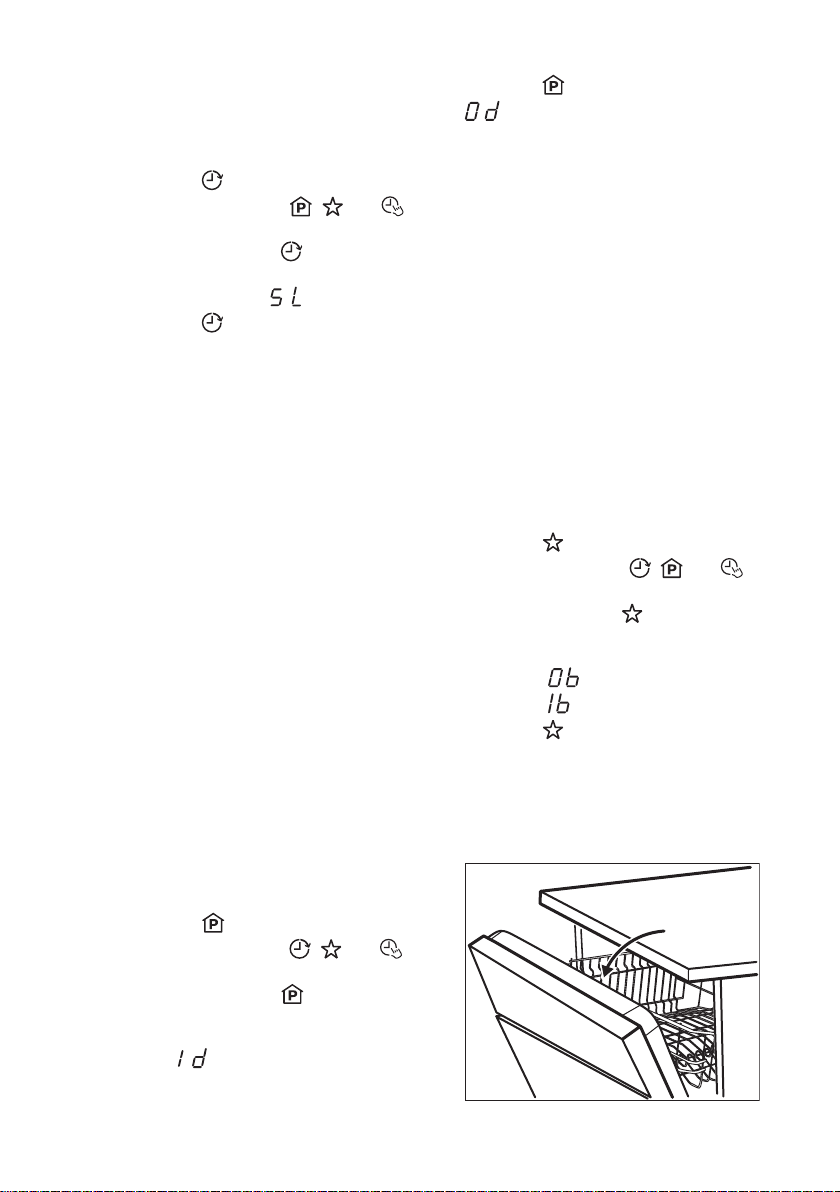

6.5 AirDry
AirDry improves the drying results with
less energy consumption.
www.electrolux.com10
Indice
Lingue:
Altri manuali Electrolux Lavastoviglie
Electrolux
Electrolux ESI66050 Manuale utente
Electrolux
Electrolux ZUCA1 Manuale utente
Electrolux
Electrolux GA60GXI202 Manuale utente
Electrolux
Electrolux EIDW1805KS Guida utente
Electrolux
Electrolux ESL 66010 Manuale utente
Electrolux
Electrolux ESF 6146 S-Visi Manuale utente
Electrolux
Electrolux EW24ID80QS Manuale utente
Electrolux
Electrolux EIDW6405HT - Fully Integrated Dishwasher Manuale utente
Electrolux
Electrolux ESS42200SW Manuale utente
Electrolux
Electrolux EUC40G1 Manuale utente
Electrolux
Electrolux ESF 6220 Manuale utente
Electrolux
Electrolux ESL67040R Manuale utente
Electrolux
Electrolux ESF 66860 Manuale utente
Electrolux
Electrolux GA60GLVC Manuale utente
Electrolux
Electrolux BW195 Istruzioni operative e di sicurezza
Electrolux
Electrolux 534186 Manuale utente
Electrolux
Electrolux EDW7505HPS0A Manuale utente
Electrolux
Electrolux GS 24 CH Manuale utente
Electrolux
Electrolux ESL 6115 Manuale utente
Electrolux
Electrolux DW 917 Manuale utente
